DSV2-100-4CO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Crossover Spool, C-10-4 Cavity, 3000psi, 6GPM

Save $3.77
Deltrol Fluid ProductsSKU: 10147-35
4-6 Weeks
Price:
$48.99 $52.76

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-4
Positions 2-Position
Way 4-Way
Country of Manufacture United States/Vietnam

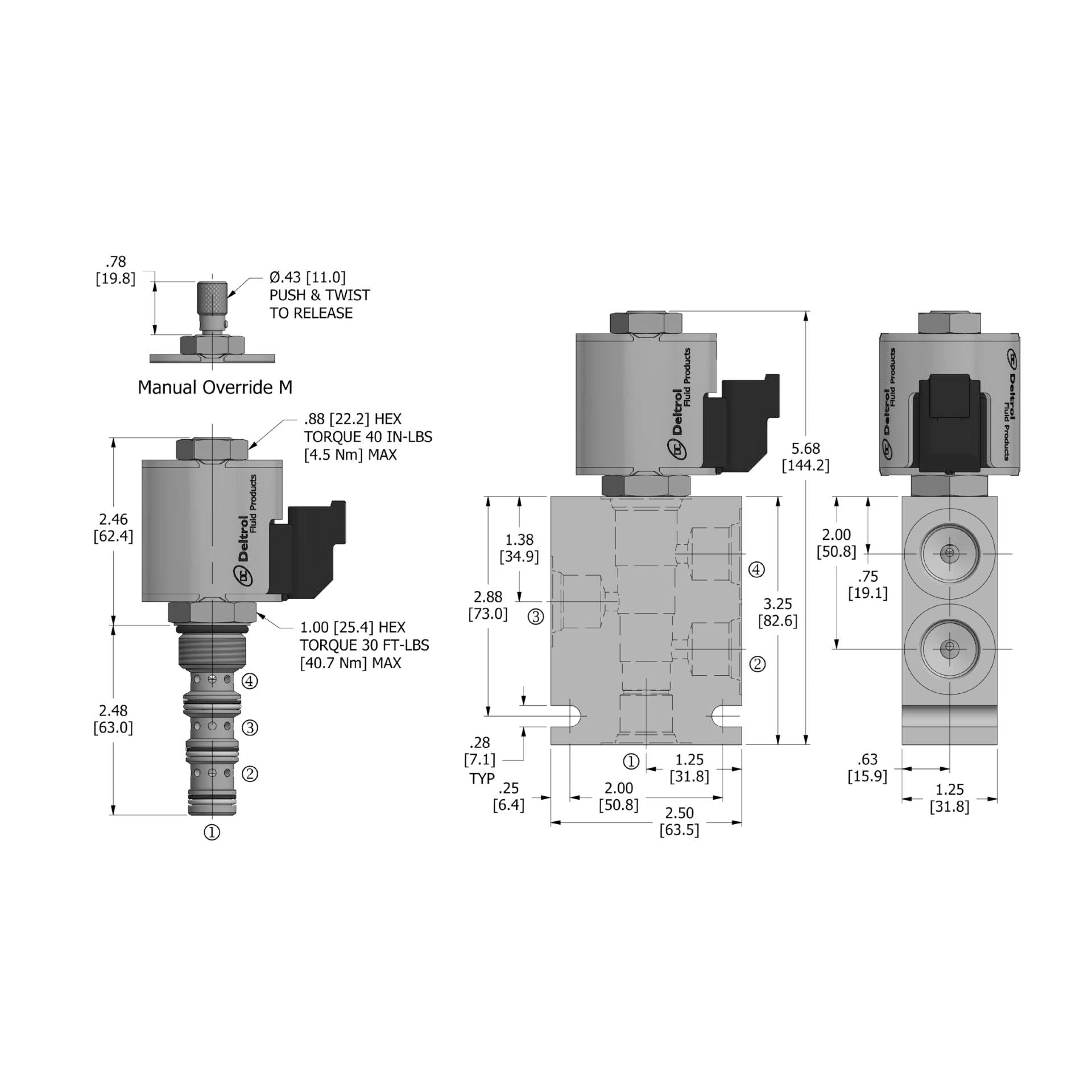

Height 2
Length 4.94
Width 2
Weight 2

Description

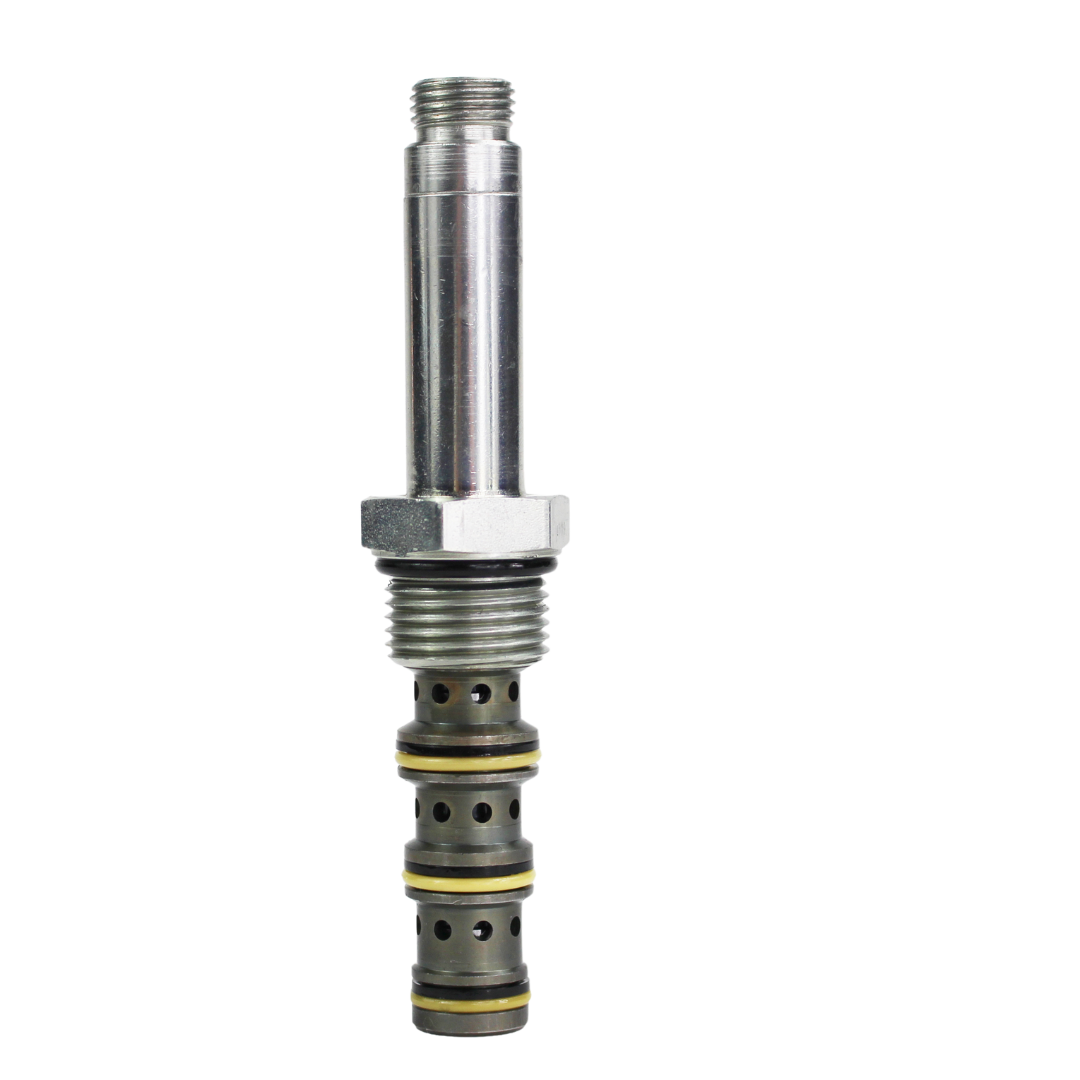

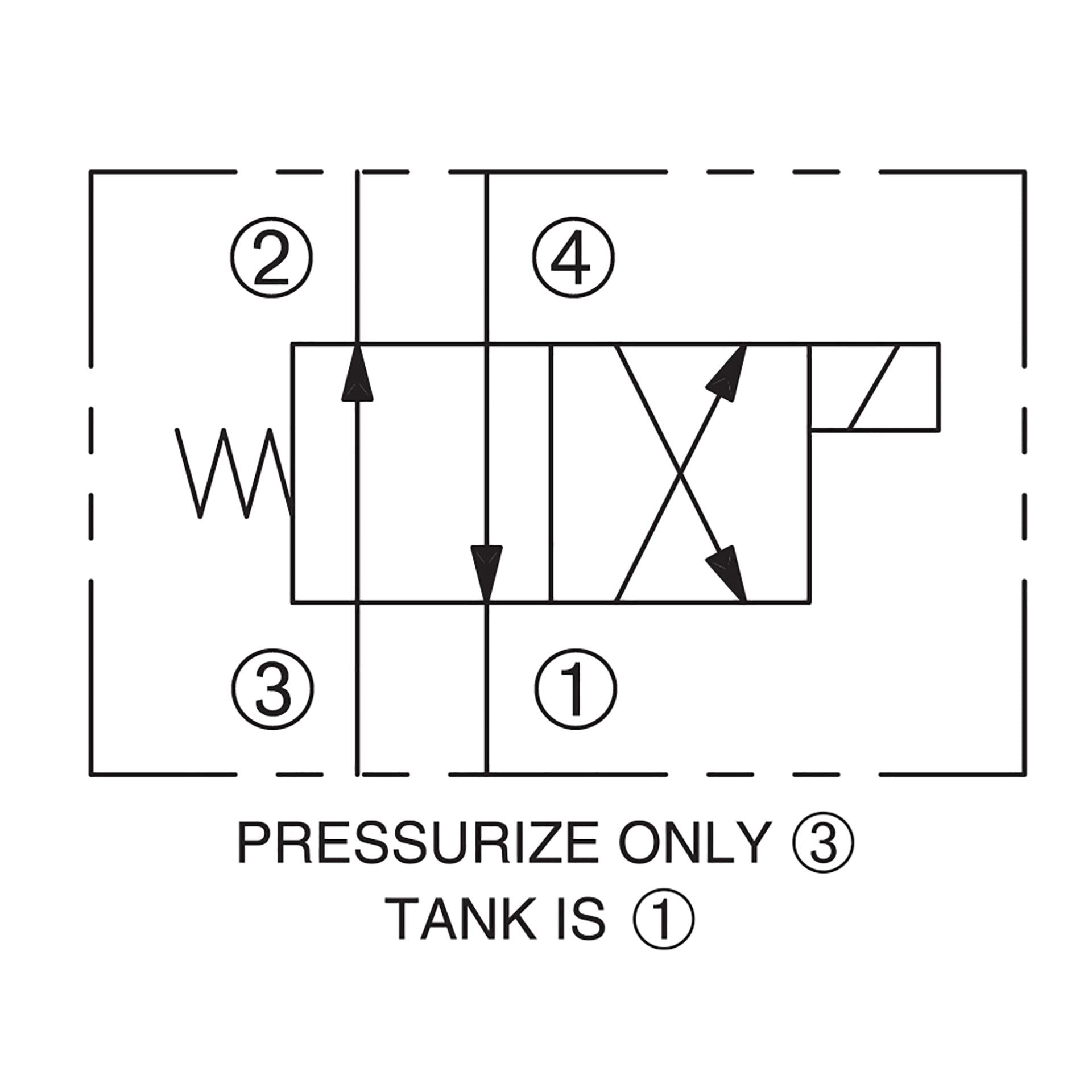

The Deltrol Fluid Products DSV2-100-4CO Solenoid Directional Four-Way, Two-Position Crossover Spool Cartridge Valve is a versatile hydraulic valve used for controlling flow in systems with double-acting cylinders or motors. By default, it allows fluid to flow from ports 3 to 2 and from 4 to 1. When energized, it shifts to permit flow between ports 3 and 4 and between 2 and 1. Featuring a robust design for pressures up to 3000 psi and a flow capacity of 6 gpm, this valve includes a manual override for easy operation. Its durable construction and efficient design make it ideal for demanding hydraulic applications.
