Deltrol Fluid ProductsSKU: 10147-33
4-6 Weeks
Price:
$66.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-3
Positions 2-Position
Way 3-Way
Country of Manufacture United States/Vietnam
Height 2
Length 4.28
Width 2
Weight 2

Description

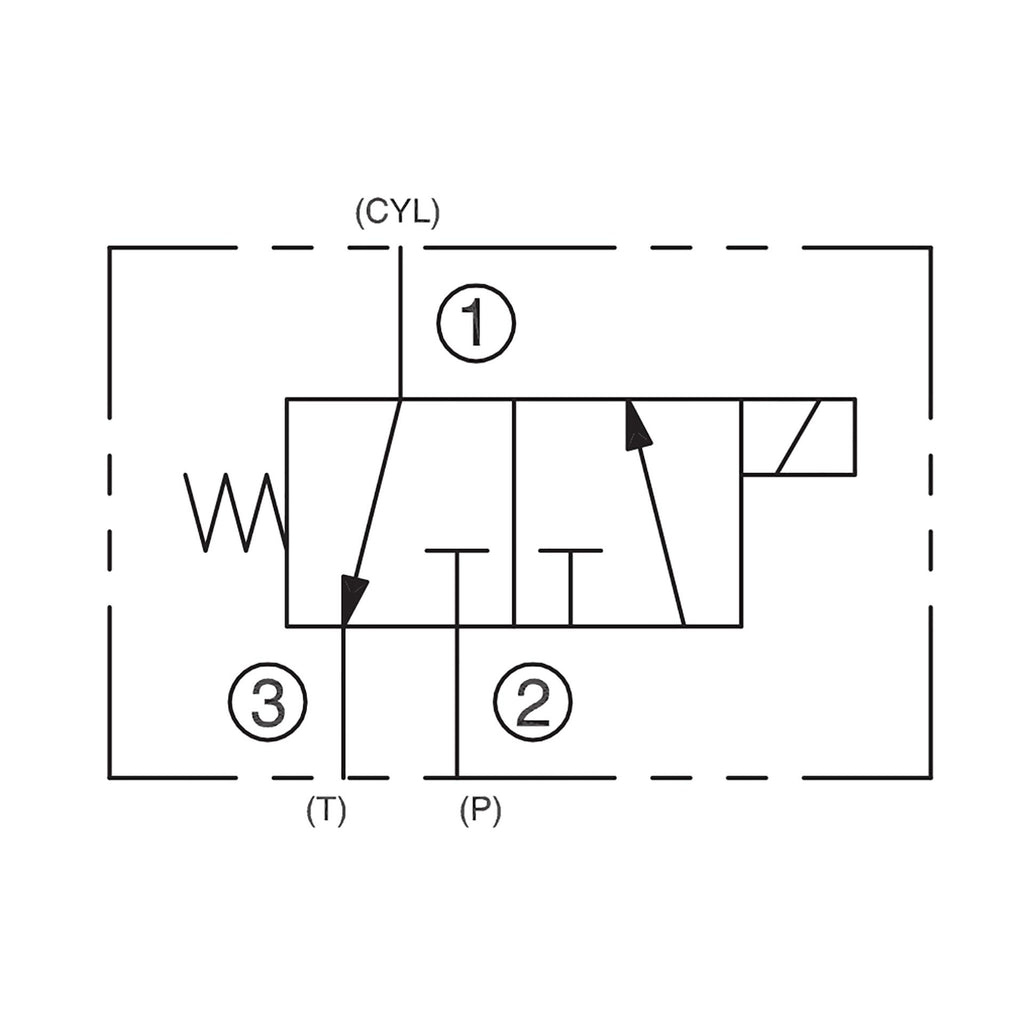

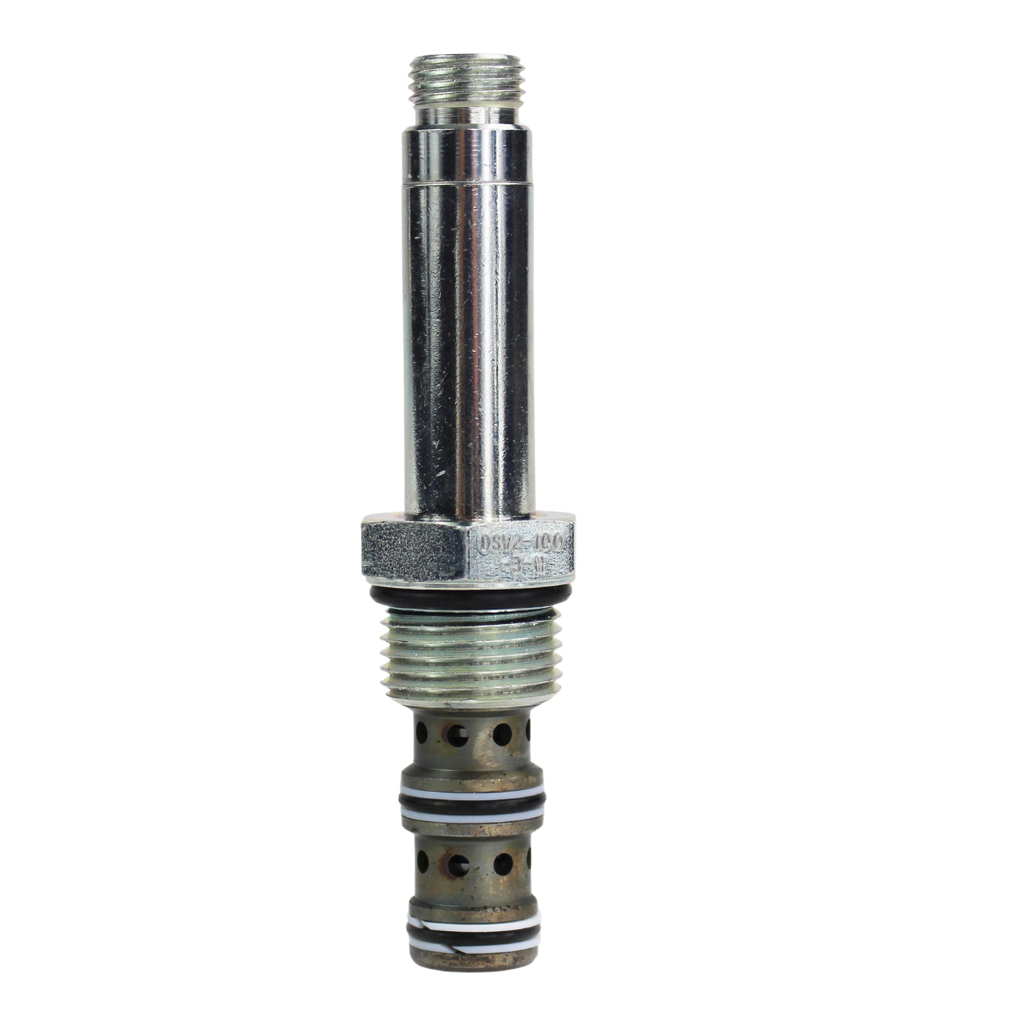

The Deltrol Fluid Products DSV2-100-3D Solenoid Directional Three-Way, Two-Position Spool Cartridge Valve is a hydraulic control device that manages fluid flow in industrial systems. In its default (de-energized) state, it allows fluid to flow from port 1 to port 3 while blocking port 2. When energized, the valve shifts to enable flow between ports 2 and 1 and blocks port 3. This valve features a manual override option for manual control of flow direction and is built to handle high pressures of up to 3000 psi with a flow rate of 6 gpm. It is designed for durability and efficiency, with interchangeable coil voltages and a robust construction suitable for various hydraulic applications.
