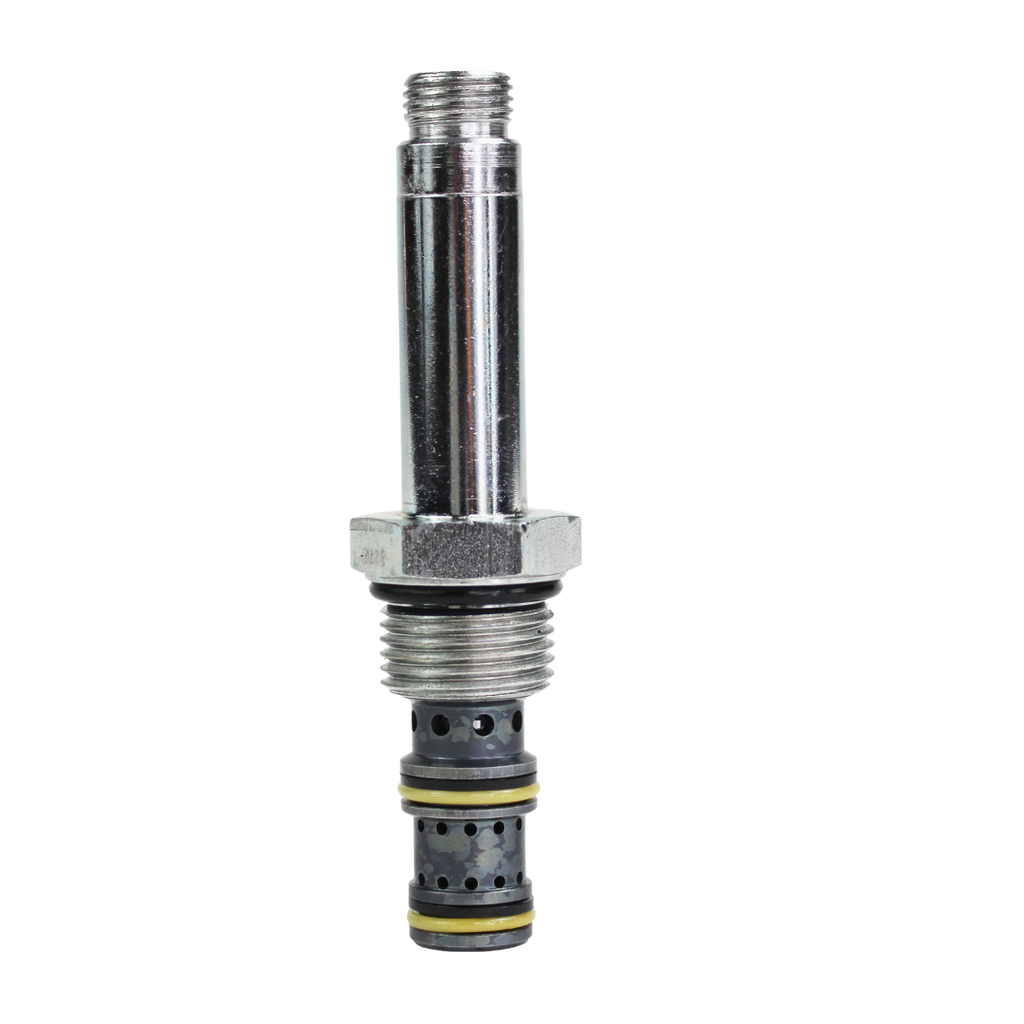

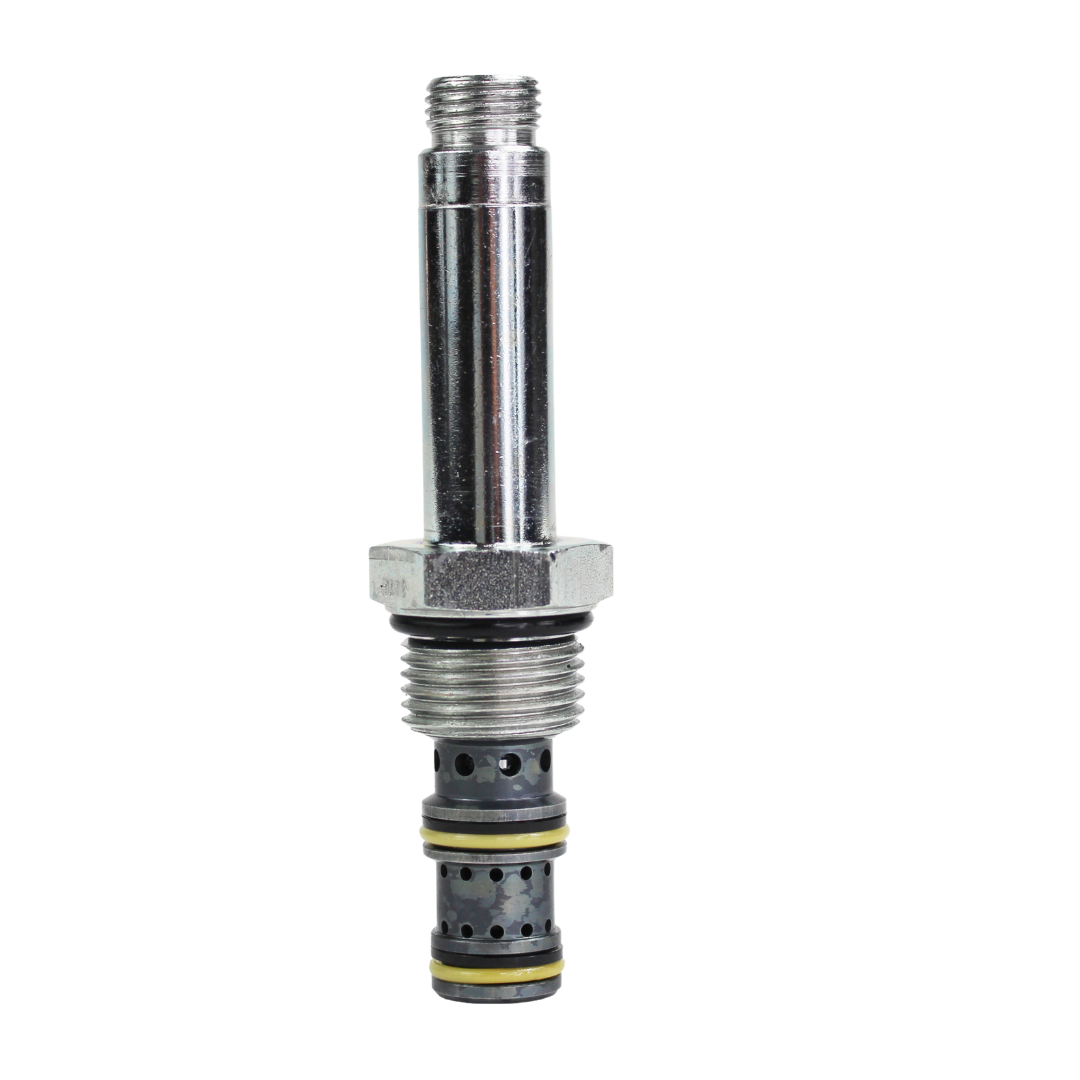

DSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPM
Roll over image to zoom in Click on image to zoom
DSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPMDSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPMDSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPMDSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPMDSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPM

DSV2-100-3B-N : Deltrol Solenoid Valve with NO COIL, 3-Way, 2-Position, Spool, C-10-3 Cavity, 3000psi, 6GPM

Deltrol Fluid ProductsSKU: 10186-30
4-6 Weeks
Price:
$73.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-3
Positions 2-Position
Way 3-Way
Country of Manufacture United States/Vietnam
Height 2
Length 4.28
Width 2
Weight 2

Description

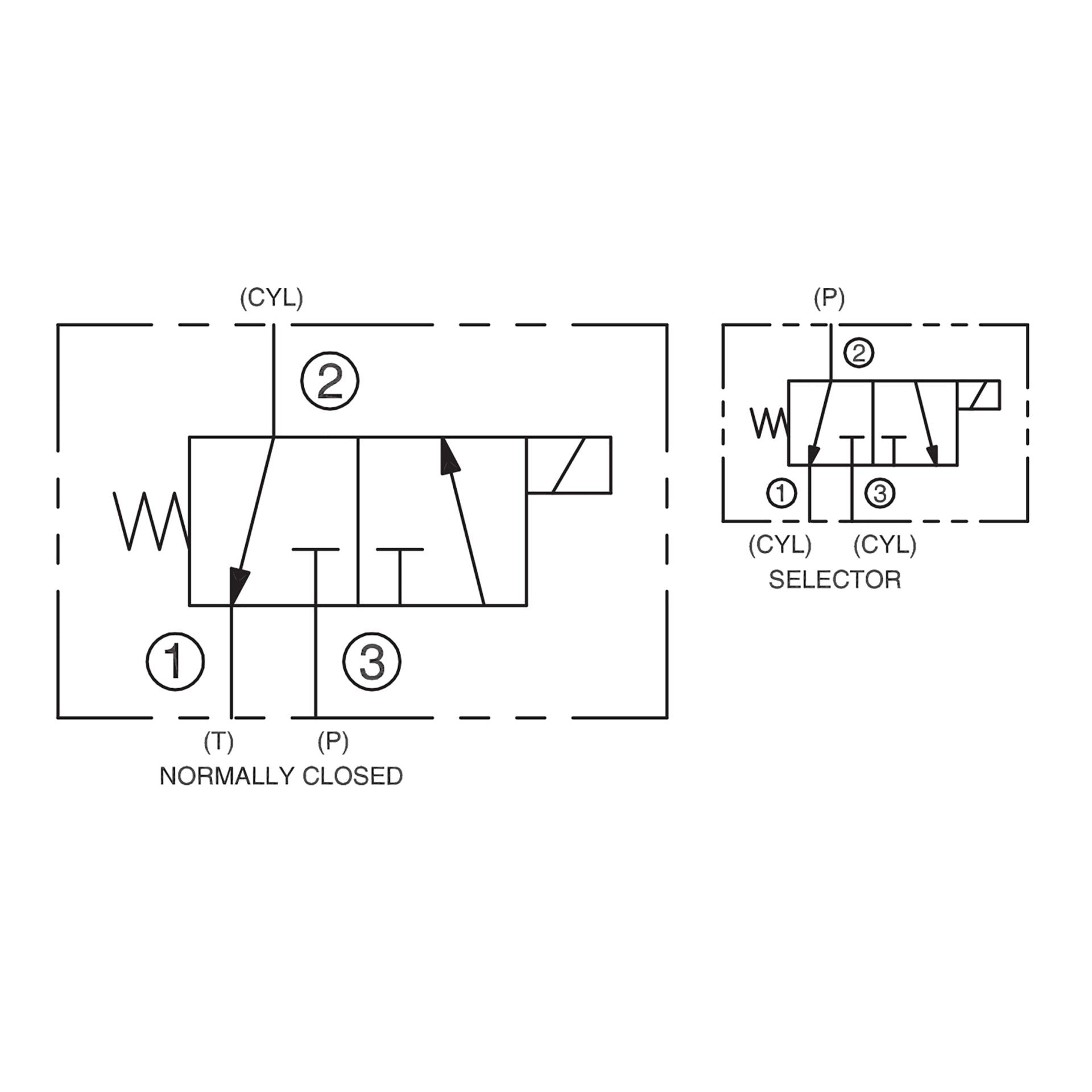

The Deltrol Fluid Products DSV2-100-3B Solenoid Directional Three-Way, Two-Position Spool Cartridge Valve is a versatile hydraulic component that controls fluid flow in industrial systems. In its default (de-energized) state, it allows fluid to flow from port 2 to port 1 while blocking port 3. When energized, the valve shifts to enable flow between ports 2 and 3 and blocks port 1. This valve features a manual override function that allows for manual control of the flow direction. With a maximum pressure rating of 3000 psi and a flow capacity of 6 gpm, it is designed for high-performance and reliability, suitable for various hydraulic applications.
