Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 6.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-10-3 |
| Positions | 2-Position |
| Way | 3-Way |
| Country of Manufacture | United States/Vietnam |

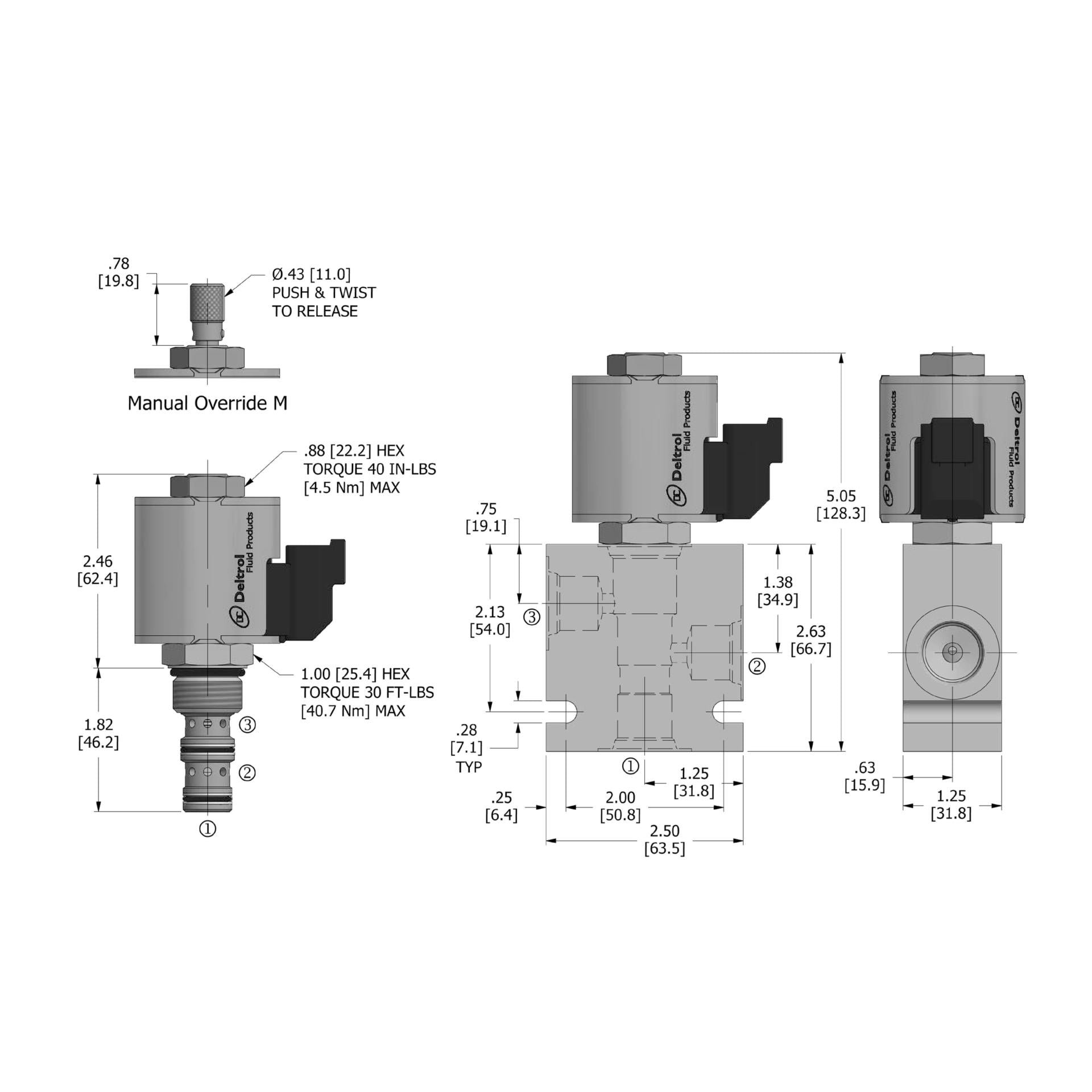

| Height | 2 |
| Length | 4.28 |
| Width | 2 |
| Weight | 2 |
Description

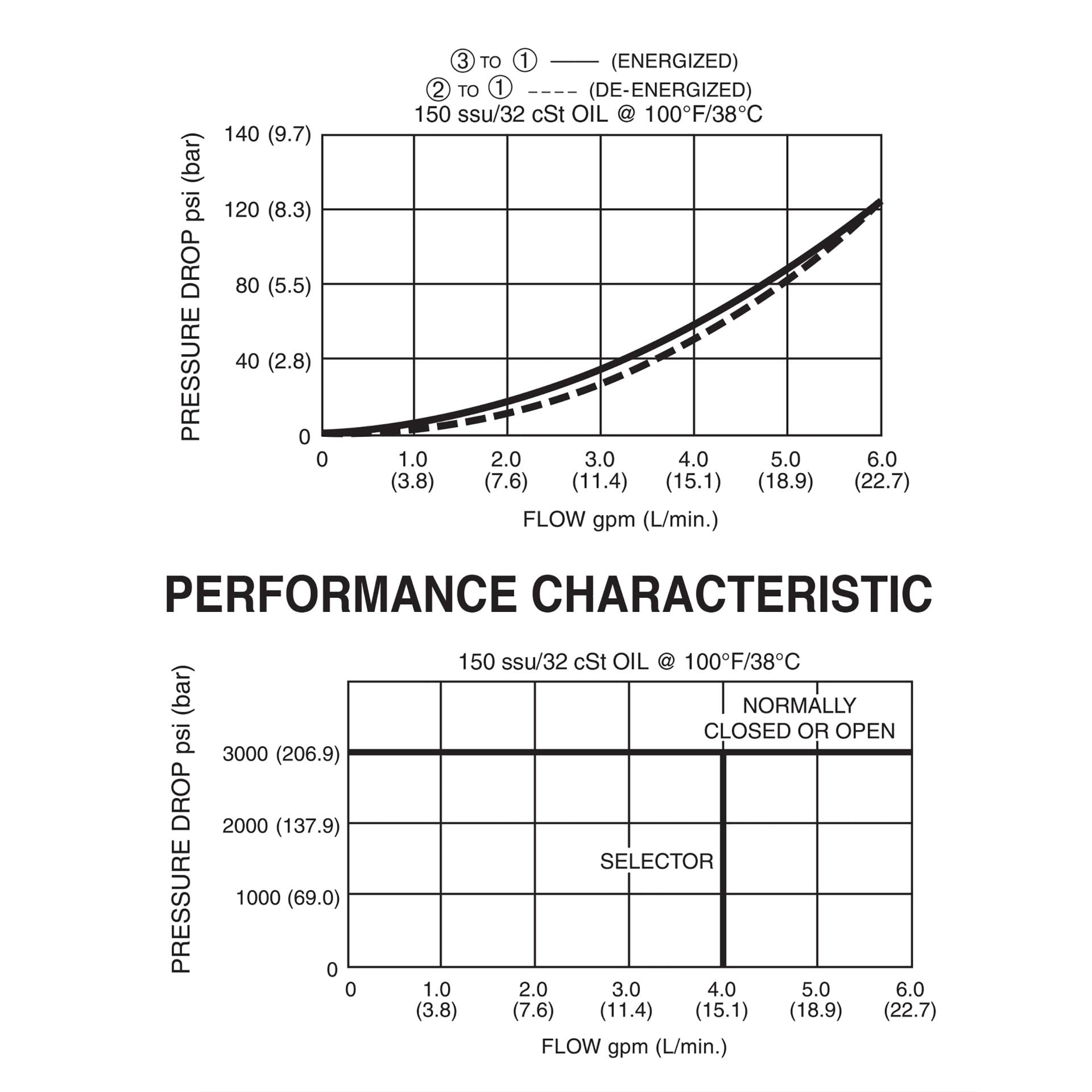

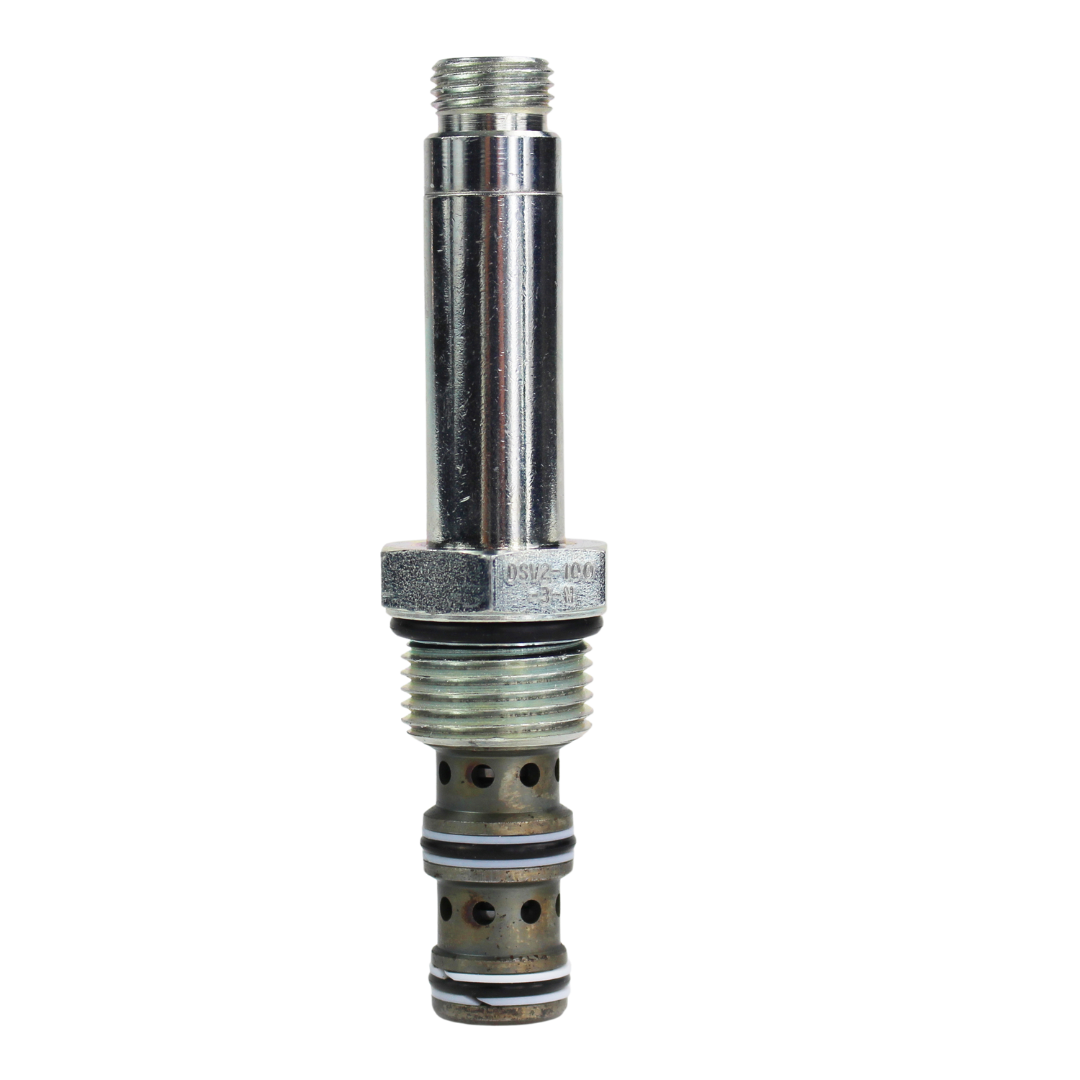

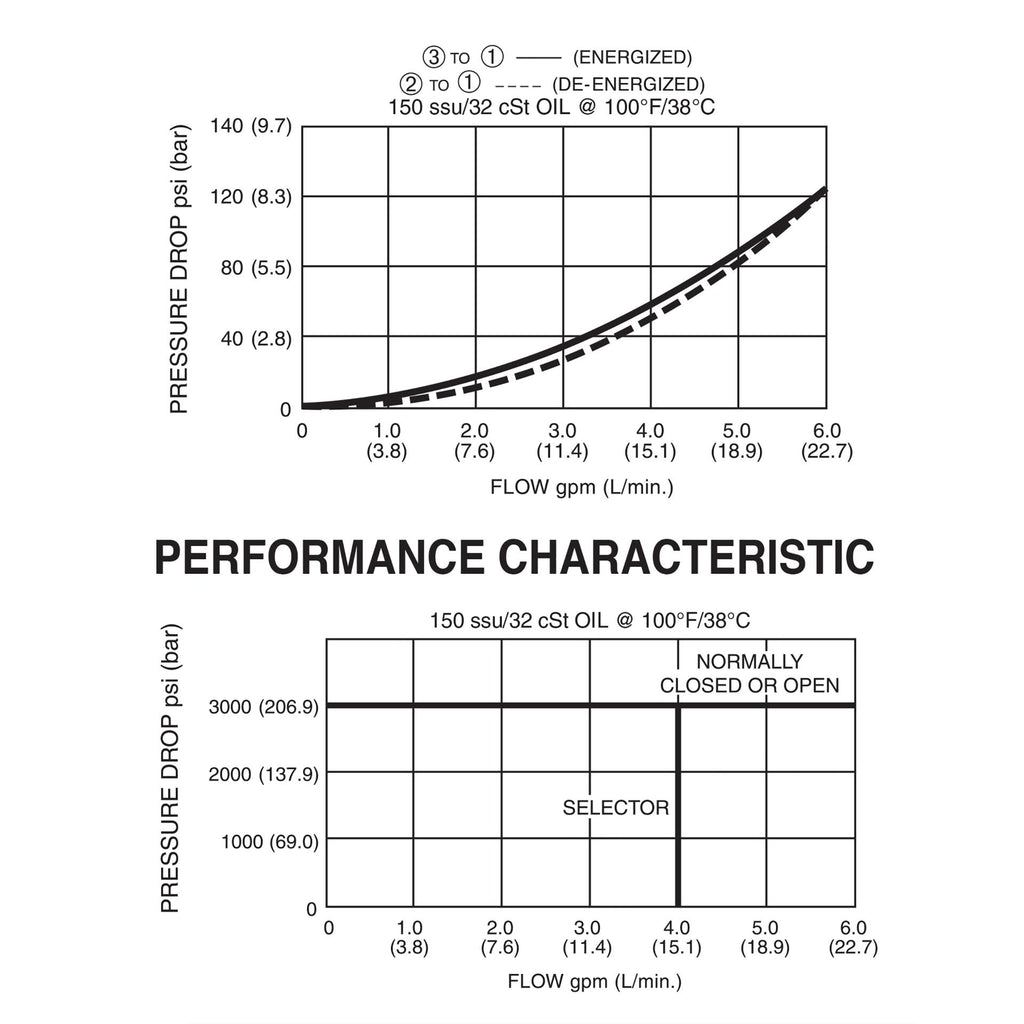

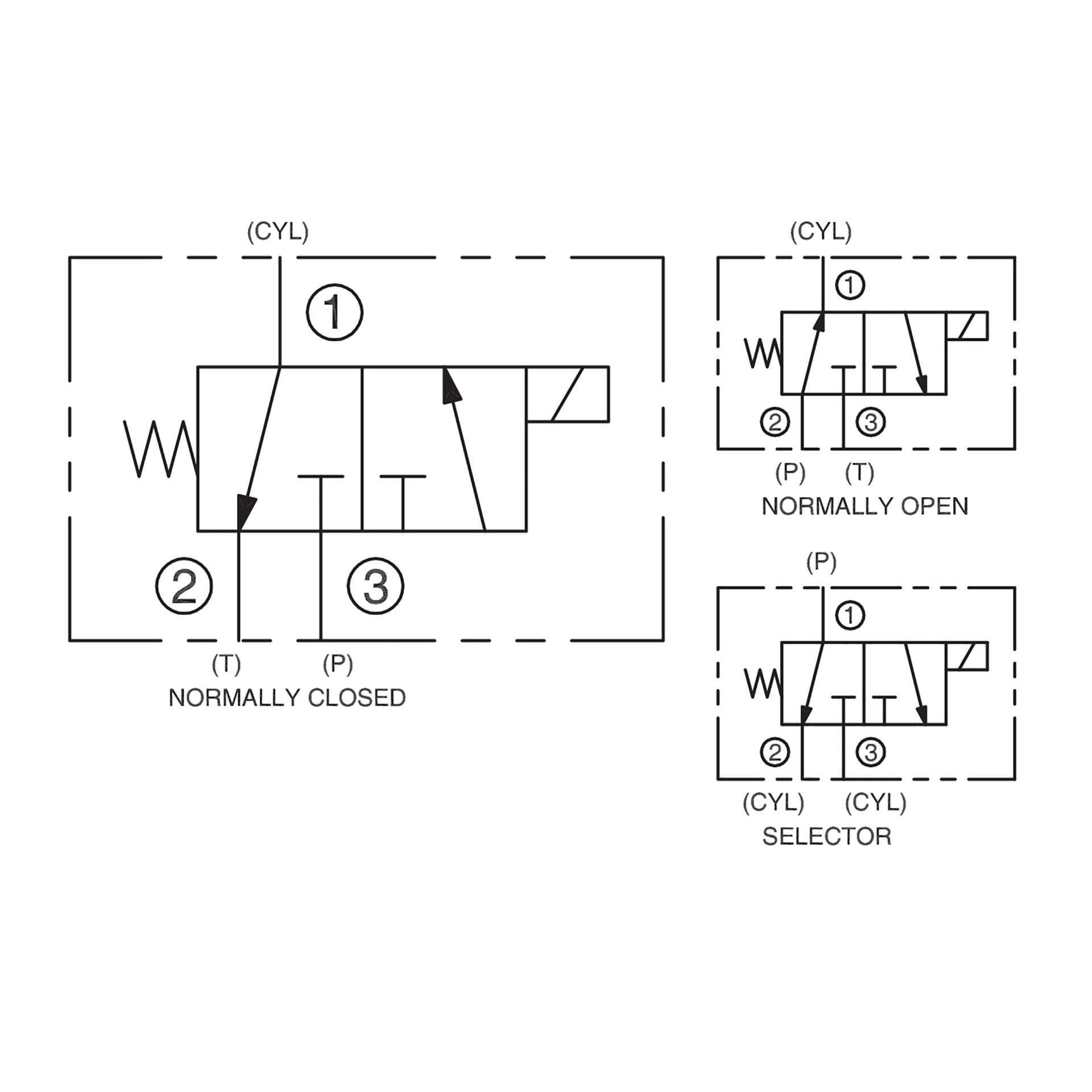

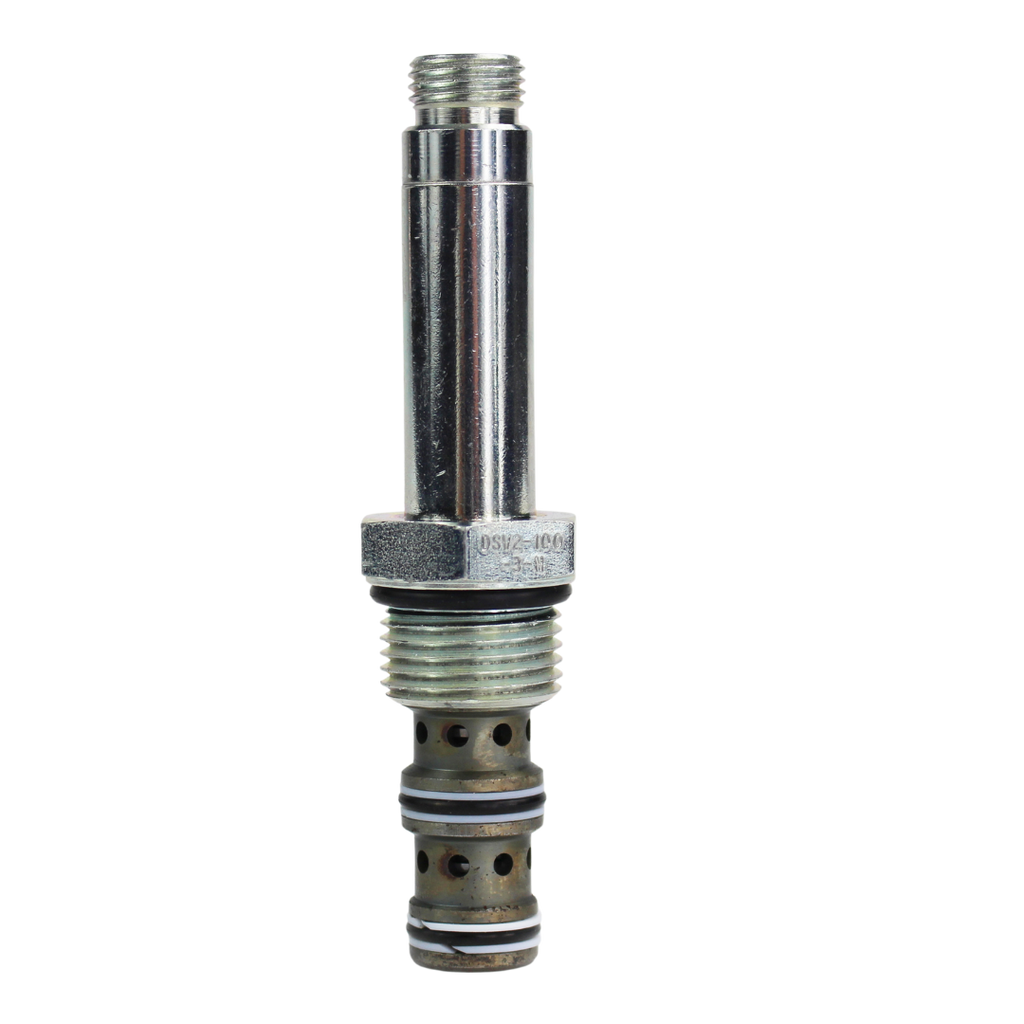

The Deltrol Fluid Products DSV2-100-3 Solenoid Directional Three-Way, Two-Position Spool Cartridge Valve is designed for efficient hydraulic control in various applications. In its default (de-energized) state, it allows flow between ports 2 and 1 while blocking port 3. When energized, the valve’s spool shifts to enable flow between ports 1 and 3, blocking port 2. This versatile valve, which operates up to 3000 psi and handles flows up to 6 gpm, features a manual override function that keeps the valve in its shifted position when needed. Constructed from durable anodized aluminum, it ensures reliable performance and low leakage, making it suitable for demanding hydraulic systems.
