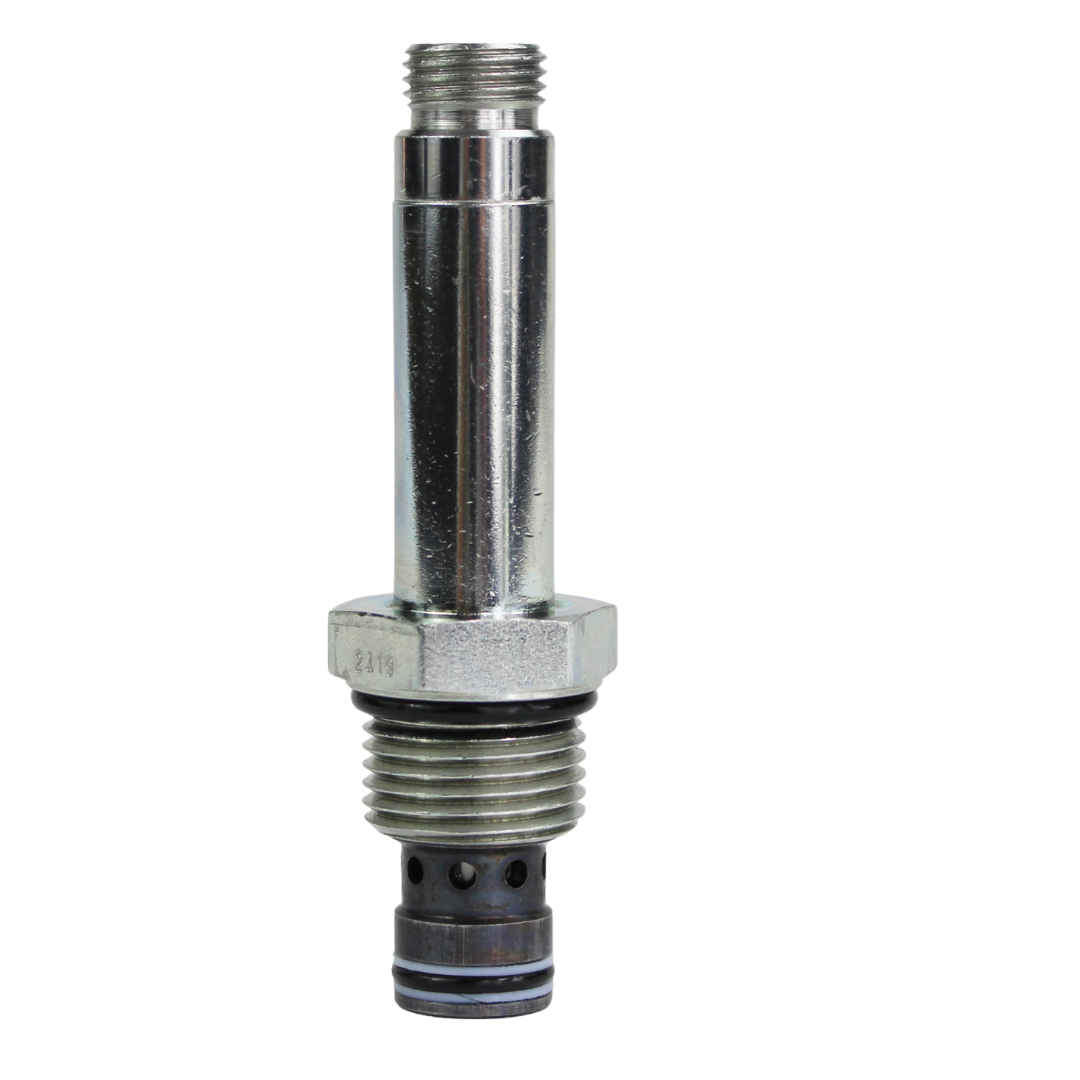

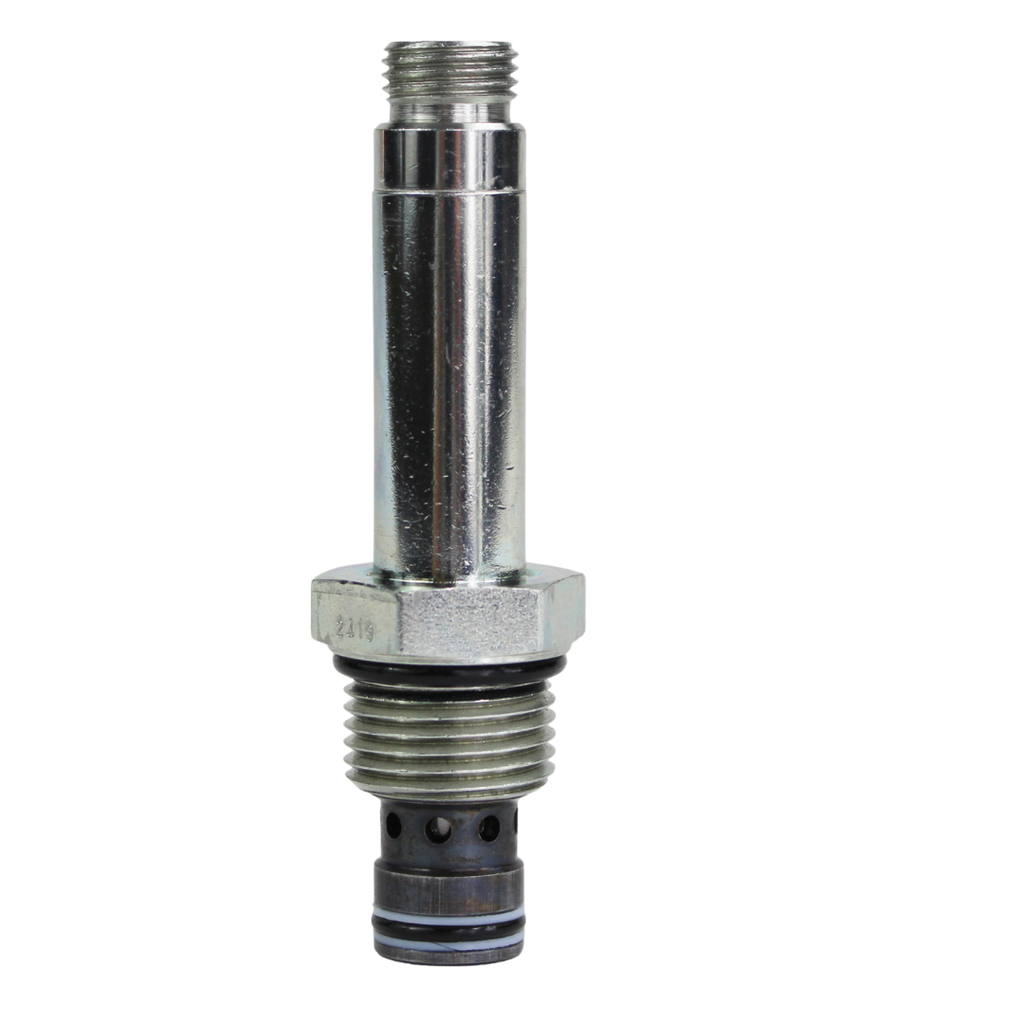

DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM
DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM
DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM
DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM
DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM
Roll over image to zoom in Click on image to zoom
DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPMDSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPMDSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPMDSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPMDSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM

DSV2-100-2NOS-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Spool, C-10-2 Cavity, 3000psi, 6GPM

Deltrol Fluid ProductsSKU: 10167-82
4-6 Weeks
Price:
$58.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois

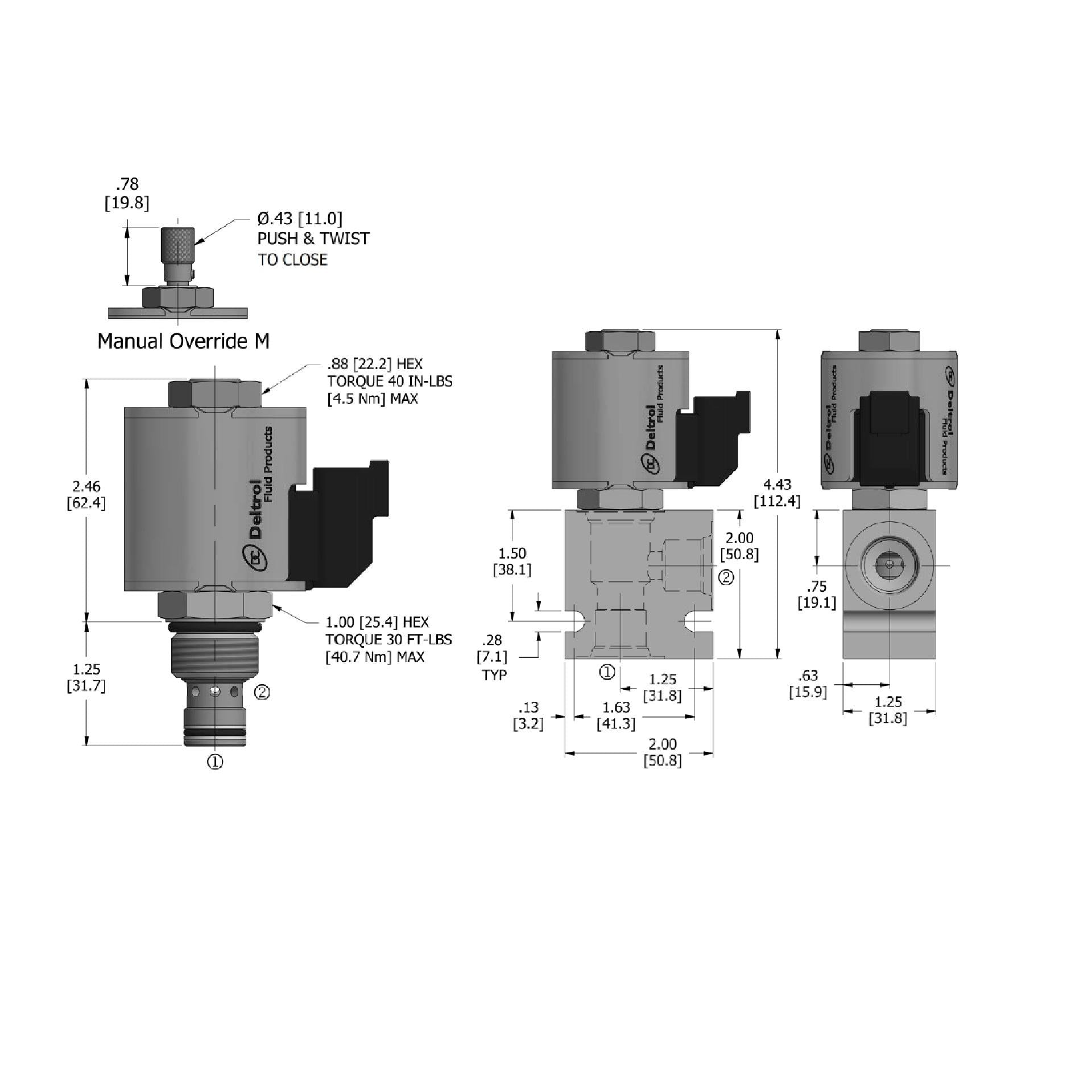

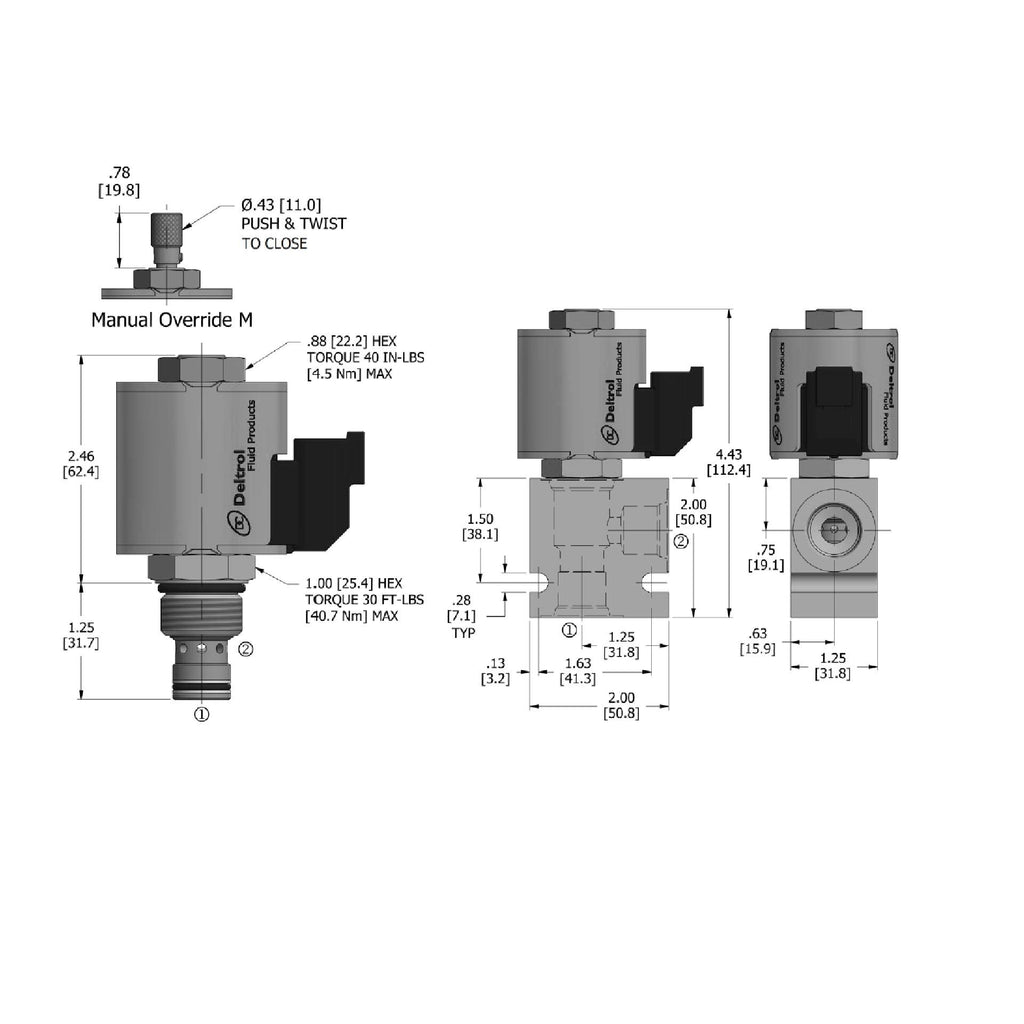

Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-2
Positions 2-Position
Way 2-Way
Country of Manufacture United States/Vietnam
Height 2
Length 3.71
Width 2
Weight 2

Description

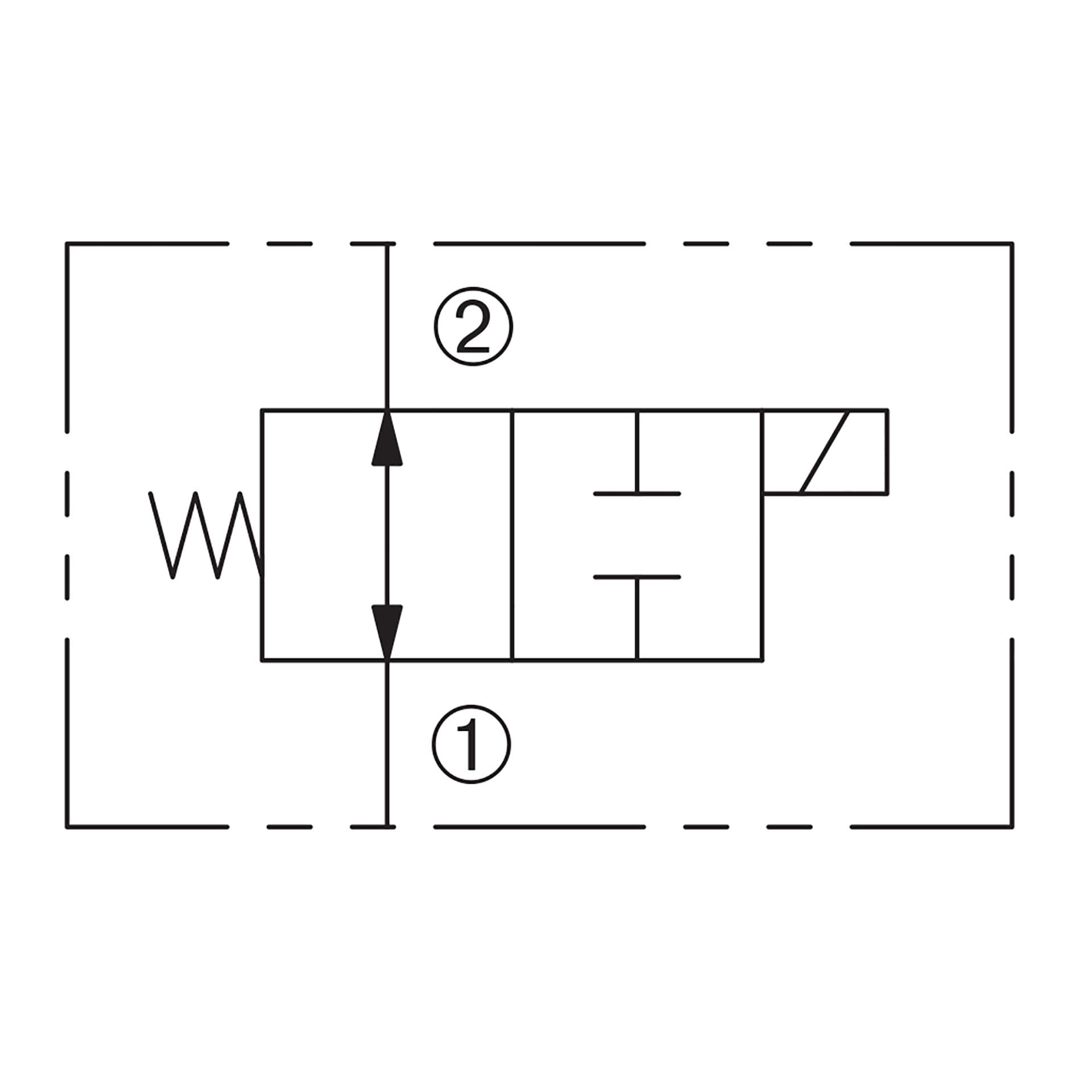

The Deltrol Fluid Products DSV2-100-2NOS Solenoid Directional Two-Way, Two-Position, Normally Open Spool Cartridge Valve is designed for versatile hydraulic control. In its default state (de-energized), it permits flow in both directions, making it flexible for various applications. When energized, the valve’s spool shifts to block flow in both directions, ensuring no movement occurs. It also features a manual override option that lets you keep the valve in a closed position by pushing and twisting a button. This valve, which can handle up to 3000 psi and flows up to 6 gpm, is built from durable anodized aluminum and offers reliable performance with minimal leakage.
