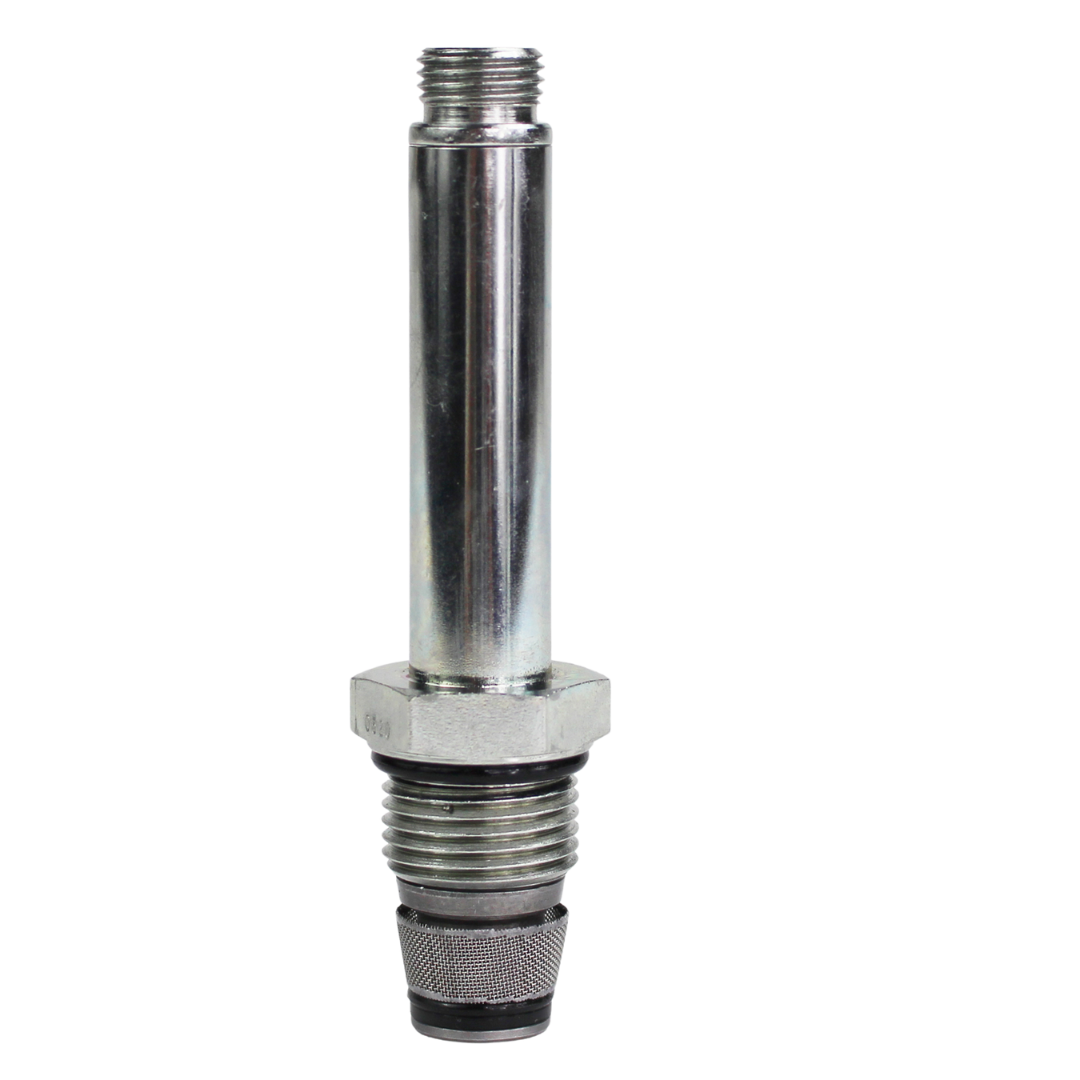

DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM
Roll over image to zoom in Click on image to zoom
DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM

DSV2-100-2NOP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Open Poppet, C-10-2 Cavity, 3000psi, 16GPM

Deltrol Fluid ProductsSKU: 10148-98
1-3 Days
Price:
$92.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Poppet
Flow Rating 16.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-2
Positions 2-Position
Way 2-Way
Country of Manufacture United States/Vietnam

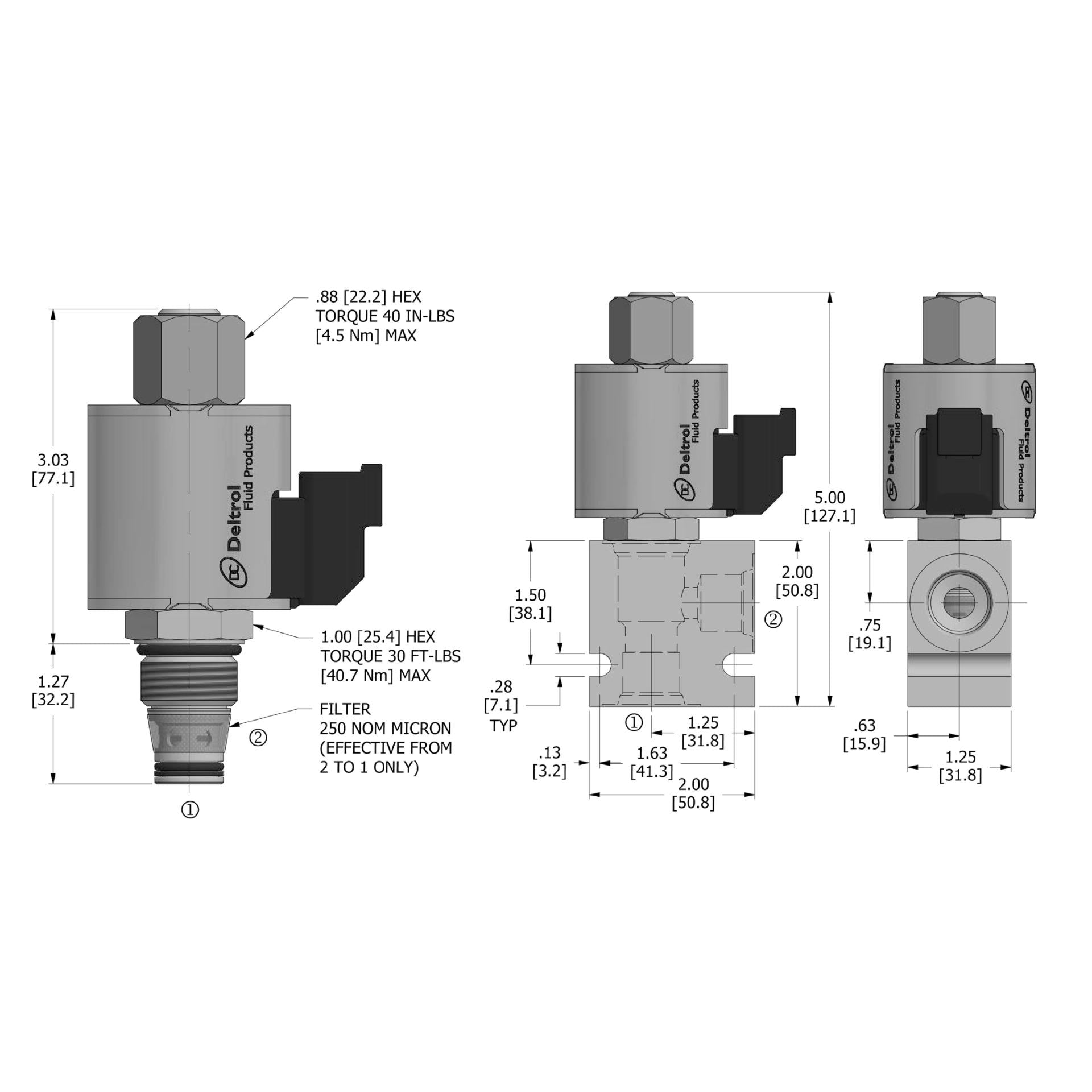

Height 2
Length 4.3
Width 2
Weight 2

Description

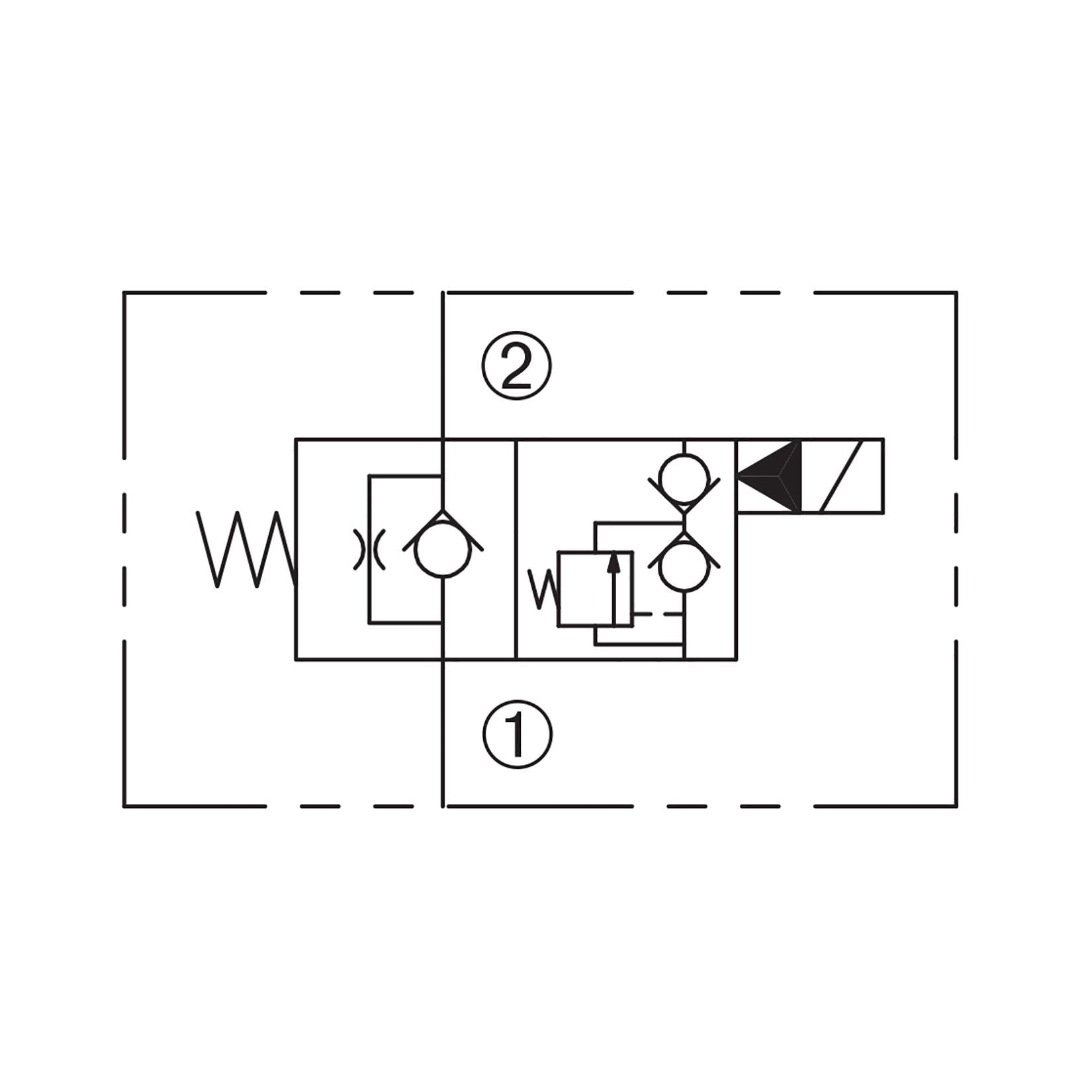

The Deltrol Fluid Products DSV2-100-2NOP Solenoid Directional Two-Way, Two-Position, Normally Open Poppet Cartridge Valve is designed for effective hydraulic flow control in various applications. This valve, which fits into standard industry cavities or pre-configured ported blocks, allows for flow up to 16 gpm and operates at pressures up to 3000 psi. When de-energized, the valve remains open, permitting flow from port 2 to port 1. When energized, the poppet closes, blocking flow from 2 to 1, while allowing reverse flow from 1 to 2 after overcoming a slight pressure force of 50 psi. It features a durable construction, including a hardened poppet and plunger, and offers reliable performance with minimal leakage, making it ideal for demanding hydraulic systems.
