DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM
DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM
Roll over image to zoom in Click on image to zoom
DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPMDSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM

DSV2-100-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-10-2 Cavity, 3000psi, 16GPM

Deltrol Fluid ProductsSKU: 10186-24
Same Day
2
Price:
$65.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Poppet

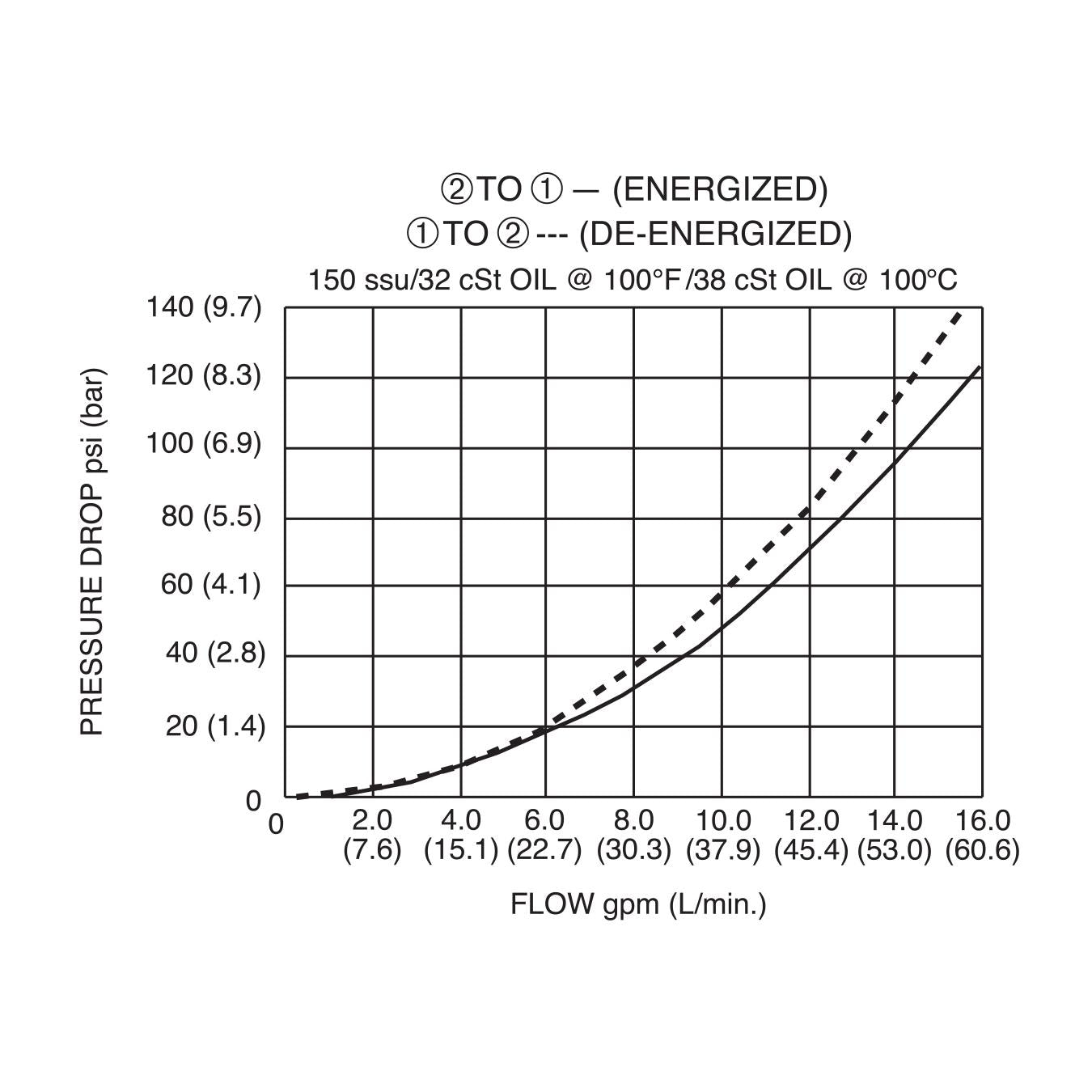

Flow Rating 16.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-2
Positions 2-Position
Way 2-Way
Country of Manufacture United States/Vietnam

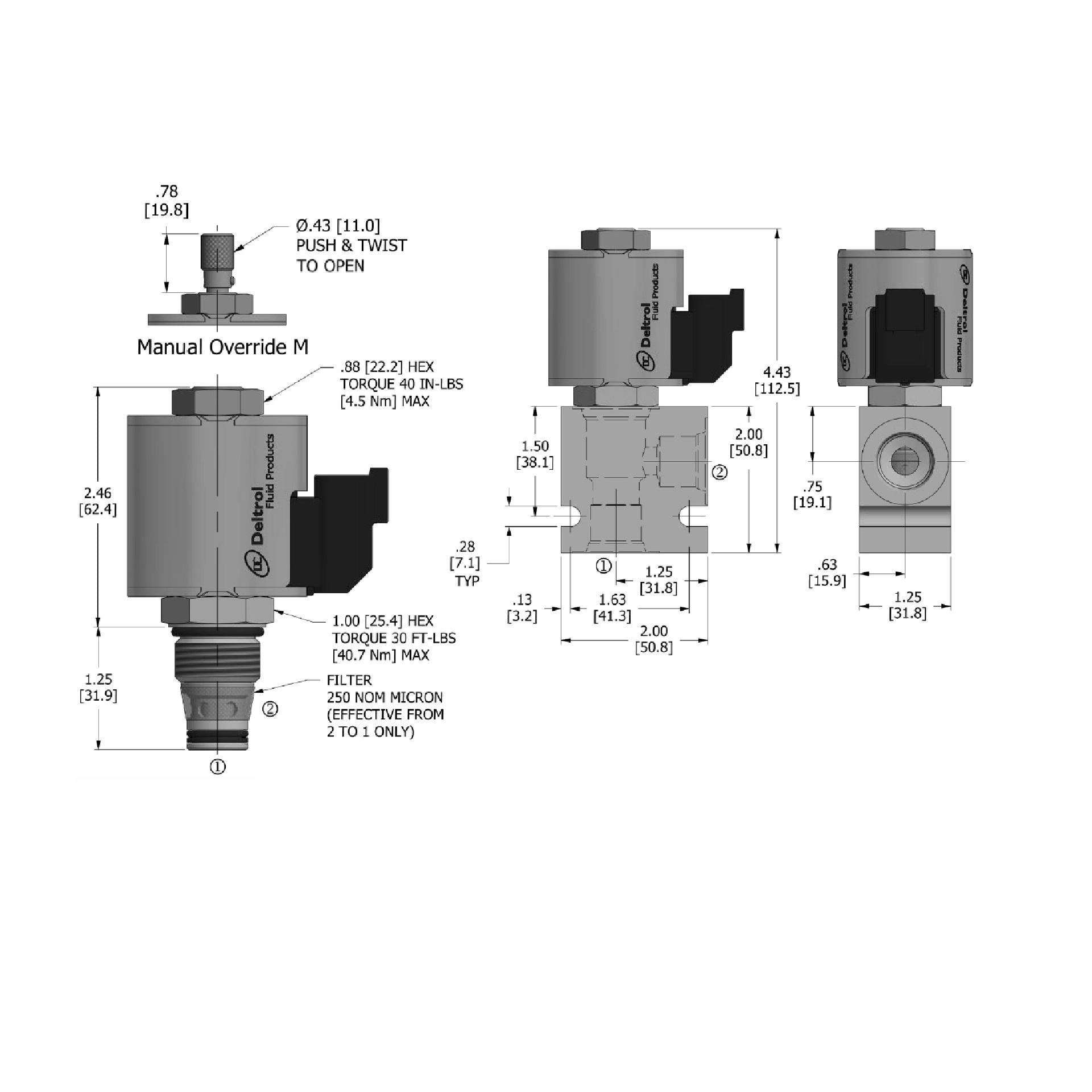

Height 2
Length 3.71
Width 2
Weight 2

Description

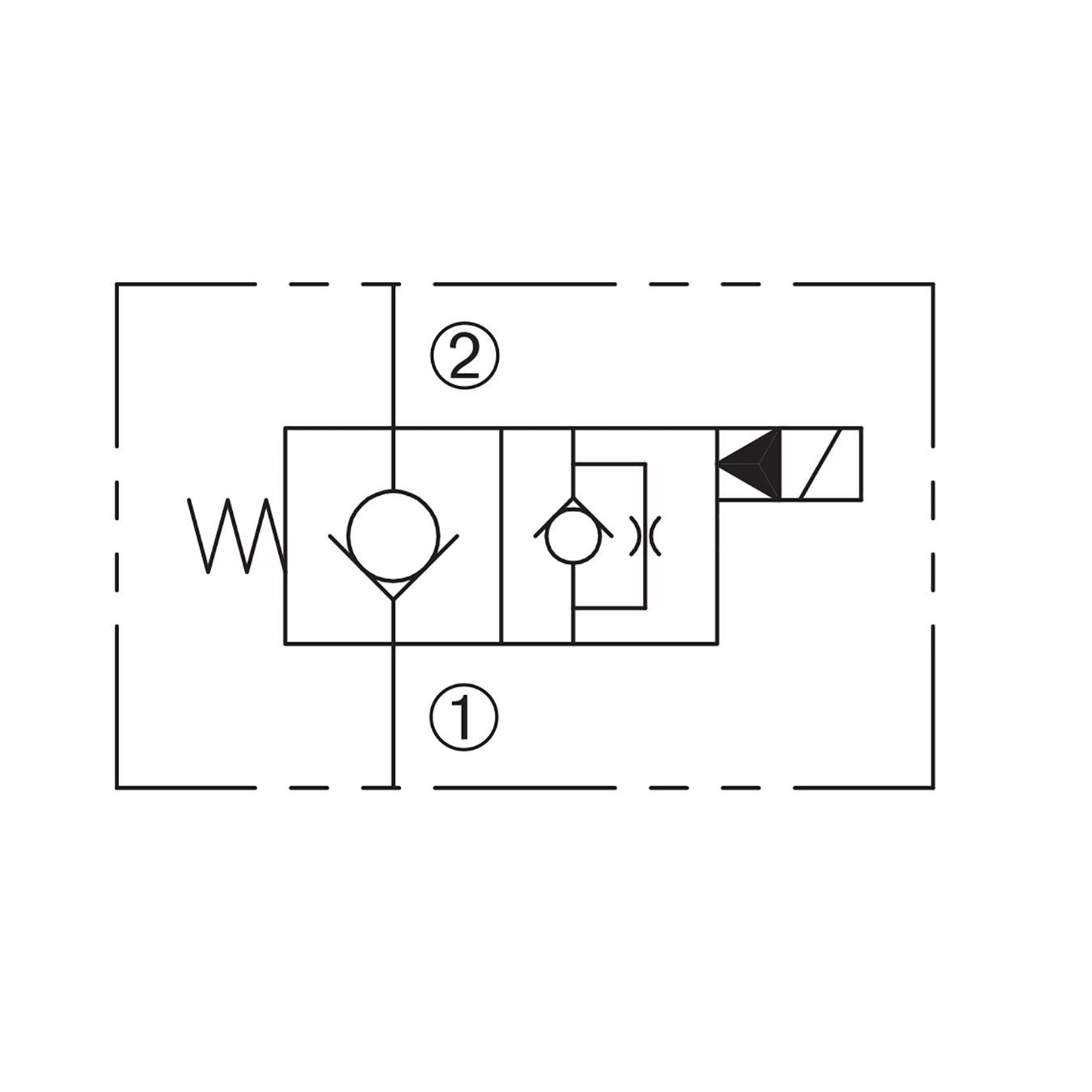

The Deltrol Fluid Products DSV2-100-2NCP Solenoid Directional Two-Way, Two-Position, Normally Closed Poppet Cartridge Valve is a high-performance hydraulic component designed for precise load-holding and flow control. Installed in an industry-standard cavity or available in a pre-configured ported block, this valve manages flows up to 16 gpm and operates at pressures up to 3000 psi. When de-energized, it acts as a check valve, allowing fluid to flow from port 1 to port 2 while blocking reverse flow. Energizing the solenoid lifts the poppet to open the flow path from port 2 to port 1. It features a manual override for continuous operation and is built with durable components for long life and minimal leakage, making it ideal for demanding hydraulic systems.
