Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-4 |
| Positions | 2-Position |
| Way | 4-Way |
| Country of Manufacture | United States/Vietnam |

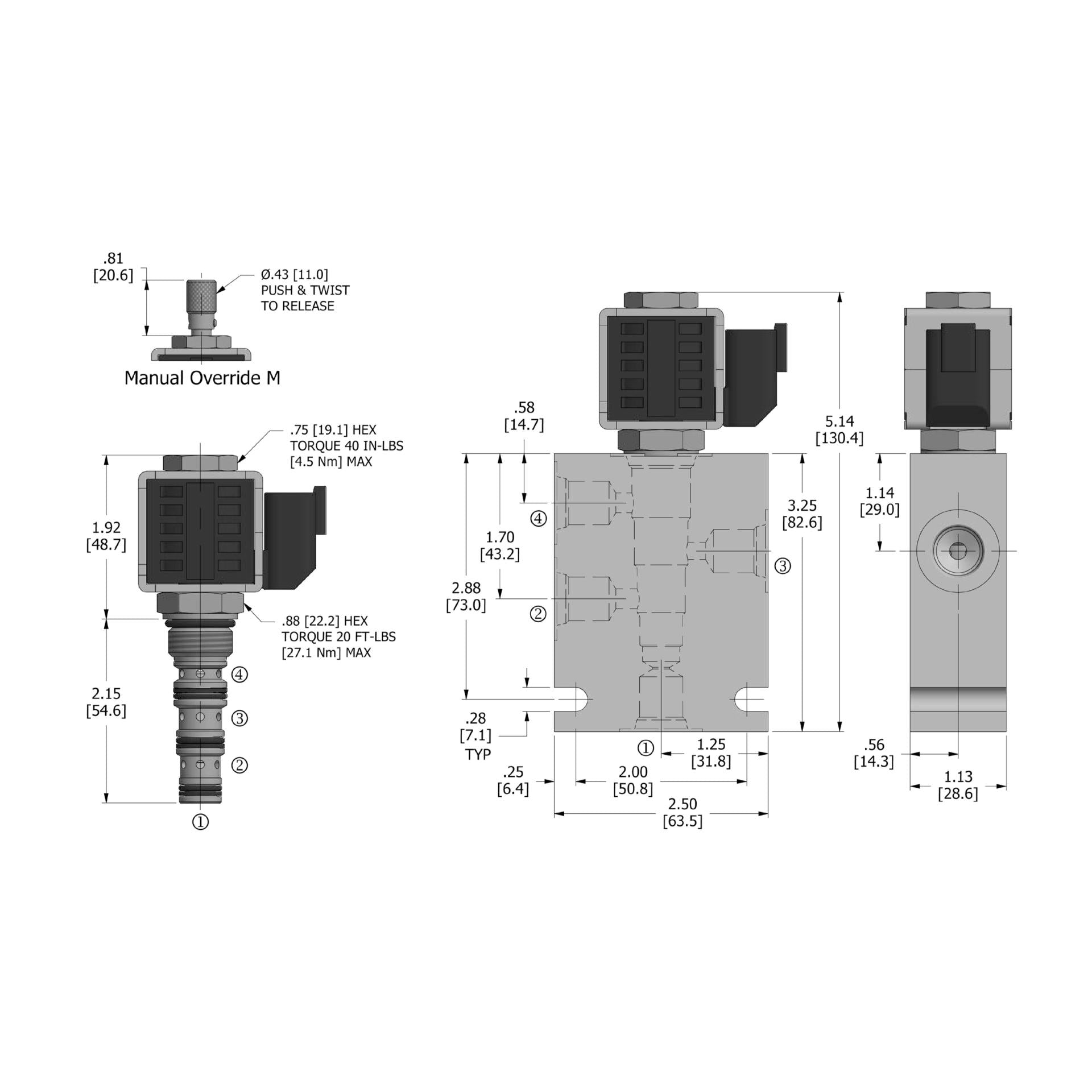

| Height | 2 |
| Length | 4.07 |
| Width | 2 |
| Weight | 2 |
Description

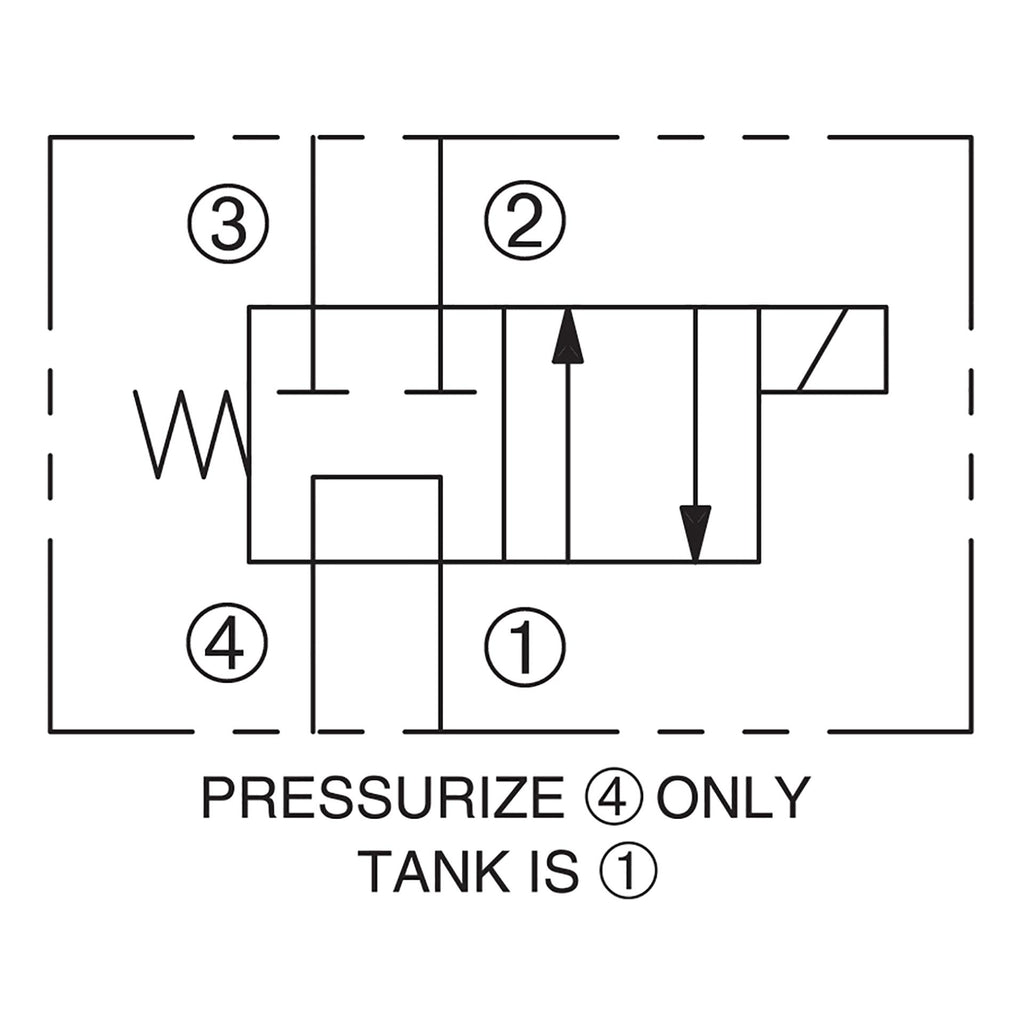

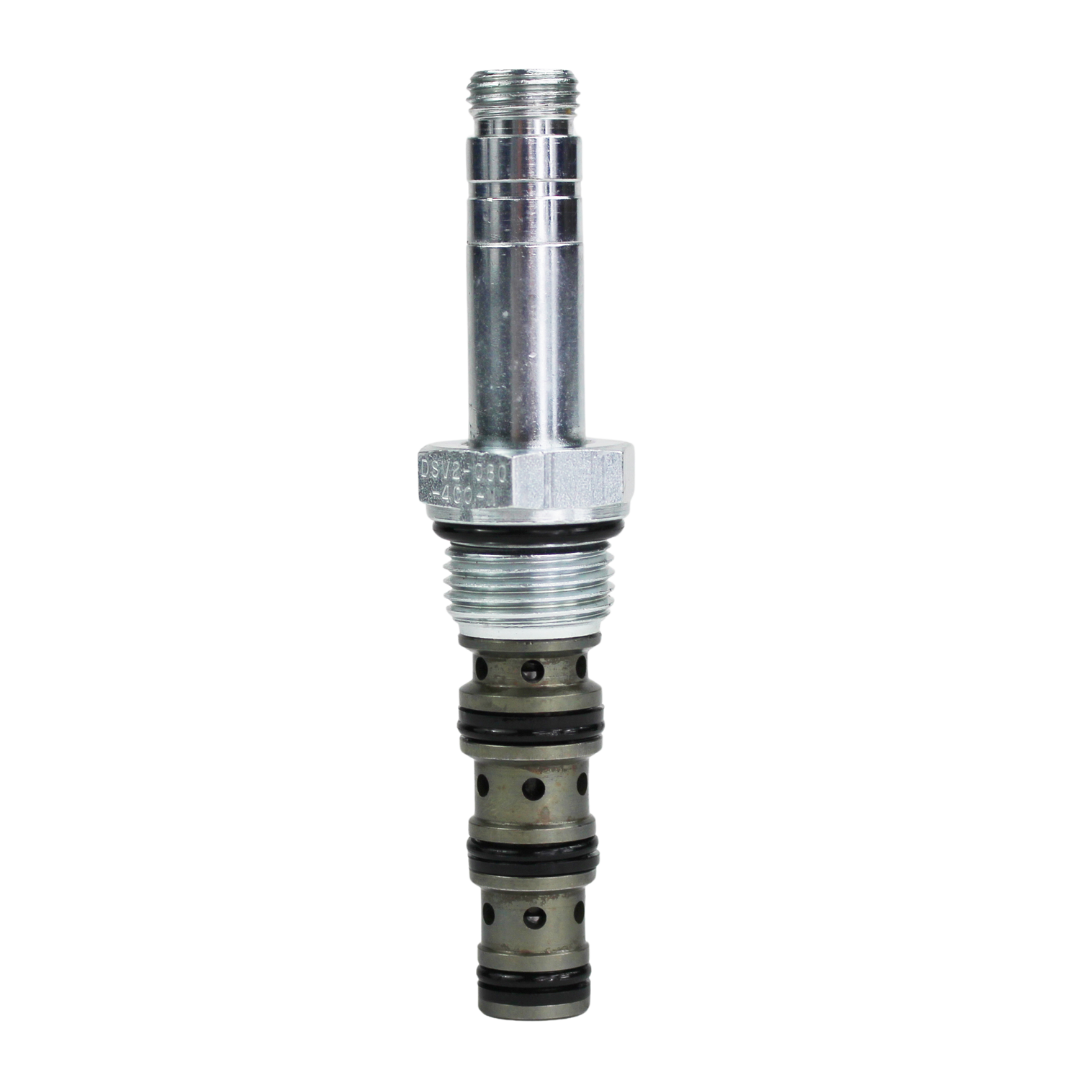

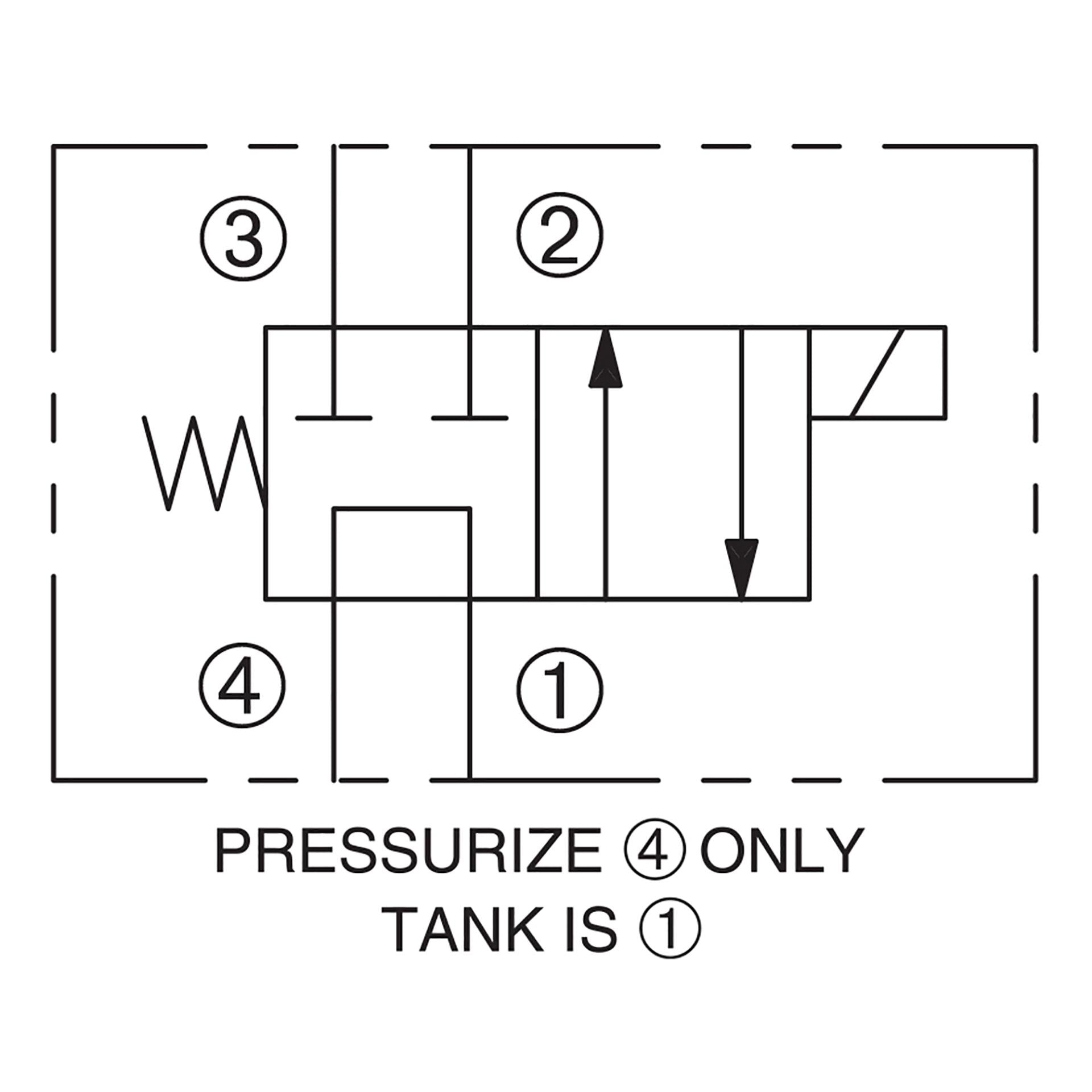

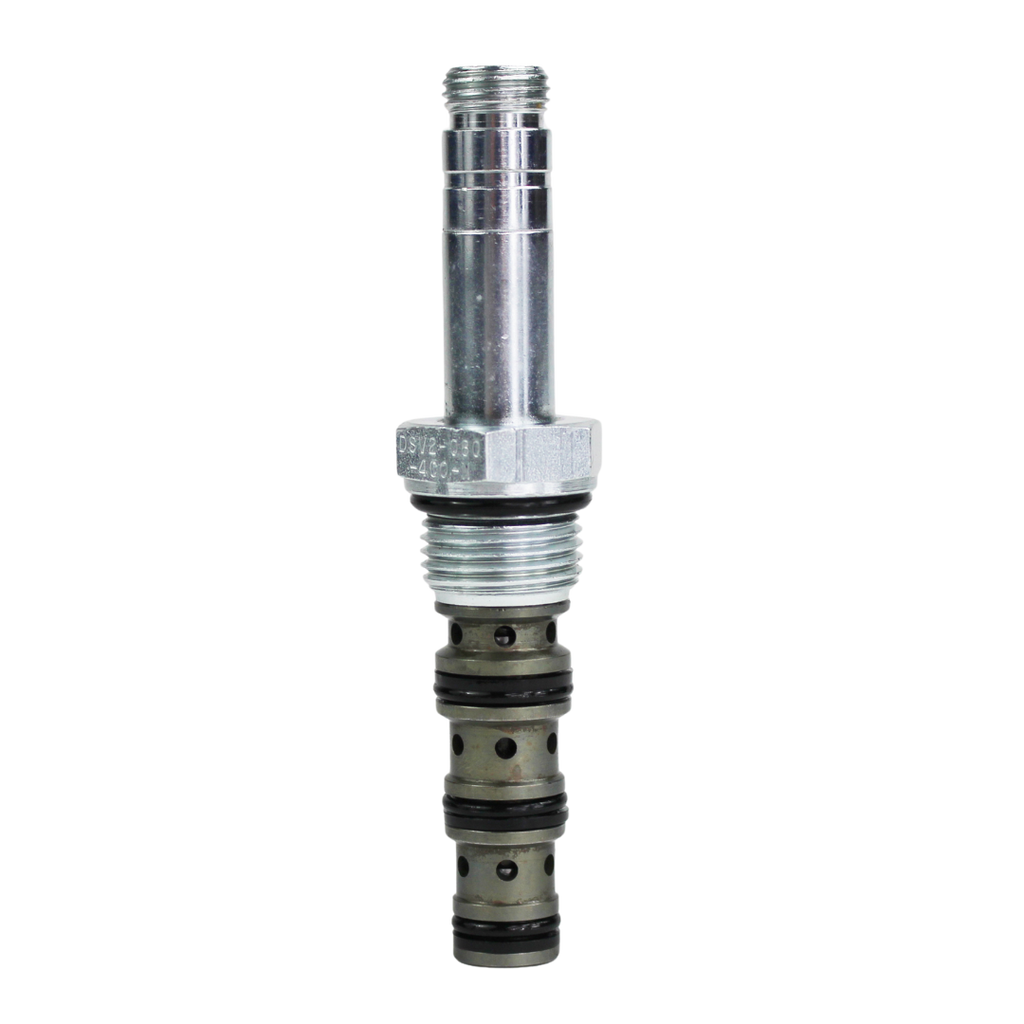

The Deltrol Fluid Products DSV2-080-4TC Solenoid Directional Four-Way, Two-Position Tandem Spool Cartridge Valve is designed for hydraulic systems requiring precise control of fluid flow. This valve features four ports: two are normally open and two are normally closed. In its default state, it allows fluid to flow from port 4 to port 1 while blocking ports 2 and 3. When energized, the valve shifts to enable flow from port 4 to port 3 and from port 2 to port 1. It includes a manual override for operational flexibility, is rated for up to 3000 psi and 3 gpm, and is suitable for demanding applications with its robust, high-performance design.
