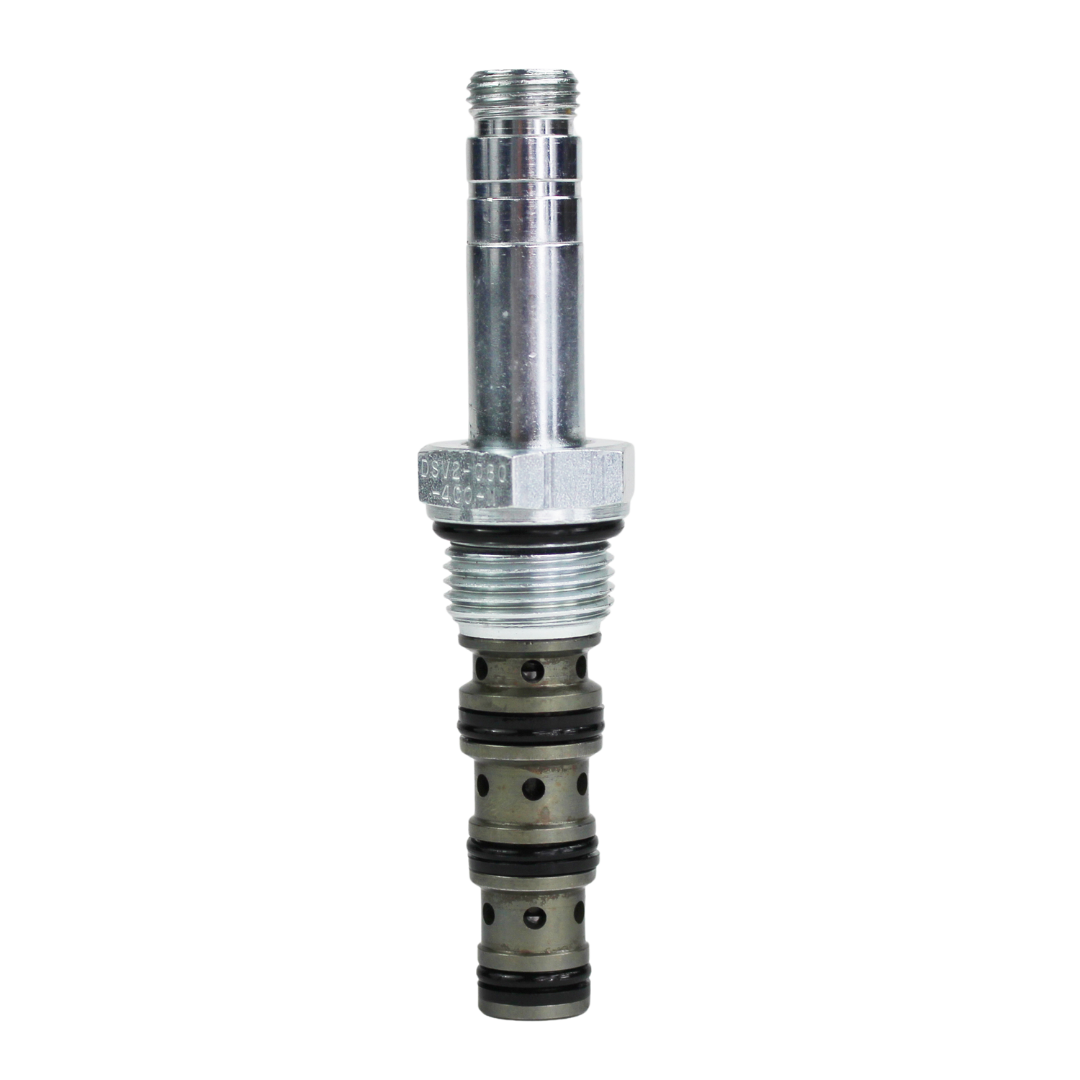

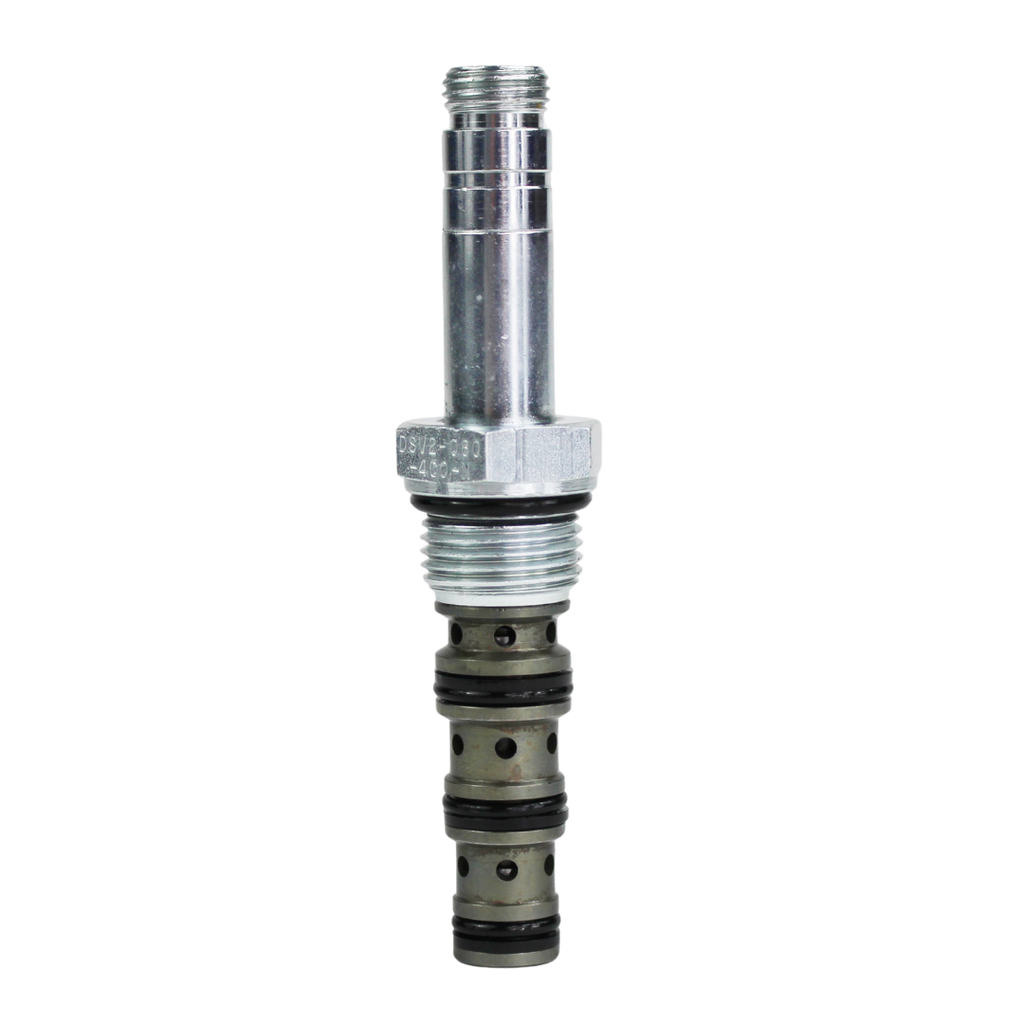

DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM
DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM
DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM
DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM
DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM
Roll over image to zoom in Click on image to zoom
DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPMDSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM

DSV2-080-4NO-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 2-Position, Normally Open Spool, C-8-4 Cavity, 3000psi, 3GPM

Deltrol Fluid ProductsSKU: 10192-74
4-6 Weeks
Price:
$53.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool

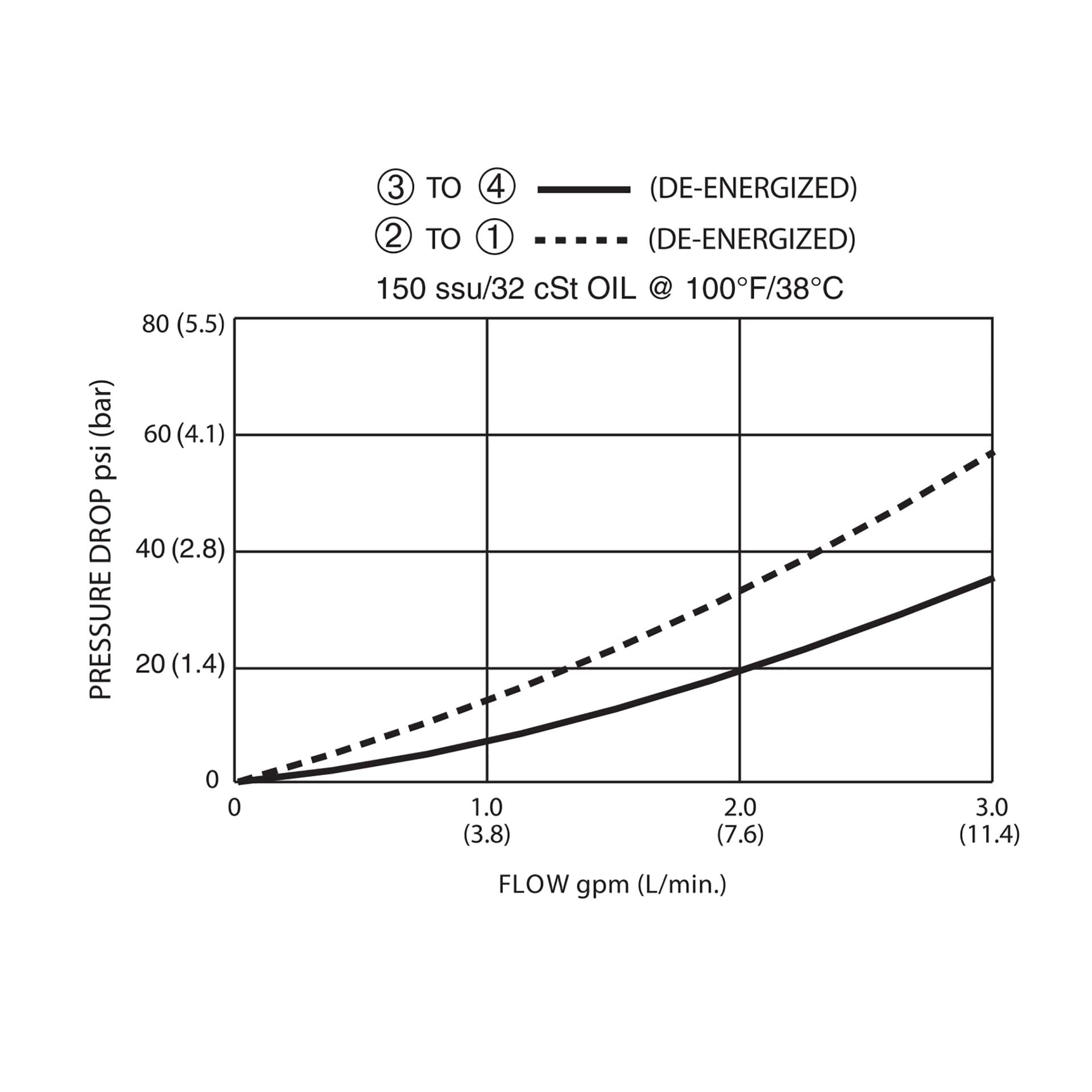

Flow Rating 3.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-4
Positions 2-Position
Way 4-Way
Country of Manufacture United States/Vietnam

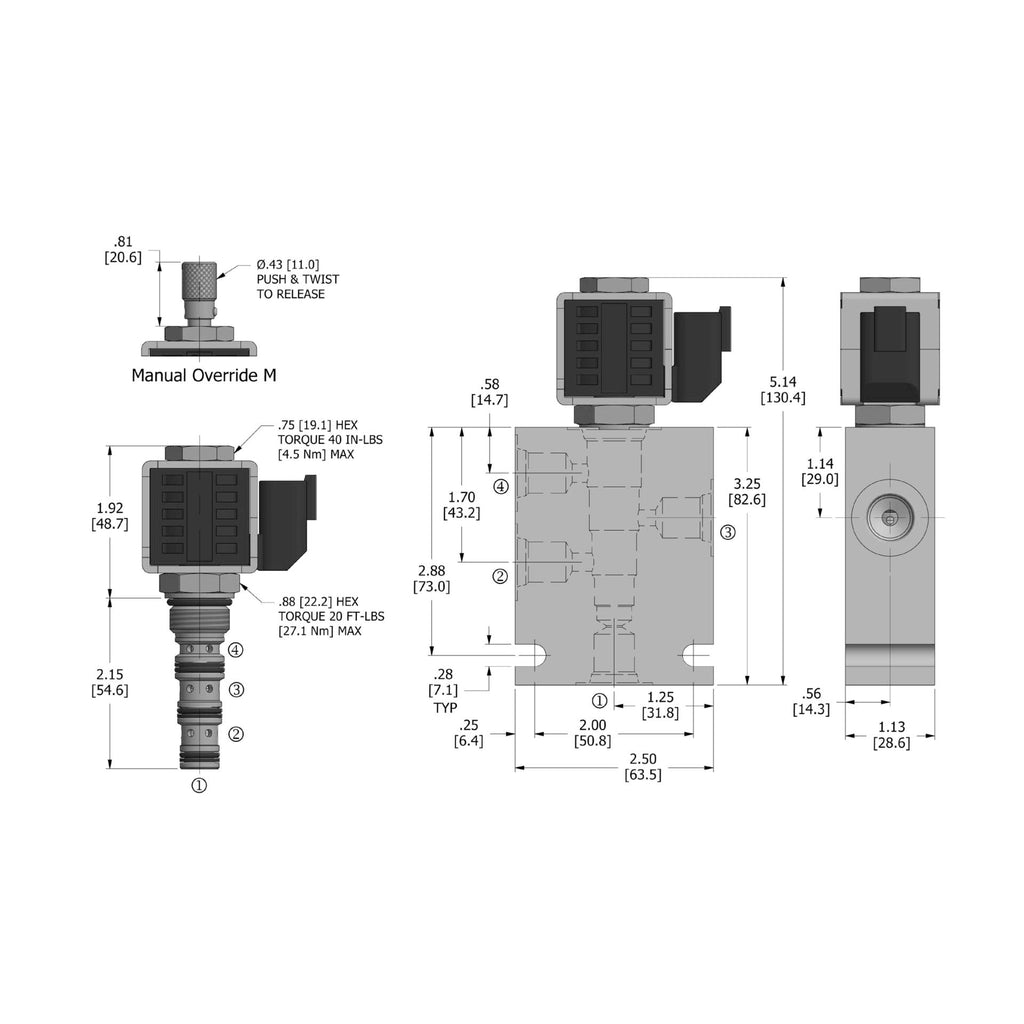

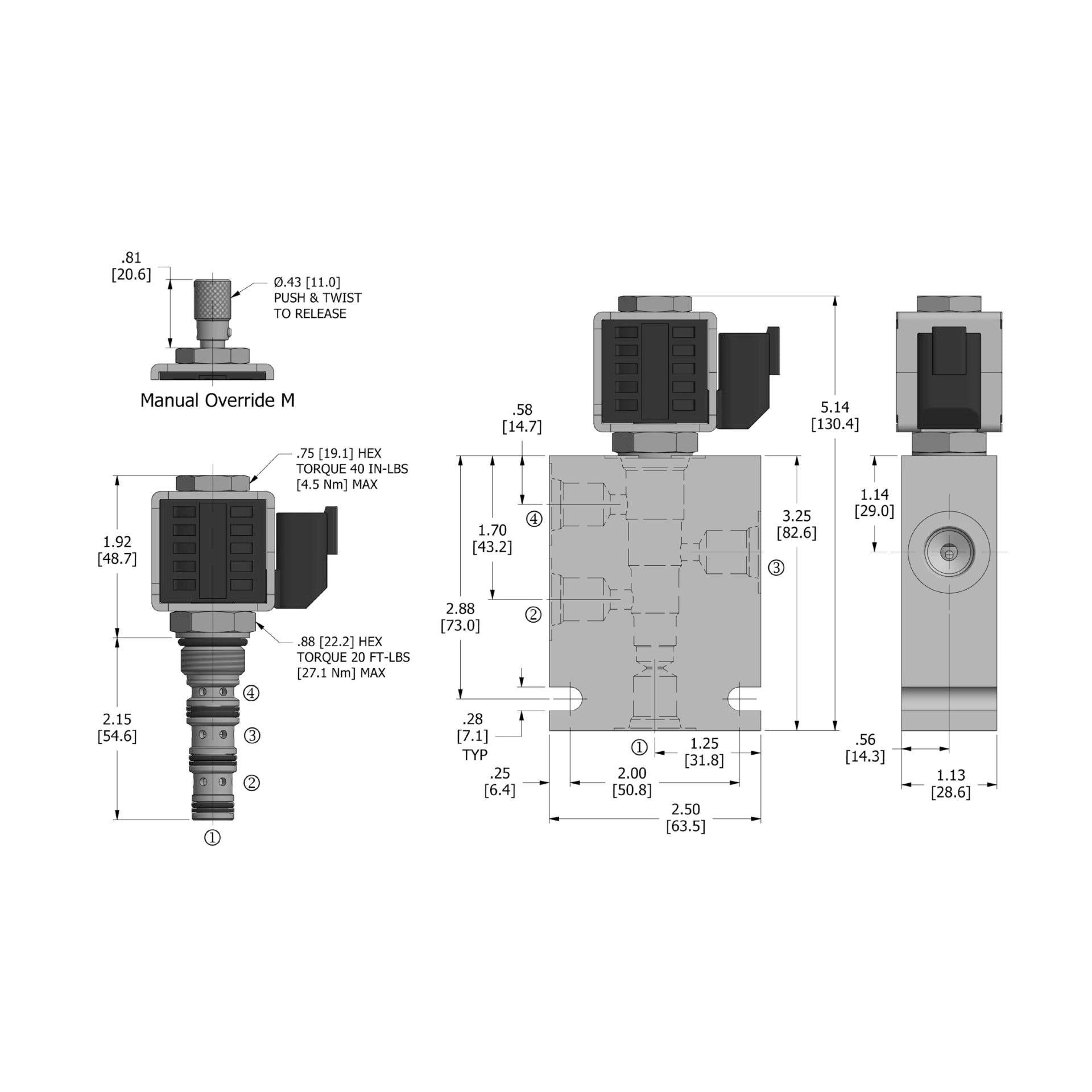

Height 2
Length 4.07
Width 2
Weight 2

Description

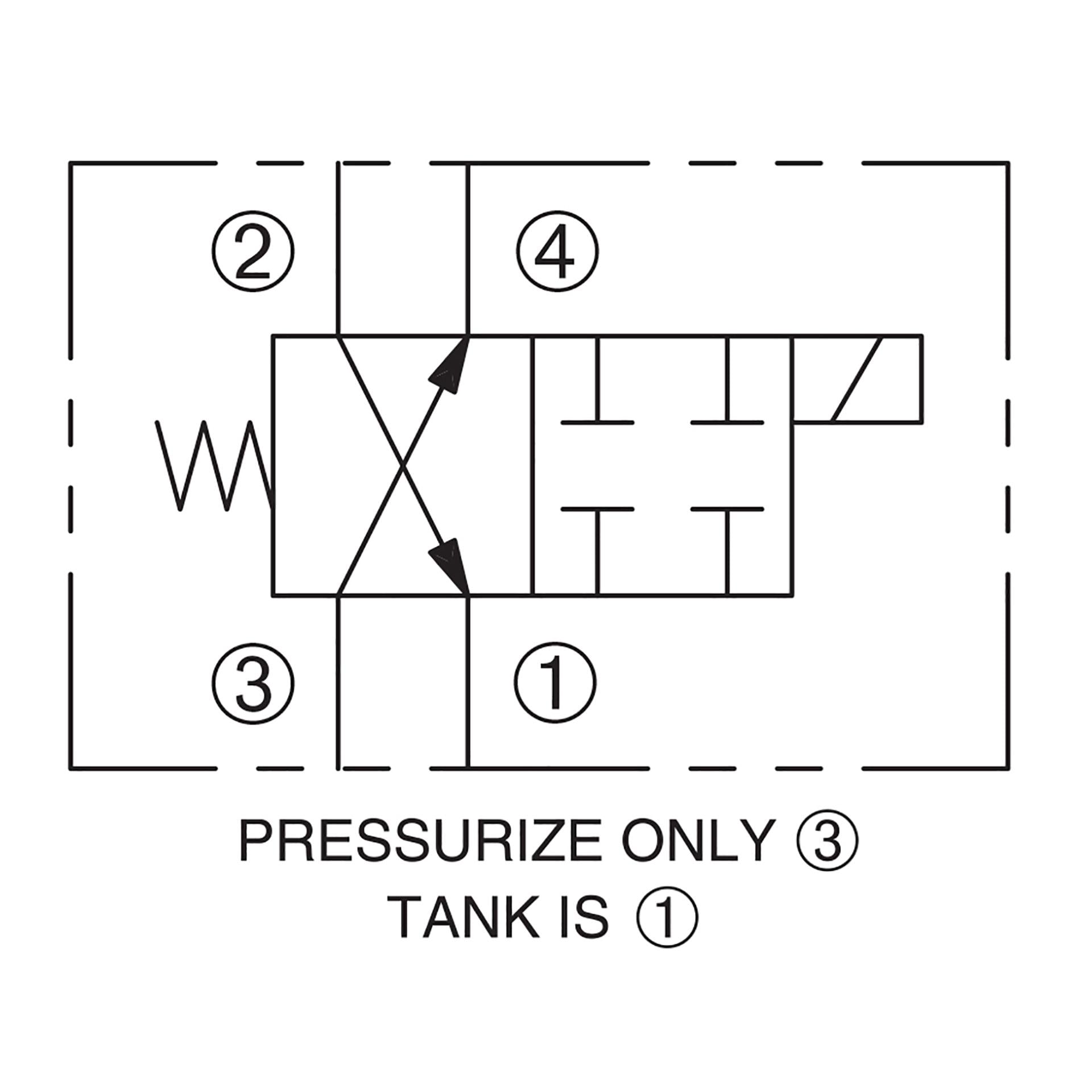

The Deltrol Fluid Products DSV2-080-4NO Solenoid Directional Four-Way, Two-Position Normally Open Spool Cartridge Valve is a hydraulic control device designed for precise fluid management in systems. It features four ports that are normally open, allowing fluid to flow through all paths by default. When energized, the valve’s spool shifts, blocking all flow paths. This design is ideal for controlling the flow to and from double-acting cylinders or motors. The valve includes a manual override for flexibility, operates at up to 3000 psi and 3 gpm, and is built for durability with a robust solenoid and precision components.
