Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-4 |
| Positions | 2-Position |
| Way | 4-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 4.07 |
| Width | 2 |
| Weight | 2 |
Description

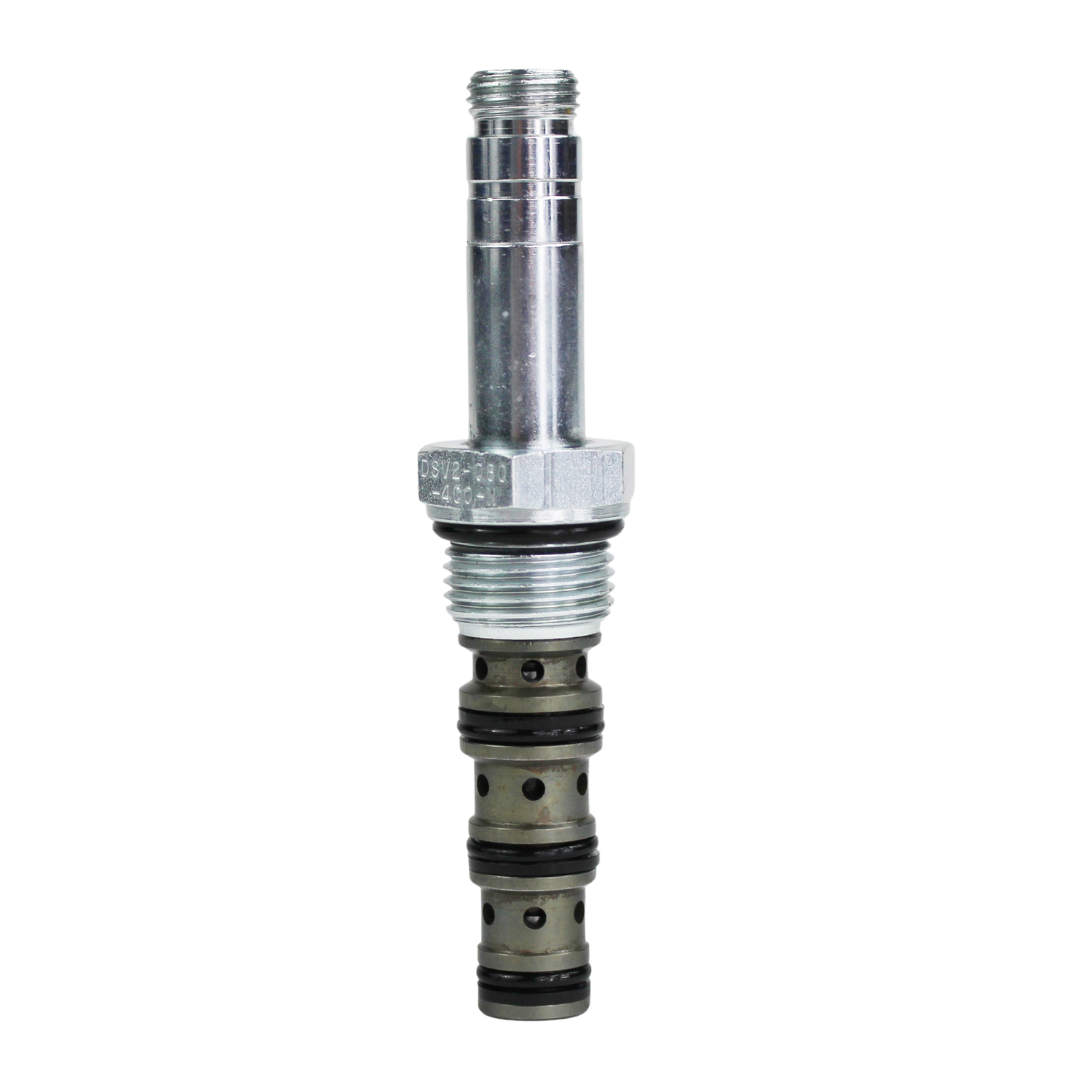

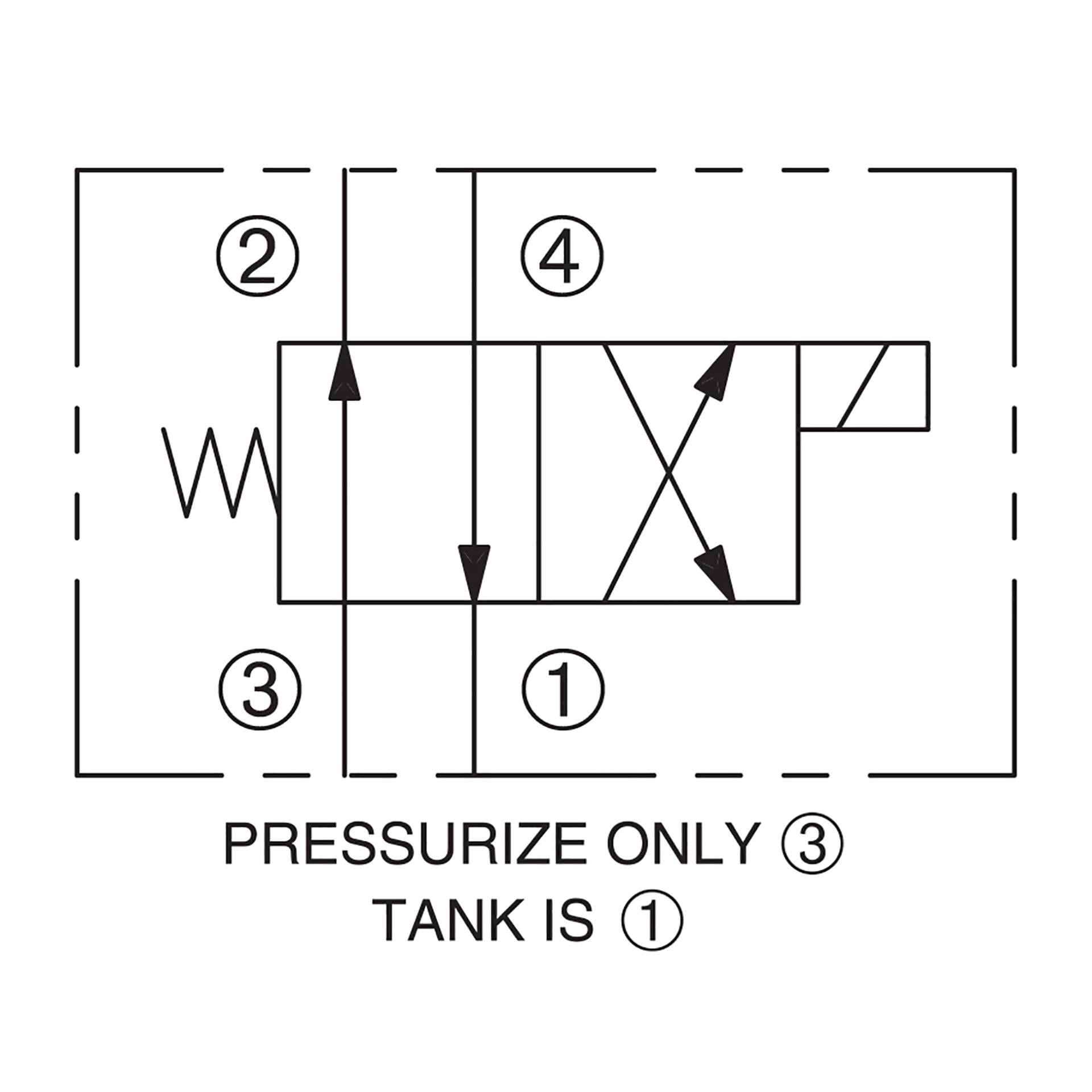

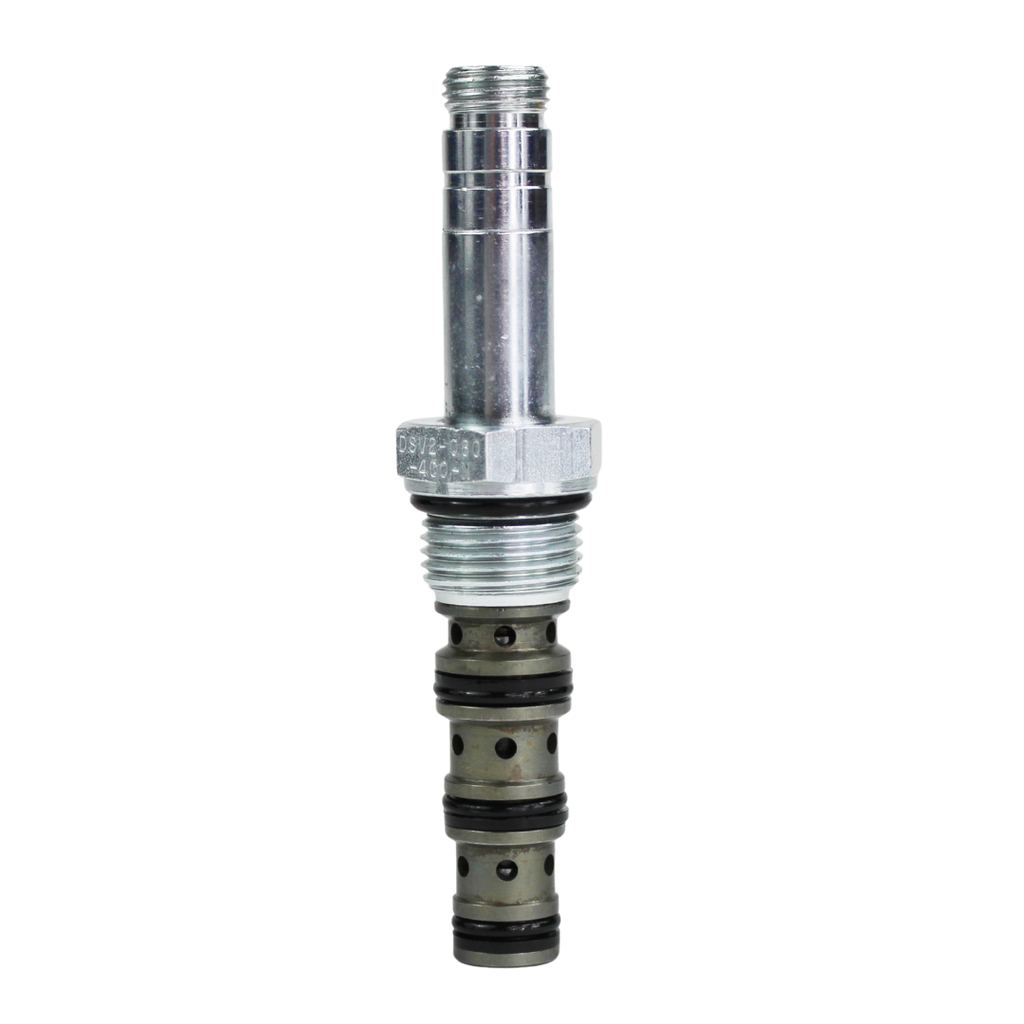

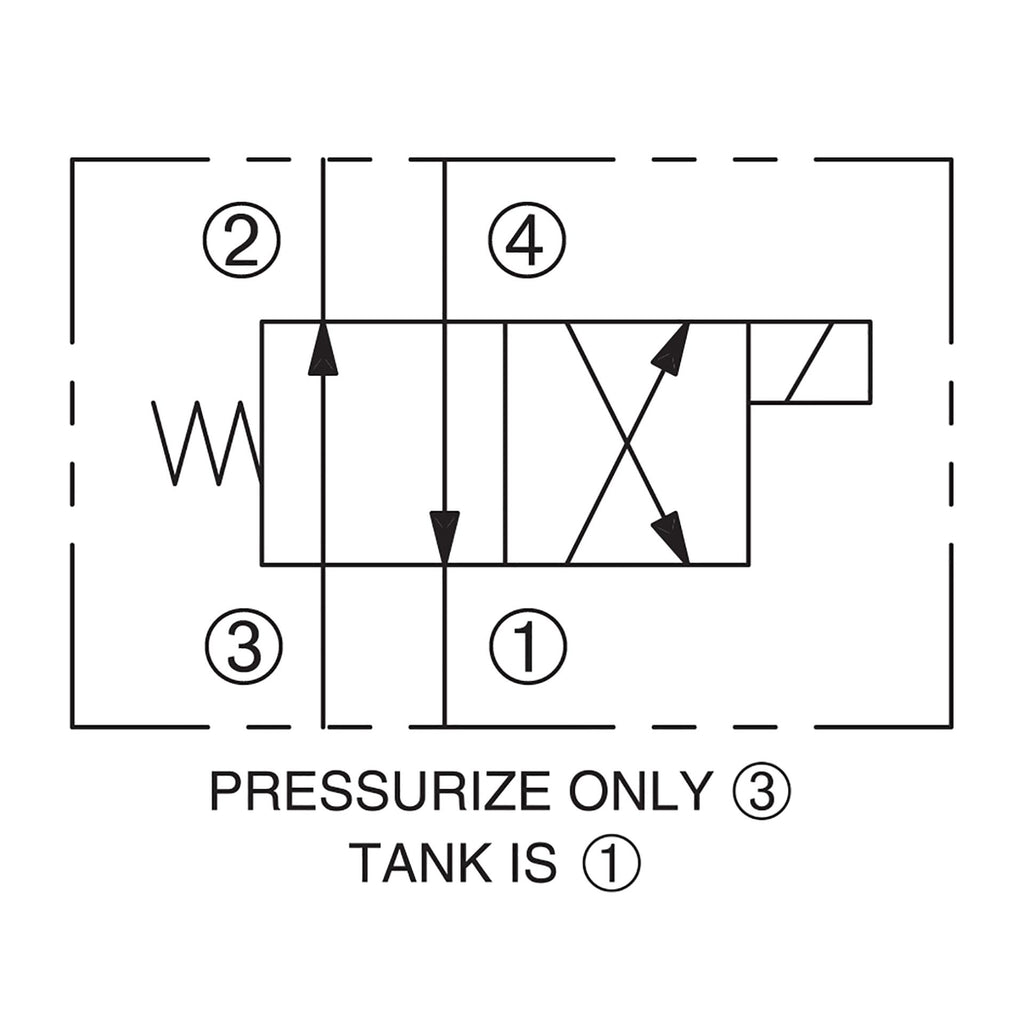

The Deltrol Fluid Products DSV2-080-4CO Solenoid Directional Four-Way, Two-Position Crossover Spool Cartridge Valve is designed for managing hydraulic flow in systems with double-acting cylinders or motors. By default, this valve allows fluid to flow from ports 3 to 2 and 4 to 1. When energized, it shifts to enable flow between ports 3 and 4, and 2 and 1. The valve includes a manual override feature for manual operation when necessary. With a robust design for pressures up to 3000 psi and a flow capacity of 3 gpm, it provides reliable performance and flexibility in demanding applications.
