Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 5.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-3 |
| Positions | 2-Position |
| Way | 3-Way |
| Country of Manufacture | United States/Vietnam |

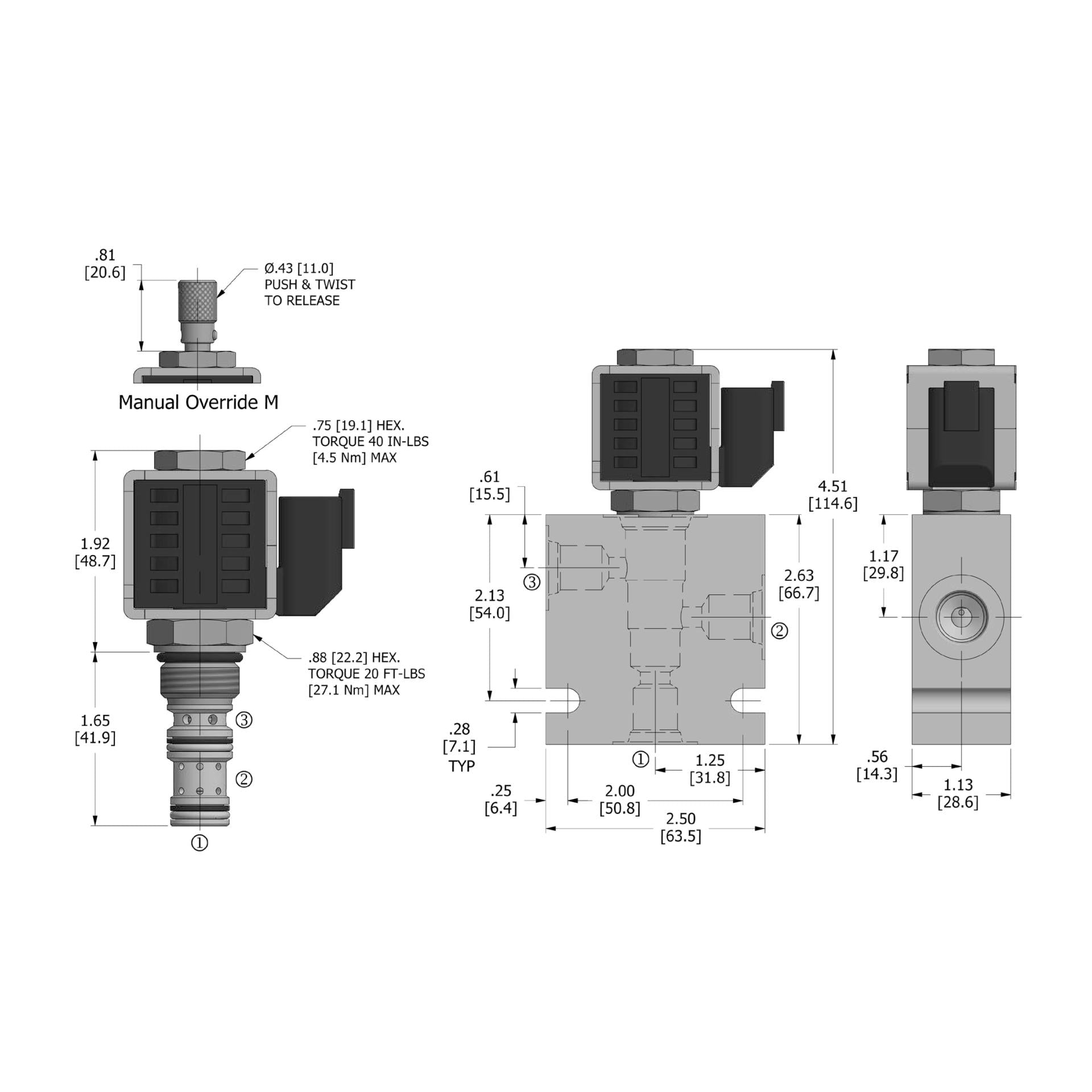

| Height | 2 |
| Length | 3.57 |
| Width | 2 |
| Weight | 2 |
Description

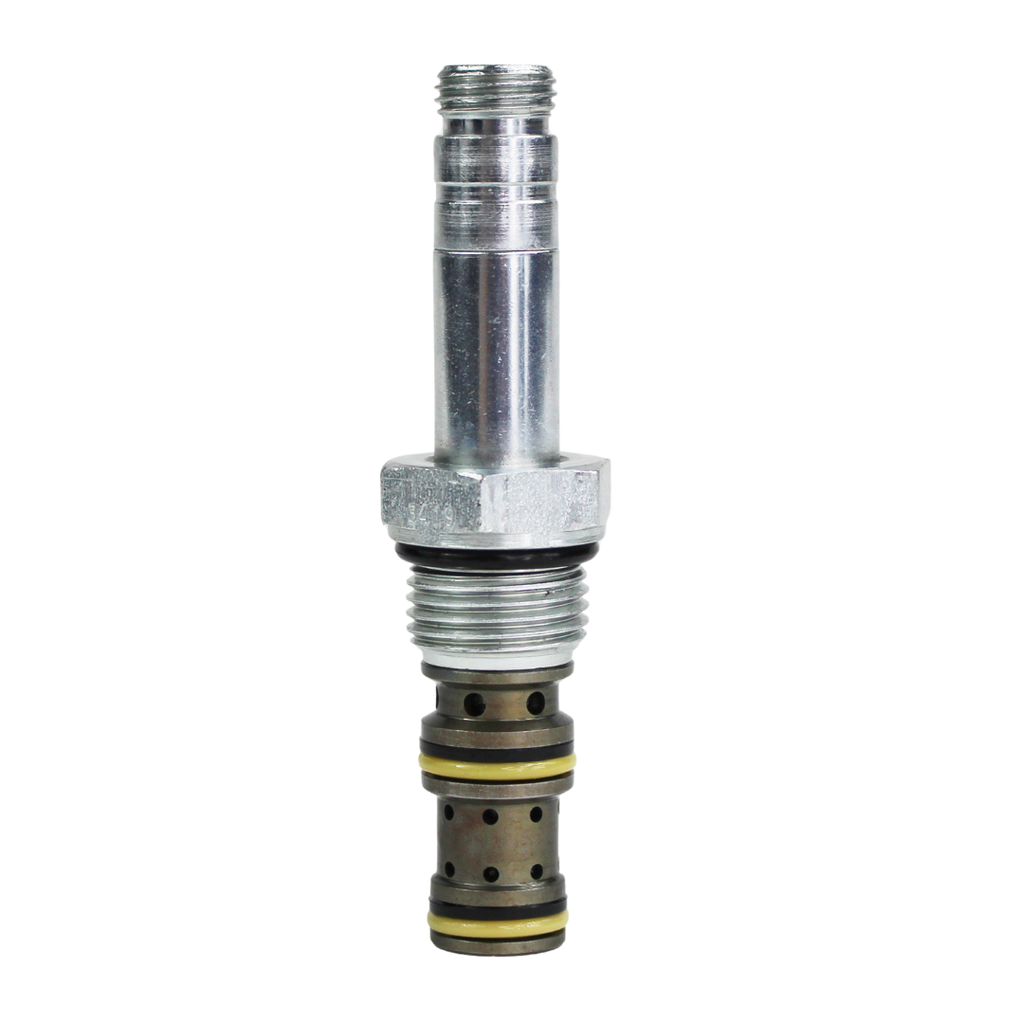

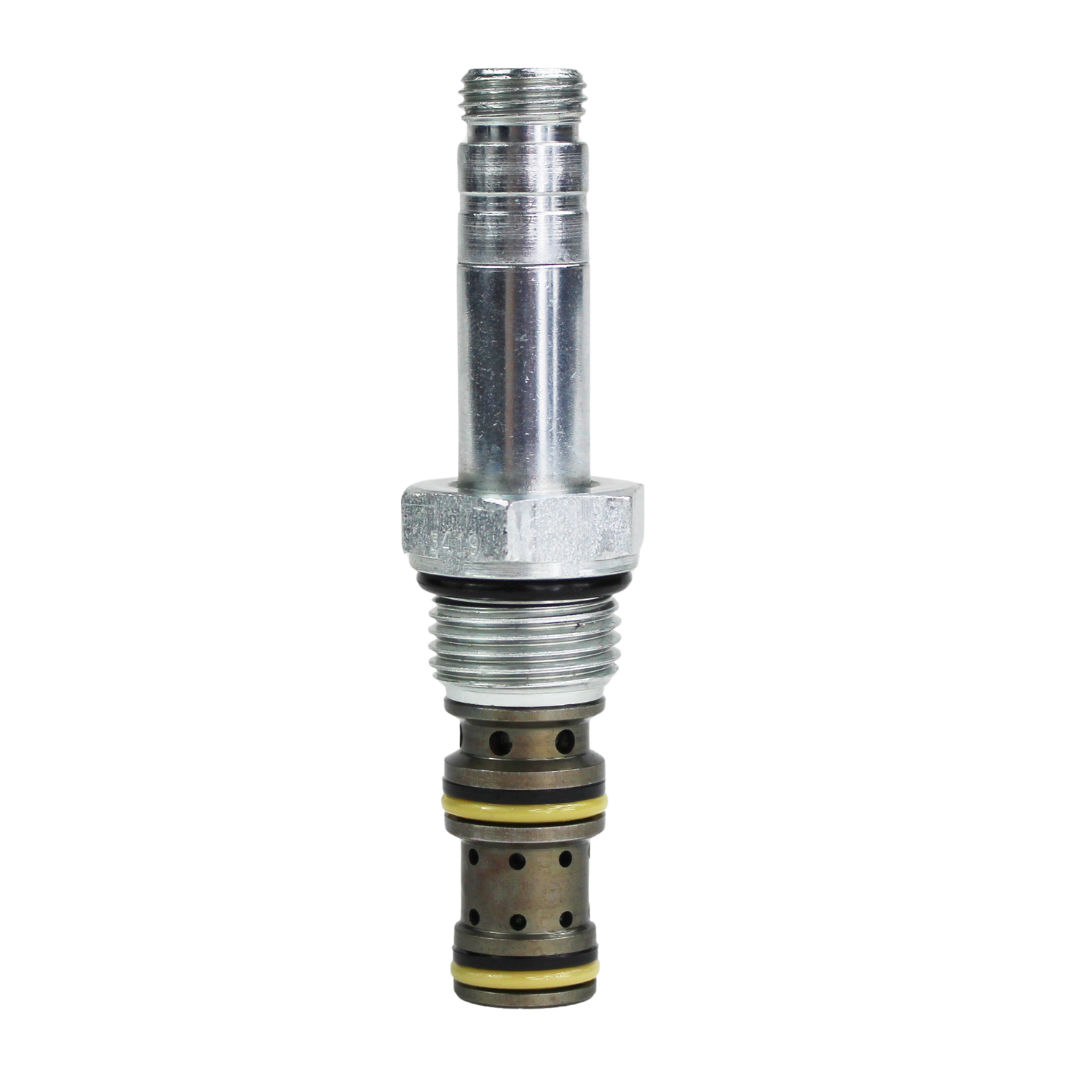

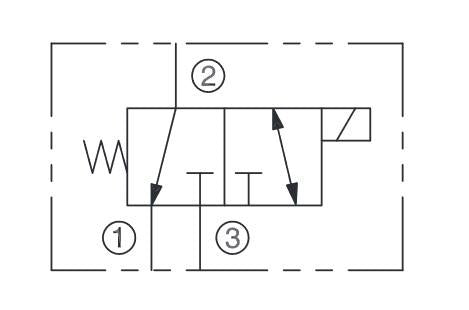

The Deltrol Fluid Products DSV2-080-3B Solenoid Directional Three-Way, Two-Position Spool Cartridge Valve is engineered for precise hydraulic control. In its default (de-energized) state, it permits flow from port 2 to port 1 while blocking flow at port 3. When energized, the valve's spool shifts to enable flow between ports 2 and 3, blocking flow at port 1. This versatile valve, capable of handling pressures up to 3000 psi and flows up to 5 gpm, features a manual override that allows the valve to remain in the shifted position when needed. Made from durable anodized aluminum, it ensures long-term reliability and minimal leakage, making it ideal for demanding hydraulic systems.
