Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-2 |
| Positions | 2-Position |
| Way | 2-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 3.03 |
| Width | 2 |
| Weight | 2 |
Description

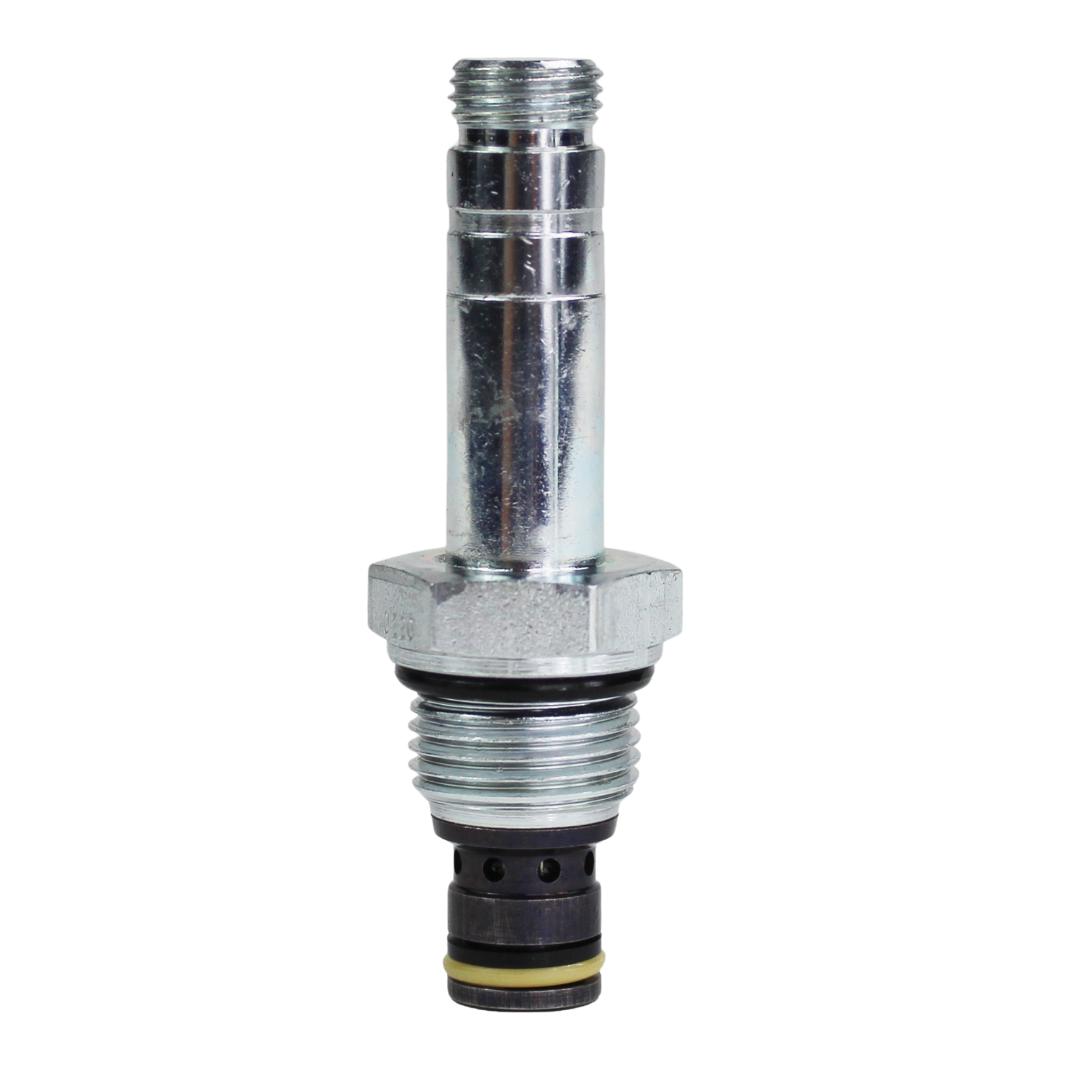

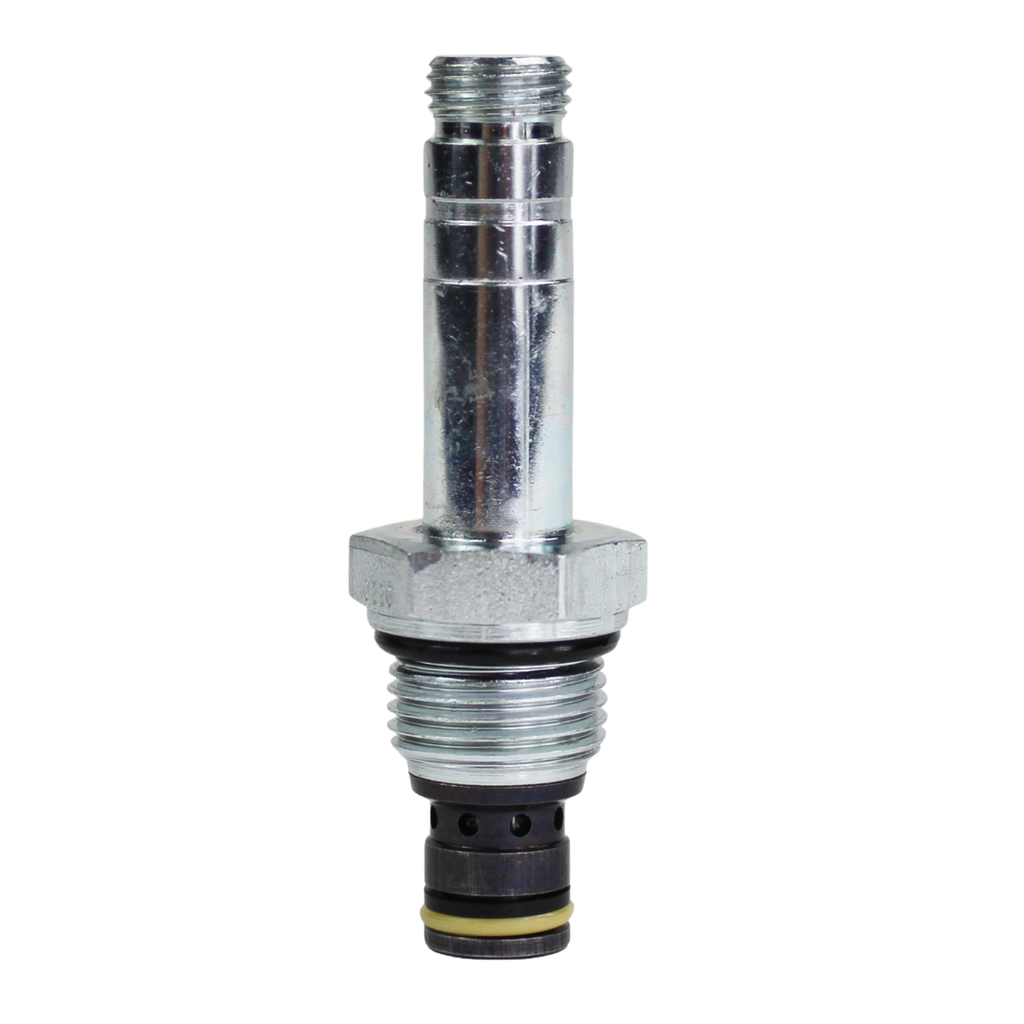

The Deltrol Fluid Products DSV2-080-2NOS Solenoid Directional Two-Way, Two-Position, Normally Open Spool Cartridge Valve is a high-performance hydraulic component designed for bi-directional flow control. When de-energized, it allows flow in both directions, ensuring flexibility in system operation. When energized, the valve's spool shifts to block flow in both directions, effectively stopping any movement. It includes a manual override feature for easy operation and offers robust performance with pressures up to 3000 psi and flows up to 3 gpm. Constructed from durable anodized aluminum, this valve is suitable for demanding applications and ensures reliable operation with minimal leakage.
