Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-2 |
| Positions | 2-Position |
| Way | 2-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 3.81 |
| Width | 2 |
| Weight | 2 |
Description

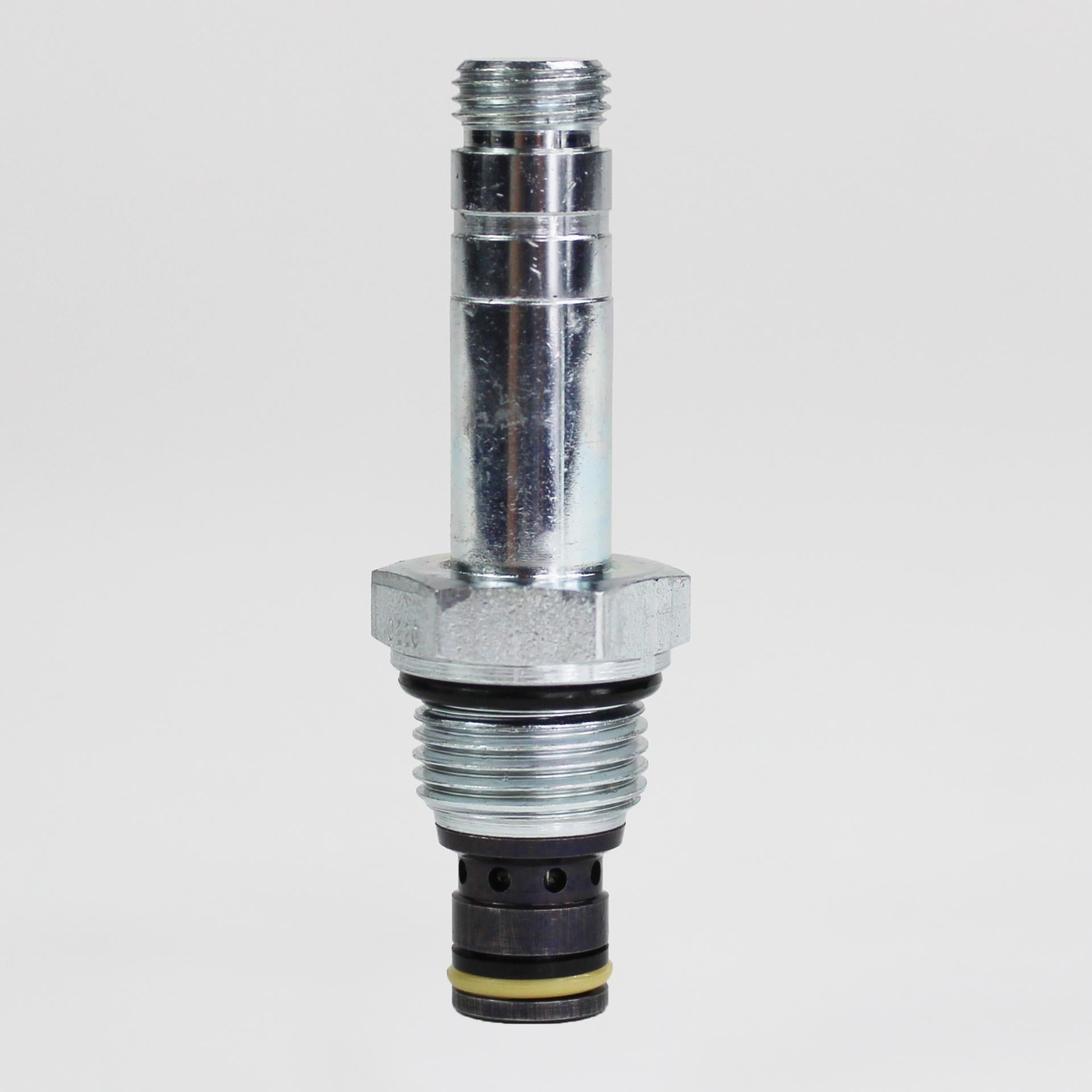

The Deltrol Fluid Products DSV2-080-2NCS Solenoid Directional Two-Way, Two-Position, Normally Closed Spool Cartridge Valve is a reliable hydraulic control valve designed for efficient bidirectional flow management. It fits into standard industry cavities or can be used in pre-configured ported blocks. When de-energized, it blocks flow in both directions, ideal for applications requiring secure load holding. When energized, the spool shifts to allow flow in either direction. This valve features a manual override for easy operation, a durable precision spool for extended life, and low leakage, ensuring consistent performance in hydraulic systems with pressures up to 3000 psi and flows up to 3 gpm.
