DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM
DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM
DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM
DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM
DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM
Roll over image to zoom in Click on image to zoom
DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPMDSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPMDSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPMDSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPMDSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM

DSV-100-34T-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Tandem Center Spool, C-10-4 Cavity, 3000psi, 4GPM

Deltrol Fluid ProductsSKU: 10172-01
4-6 Weeks
Price:
$110.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 4.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-4
Positions 3-Position
Way 4-Way
Country of Manufacture United States/Vietnam
Height 2
Length 6.99
Width 2
Weight 2

Description

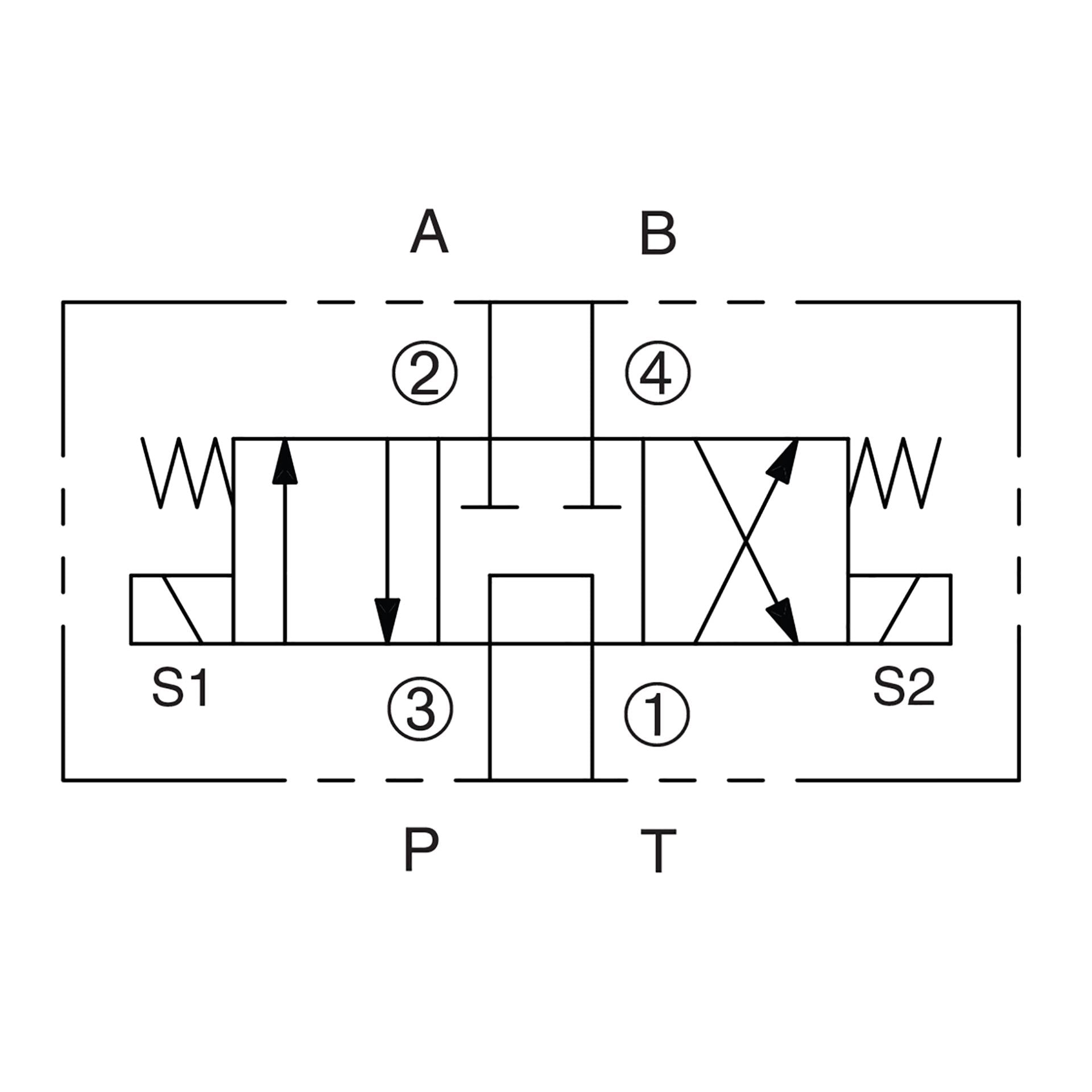

The Deltrol Fluid Products DSV-100-34T Solenoid Directional Four-Way, Three-Position, Tandem Center Spool Cartridge Valve is a key component for controlling hydraulic flow. This valve operates in three positions: when de-energized, it allows flow between ports 3 and 1 while blocking ports 2 and 4. Energizing the lower solenoid (S2) opens flow between ports 2 and 1 and 3 and 4, while energizing the upper solenoid (S1) connects ports 4 to 1 and 3 to 2. It includes a manual override feature for flexibility. Built to handle up to 3000 psi and flow rates of 4 gpm, this valve is designed for reliability and efficiency in hydraulic systems.
