Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-10-4 |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 6.99 |
| Width | 2 |
| Weight | 2 |
Description

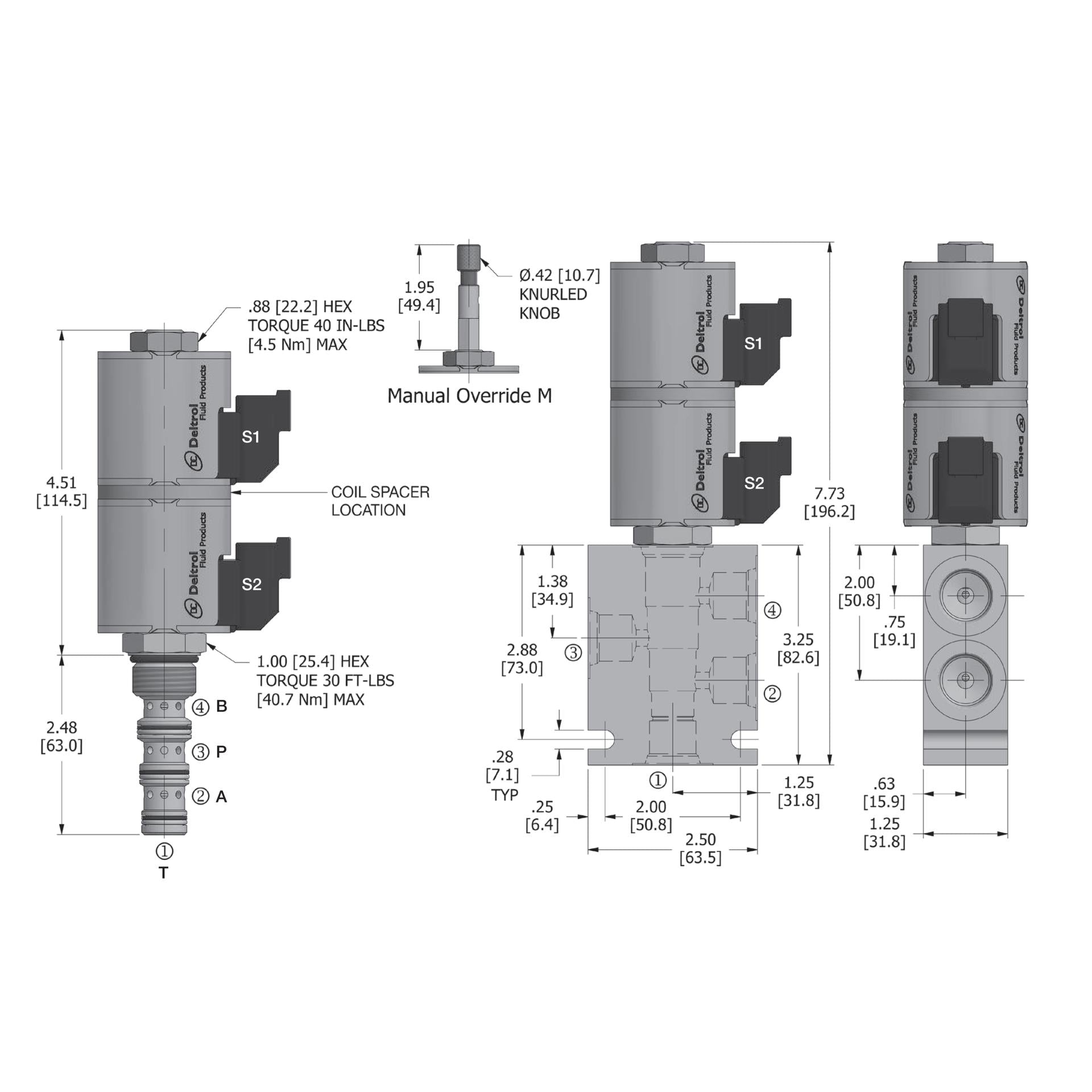

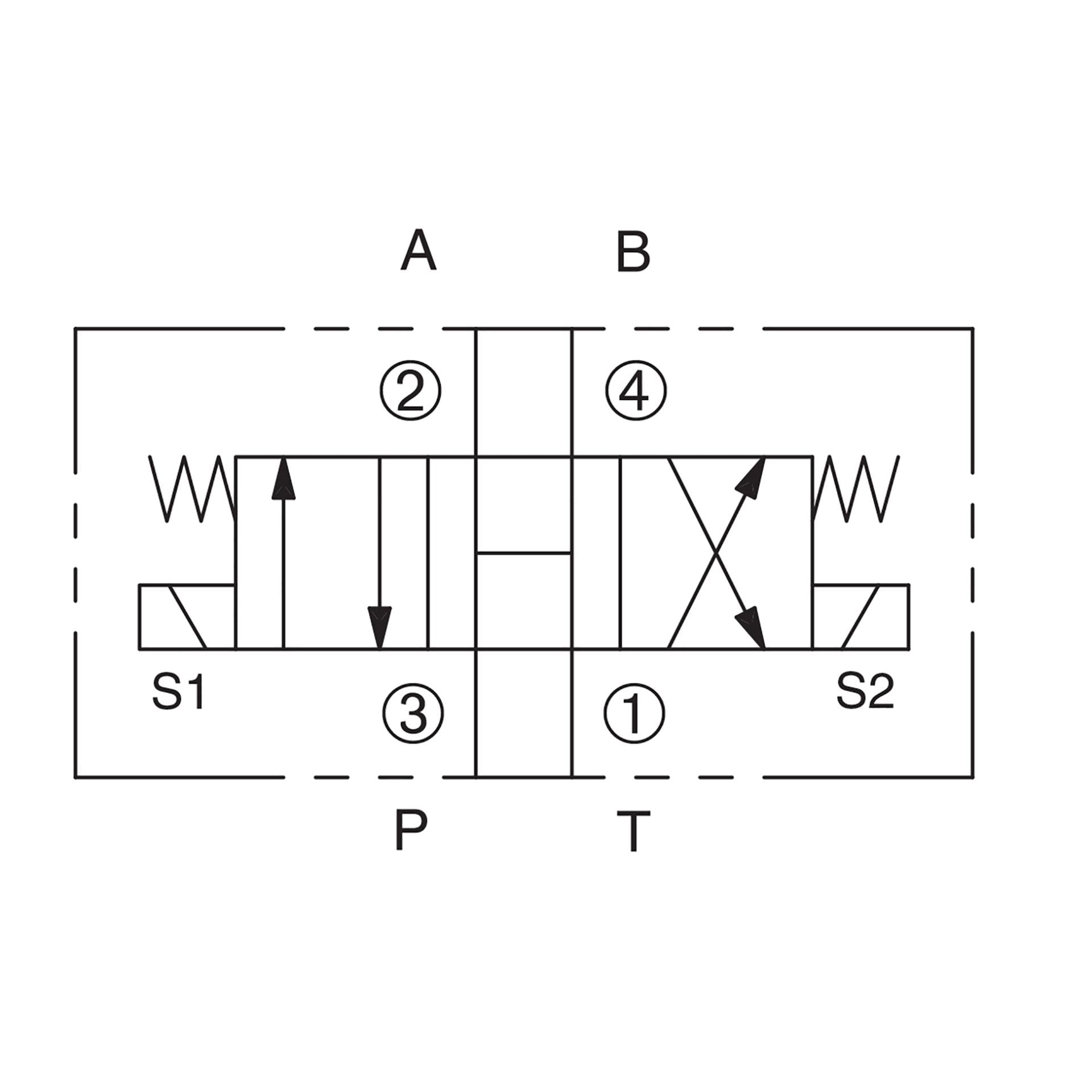

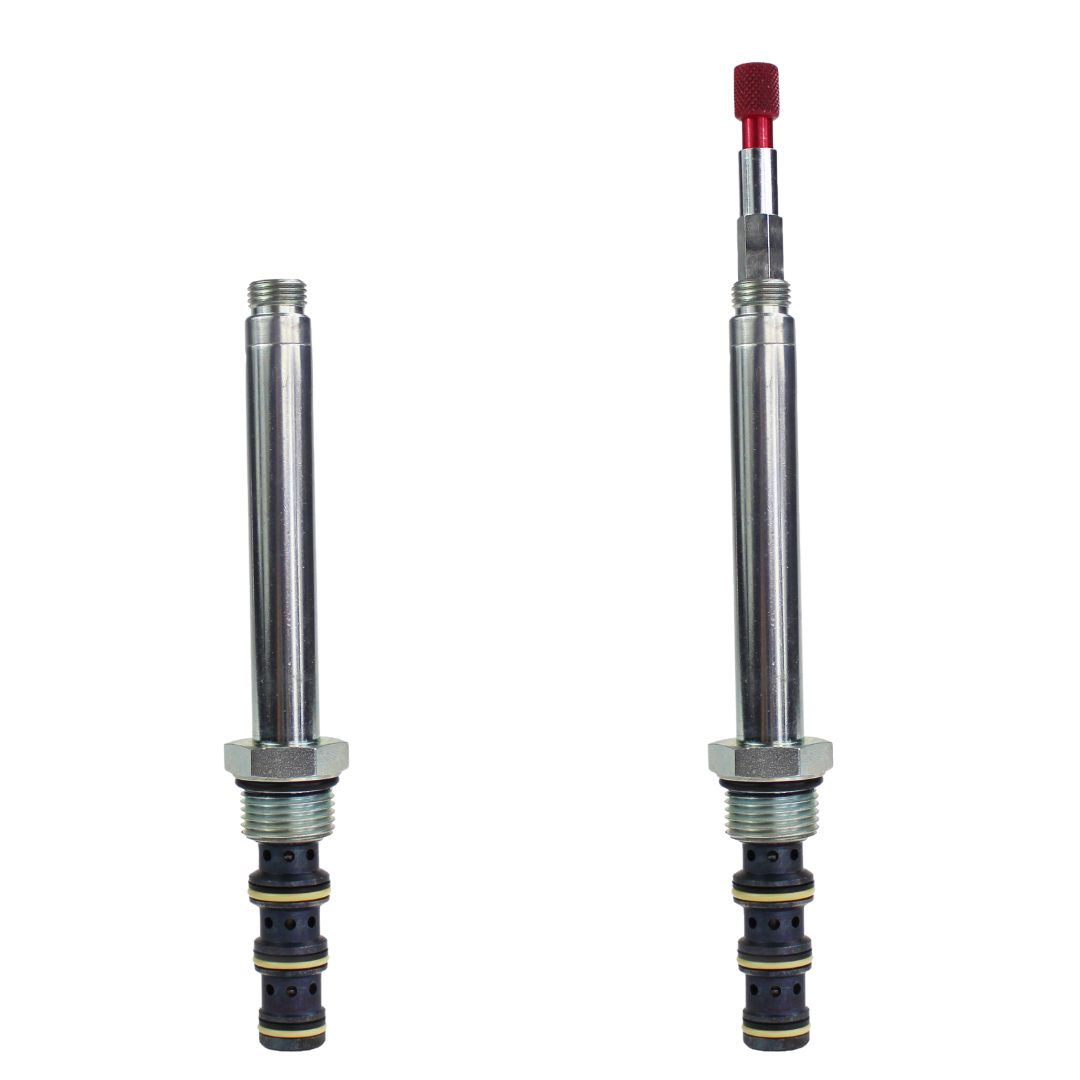

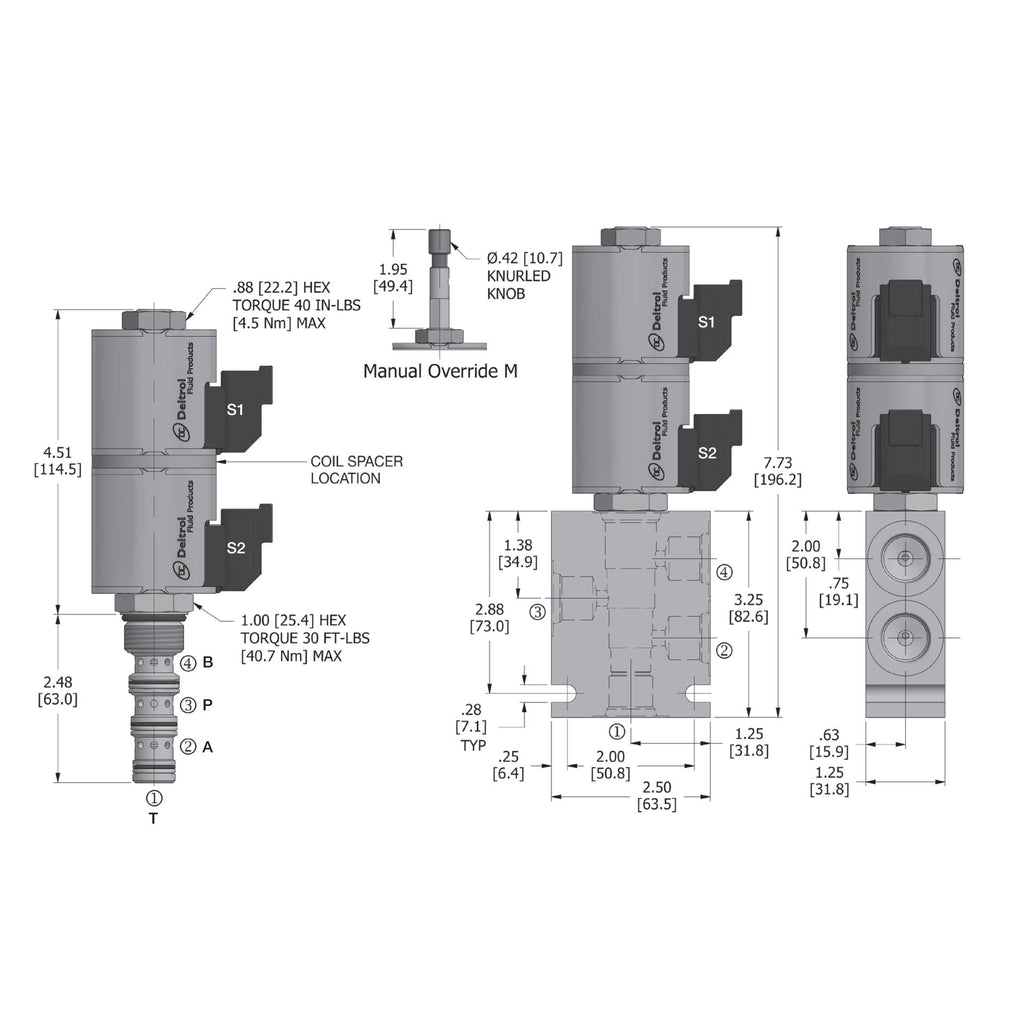

The Deltrol Fluid Products DSV-100-34O Solenoid Directional Four-Way, Three-Position, Open Center Spool Cartridge Valve is designed to manage hydraulic flow with precision. In its default, de-energized state, it permits flow between all ports, facilitating unrestricted movement. When the upper solenoid (S1) is activated, it directs flow between ports 2 and 1, and 3 and 4. Conversely, with the lower solenoid (S2) engaged, the valve channels flow between ports 4 and 1, and 3 and 2. It also includes a manual override feature, allowing you to switch between solenoid functions S1 and S2 using a knurled knob. Capable of handling pressures up to 3000 psi and flows up to 3 gpm, this valve is built for durability and effective hydraulic control.
