Deltrol Fluid ProductsSKU: 10172-00
4-6 Weeks
Price:
$106.55

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool

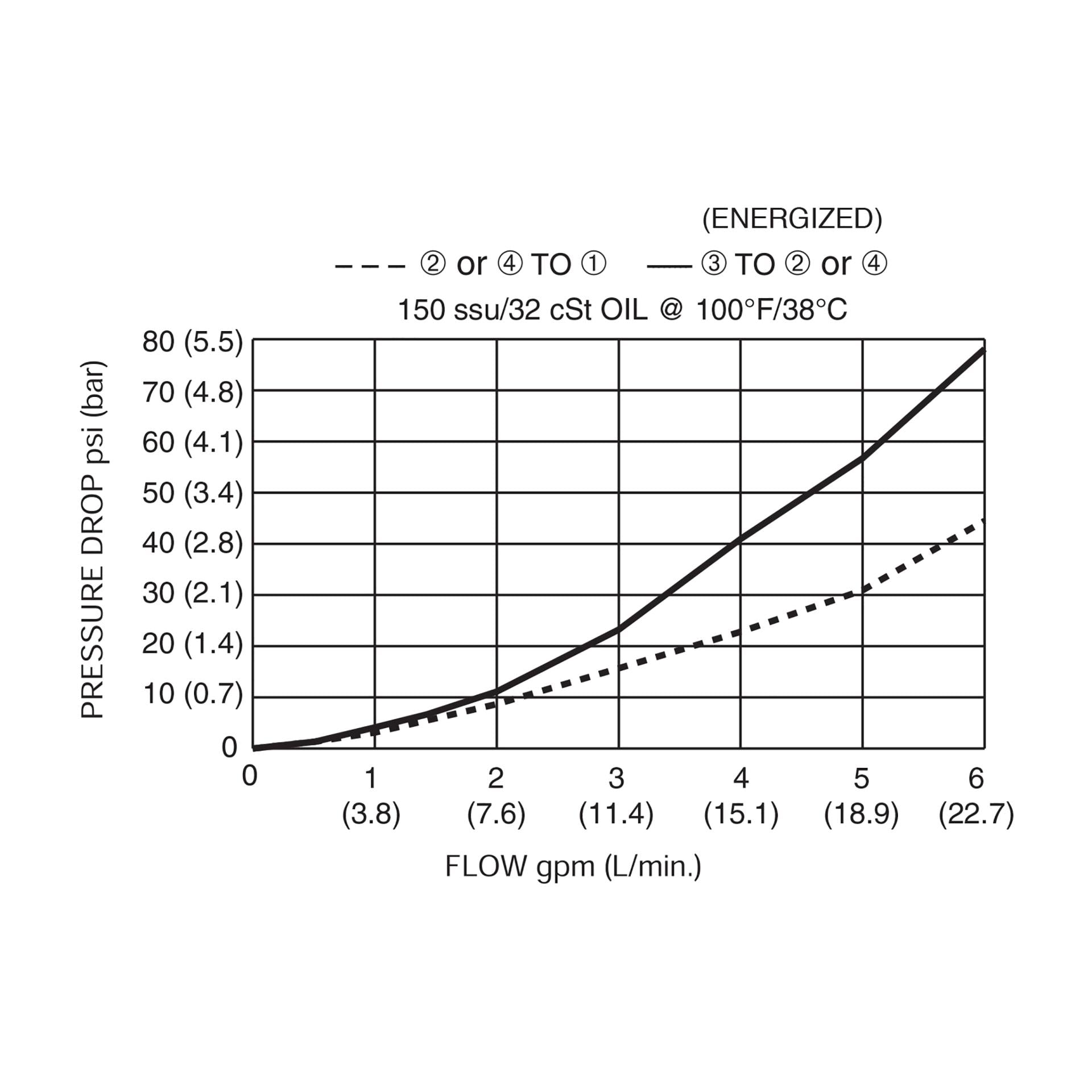

Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-10-4
Positions 3-Position
Way 4-Way
Country of Manufacture United States/Vietnam

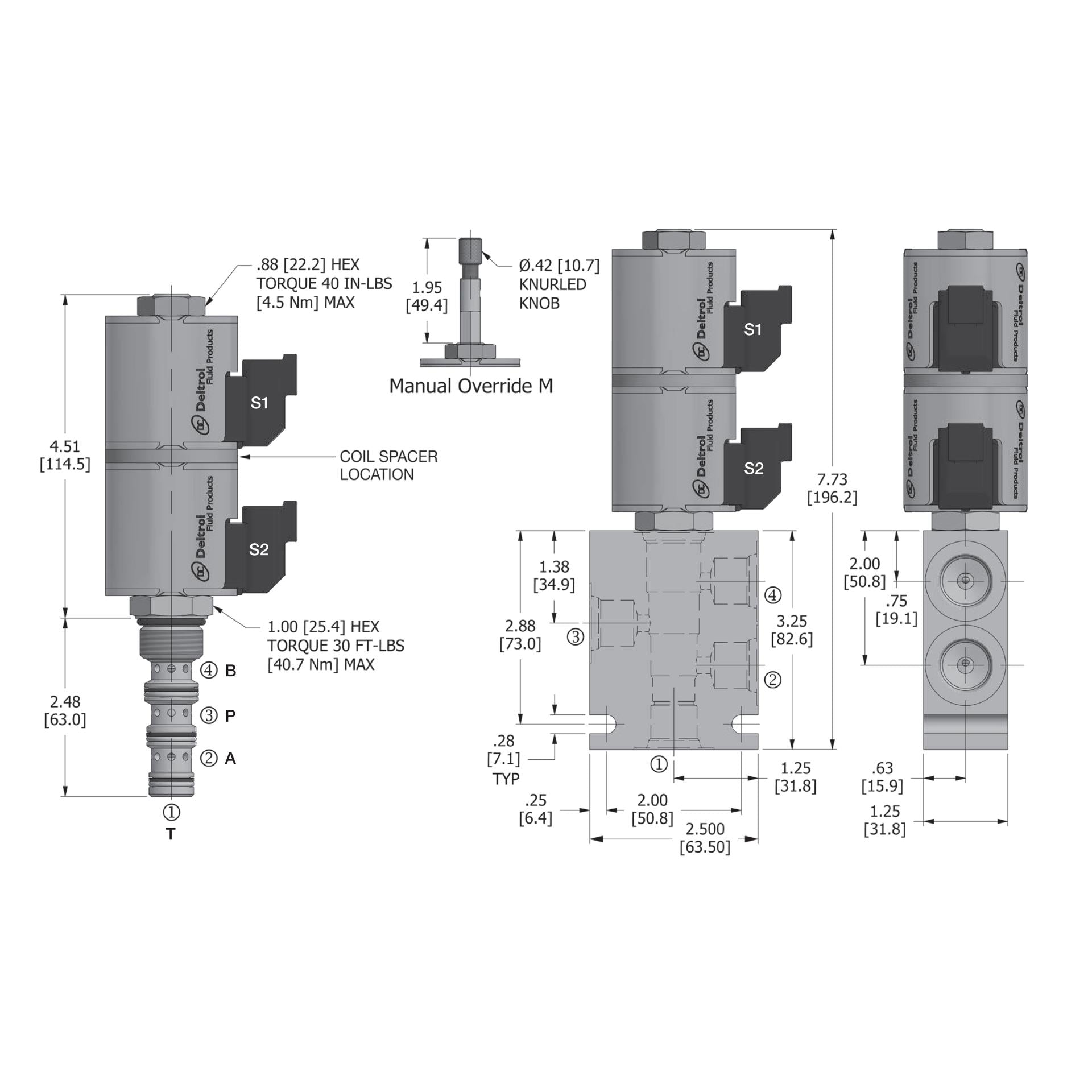

Height 2
Length 6.99
Width 2
Weight 2

Description

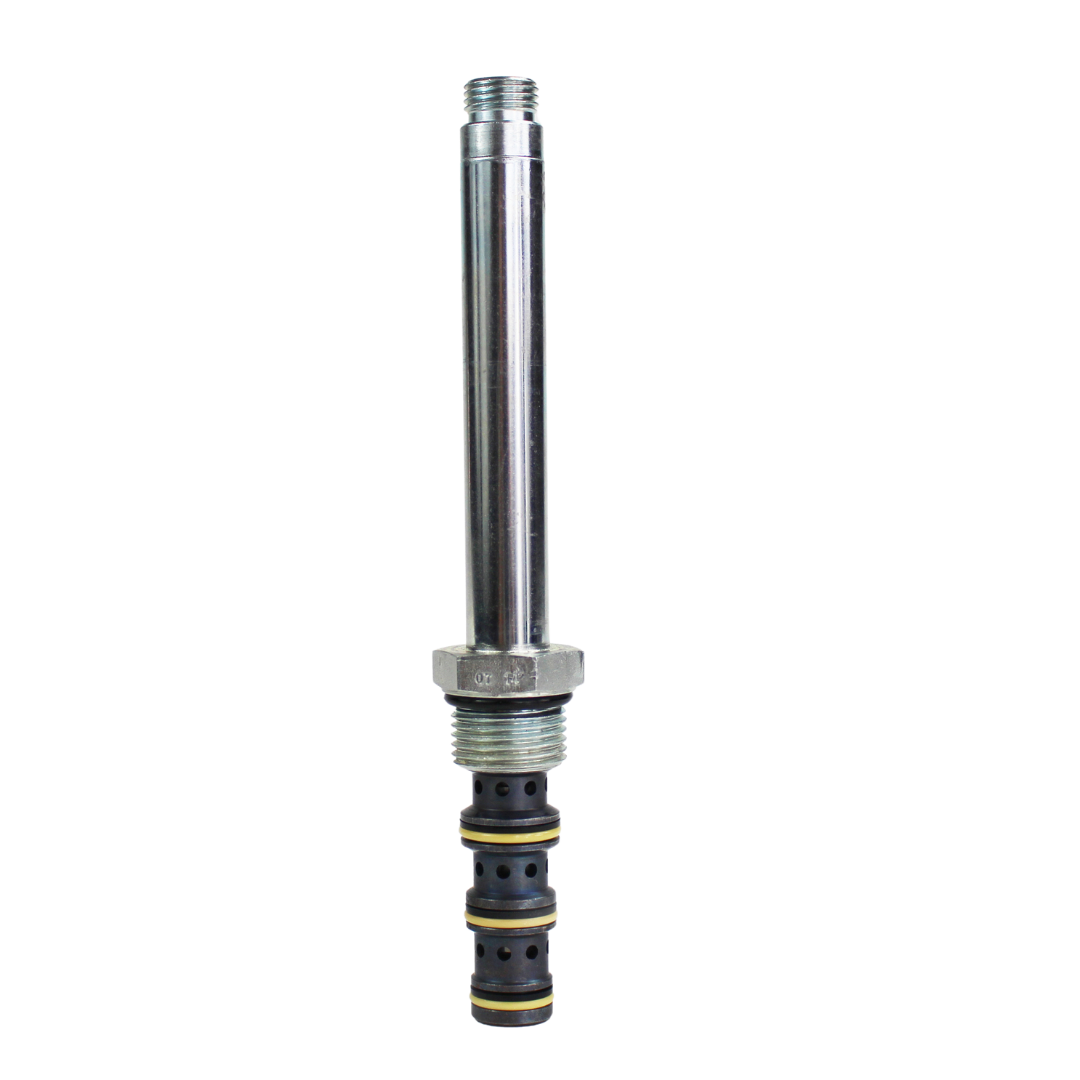

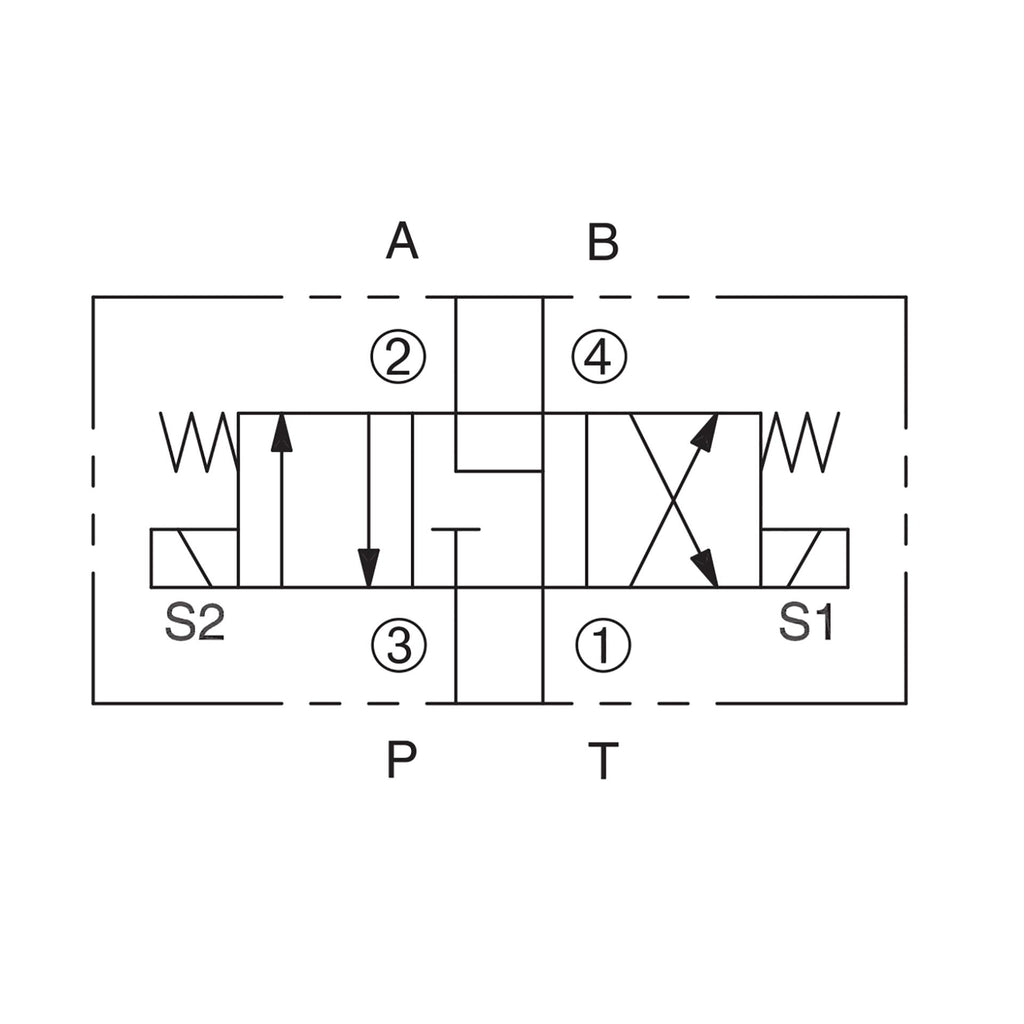

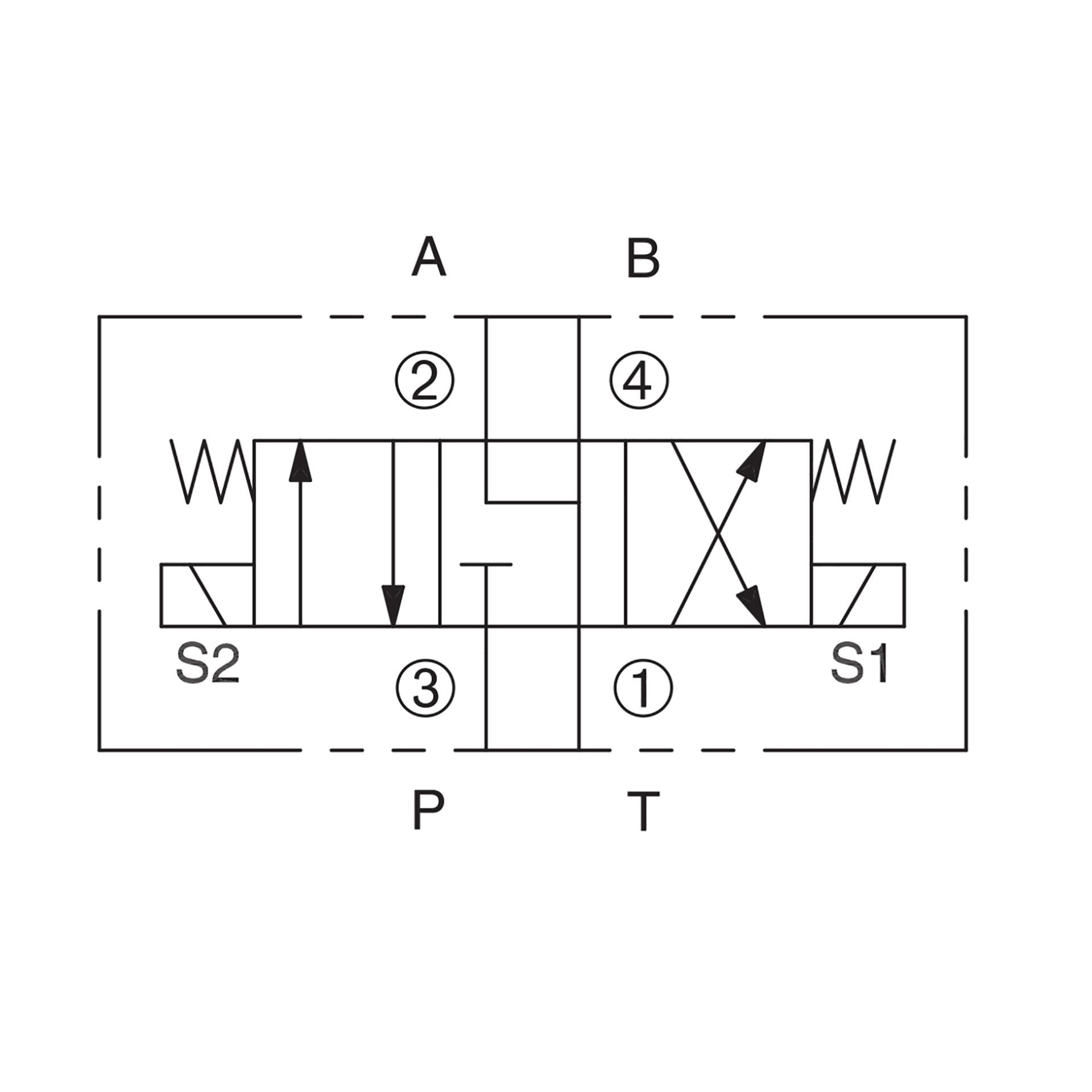

The Deltrol Fluid Products DSV-100-34M Solenoid Directional Four-Way, Three-Position, Motor Center Spool Cartridge Valve is a versatile hydraulic control component used in various systems. This valve operates in three positions: when de-energized, it allows flow between ports 1, 2, and 4 while blocking port 3. Energizing the upper solenoid (S1) connects ports 2 to 1 and 3 to 4, while energizing the lower solenoid (S2) connects ports 4 to 1 and 3 to 2. The valve features a manual override option for manual control, and is built with a durable anodized aluminum body to handle up to 3000 psi and flow rates of 6 gpm. It is ideal for managing hydraulic flow efficiently in demanding applications.
