Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 6.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-10-4 |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 6.99 |
| Width | 2 |
| Weight | 2 |
Description

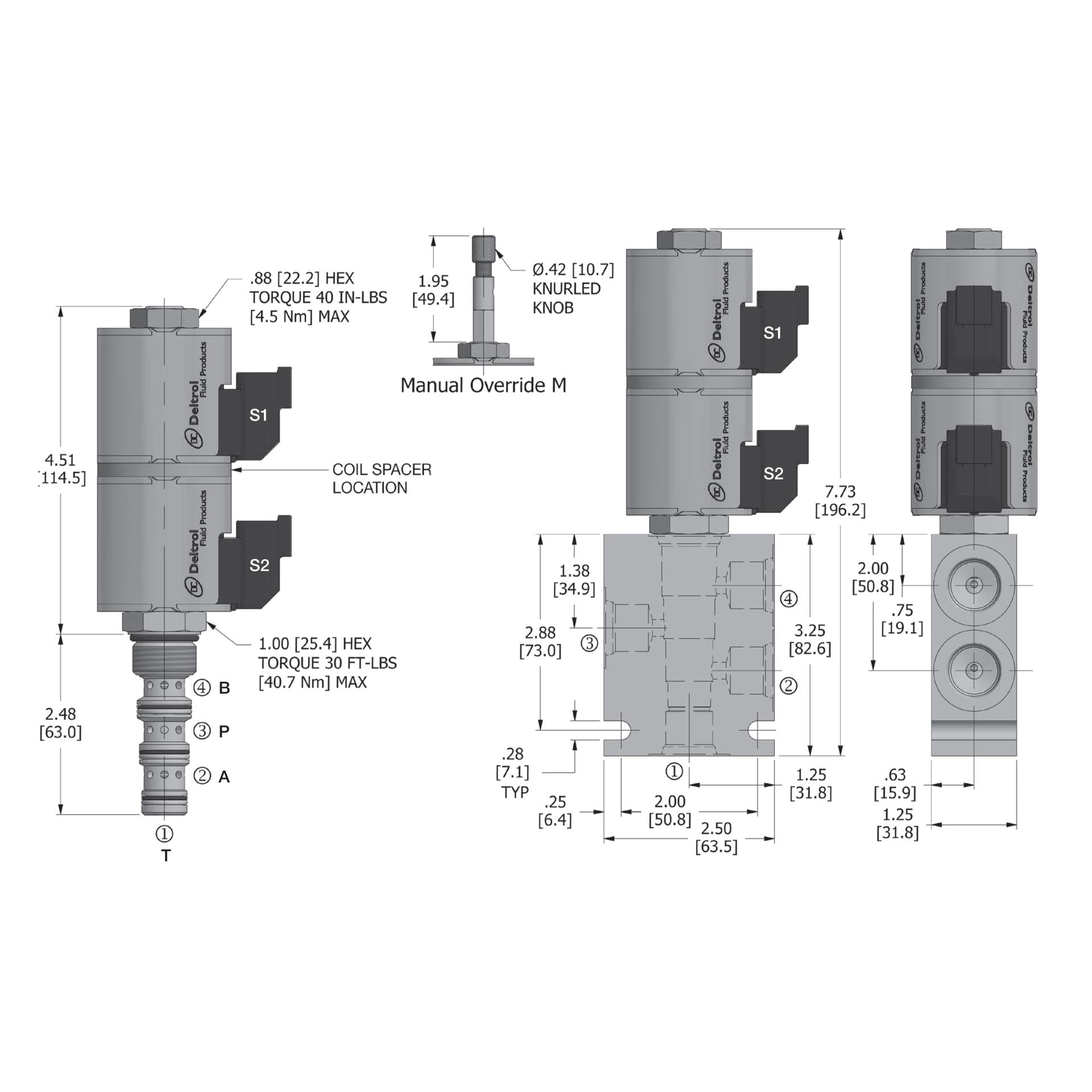

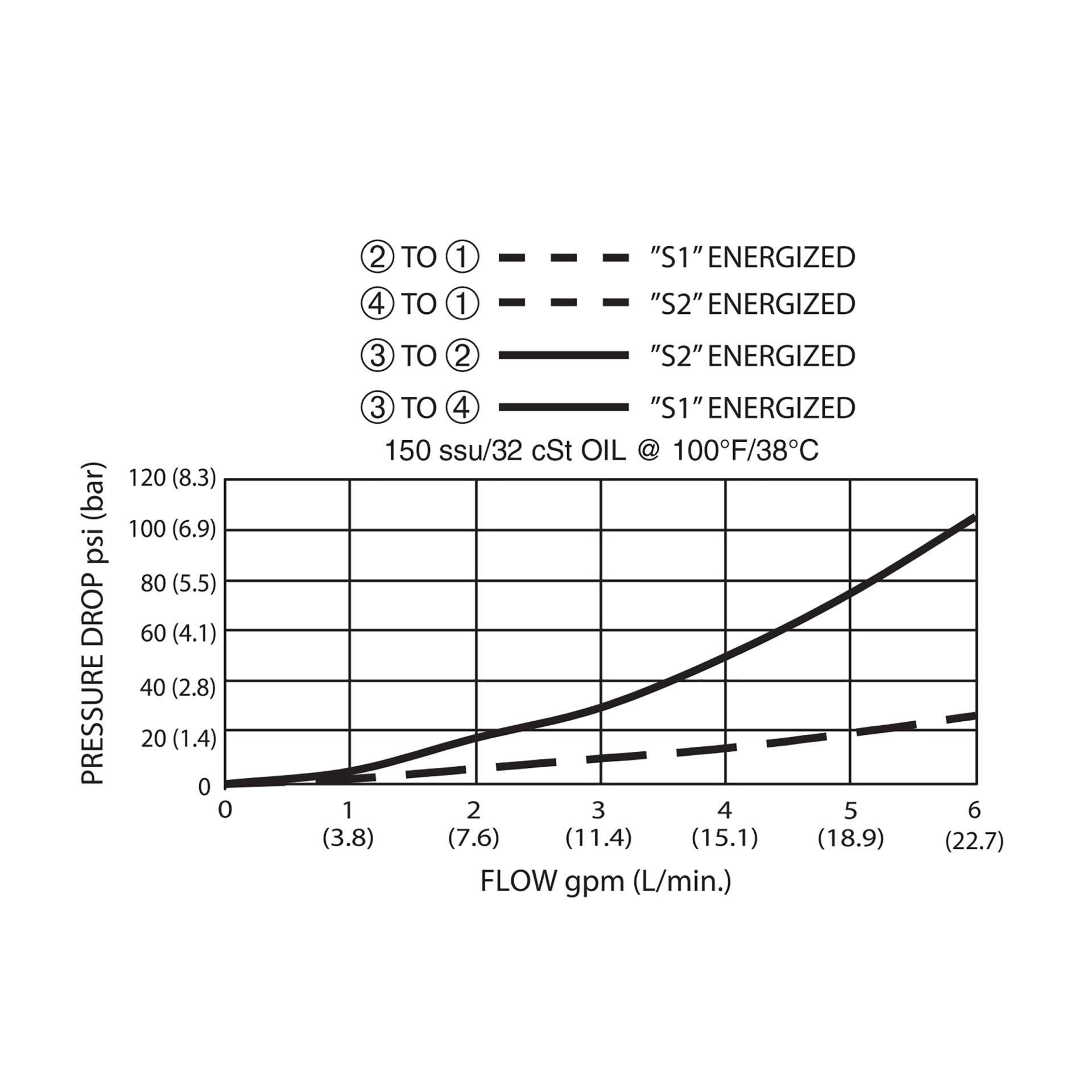

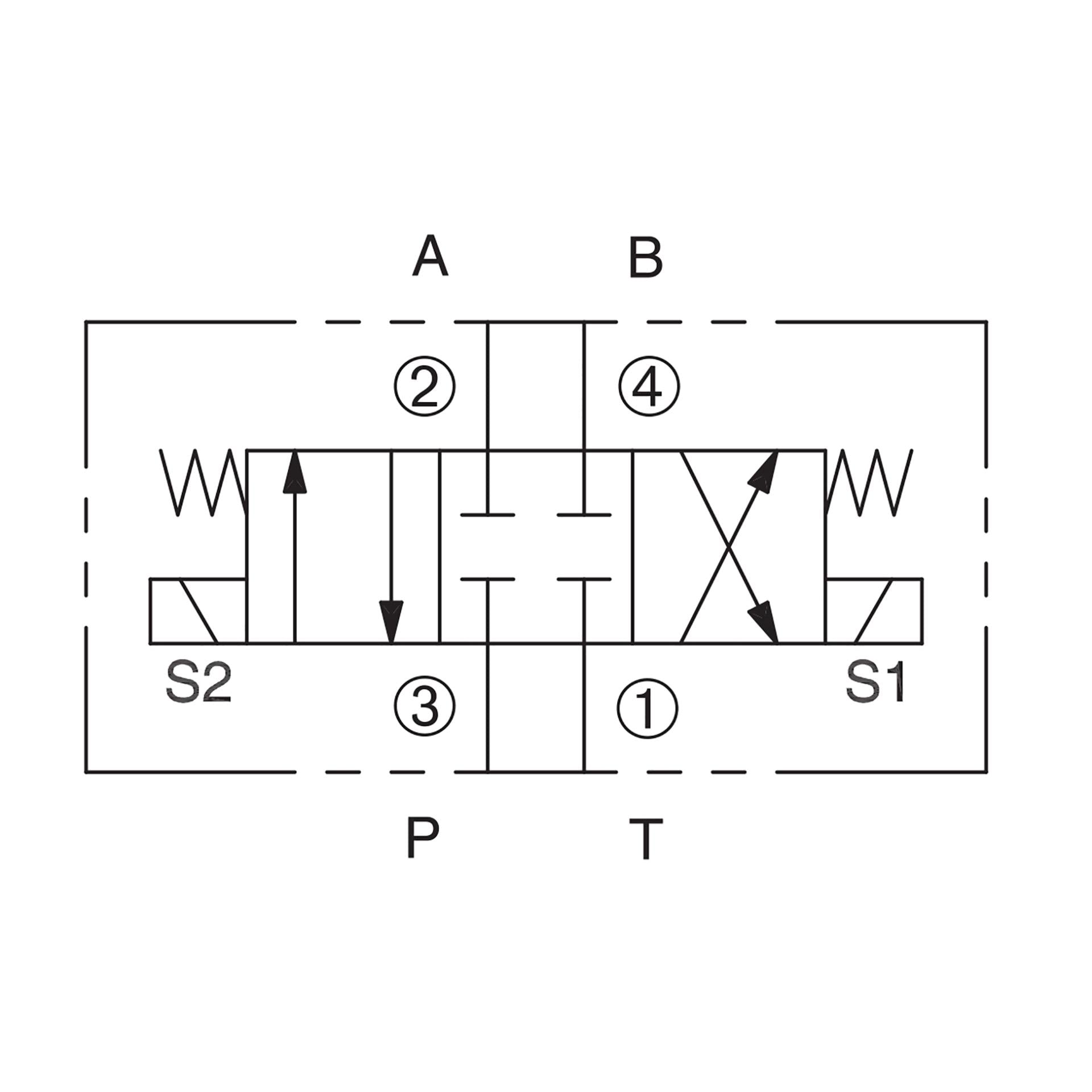

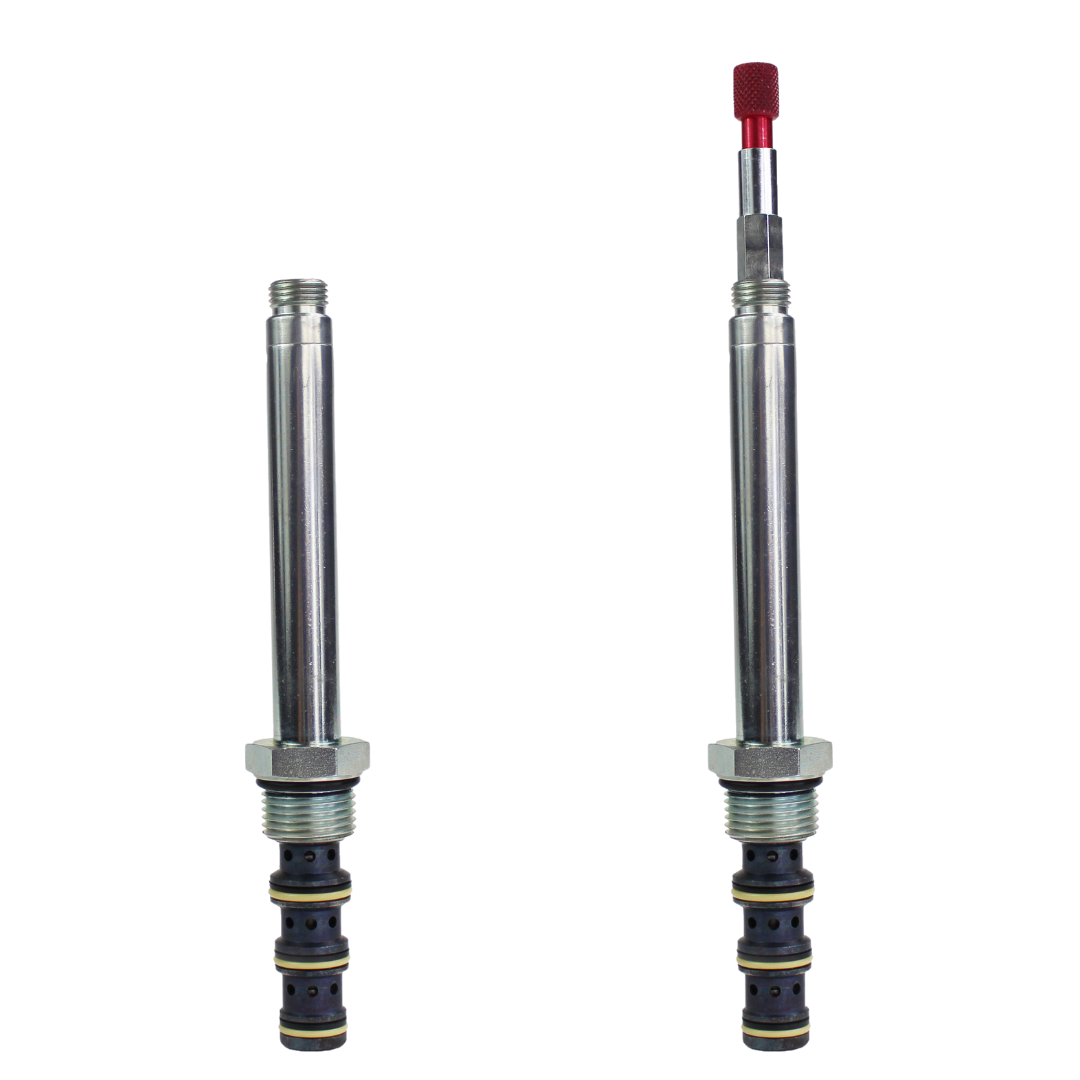

The Deltrol Fluid Products DSV-100-34C Solenoid Directional Four-Way, Three-Position, Closed Center Spool Cartridge Valve offers precise hydraulic control with a three-position, four-way design. In its default, de-energized state, the valve blocks flow at all ports. When the upper solenoid (S1) is activated, it allows flow between ports 2 and 1, and 3 and 4. Activating the lower solenoid (S2) enables flow between ports 4 and 1, and 3 and 2. The valve features a manual override function for manual control, with a knurled knob that adjusts between S1 and S2 functions. With a flow rate of 6 gpm and a maximum pressure of 3000 psi, it ensures robust performance in hydraulic systems.
