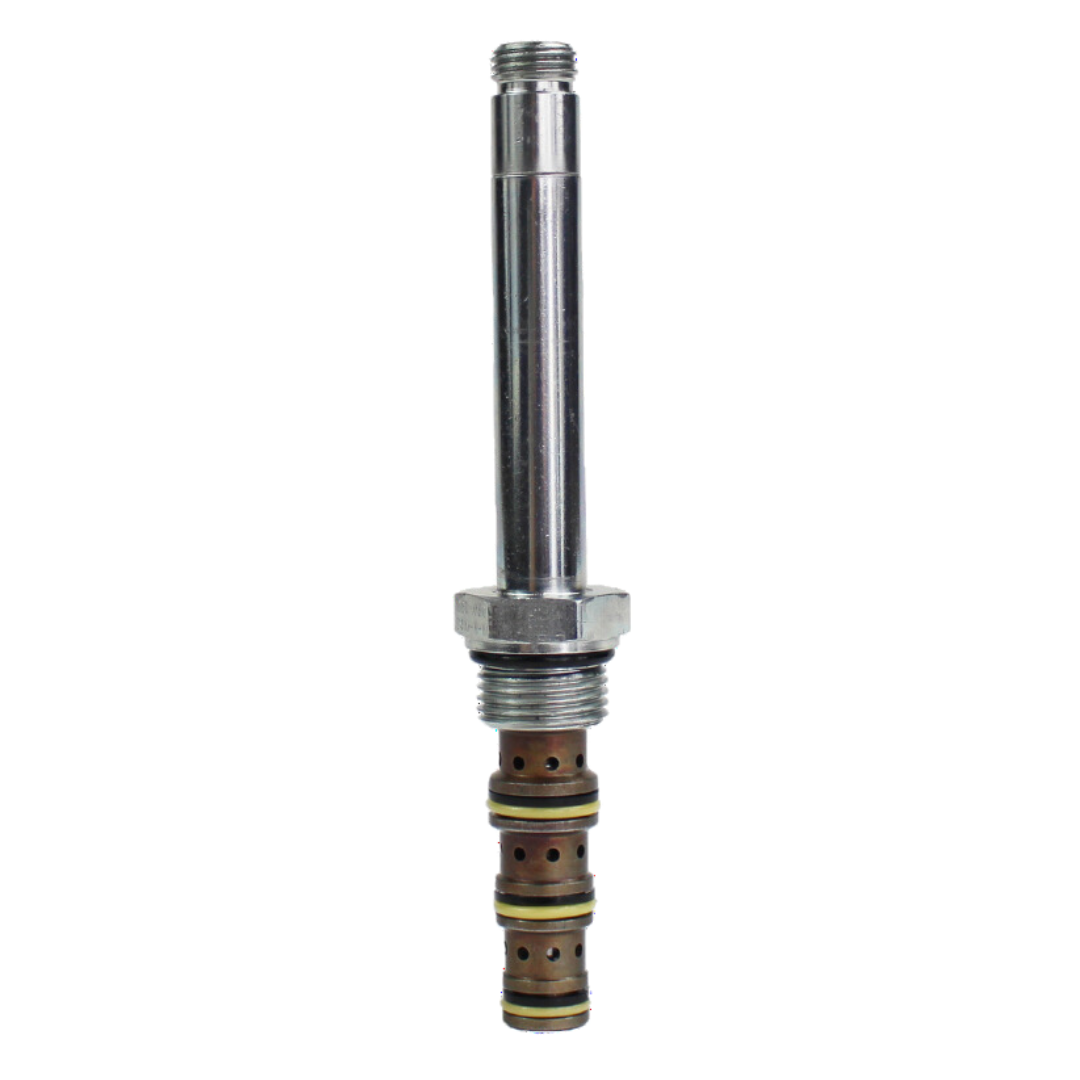

DSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPM
Roll over image to zoom in Click on image to zoom
DSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPMDSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPMDSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPMDSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPMDSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPM

DSV-080-34M-N : Deltrol Solenoid Valve with NO COIL, 4-Way, 3-Position, Motor Center Spool, C-8-4 Cavity, 3000psi, 3GPM

Deltrol Fluid ProductsSKU: 10184-97
4-6 Weeks
Price:
$77.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Spool
Flow Rating 3.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-4
Positions 3-Position
Way 4-Way
Country of Manufacture United States/Vietnam

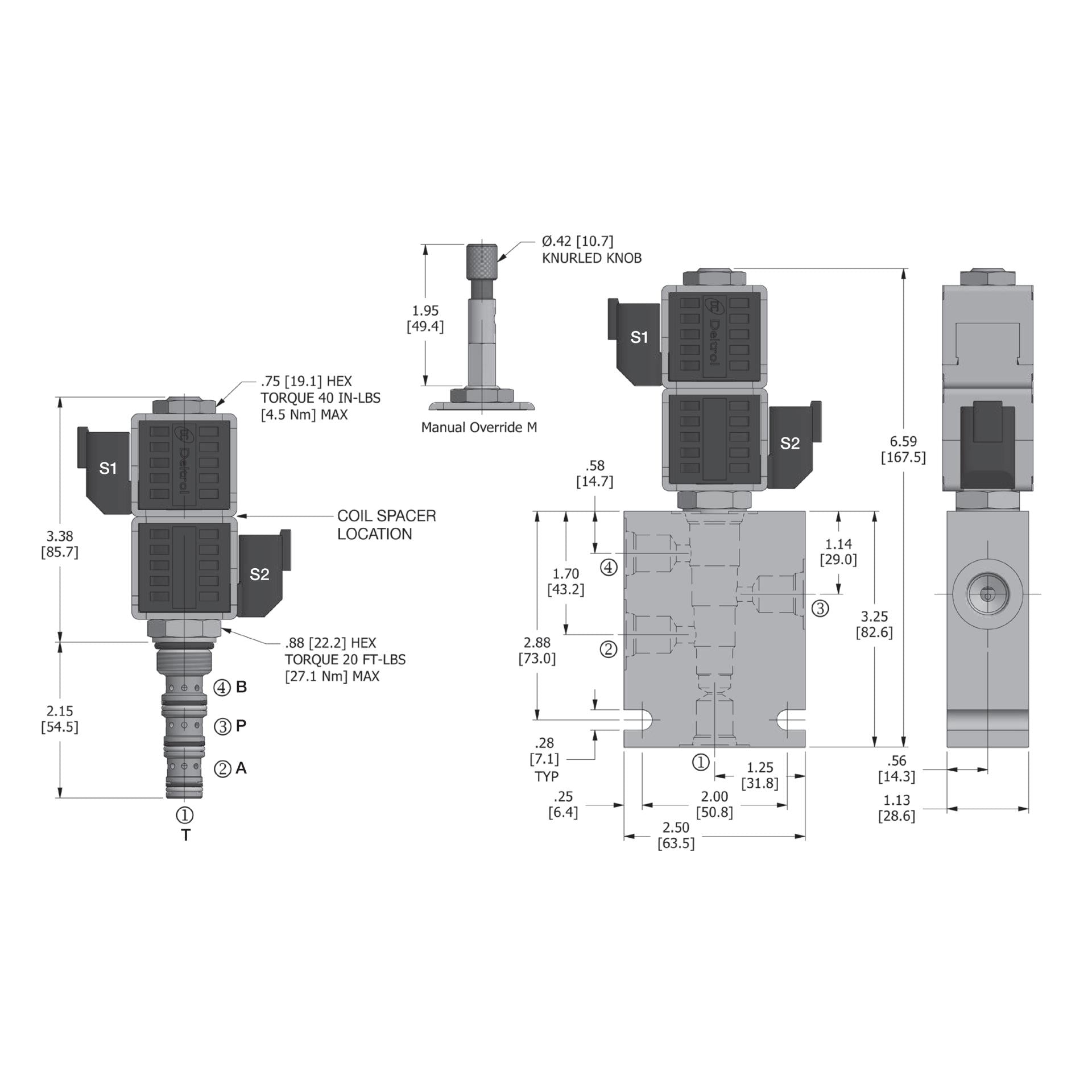

Height 2
Length 5.53
Width 2
Weight 2

Description

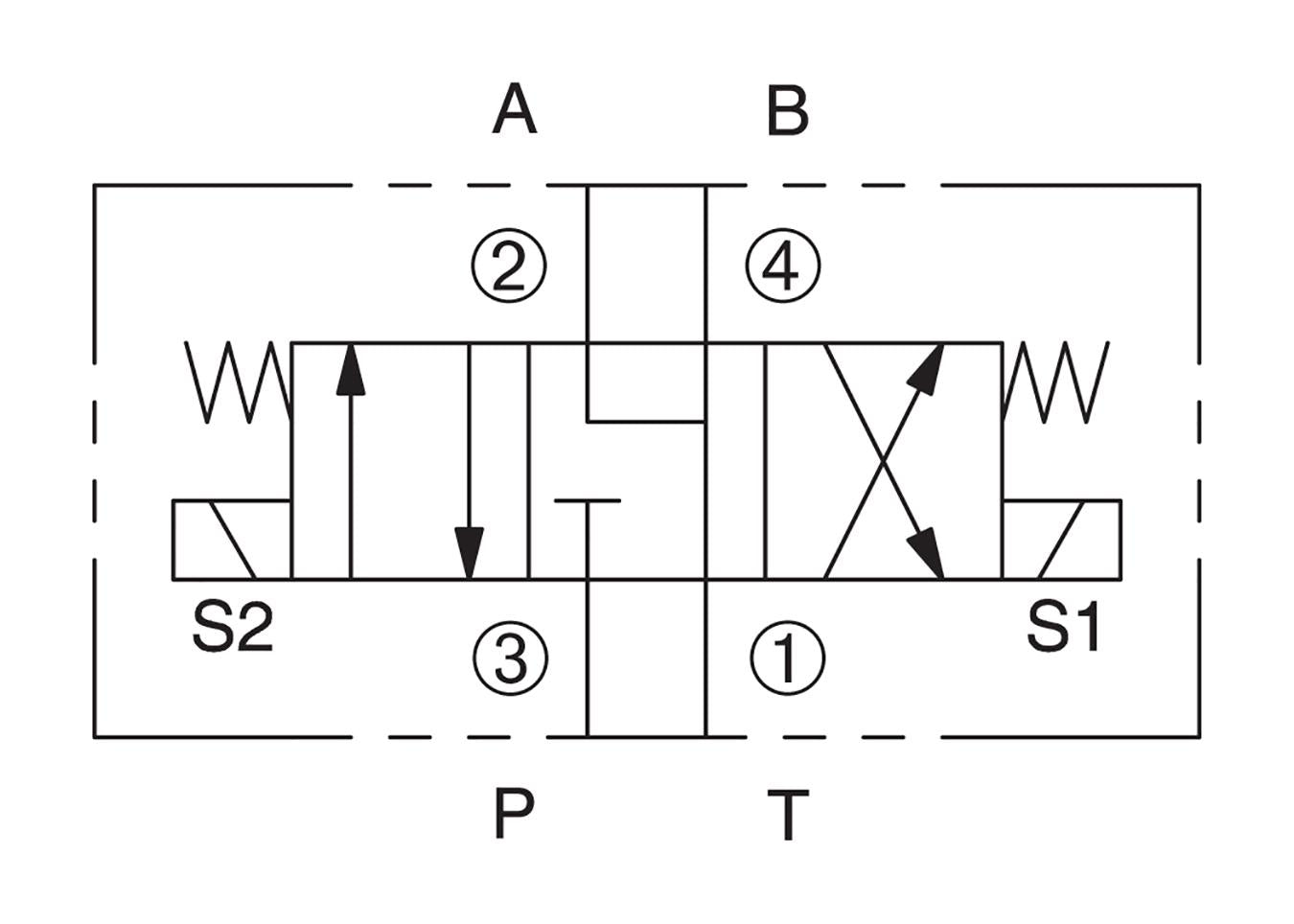

The Deltrol Fluid Products DSV-080-34M Solenoid Directional Four-Way, Three-Position, Motor Center Spool Cartridge Valve is designed to manage hydraulic flow in complex systems. This three-position valve features a spool that directs flow between four ports, allowing for versatile operation. When de-energized, it connects ports 1, 2, and 4, while blocking port 3. Energizing the upper solenoid (S1) connects ports 2 to 1 and 3 to 4, whereas energizing the lower solenoid (S2) connects ports 4 to 1 and 3 to 2. It also includes a manual override function for manual control. With a maximum operating pressure of 3000 psi and flow capacity of 3 gpm, it is built for durability with an anodized aluminum body and precision components.
