Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Solenoid |
| Style | Spool |
| Flow Rating | 3.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DSV |
| Cartridge Cavity | C-8-4 |
| Positions | 3-Position |
| Way | 4-Way |
| Country of Manufacture | United States/Vietnam |
| Height | 2 |
| Length | 5.53 |
| Width | 2 |
| Weight | 2 |
Description

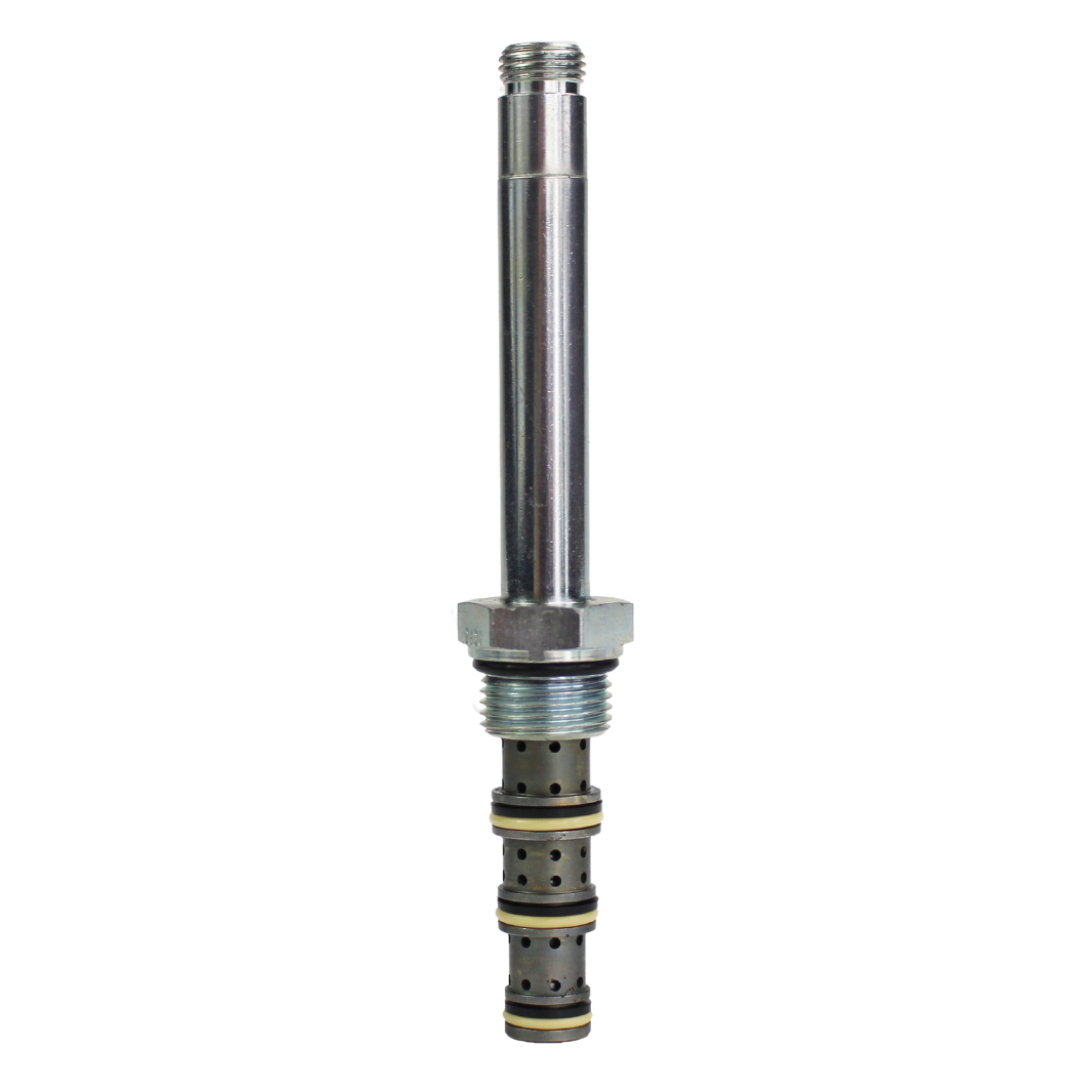

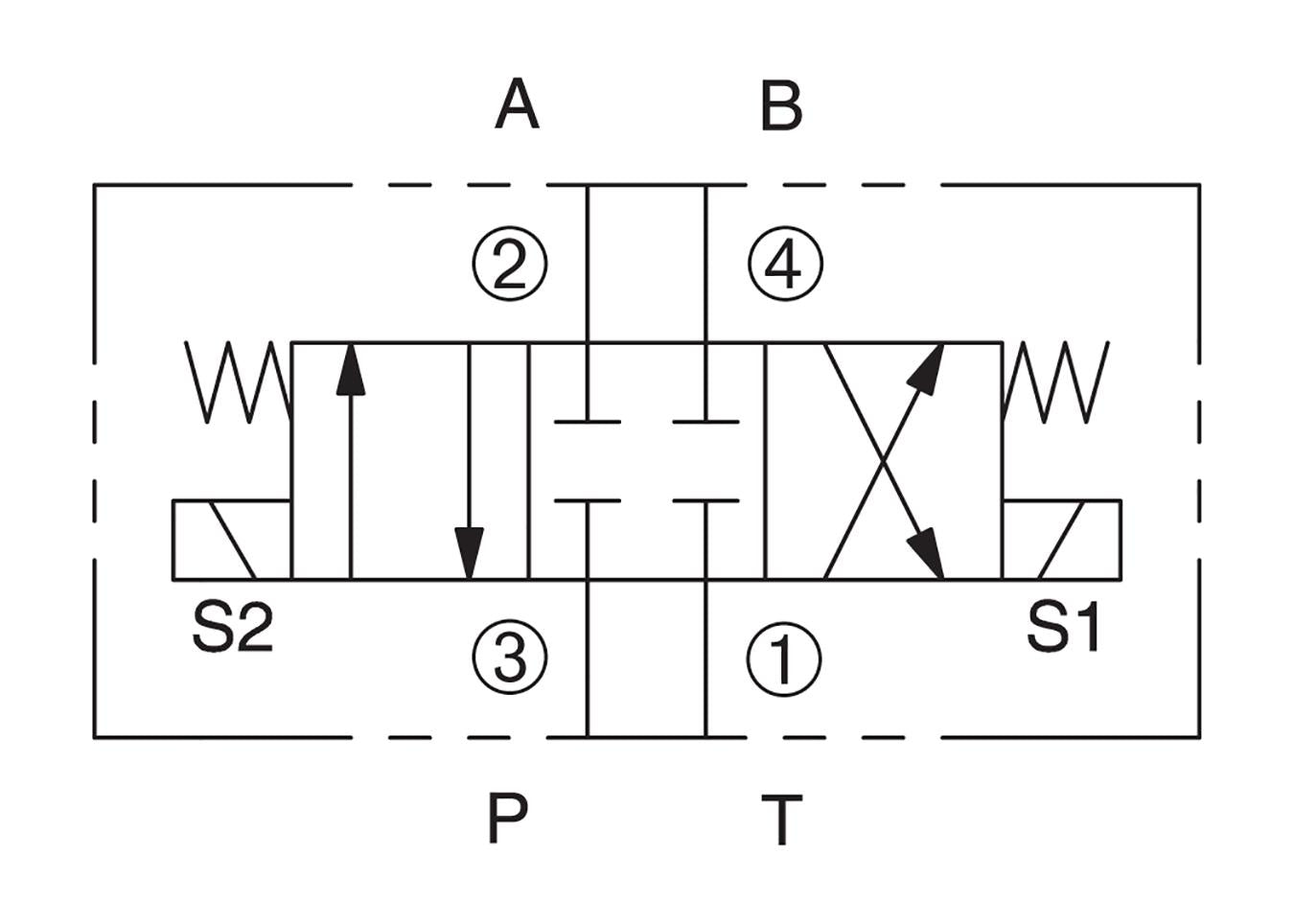

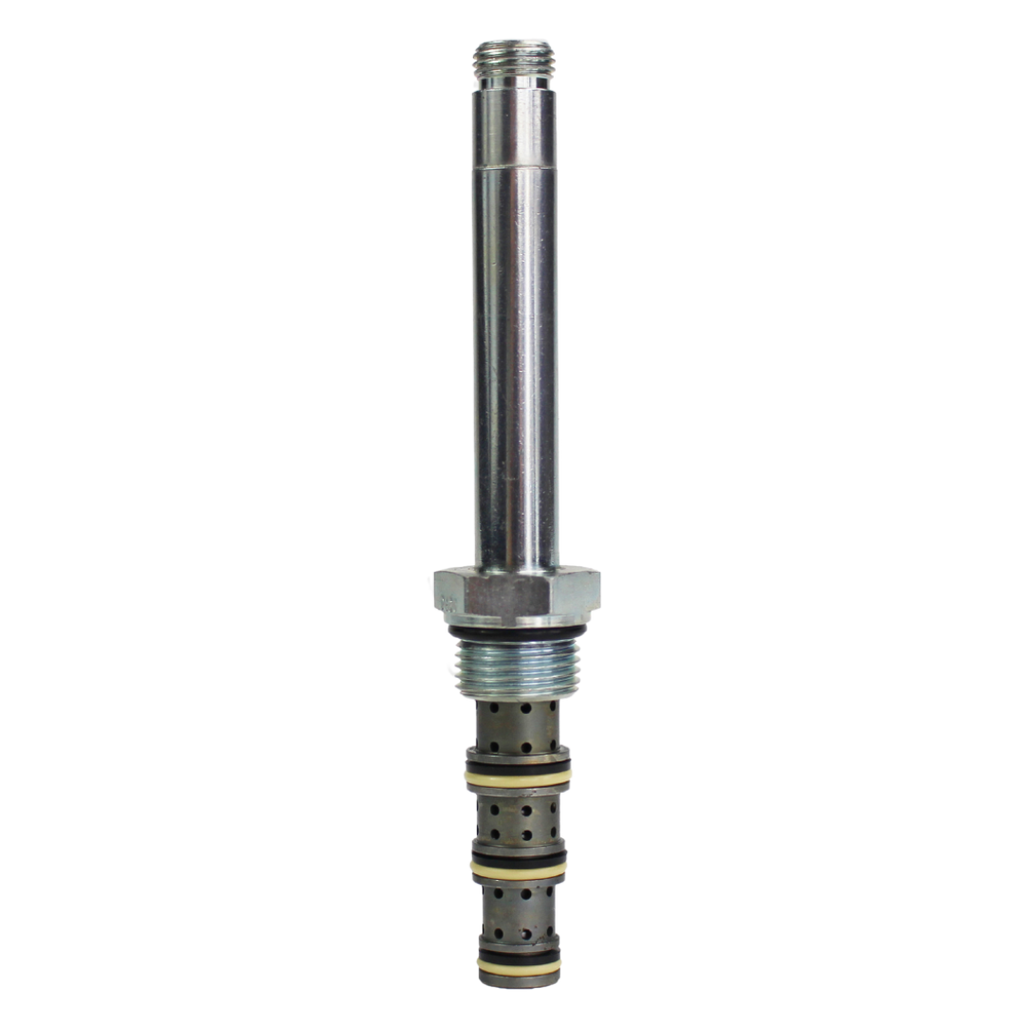

The Deltrol Fluid Products DSV-080-34C Solenoid Directional Four-Way, Three-Position, Closed Center Spool Cartridge Valve is designed for precise hydraulic control in various systems. In its neutral position, the valve blocks flow at all ports. When the upper solenoid (S1) is energized, it allows flow between ports 2 and 1, and 3 and 4. Activating the lower solenoid (S2) enables flow between ports 4 and 1, and 3 and 2. This valve includes a manual override feature, allowing for manual control by pulling or pushing a knurled knob. With a maximum operating pressure of 3000 psi and a flow rate of 3 gpm, this valve ensures reliable performance and efficient operation.
