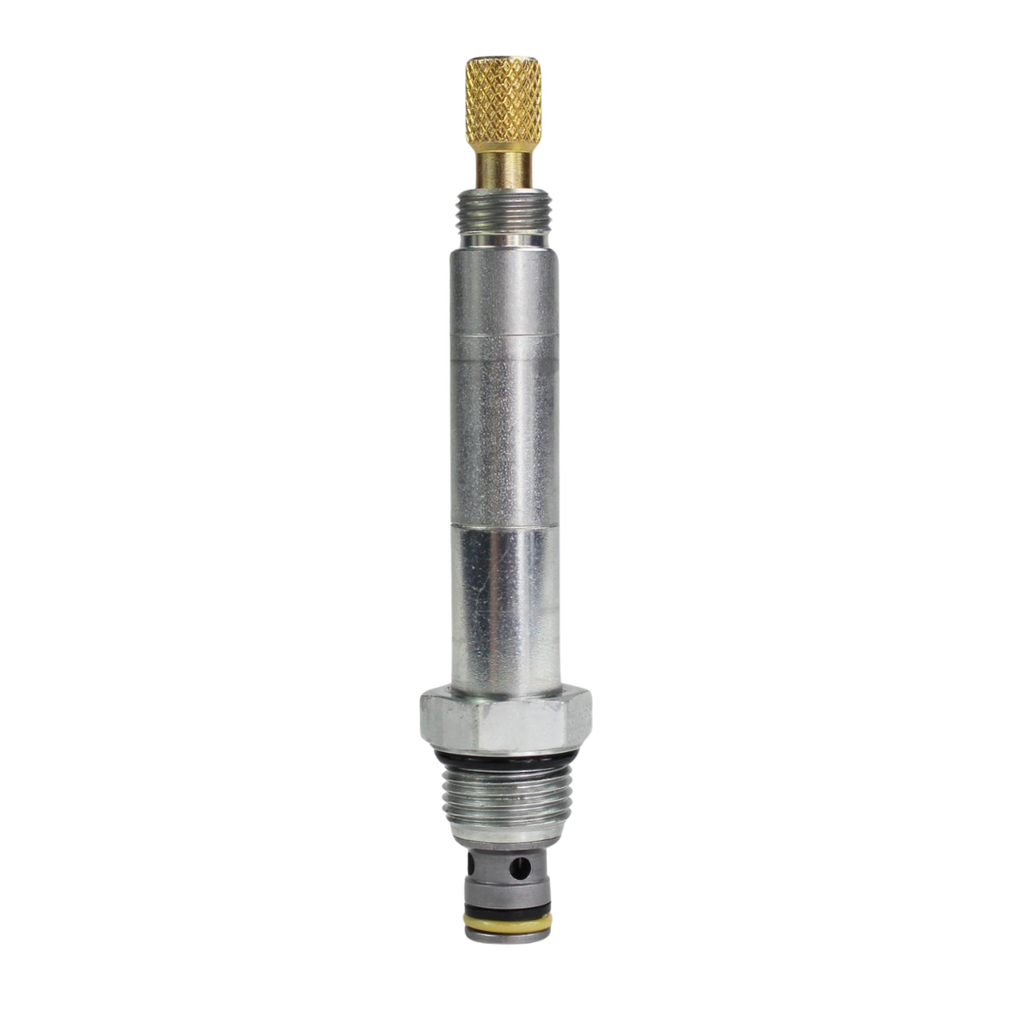

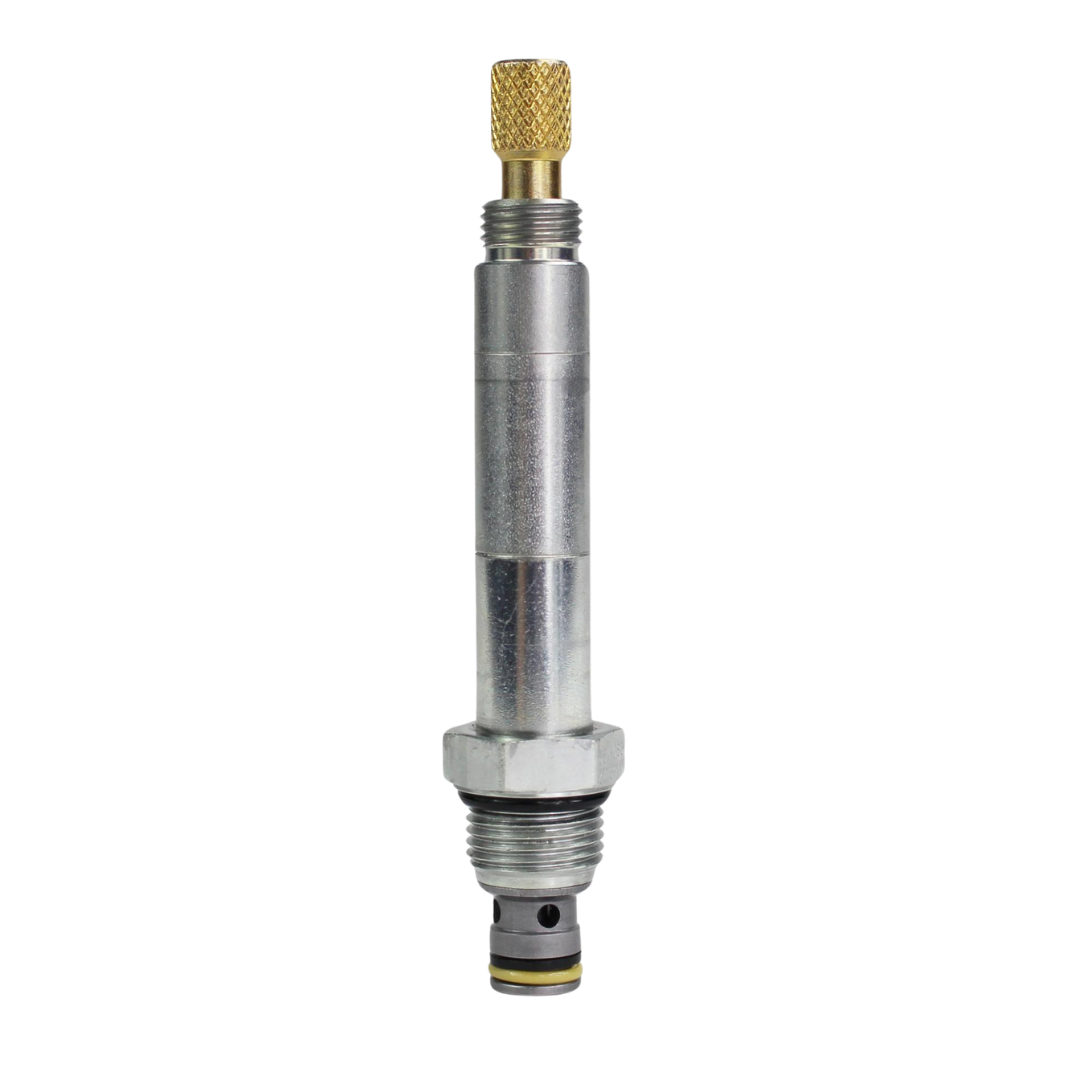

DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM
DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM
DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM
DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM
DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM
Roll over image to zoom in Click on image to zoom
DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPMDSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPMDSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPMDSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPMDSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM

DSV-080-2NCSP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Bidirectional Poppet, C-8-2 Cavity, 3000psi, 5GPM

Deltrol Fluid ProductsSKU: 10209-89
Same Day
2
03.12.L.108B
Price:
$85.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Poppet
Flow Rating 5.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-2
Positions 2-Position
Way 2-Way
Country of Manufacture United States/Vietnam
Height 2
Length 3.81
Width 2
Weight 2

Description

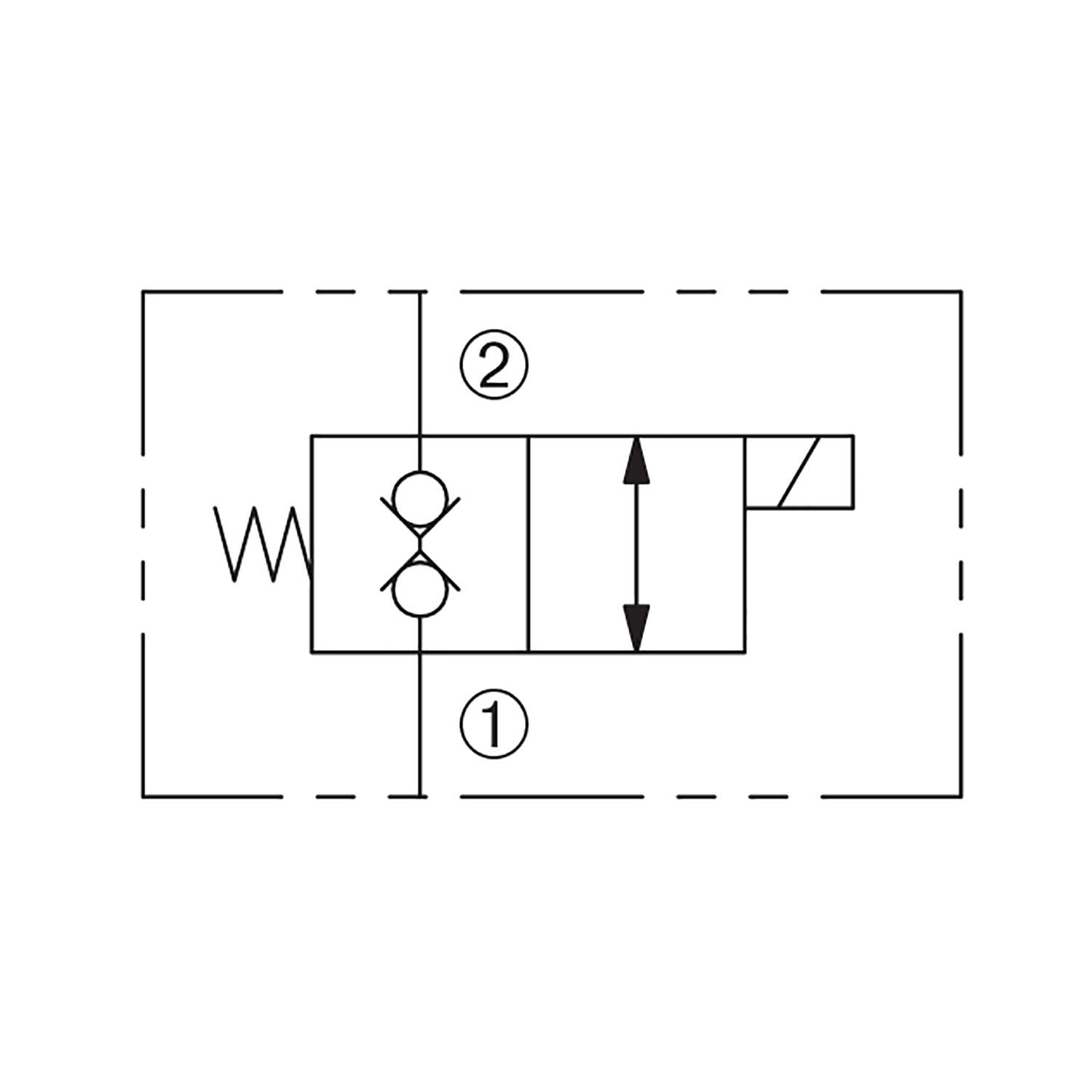

The Deltrol Fluid Products DSV-080-2NCSP Solenoid Directional Two-Way, Two-Position, Normally Closed, Bidirectional Poppet Cartridge Valve is a versatile hydraulic valve used for precise flow control. Designed for industry-standard cavities or available in pre-configured ported blocks, this valve handles flows up to 5 gpm and pressures up to 3000 psi. When de-energized, it blocks flow in both directions, making it ideal for load-holding applications. When energized, the poppet shifts to allow flow in either direction. It features a manual override for easy operation, durable construction for long life, and low leakage options, ensuring reliable performance in demanding hydraulic systems.
