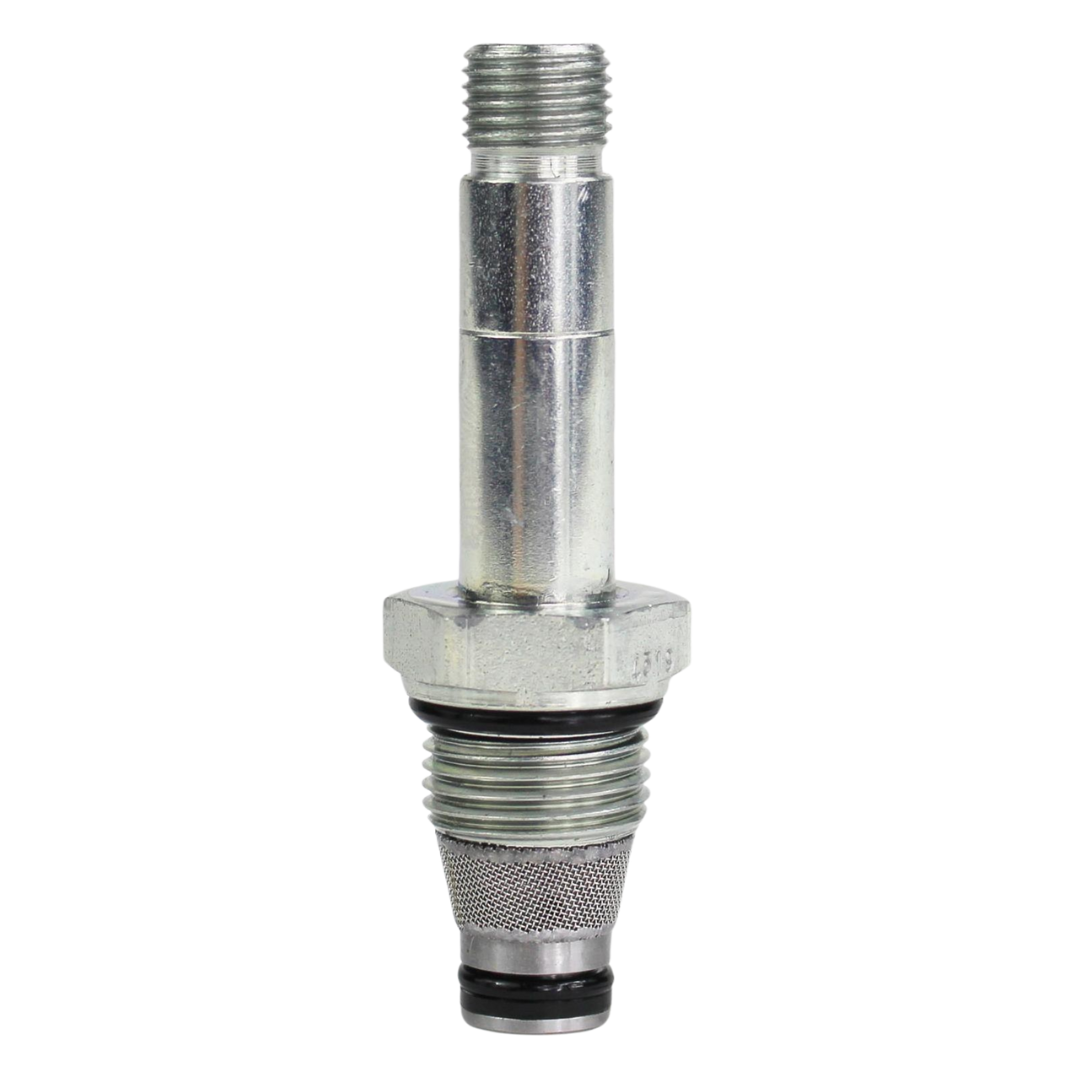

DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM
DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM
DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM
DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM
DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM
Roll over image to zoom in Click on image to zoom
DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPMDSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPMDSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPMDSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPMDSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM

DSV-080-2NCP-N : Deltrol Solenoid Valve with NO COIL, 2-Way, 2-Position, Normally Closed Poppet, C-8-2 Cavity, 4000psi, 5GPM

Deltrol Fluid ProductsSKU: 10175-45
Same Day
3
03.12.L.106A
Price:
$36.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Solenoid
Style Poppet
Flow Rating 5.0
Pressure Rating 4000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DSV
Cartridge Cavity C-8-2
Positions 2-Position
Way 2-Way
Country of Manufacture United States/Vietnam
Height 2
Length 3.01
Width 2
Weight 2

Description

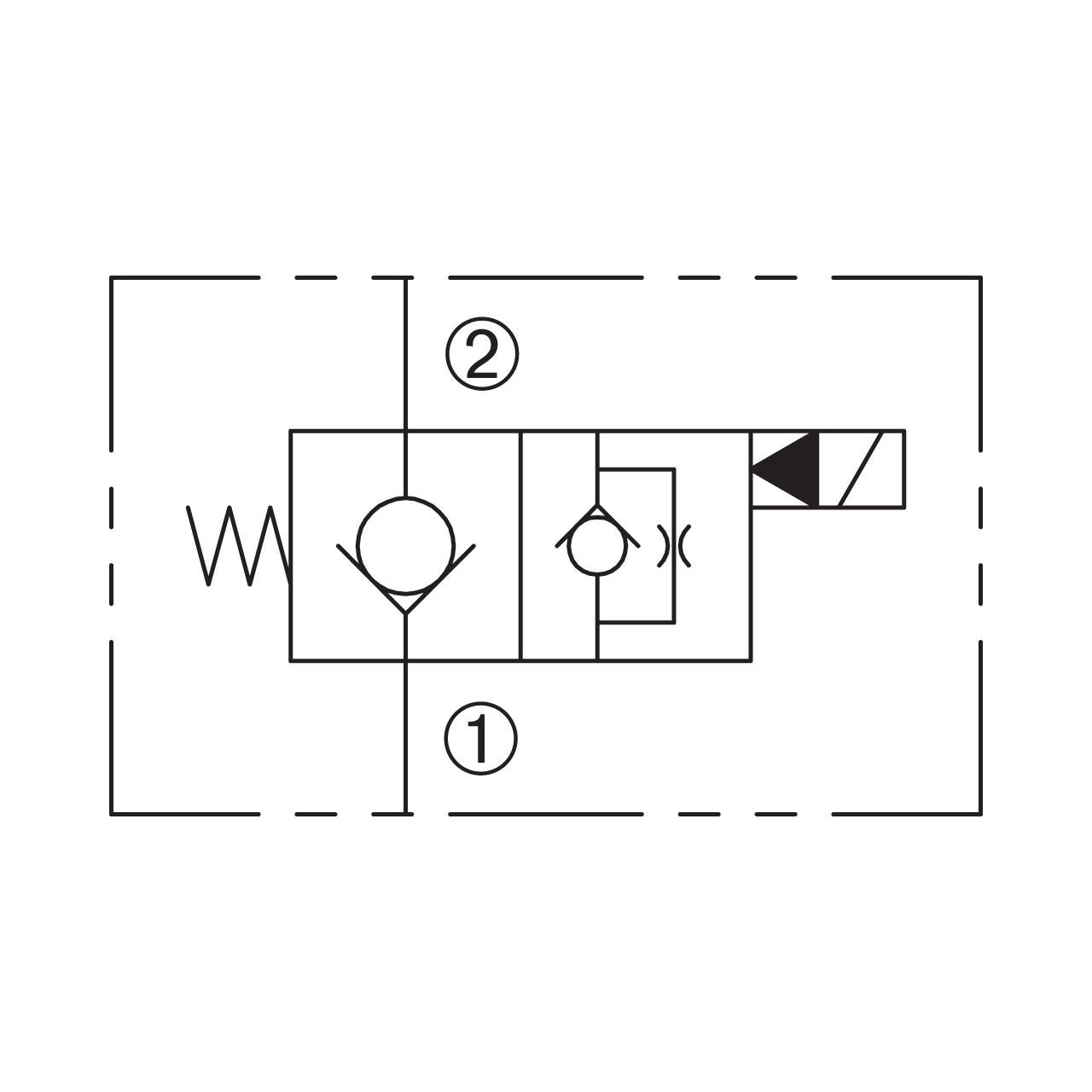

The Deltrol Fluid Products DSV-080-2NCP Solenoid Directional Two-Way, Two-Position, Normally Closed Poppet Cartridge Valve is a robust hydraulic valve designed for precise load-holding applications. This valve, which can be installed in a standard industry cavity or a pre-configured ported block, manages flow up to 5 gpm and operates under pressures up to 4000 psi. When de-energized, it functions as a check valve, allowing flow from port ➀ to port ➁ while blocking reverse flow. Energizing the solenoid lifts the poppet, opening the flow path from port ➁ to port ➀. It features a manual override option for manual operation and boasts durability with its hardened components, continuous-duty solenoid, and low leakage options. The valve is suitable for a wide range of hydraulic systems requiring reliable and efficient flow control.
