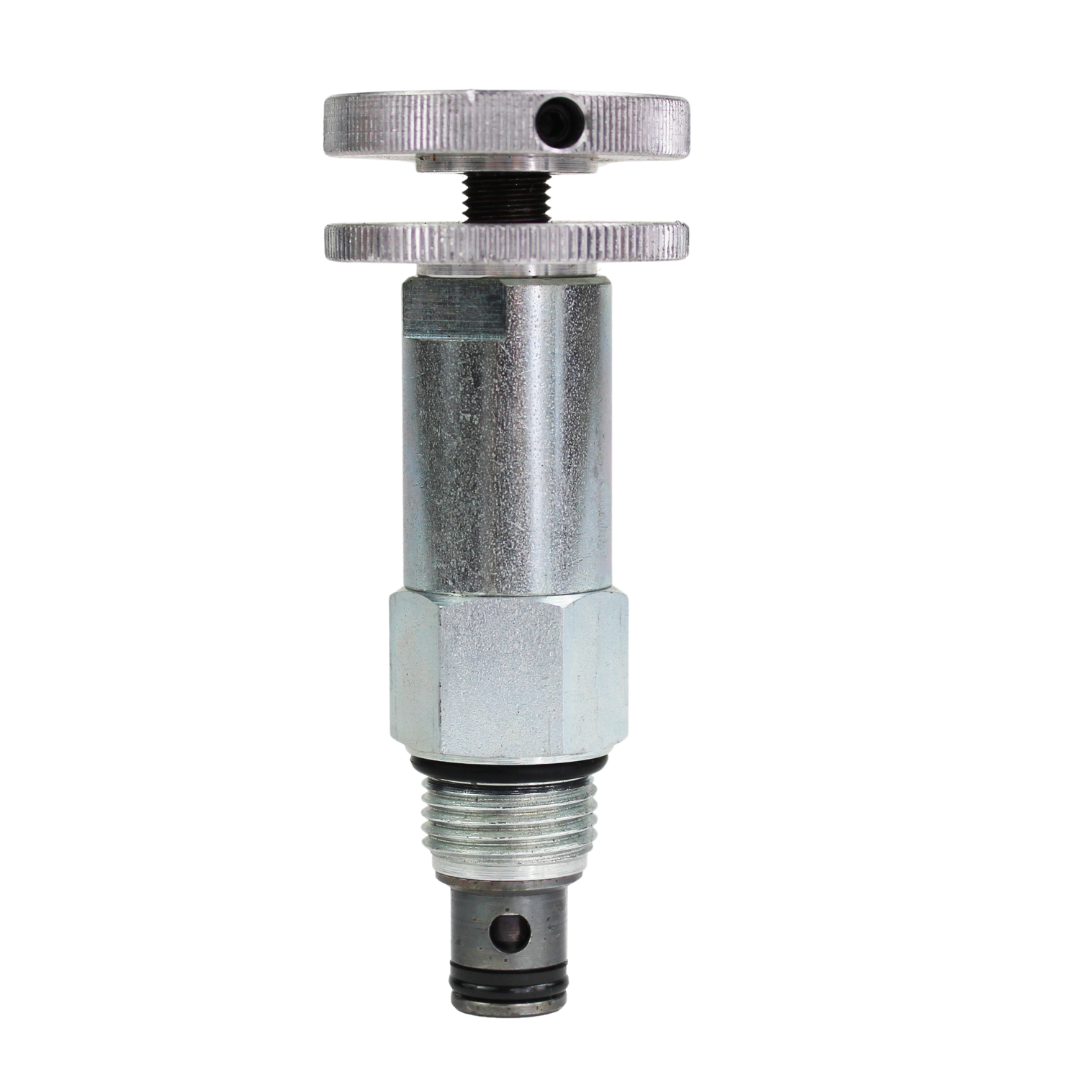

DRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPM
Roll over image to zoom in Click on image to zoom
DRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPMDRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPMDRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPMDRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPMDRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPM

DRV2-080-N-K : Deltrol Relief, Direct-Acting, Adjustable, Poppet, C-8-2, Knob Adjustment, 3000psi, 10GPM

Deltrol Fluid ProductsSKU: 10137-78
4-6 Weeks
Price:
$58.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Relieving
Valve Type Relief
Adjustment Type Knob Adjustment
Style Poppet
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 100-3000
Pressure Range 100-3000
Series DRV2
Cartridge Cavity C-8-2
Country of Manufacture United States/Vietnam

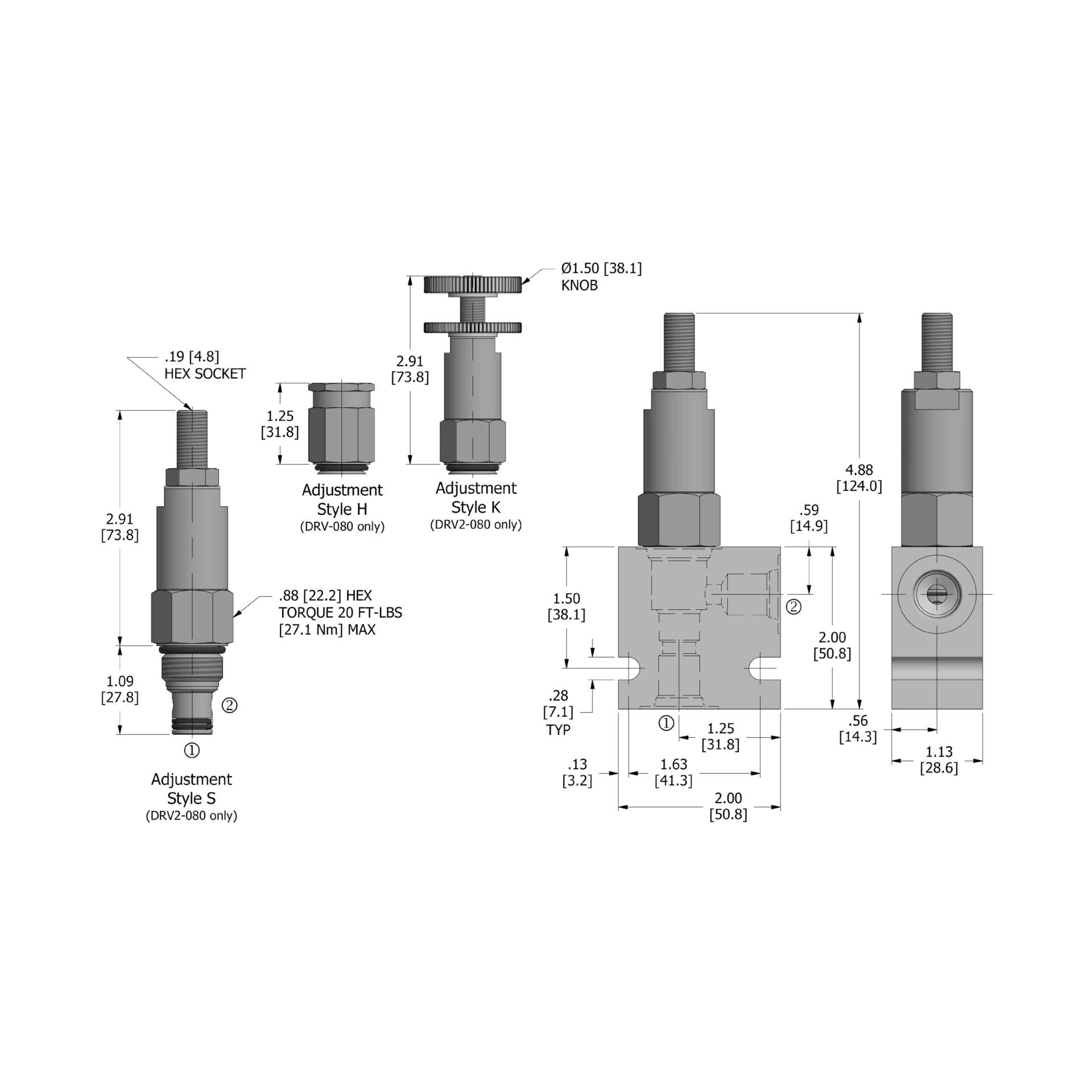

Height 1.5
Length 2.91
Width 1.5
Weight 2

Description

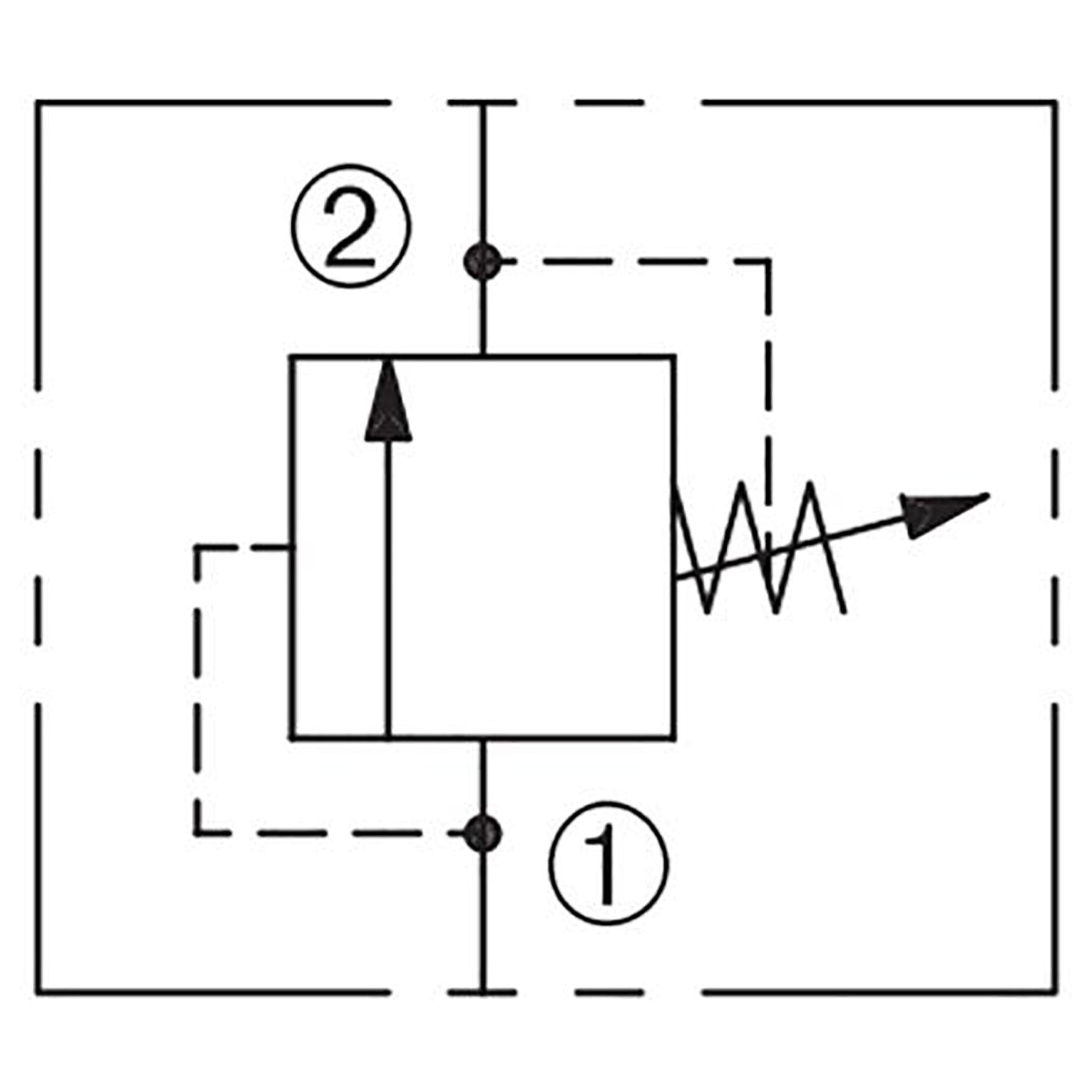

The Deltrol Fluid Products DRV2-080 Direct-Acting, Adjustable, Poppet Relief Valve is a precise valve designed to manage hydraulic pressure and protect your system from overpressure. This valve prevents flow from port 1 to port 2 until the preset pressure is reached, at which point the poppet opens to allow flow and maintain safe pressure levels. Featuring rapid response to pressure changes and a hardened poppet for durability, it ensures reliable operation and long service life. The valve offers quiet performance and can be adjusted or locked in place, with options for tamper-resistant adjustments. Suitable for pressures up to 3000 psi and operating temperatures from -30°F to +250°F, it is ideal for various industrial applications.
