Deltrol Fluid ProductsSKU: 10146-66
4-6 Weeks
Price:
$49.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Poppet
Flow Rating 12.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 25-100 psi
Series DPTC
Check Valve Type Pilot to Close
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam
Height 2
Length 3
Width 2
Weight 2

Description

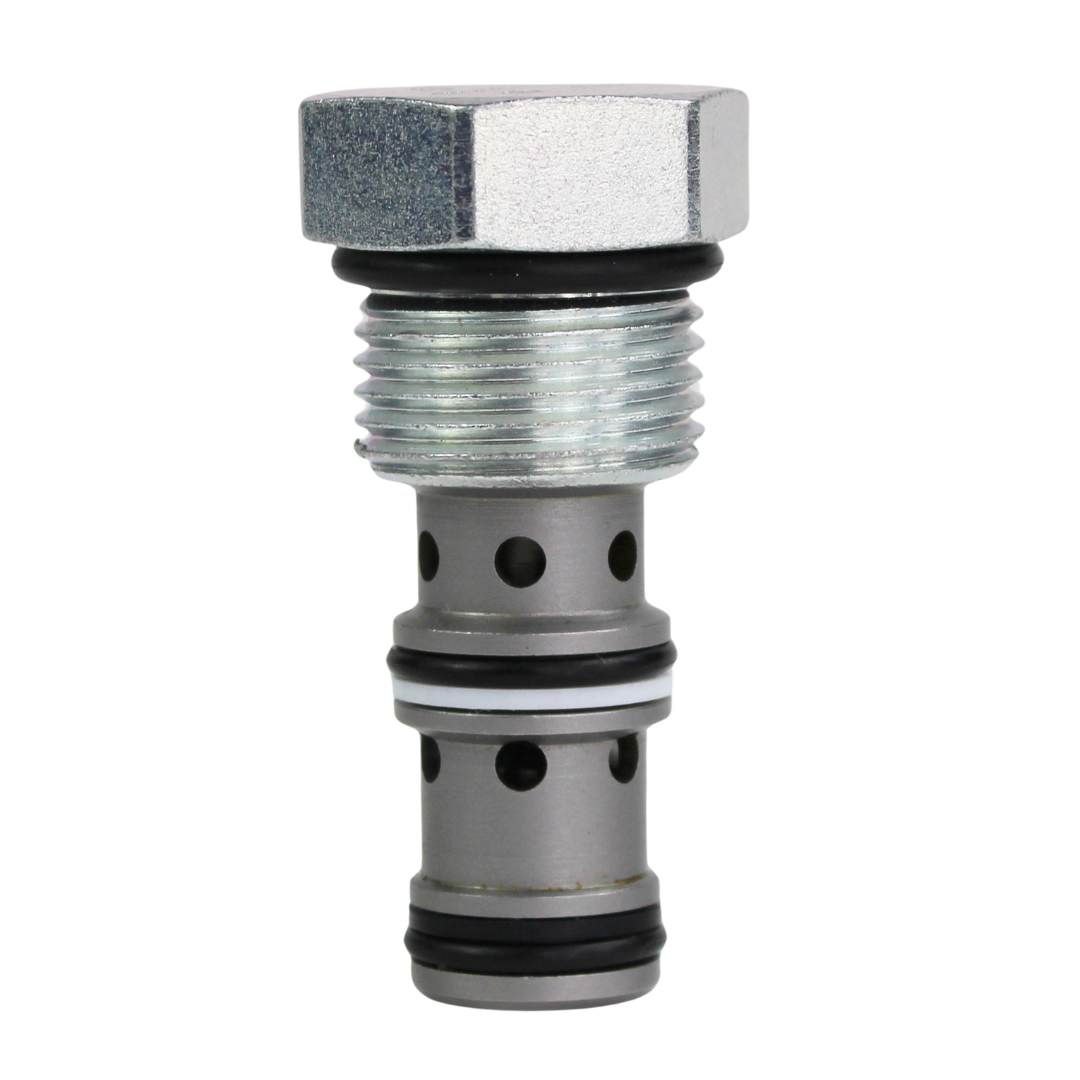

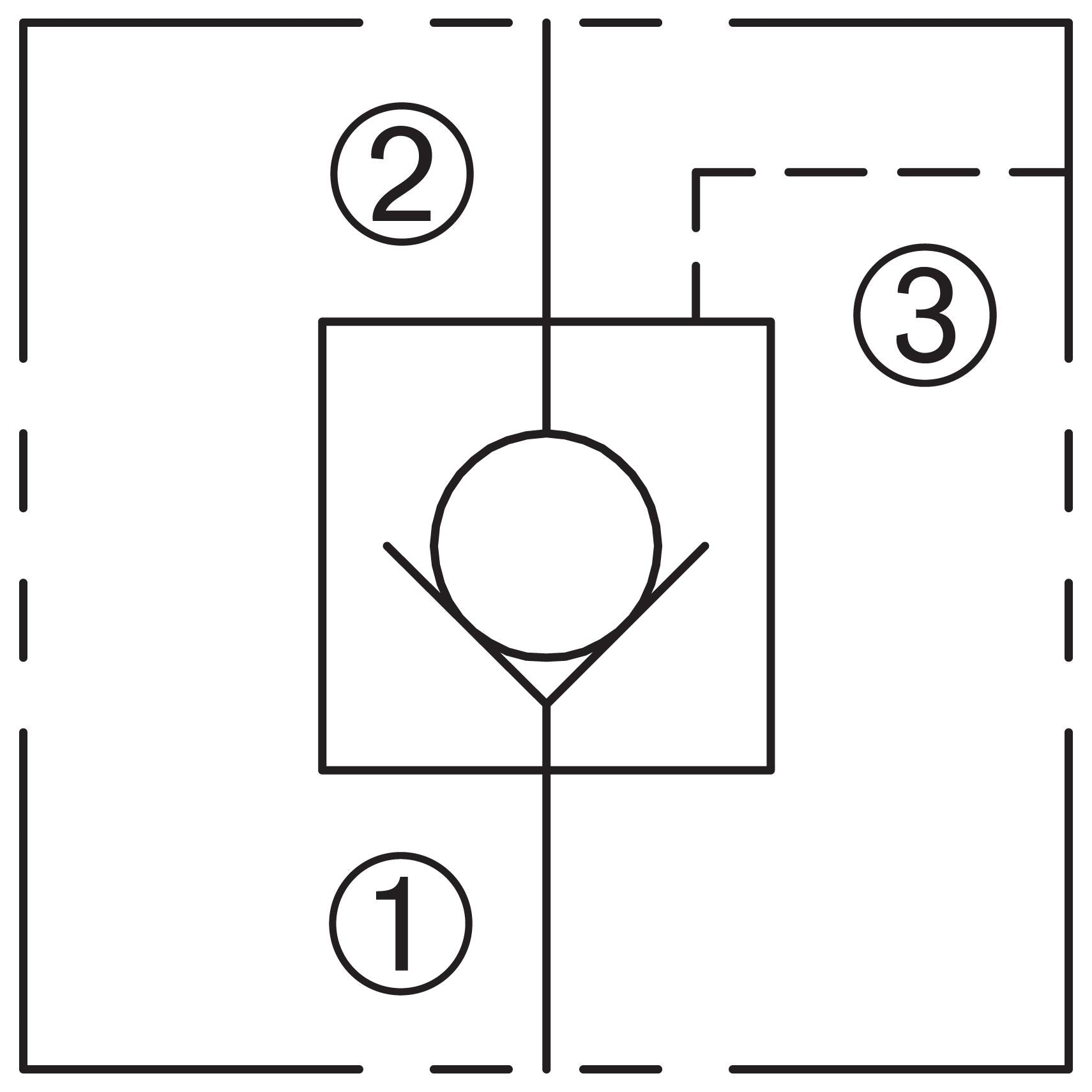

The Deltrol Fluid Products DPTC-100-P Motion Control Pilot-to-Close Check Valve is a cartridge valve designed to permit free flow in one direction while blocking flow in the opposite direction. It uses pilot pressure at port 3 to close the valve and prevent flow between ports 1 and 2. In normal operation, flow moves freely from 1 to 2, but when the pilot pressure is applied, it keeps the valve closed, halting the flow. This valve is ideal for load-holding and blocking applications, featuring a hardened poppet and seat for long-term durability and an industry-standard cavity design. It operates effectively at up to 3000 psi and supports flow rates up to 12 gpm.
