Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Operation | Sequence, Adjustable, Pilot-Operated, Kick-Down |
| Valve Type | Sequence |
| Adjustment Type | Screw Adjustment |
| Style | Spool |
| Flow Rating | 5.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Outlet Pressure Range | 300-3000 |
| Pressure Range | 300-3000 |
| Series | DPSK |
| Cartridge Cavity | C-10-3 |
| Country of Manufacture | United States/Vietnam |

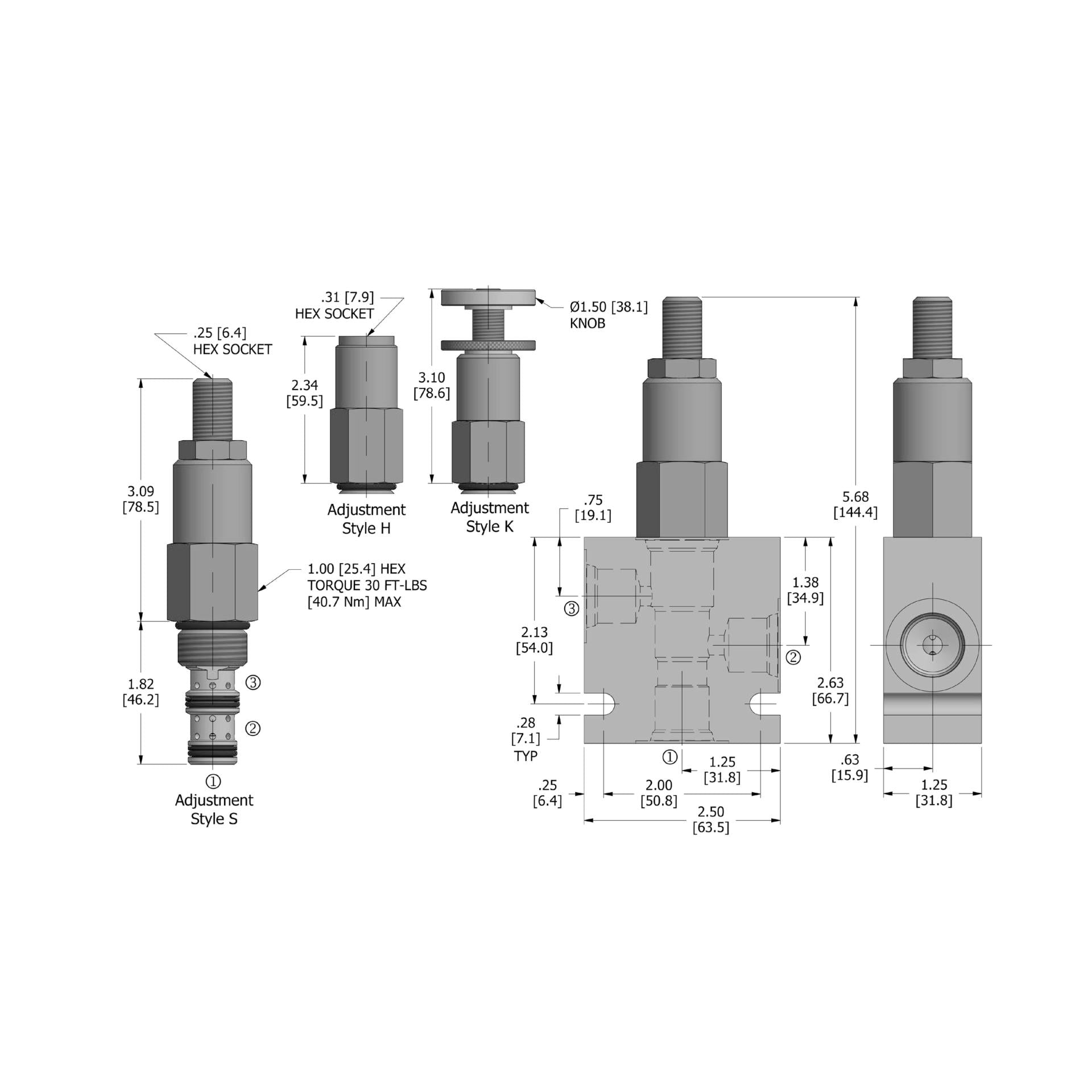

| Height | 1.5 |
| Length | 4.91 |
| Width | 1.5 |
| Weight | 2 |
Description

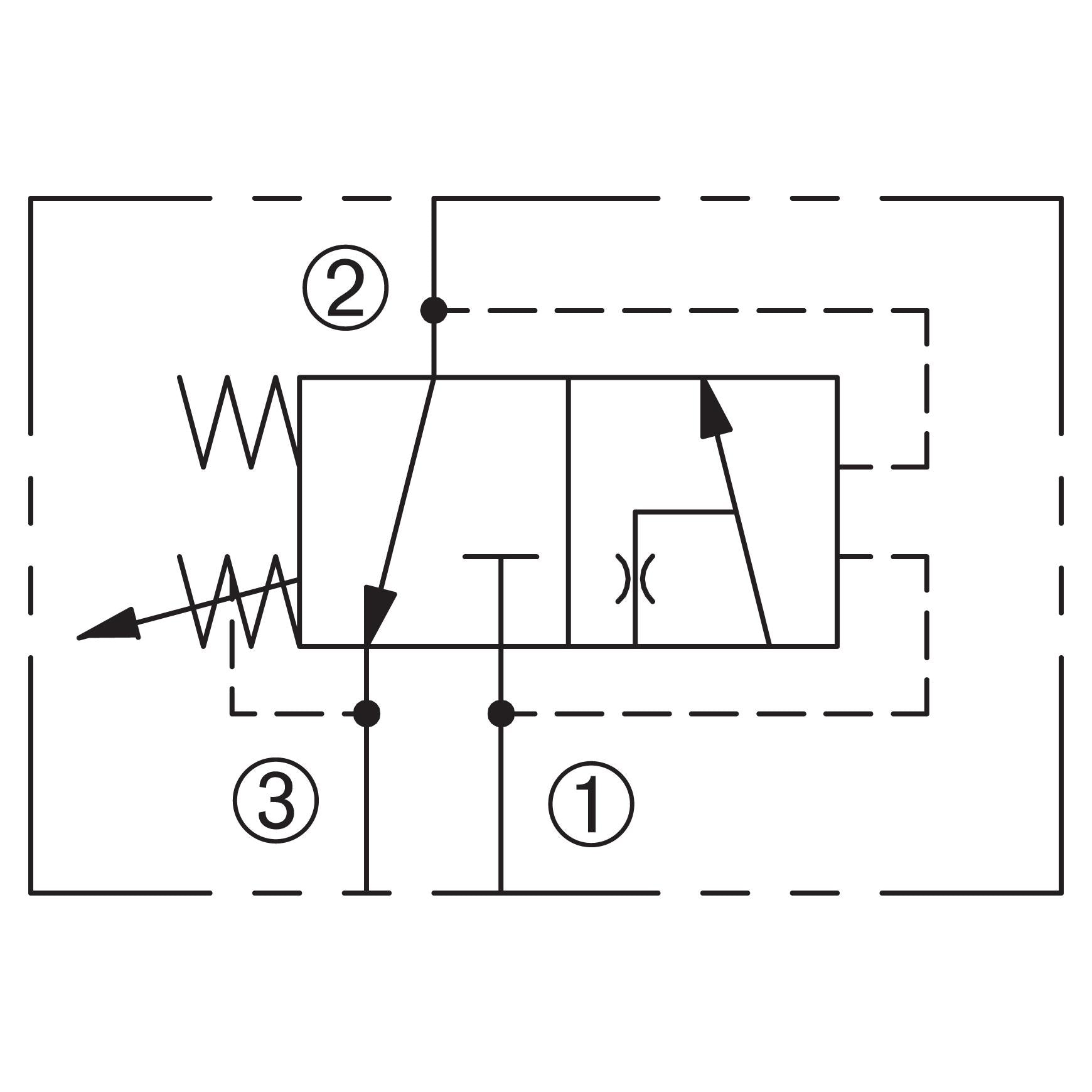

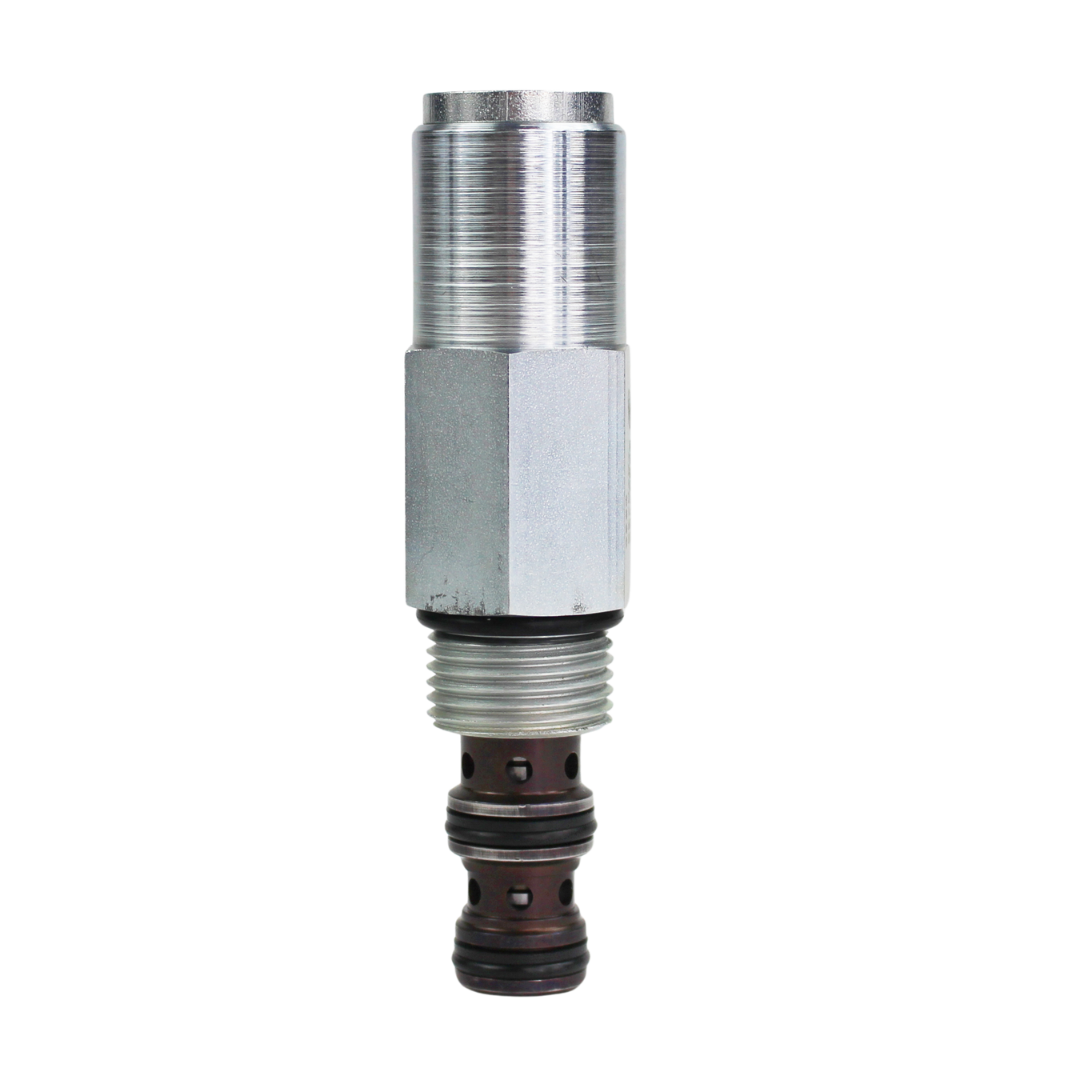

The Deltrol Fluid Products DPSK-100 is an adjustable, pilot-operated spool cartridge valve designed to control hydraulic flow based on preset pressure levels. In its normal state, the DPSK-100 blocks flow from port 1 while allowing flow between ports 2 and 3. Once the pressure at port 1 reaches the preset level, a pilot section opens, creating a pressure differential that shifts the spool to enable flow from port 1 to port 2. The valve remains in this position until the pressure at port 2 drops below a set level, at which point the spool shifts back to its initial position. This valve features a lower kick-down pressure compared to the DPSK2-100, offers a range of pressure settings, and is built with a durable, precision-engineered spool and sleeve. It operates up to 3000 PSI with a maximum flow rate of 5 GPM and is made from anodized aluminum for long-lasting performance.
