Deltrol Fluid ProductsSKU: 10139-41
1-3 Days
Price:
$82.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Pressure Reducing-Relieving
Valve Type Pressure Reducing/Relieving
Adjustment Type Knob Adjustment
Style Spool
Flow Rating 4.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DPR
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

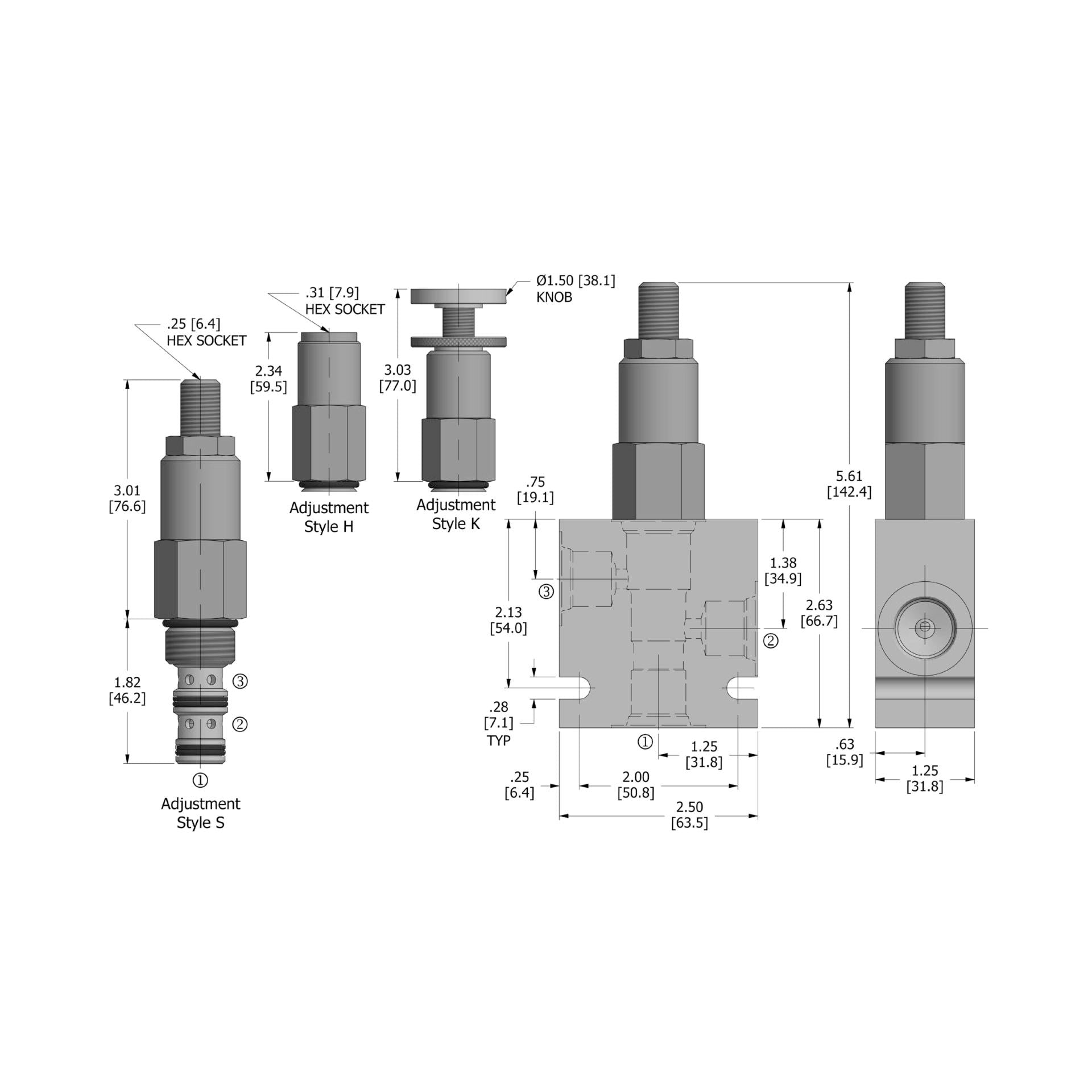

Height 1.5
Length 3.03
Width 1.5
Weight 2

Description

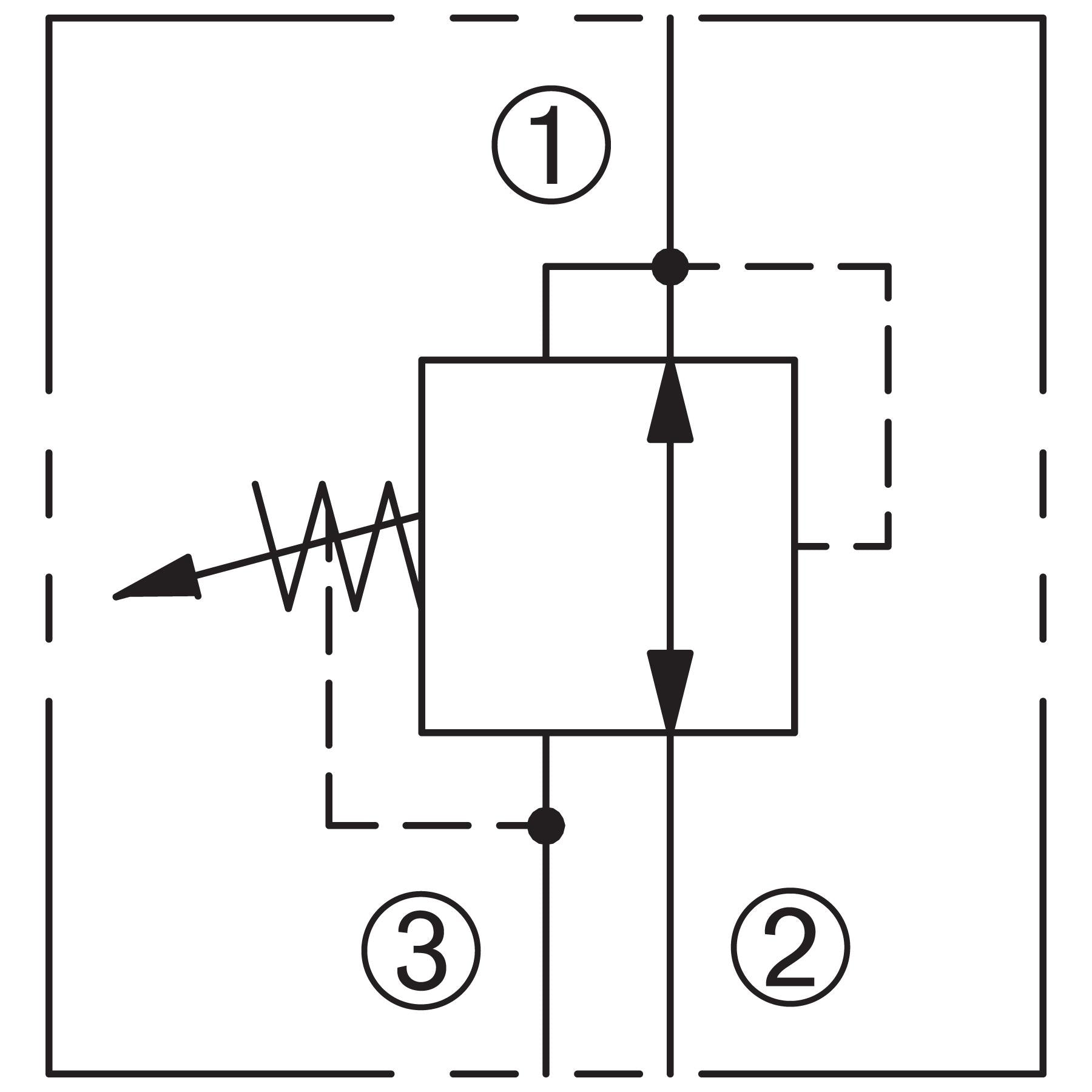

The Deltrol Fluid Products DDRV-100 Pressure Reducing/Relieving, Direct-Acting, Adjustable, Spool Valve is designed to precisely control pressure in secondary hydraulic circuits. This valve maintains bi-directional flow between ports 1 and 2 while venting the spring chamber through port 3. When the pressure at port 1 reaches the preset level, the spool adjusts to regulate and restrict flow from port 2, ensuring consistent pressure control. Key features include a wide range of pressure settings, durable construction with a hardened spool and sleeve, and options for tamper-resistant adjustments. It operates up to 3000 PSI with a maximum flow rate of 4 GPM and is made from anodized aluminum for robust performance.
