DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM
DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM
DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM
DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM
DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM
Roll over image to zoom in Click on image to zoom
DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPMDPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPMDPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPMDPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPMDPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM

DPOD-100-3-N : Deltrol Directional, 3-Way, 2-Position, Pilot Operated, C-10-3 Cavity, 3000psi, 10GPM

Deltrol Fluid ProductsSKU: 10161-77
1-3 Days
Price:
$58.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Directional Control
Style Spool

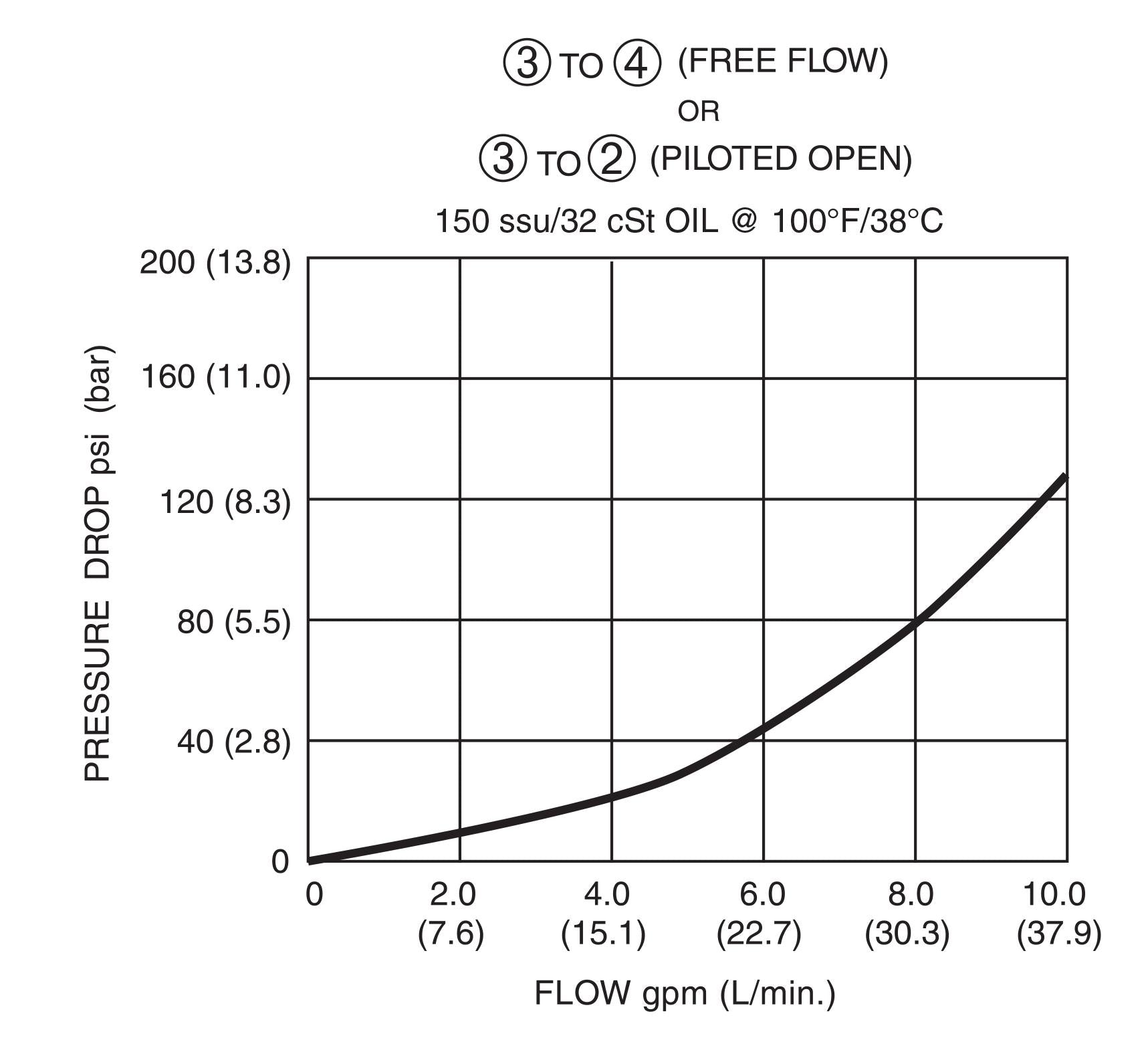

Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DPOD
Spool Configuration 3 to 4 with 2 Blocked in Neutral
Cartridge Cavity C-10-4
Coil Selection No Coil, Pilot Actuated
Country of Manufacture United States/Vietnam

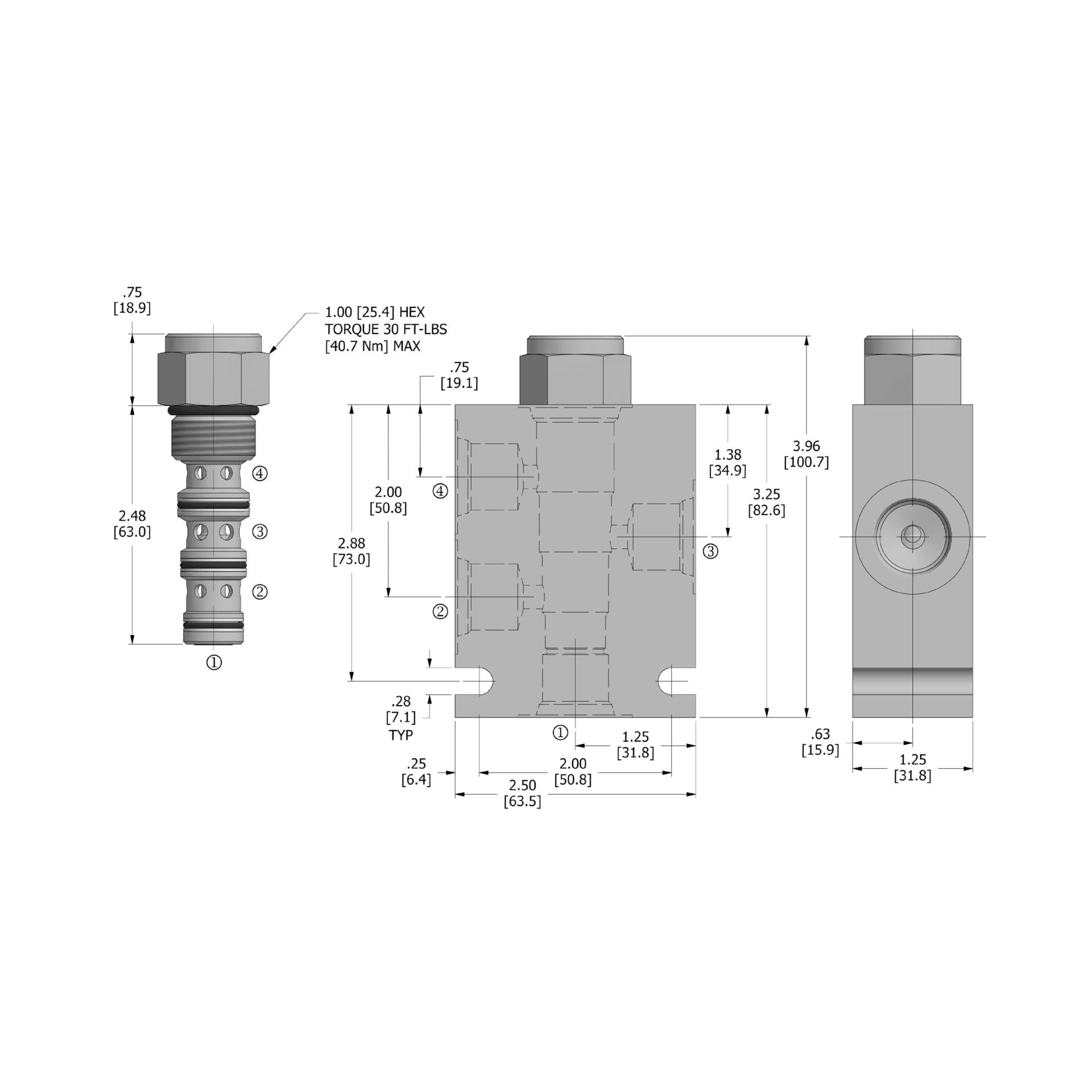

Height 1
Length 3.23
Width 1
Weight 2

Description

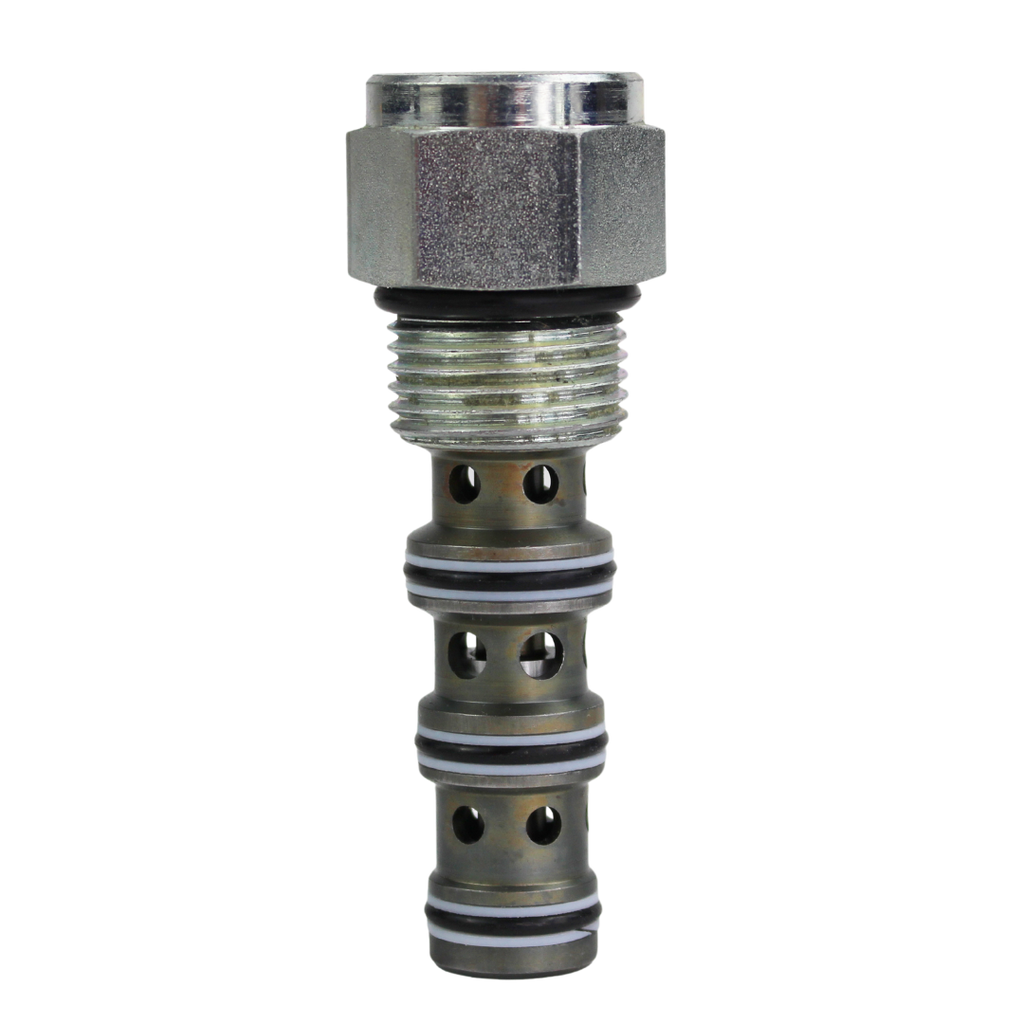

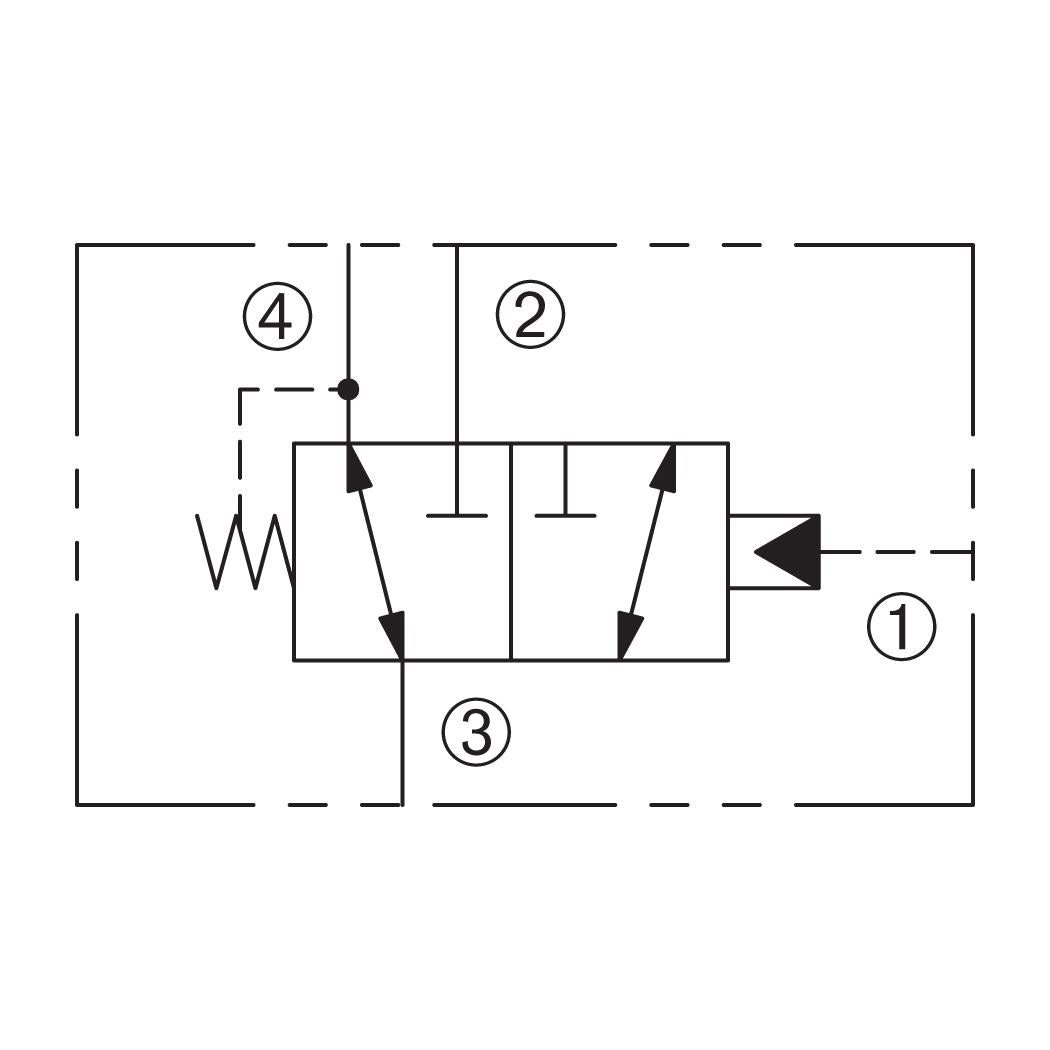

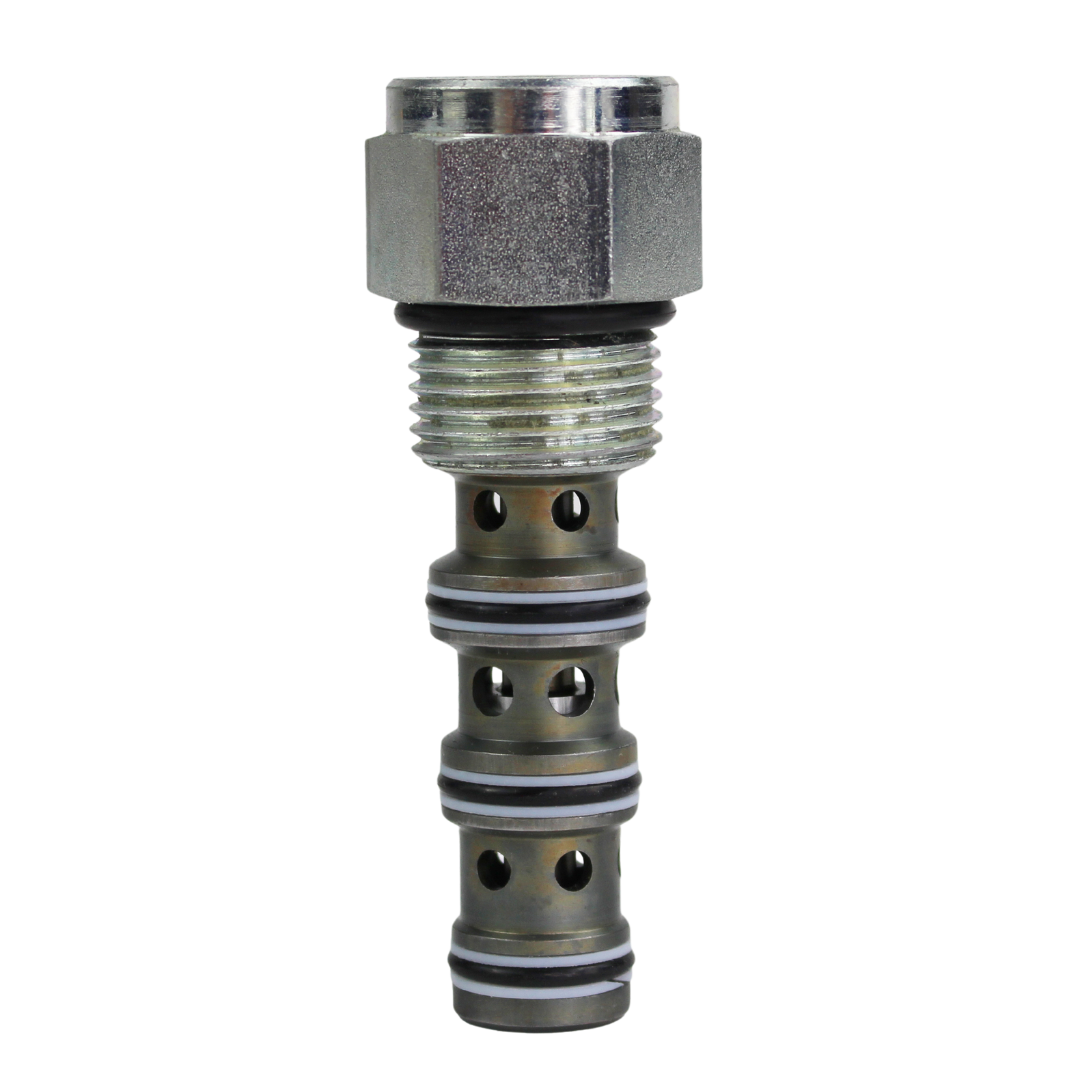

The Deltrol Fluid Products DPOD-100-3 is a pilot-operated, three-way, two-position cartridge valve designed to control fluid flow with precision. When no pilot signal is applied to port 1, the valve blocks flow between ports 2 and 3, allowing flow between ports 3 and 4. Applying a pilot signal to port 1 shifts the valve to direct flow from port 3 to port 2 while blocking port 4. The spool returns to its original position when the pilot signal is removed, aided by a bias spring. This valve features a hardened spool and sleeve for extended durability and is suitable for high-pressure applications up to 3000 PSI, with a flow rate of 10 GPM. Its robust design ensures reliable operation in demanding conditions.
