DPCV-100-P-N : Deltrol Motion Control Check Valve, Pilot-To-Open, Vented, C-10-4 Cavity, 3000psi, 10GPM,15psi Cracking Pressure

Deltrol Fluid ProductsSKU: 10153-96
1-3 Days
Price:
$63.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Poppet
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 15 psi
Series DPCV
Cartridge Cavity C-10-4L
Country of Manufacture United States/Vietnam
Height 2
Length 3
Width 2
Weight 2

Description

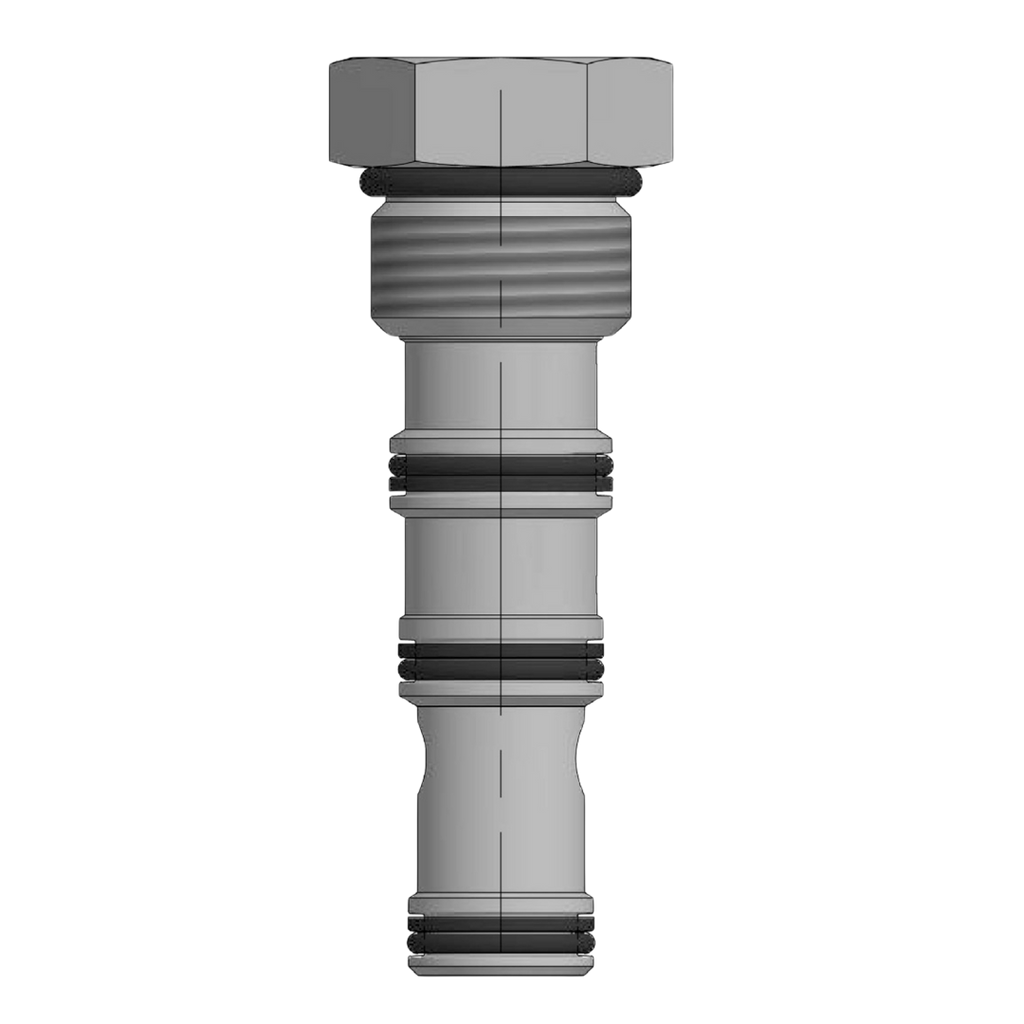

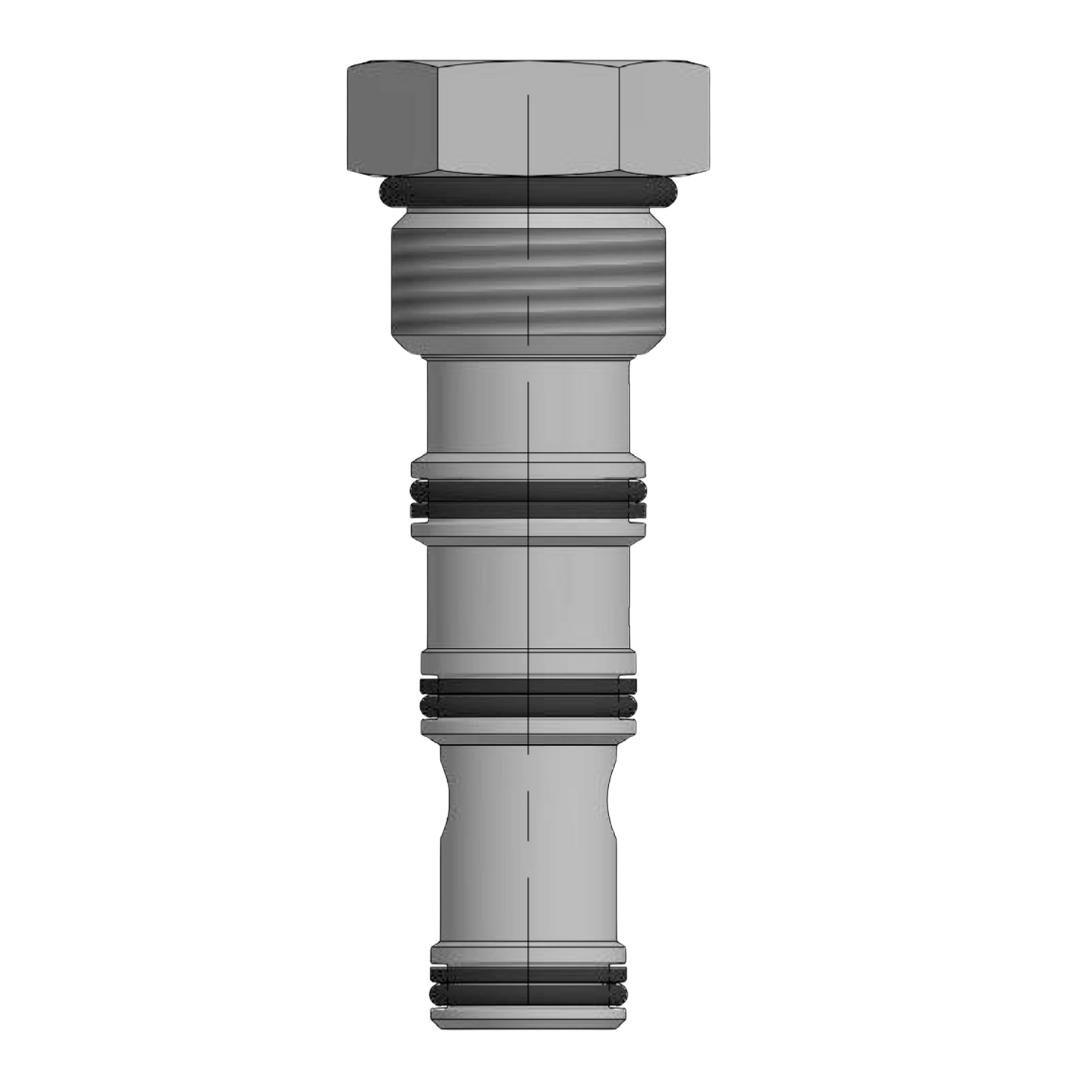

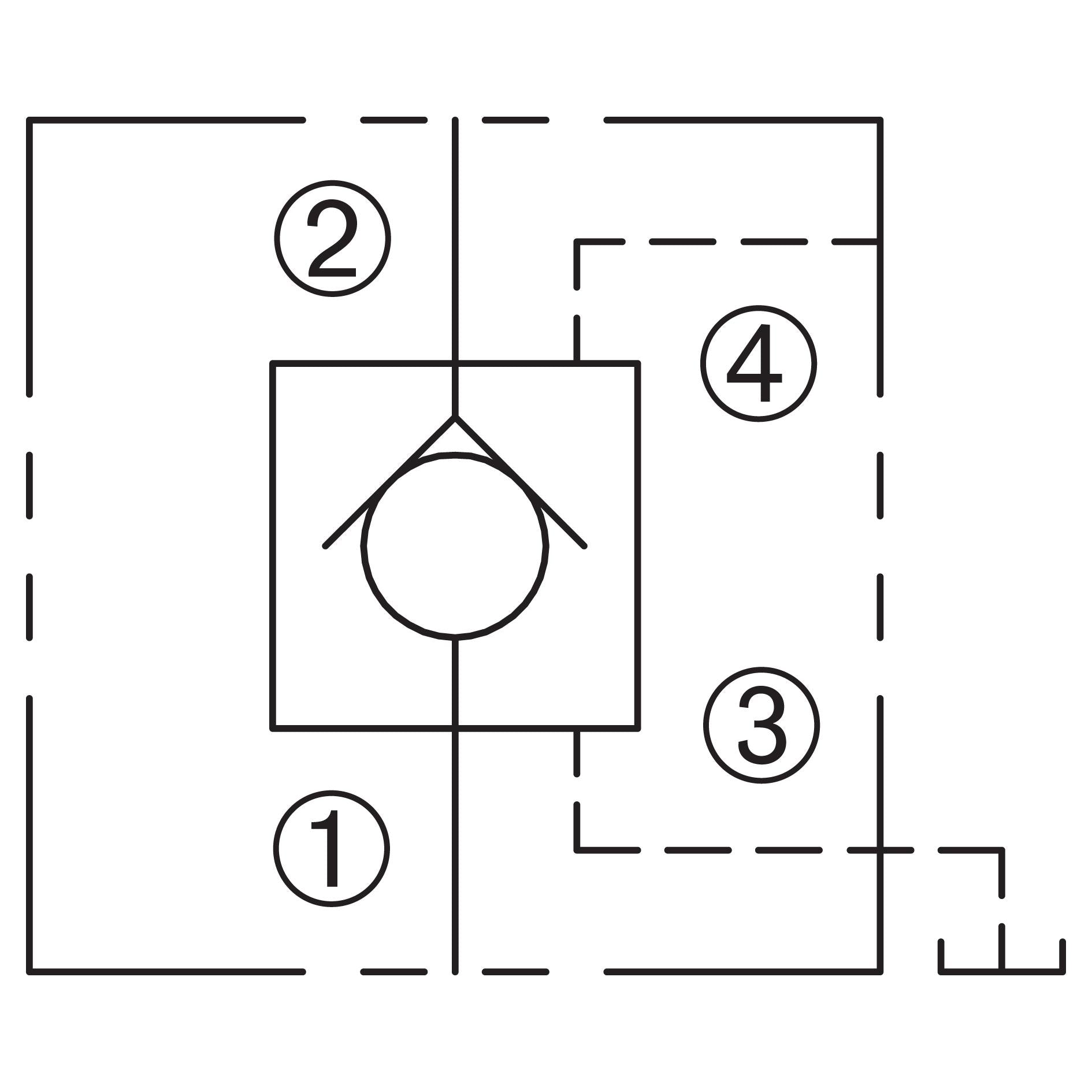

The Deltrol Fluid Products DPCV-100-P Motion Control Pilot-to-Open Vented Check Valve is a cartridge valve designed to facilitate free flow in one direction while blocking flow in the reverse direction. It allows flow from port 2 to port 1, but blocks flow from 1 to 2 unless pilot pressure is applied at port 4. When the required pilot pressure is reached, the valve opens, allowing flow between ports 1 and 2. This valve features a vented pilot design that isolates one side of the pilot piston from back pressure, enhancing performance. With a durable hardened poppet and seat, it operates at up to 3000 psi and handles flow rates up to 10 gpm, making it ideal for load-holding and blocking applications.
