Deltrol Fluid ProductsSKU: 10119-70
1-3 Days
Price:
$49.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Check
Style Poppet
Flow Rating 6.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Cracking Pressure 25-100 psi
Series DPC
Check Valve Type Pilot-to-Open
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam
Height 2
Length 2
Width 2
Weight 2

Description

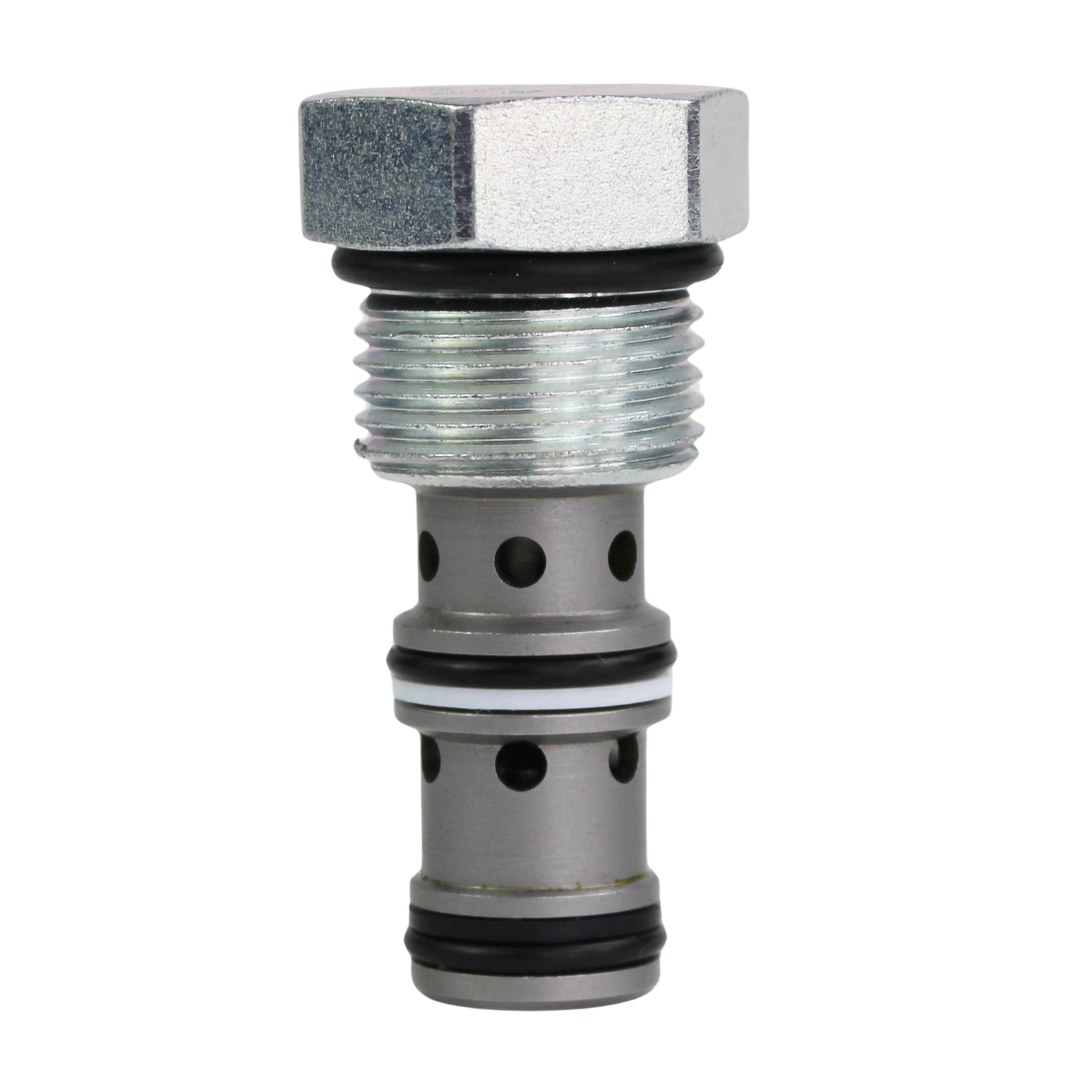

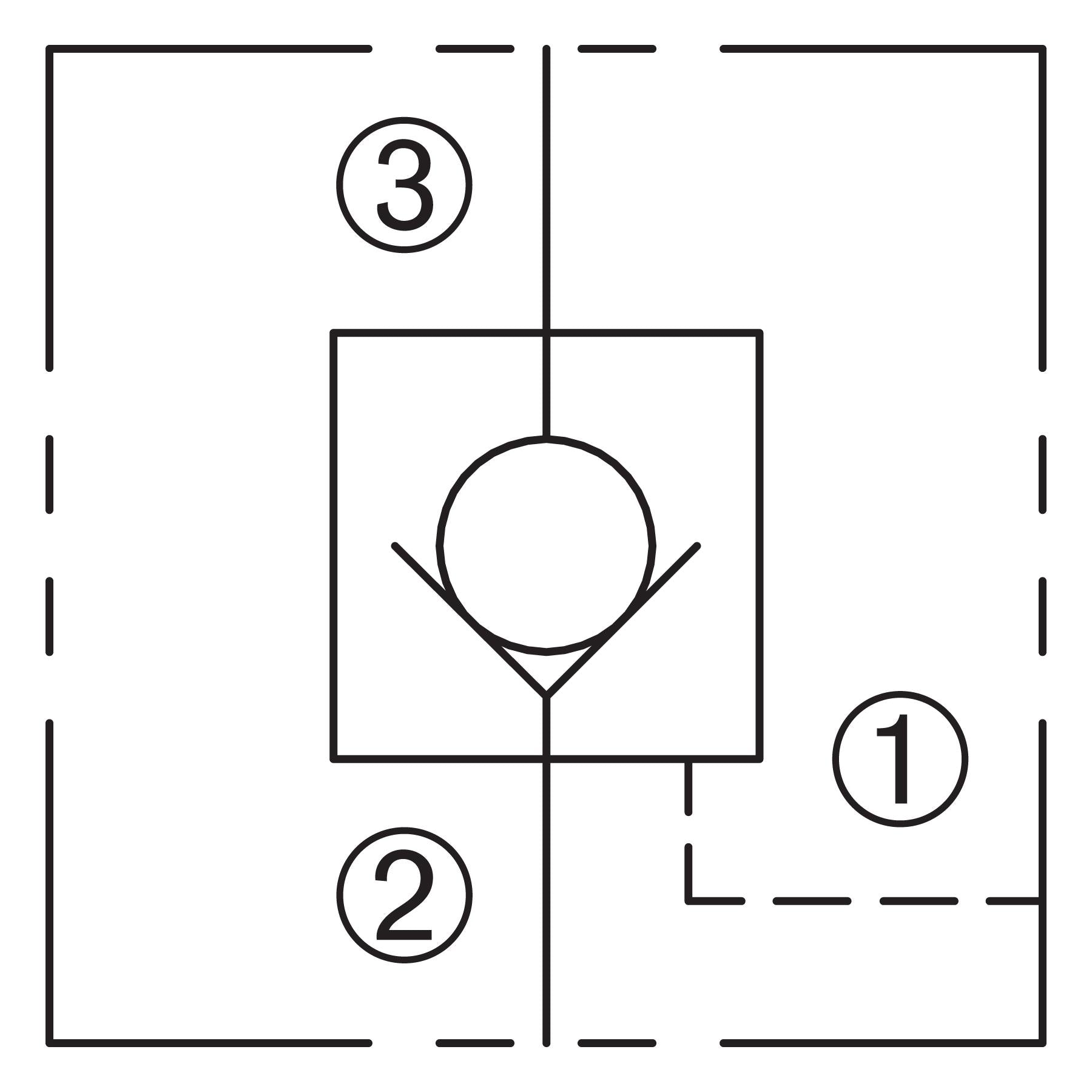

The Deltrol Fluid Products DPC-100-P Motion Control Pilot-to-Open Check Valve allows fluid to flow freely in one direction while blocking reverse flow, unless the specified pilot pressure is applied. In its default state, the valve blocks flow from port 3 to port 2. However, when sufficient pilot pressure at port 1 is applied, the valve's poppet unseats, enabling flow between port 3 and port 2. Designed with a durable hardened poppet and seat and an industry-standard cavity for easy installation, this valve is ideal for load-holding and blocking in hydraulic systems, operating efficiently up to 3000 psi with minimal leakage.
