Deltrol Fluid ProductsSKU: 10139-33
4-6 Weeks
Price:
$55.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment
Flow Rating 12.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DNV
Cartridge Cavity C-10-2
Country of Manufacture United States/Vietnam

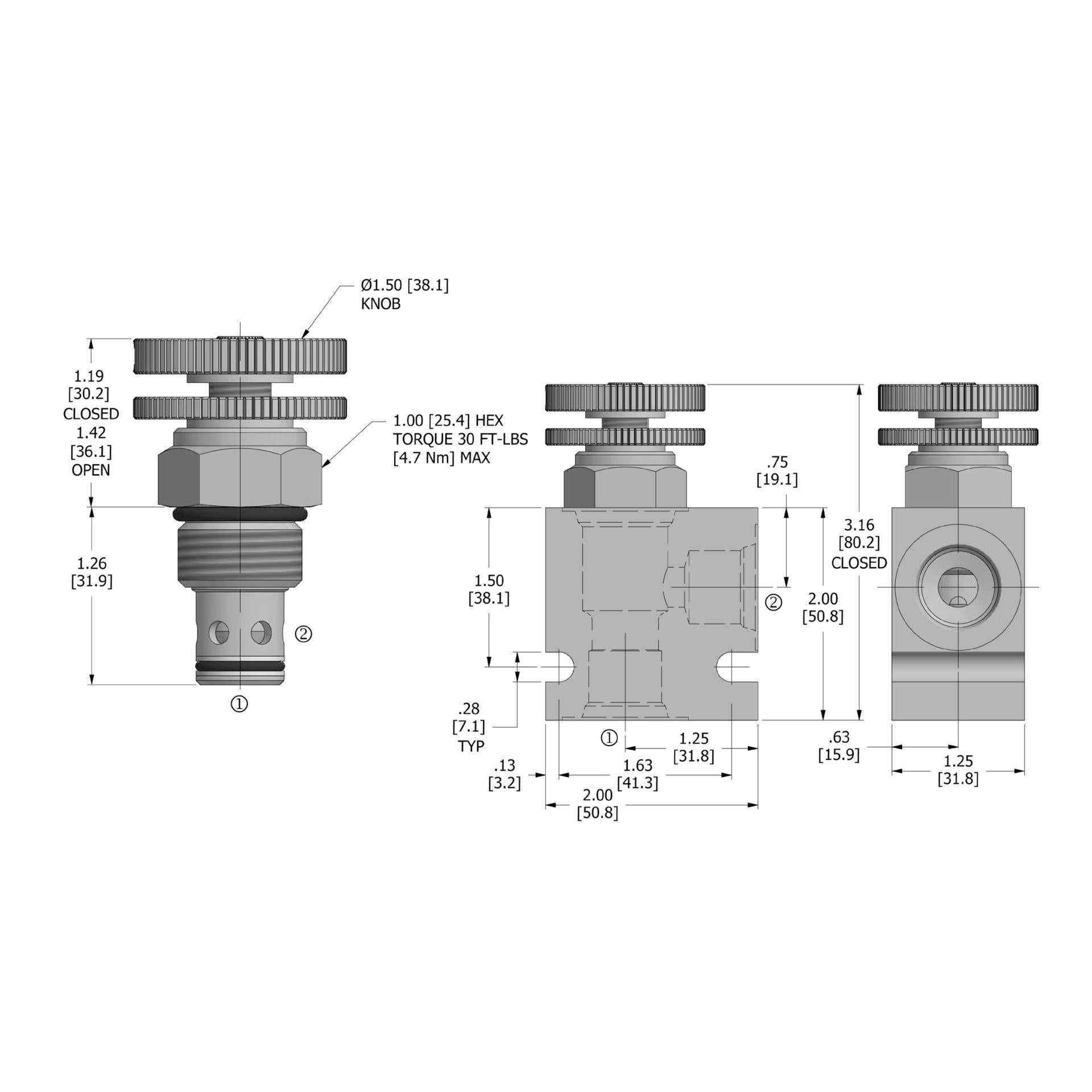

Height 2
Length 2.68
Width 2
Weight 2

Description

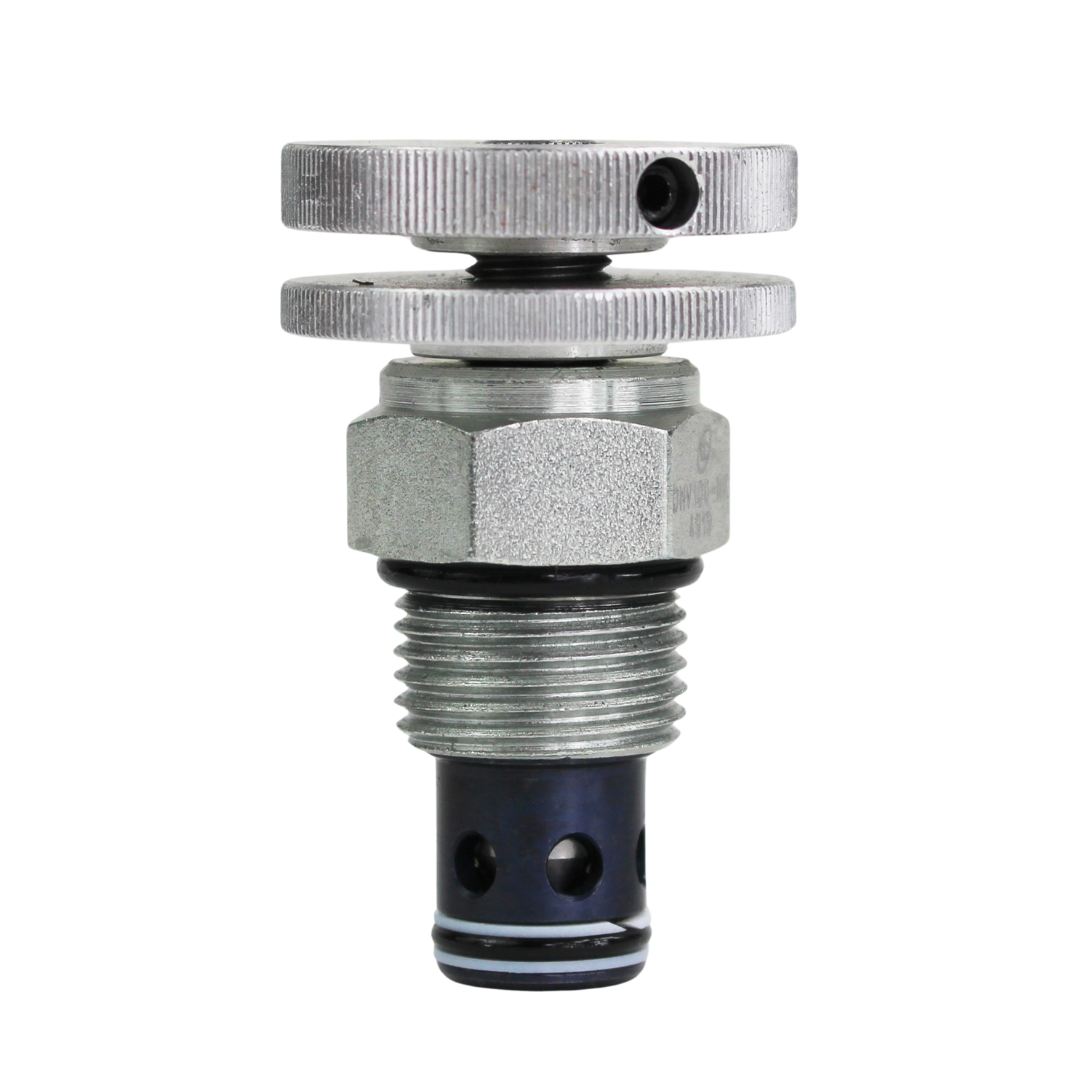

The Deltrol Fluid Products DNV-100 Adjustable Flow Control Needle Valve is a precision cartridge valve that offers adjustable flow restriction and positive shut-off. By turning the needle in or out, you can fine-tune the flow rate in either direction, and it will completely close off when needed. This valve, designed with a hardened seat for durability and low leakage, handles up to 12 gpm flow and operates at a maximum pressure of 3000 psi. It features an aluminum knob and disc nut for easy adjustments, with the option to lock the setting in place. Ideal for mineral-based fluids, it functions effectively within a temperature range of -30F to +250F.
