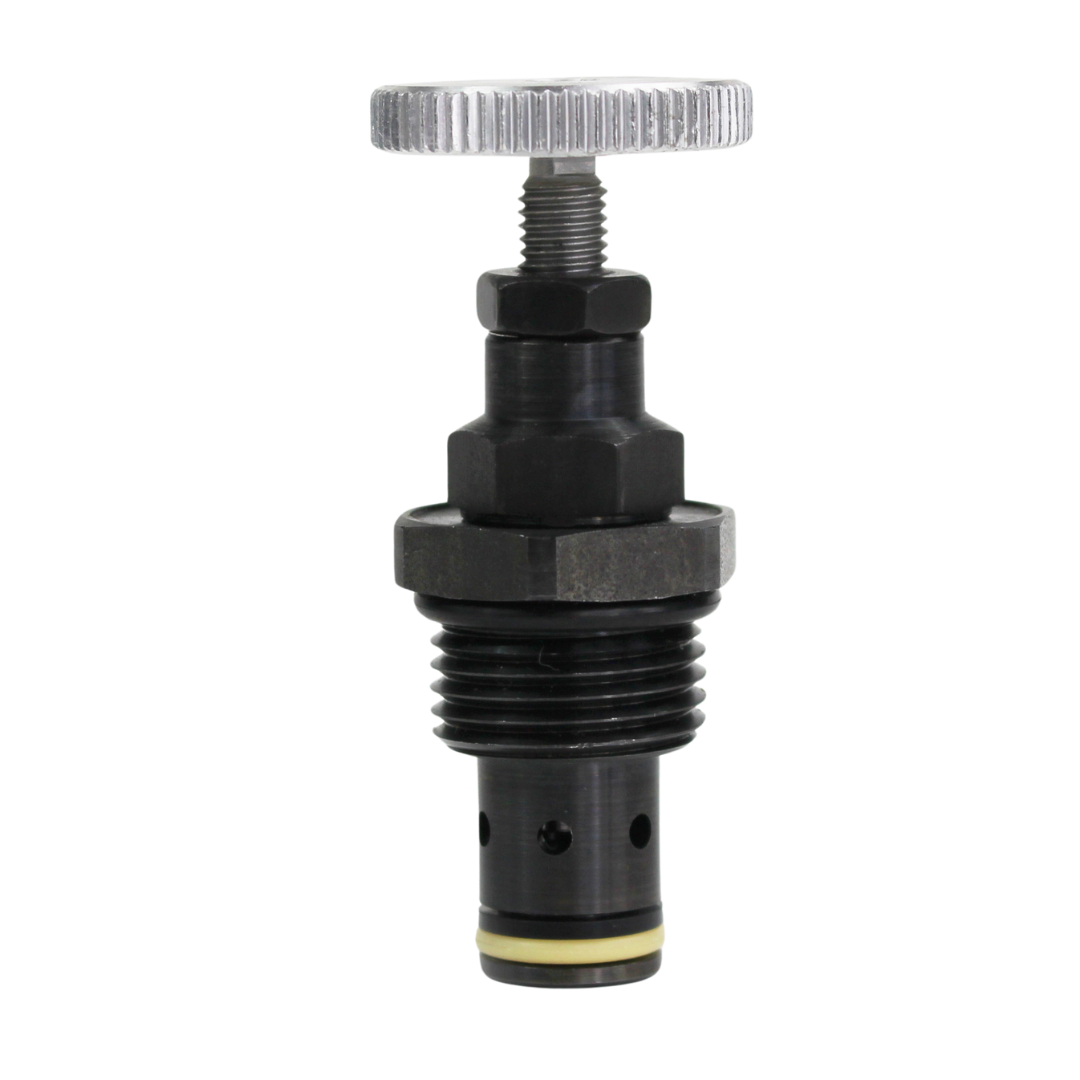

DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM
DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM
DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM
DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM
DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM
Roll over image to zoom in Click on image to zoom
DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPMDNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPMDNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPMDNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPMDNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM

DNV-080-N-K : Deltrol Flow Control Needle Valve, Adjustable, C-8-2 Cavity, 3000psi, 12GPM

Deltrol Fluid ProductsSKU: 10199-92
4-6 Weeks
Price:
$41.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Needle
Adjustment Type Knob Adjustment
Flow Rating 12.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DNV
Cartridge Cavity C-8-2
Country of Manufacture United States/Vietnam
Height 2
Length 2.4
Width 2
Weight 2

Description

The Deltrol Fluid Products DNV-080 Adjustable Flow Control Needle Valve is a versatile cartridge valve that allows precise control of flow by adjusting a needle to vary restriction levels. It can completely shut off the flow when closed and regulate flow in either direction, making it ideal for applications requiring adjustable flow control. With a maximum operating pressure of 3000 psi and a flow capacity of up to 11 gpm, this valve features zero leakage at shut-off and a durable aluminum knob for easy adjustments. It is designed for use with mineral-based fluids and operates effectively across a wide temperature range from -30F to +250F.
