Deltrol Fluid ProductsSKU: 10179-86
Same Day
1
03.12.M.108A
Price:
$39.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within Same Day
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Mechanically-Operated
Flow Rating 5.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DMR

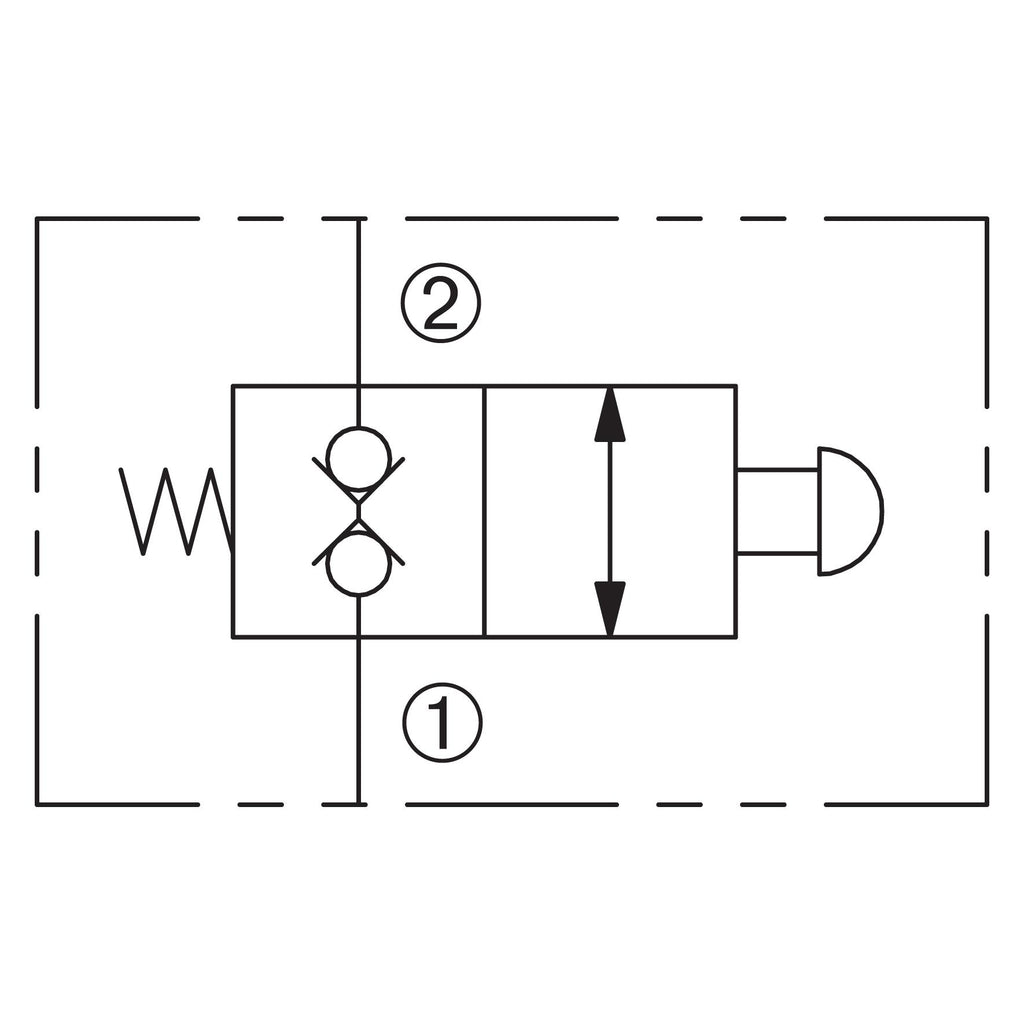

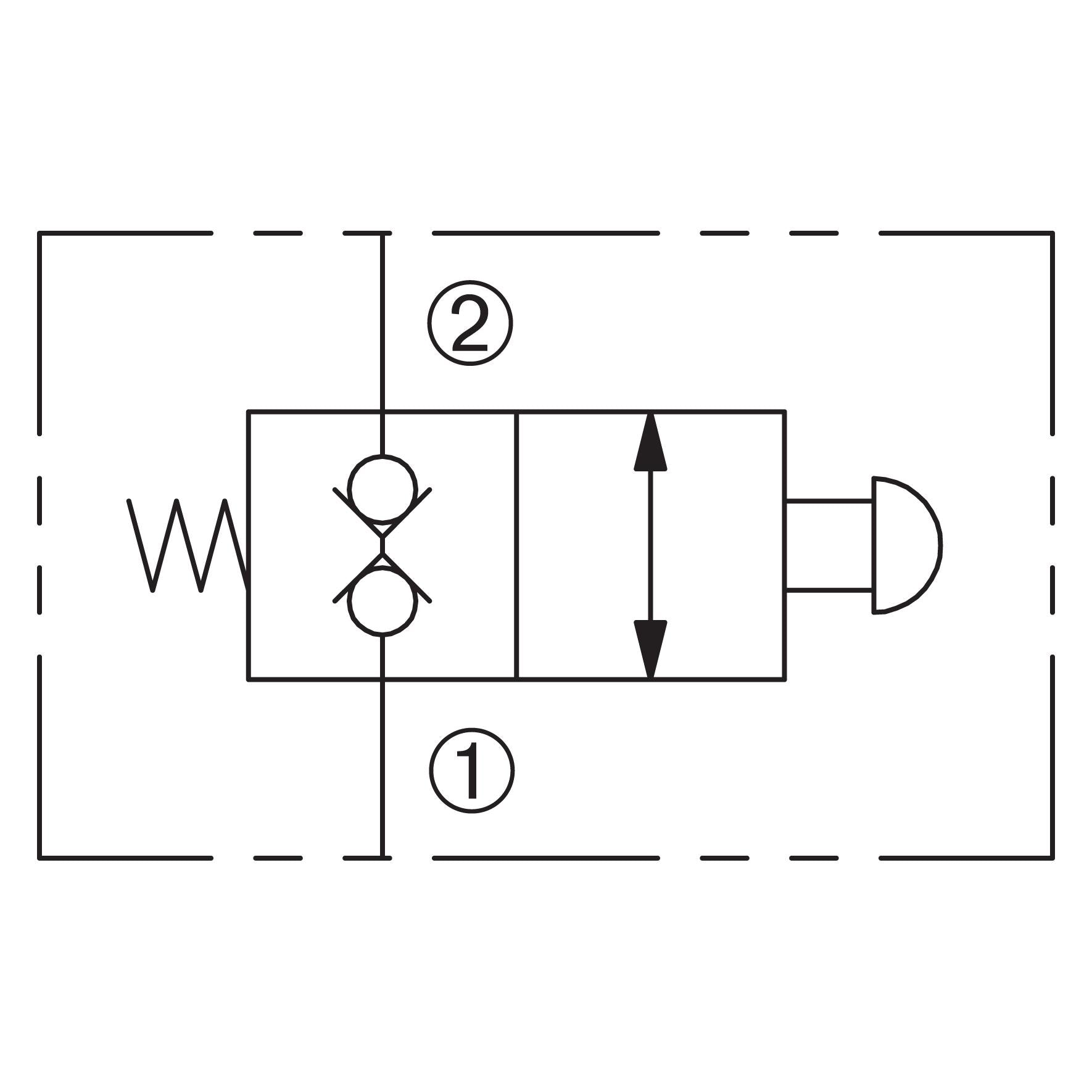

Spool Configuration Blocked flow from 1 to 2
Cartridge Cavity C-8-2
Coil Selection No Coil, Manual Plunger
Country of Manufacture United States/Vietnam

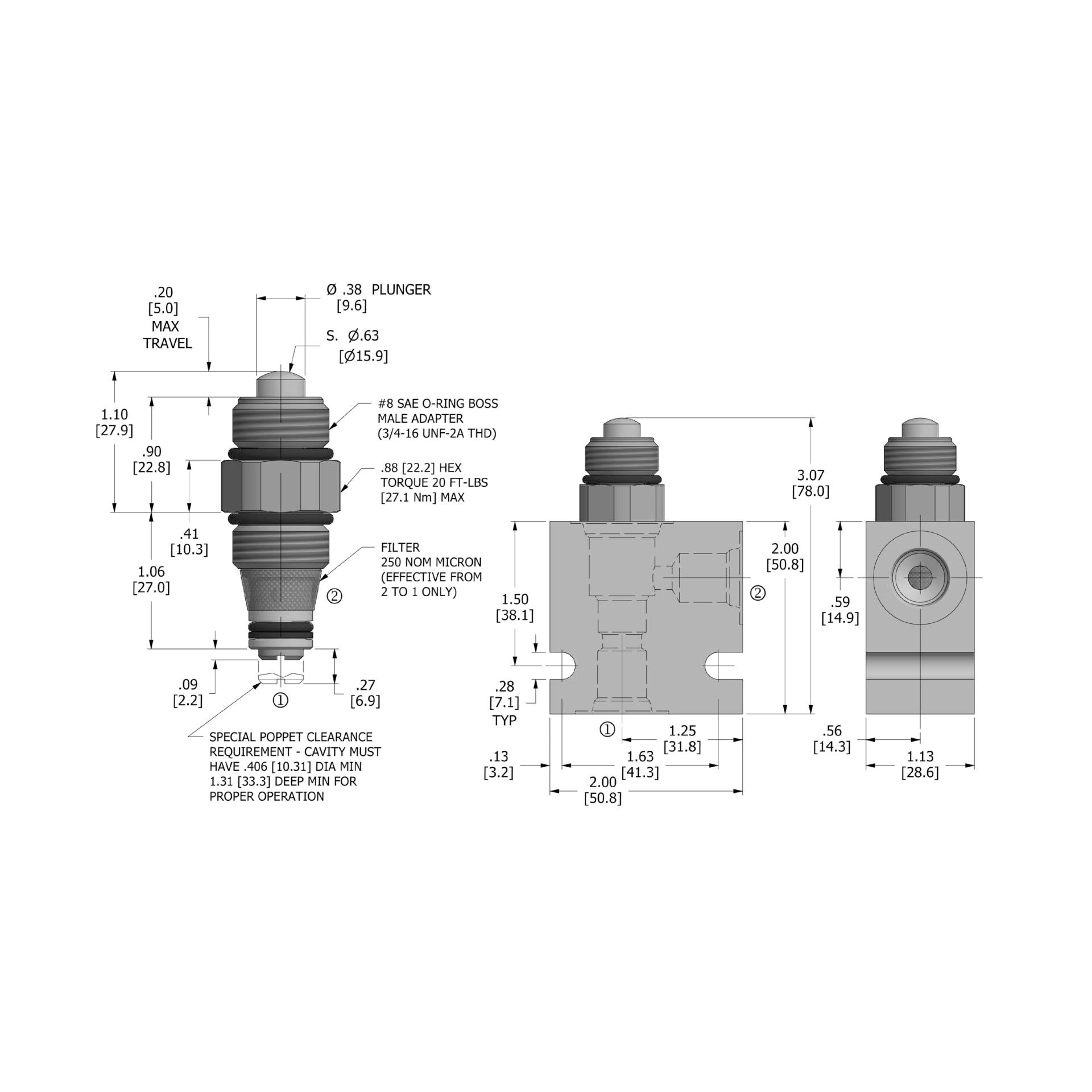

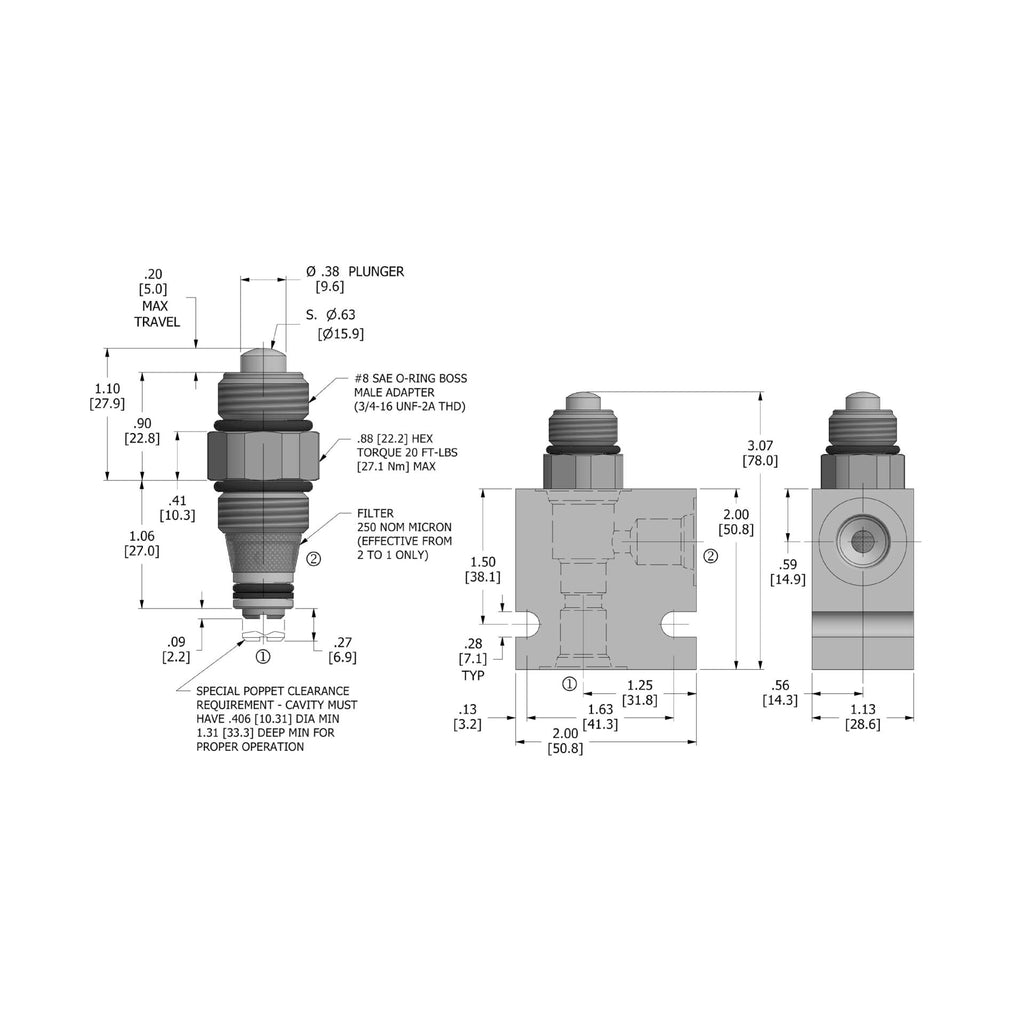

Height 1
Length 2.16
Width 1
Weight 2

Description

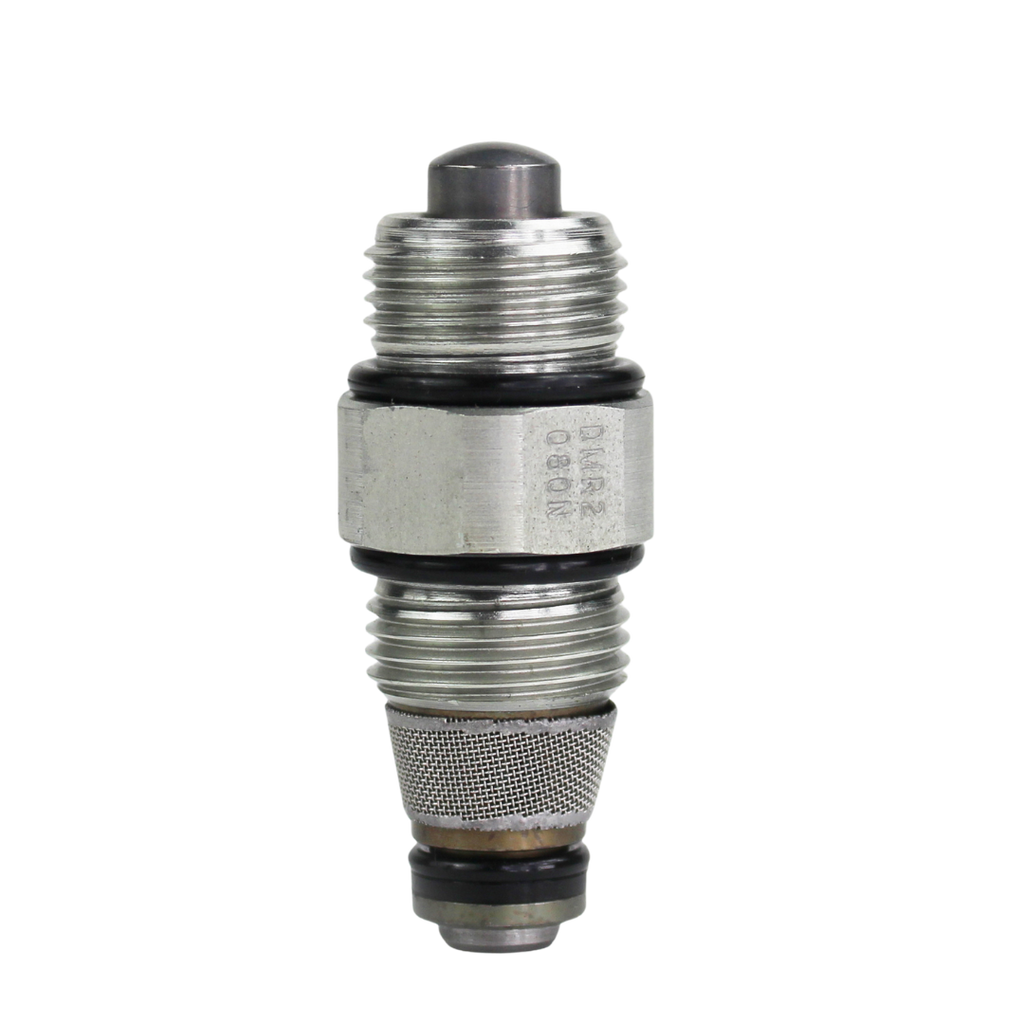

The Deltrol Fluid Products DMR2-080 is a zero-leak, plunger-operated cartridge valve designed for load-holding applications. It blocks flow in both directions by default but opens to allow fluid flow when the plunger is actuated. The required force to operate the plunger depends on the pressure in the system, plus an additional spring force. With a maximum pressure rating of 3000 PSI and a flow capacity of 5 GPM, this valve ensures long-term reliability with its hardened poppet and seat, and features a filter screen and industry-common cavity for easy integration. The valve operates efficiently in temperatures ranging from -30°F to +250°F and is compatible with mineral-based fluids.
