Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Manual-Operated |

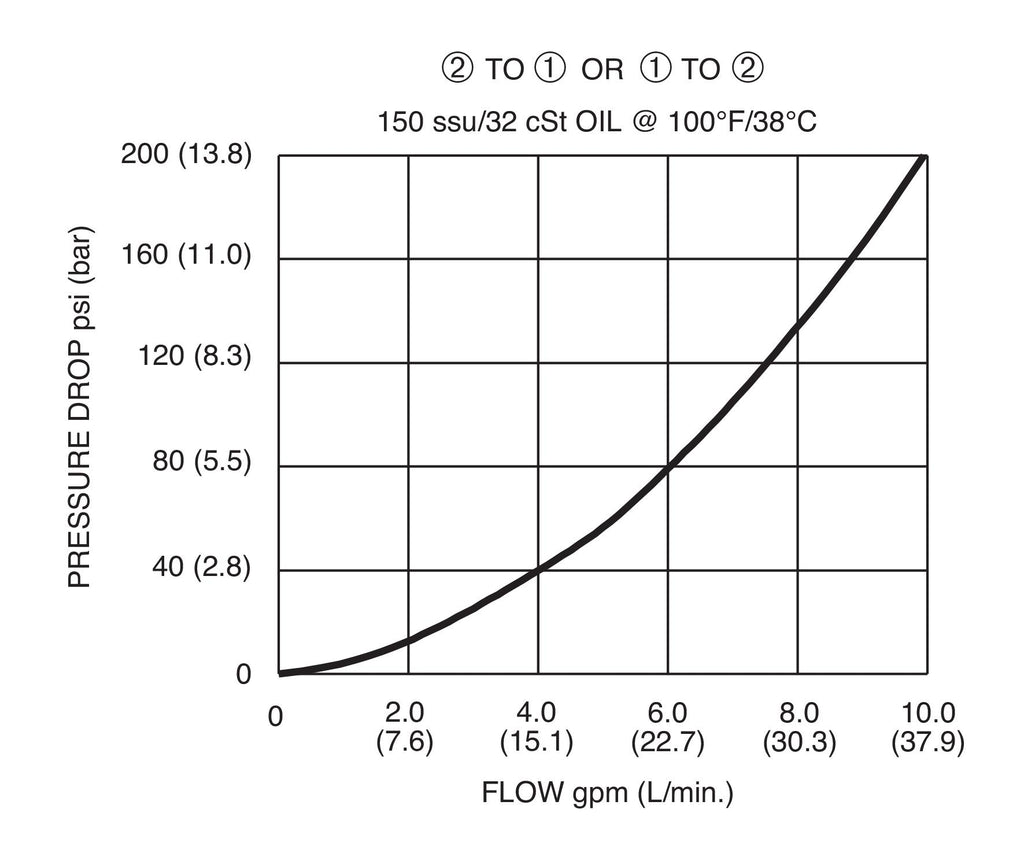

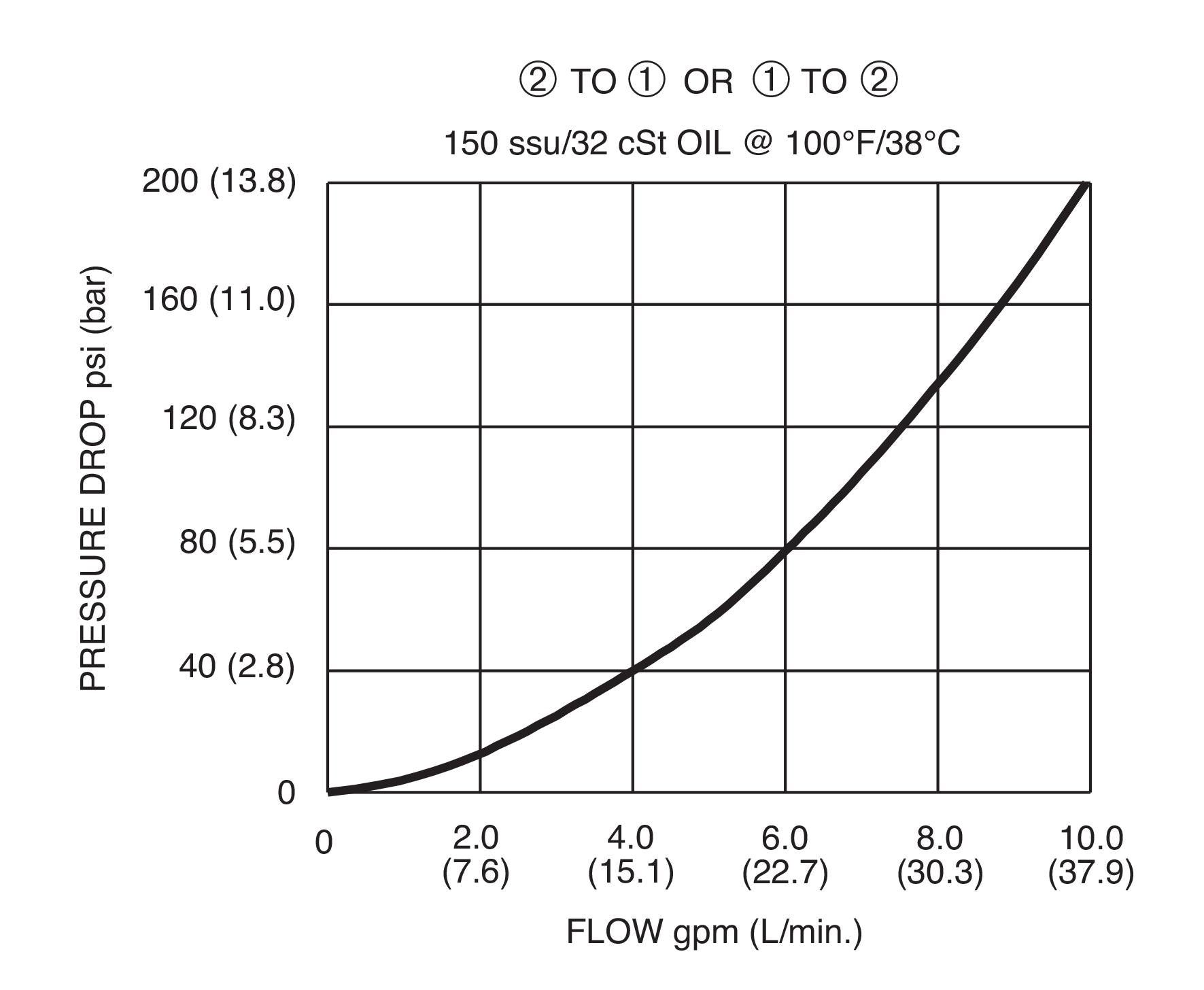

| Flow Rating | 6.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DMP |

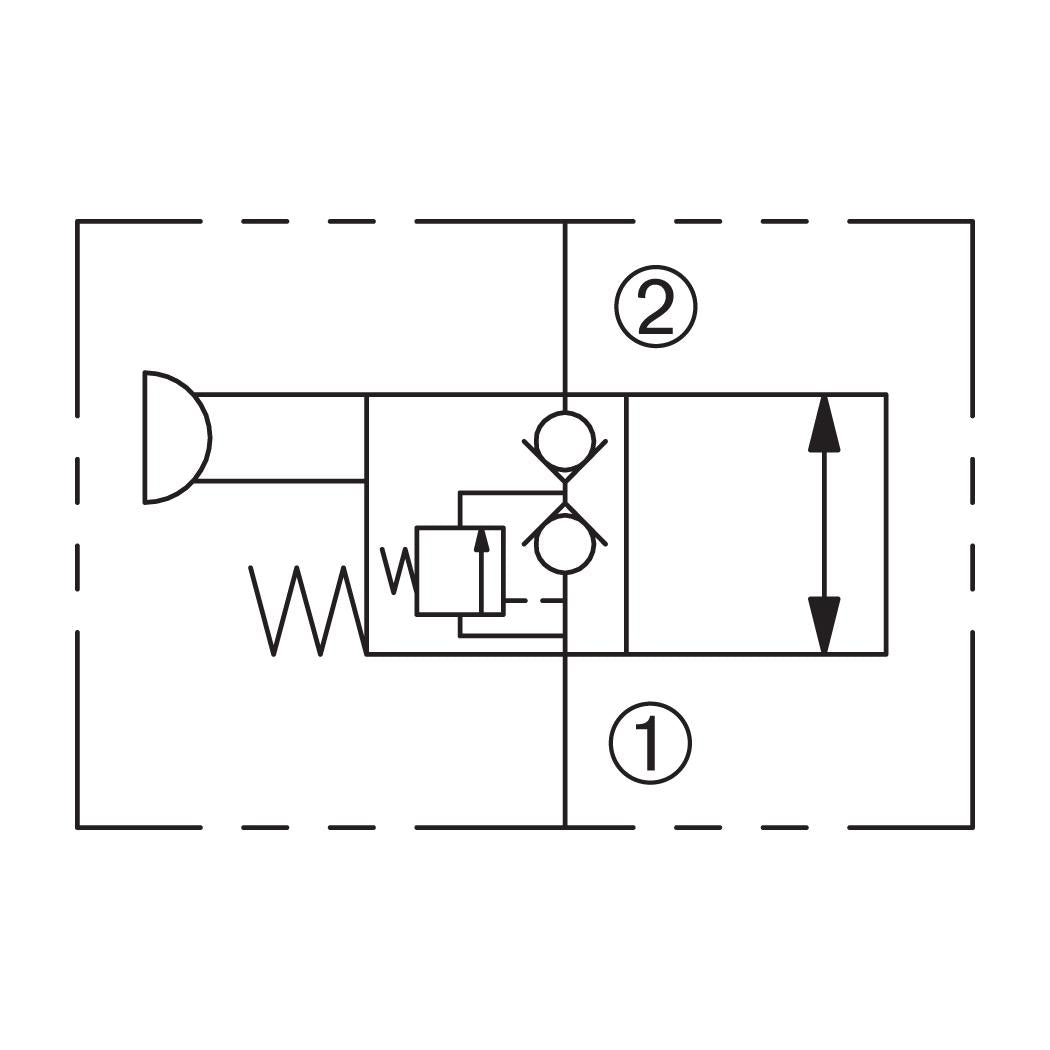

| Spool Configuration | Blocked flow from 1 to 2 |
| Cartridge Cavity | C-8-2 |
| Coil Selection | No Coil, Manual Red Push Button |
| Country of Manufacture | United States/Vietnam |

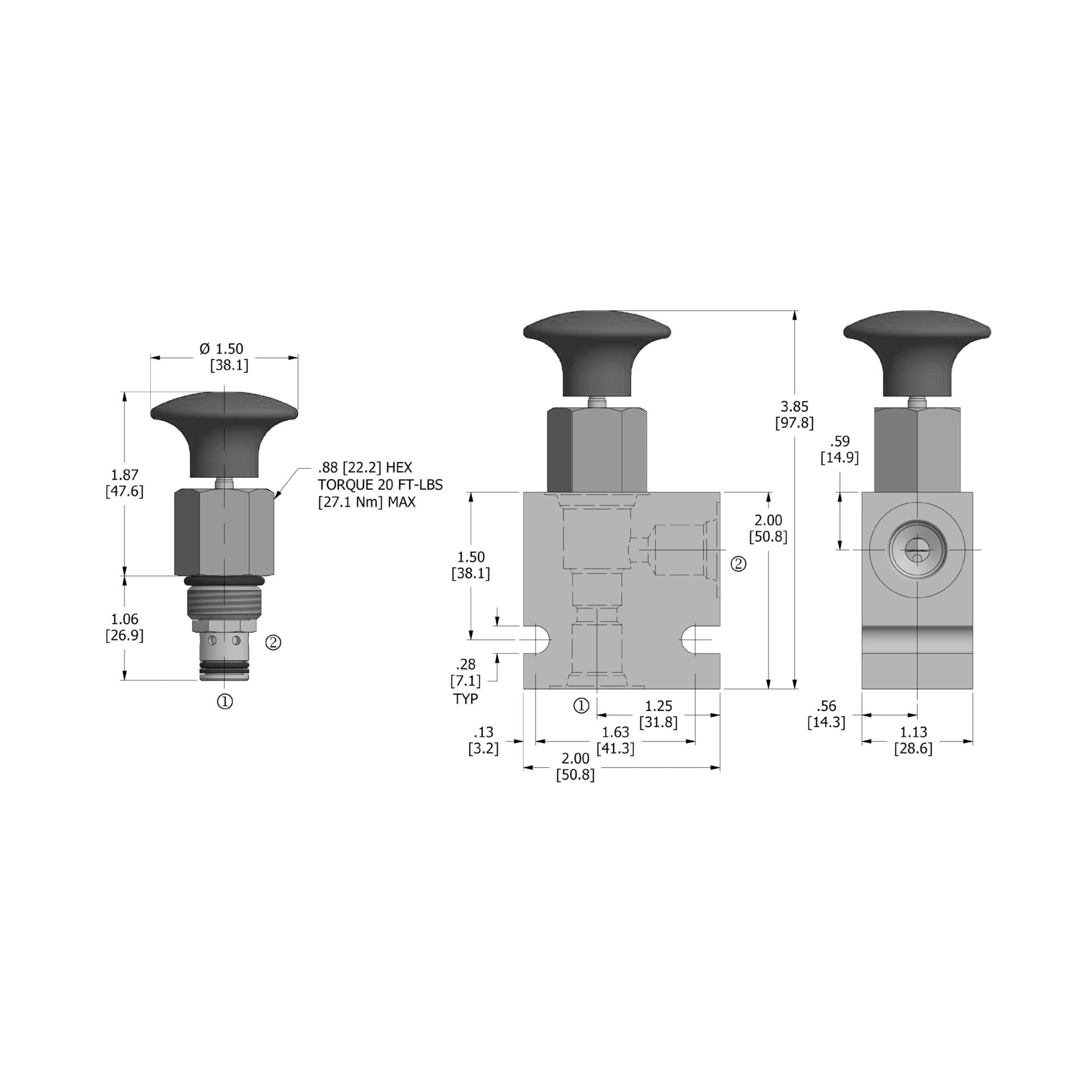

| Height | 1.5 |
| Length | 2.93 |
| Width | 1.5 |
| Weight | 2 |
Description

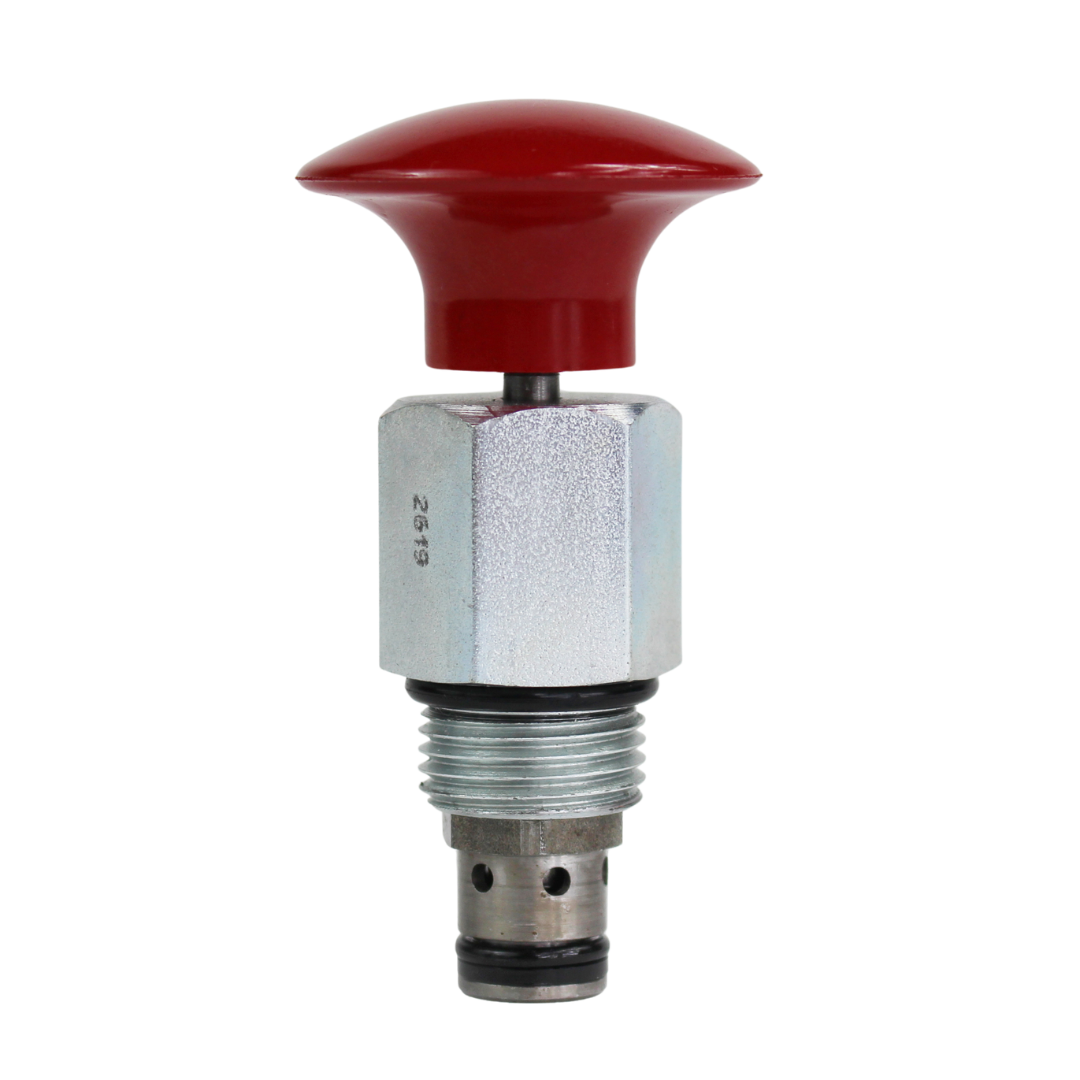

The Deltrol Fluid Products DMP-080-2NCP is a manually operated, two-way, two-position cartridge valve designed for load holding applications. This valve features a large red knob for easy operation and a chrome alloy ball for durability. It blocks flow between ports 1 and 2 until manually engaged, allowing fluid to flow in either direction only when the knob is pulled, overcoming a spring force of 450 PSI (31 Bar). With a maximum operating pressure of 3000 PSI and a flow rate up to 6 GPM, it ensures reliable performance in various hydraulic systems. The valve's construction from anodized aluminum provides long-lasting reliability and is suitable for mineral-based fluids.
