Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Manual-Operated |

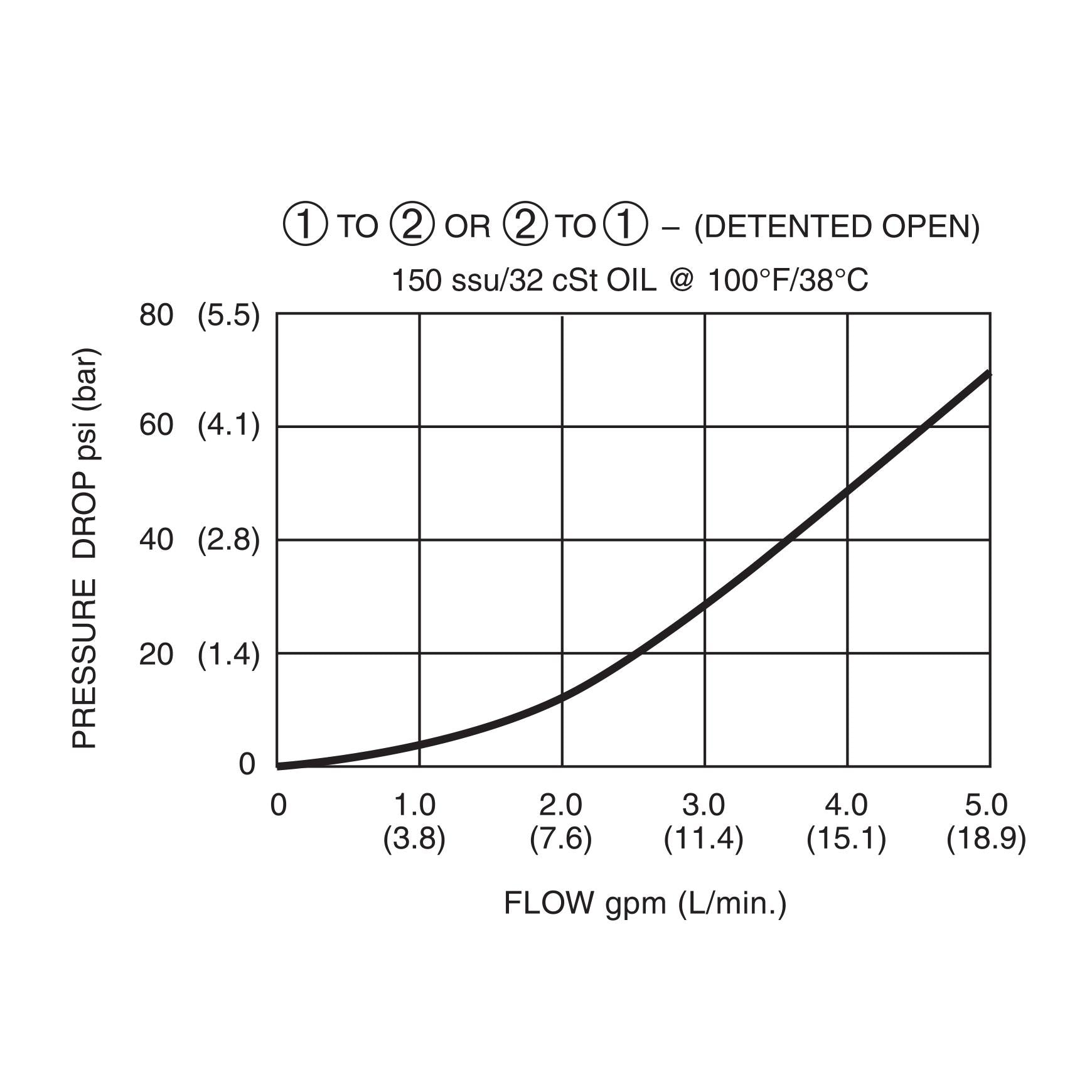

| Flow Rating | 5.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DMO |

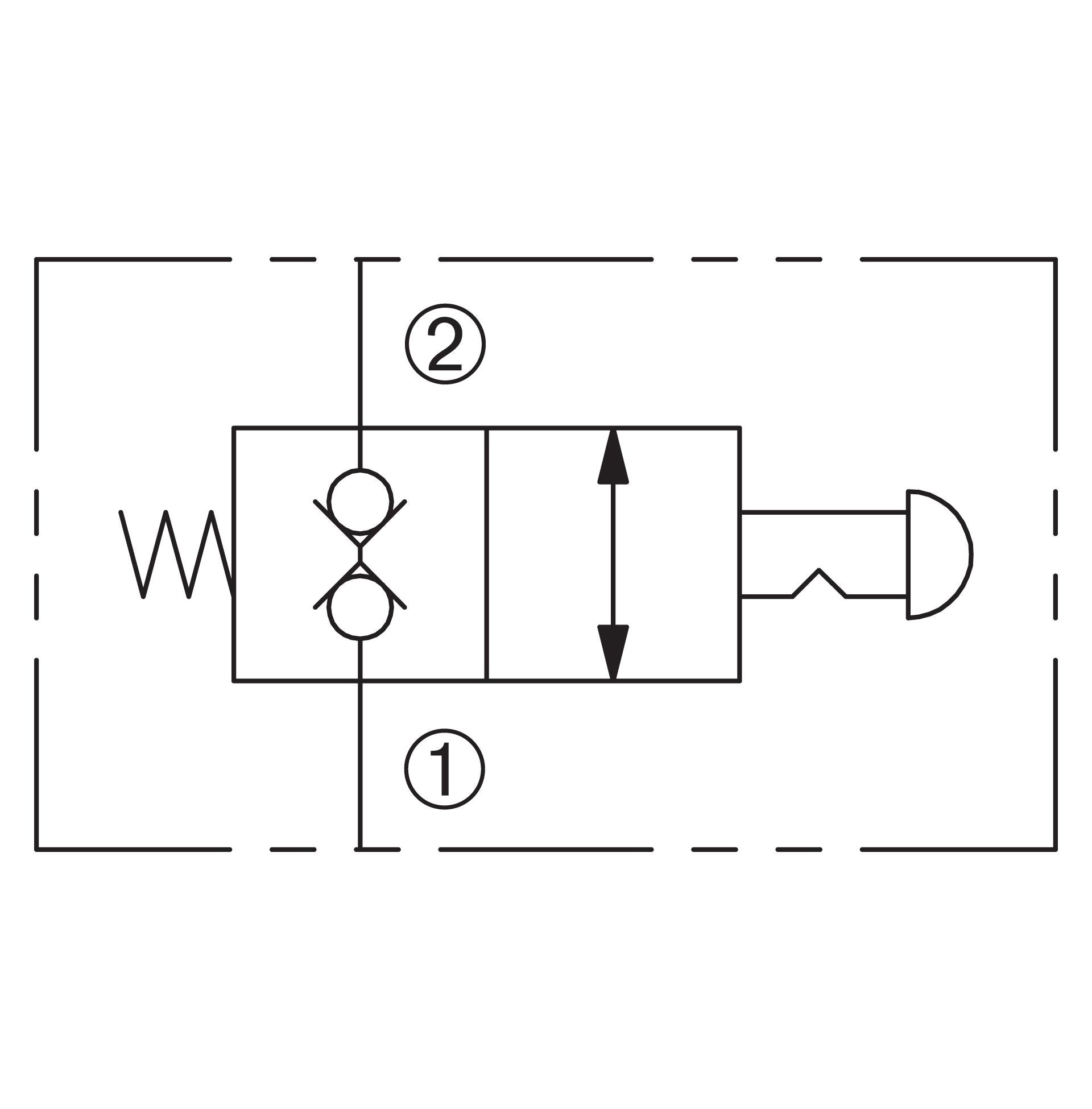

| Spool Configuration | Blocked flow from 1 to 2 |
| Cartridge Cavity | C-8-2 |
| Coil Selection | No Coil, Manual Knob |
| Country of Manufacture | United States/Vietnam |

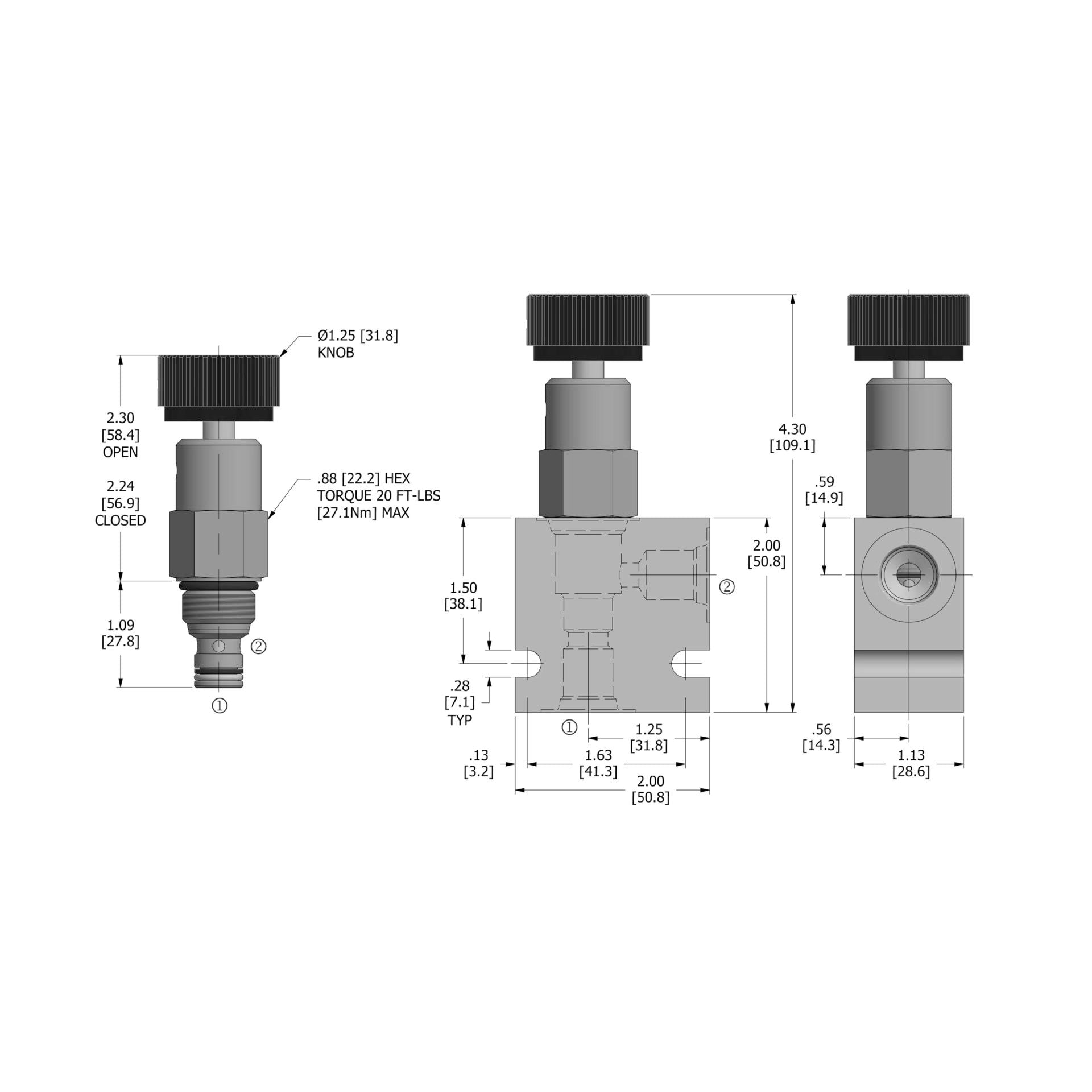

| Height | 1.5 |
| Length | 3.39 |
| Width | 1.5 |
| Weight | 2 |
Description

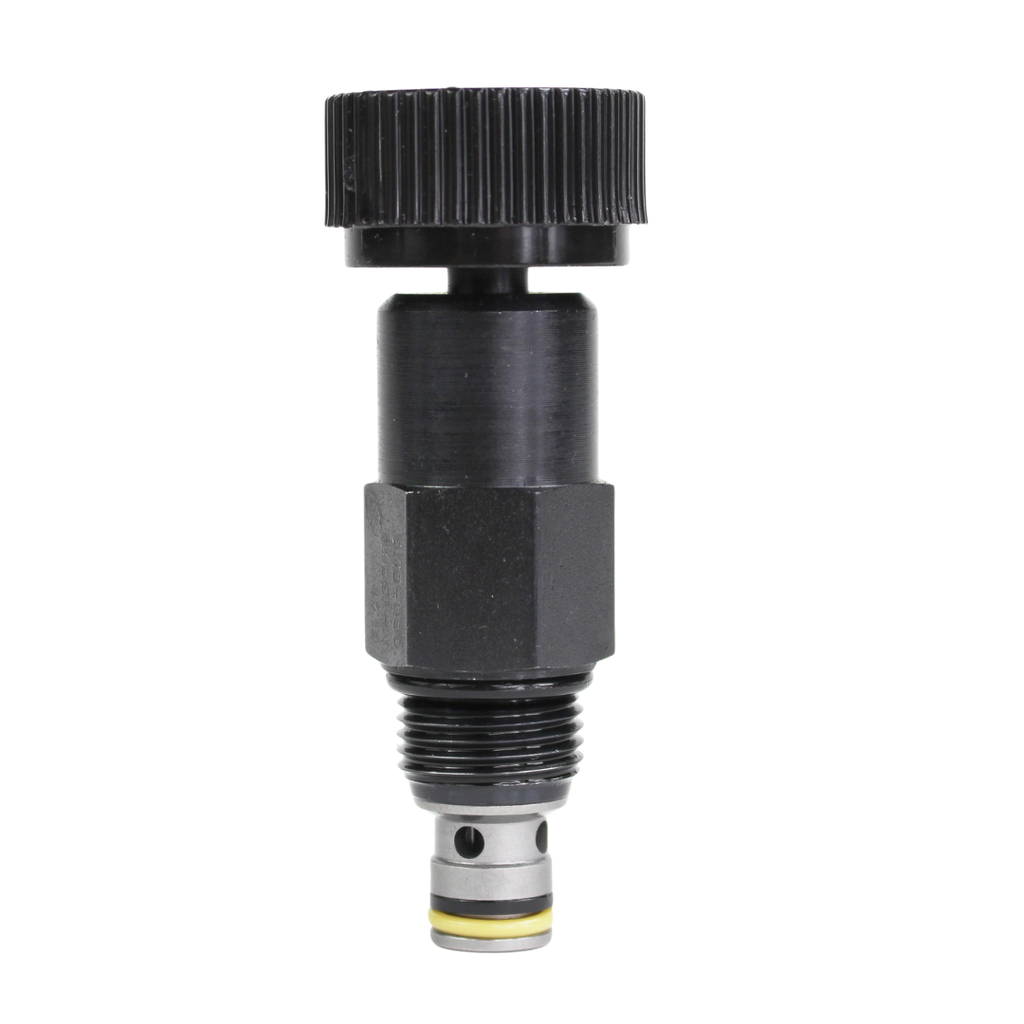

The Deltrol Fluid Products DMO-080-2NCSP is a manually-operated cartridge valve designed for precise control in load-holding applications. It features a black knob that, when pushed down and turned counterclockwise, opens the valve to allow flow between ports 1 and 2. To close the valve and block flow in both directions, simply push down, turn clockwise, and release. This valve is engineered for low leakage, with hardened poppet and seat for durability, and includes a positive detent to ensure secure operation. Rated for up to 3000 PSI with a flow capacity of 5 GPM, it is ideal for systems requiring reliable shutoff and control in challenging environments.
