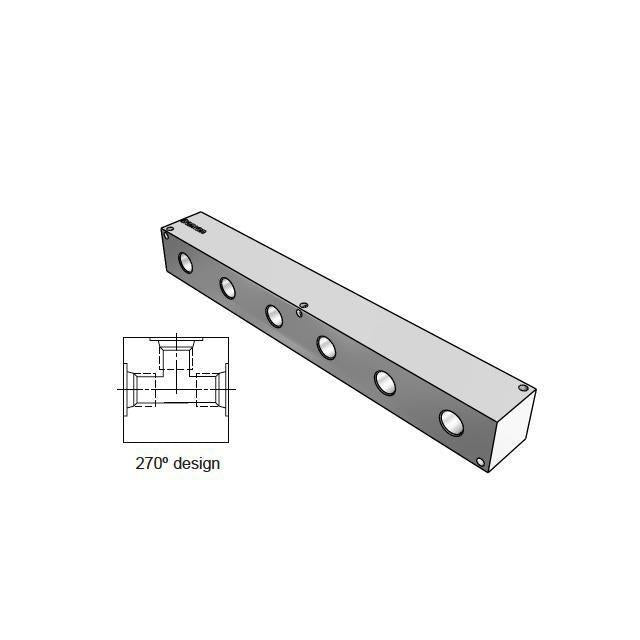

DJ2700608S : Daman Junction Manifold, 270 Degree , Ductile Iron, Six Station, #8 SAE (1/2) Ports
Roll over image to zoom in Click on image to zoom
DJ2700608S : Daman Junction Manifold, 270 Degree , Ductile Iron, Six Station, #8 SAE (1/2) Ports

DJ2700608S : Daman Junction Manifold, 270 Degree , Ductile Iron, Six Station, #8 SAE (1/2) Ports

DamanSKU: DJ2700608S
1-3 Days
4.0
Price:
$366.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 4.0
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Ductile Iron
Port Size #8 SAE (1/2")
Pressure Rating 5000
Port Configuration 270 Degree
Number Of Stations Six Station
Height 2
Length 14.88
Width 2
Weight 0

Description

Daman Junction Blocks are an efficient way to co-locate tee and elbow fittings. They do not have valve or pattern machined features, only ports. The purpose is to provide a place to join piping, change direction, or split/connect with other lines.
