Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Hand Pump |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DHP2 |
| Cartridge Cavity | C-10-2 |
| Country of Manufacture | United States/Vietnam |
| Height | 1.25 |
| Length | 8.5 |
| Width | 4 |
| Weight | 2 |
Description

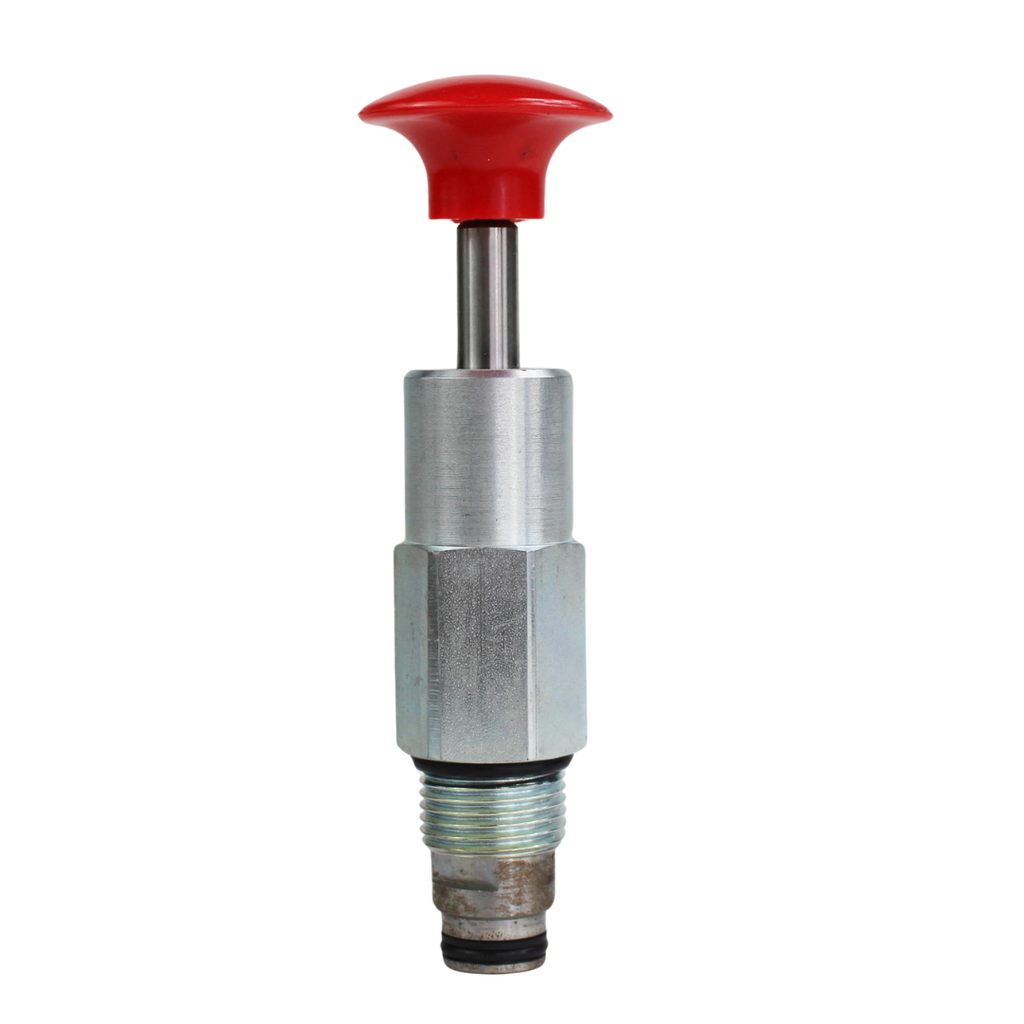

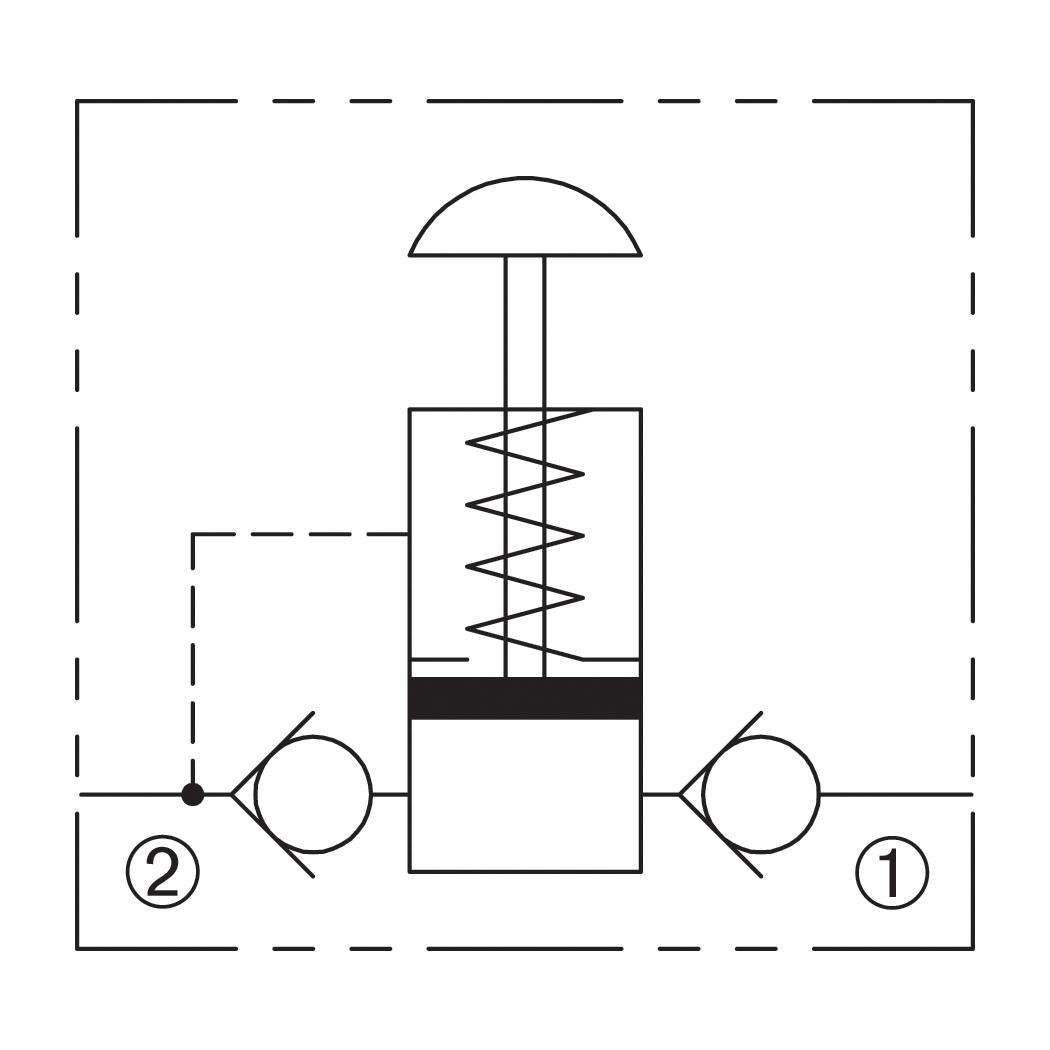

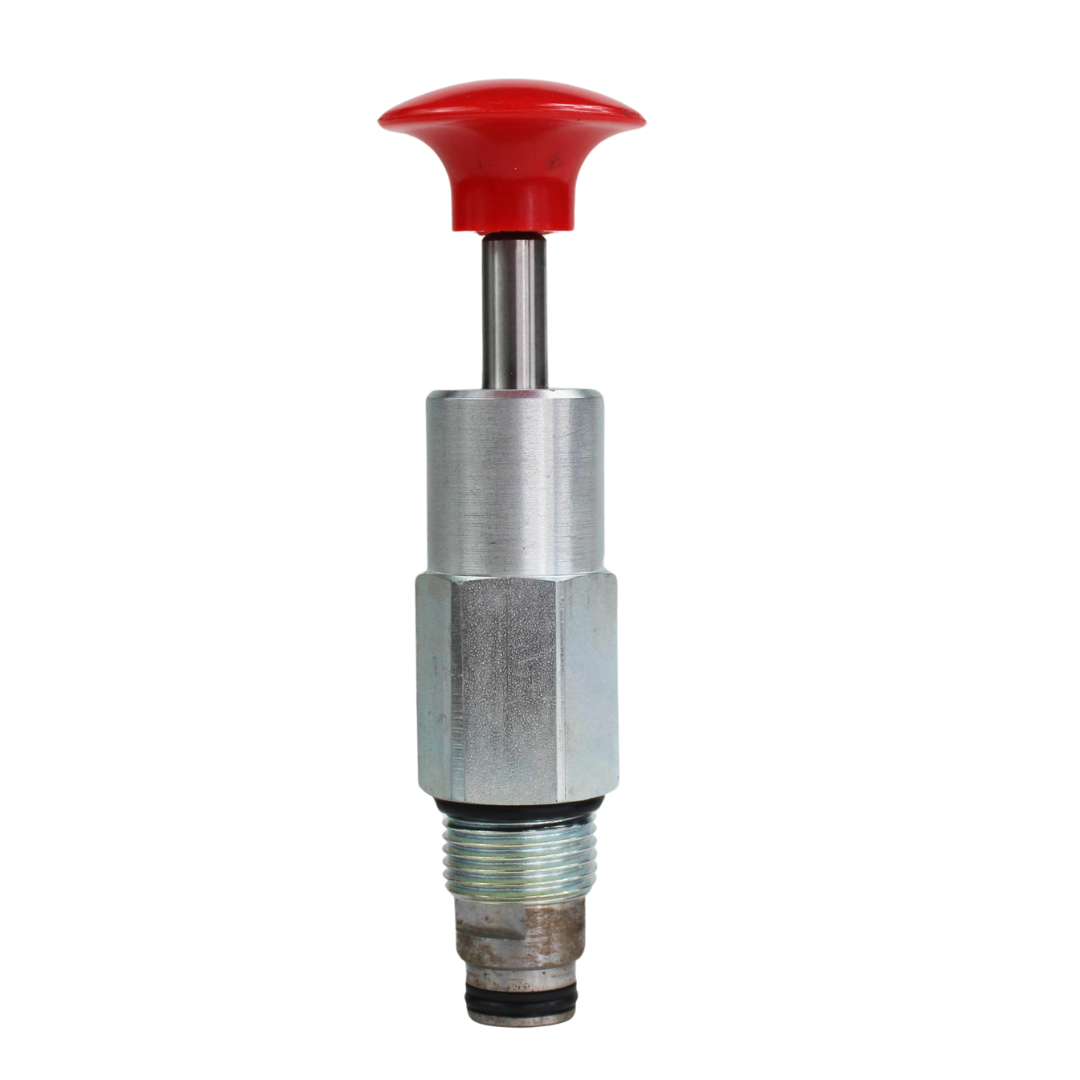

The Deltrol Fluid Products DHP2-100 is a robust hand pump designed for reliable fluid delivery in demanding applications. This self-contained, cartridge-style pump features integral inlet and outlet checks, ensuring efficient operation. When the operator's handle is pushed, the pump delivers a nominal flow of 0.5 cubic inches to port 2, while pulling the handle draws fluid from port 1. The DHP2-100 is built with a cast beam for heavy-duty use, hardened parts for long life, and a 360º rotating beam for flexible installation. With a maximum operating pressure of 3000 PSI and a durable anodized aluminum alloy body, it provides dependable performance across a wide temperature range.
