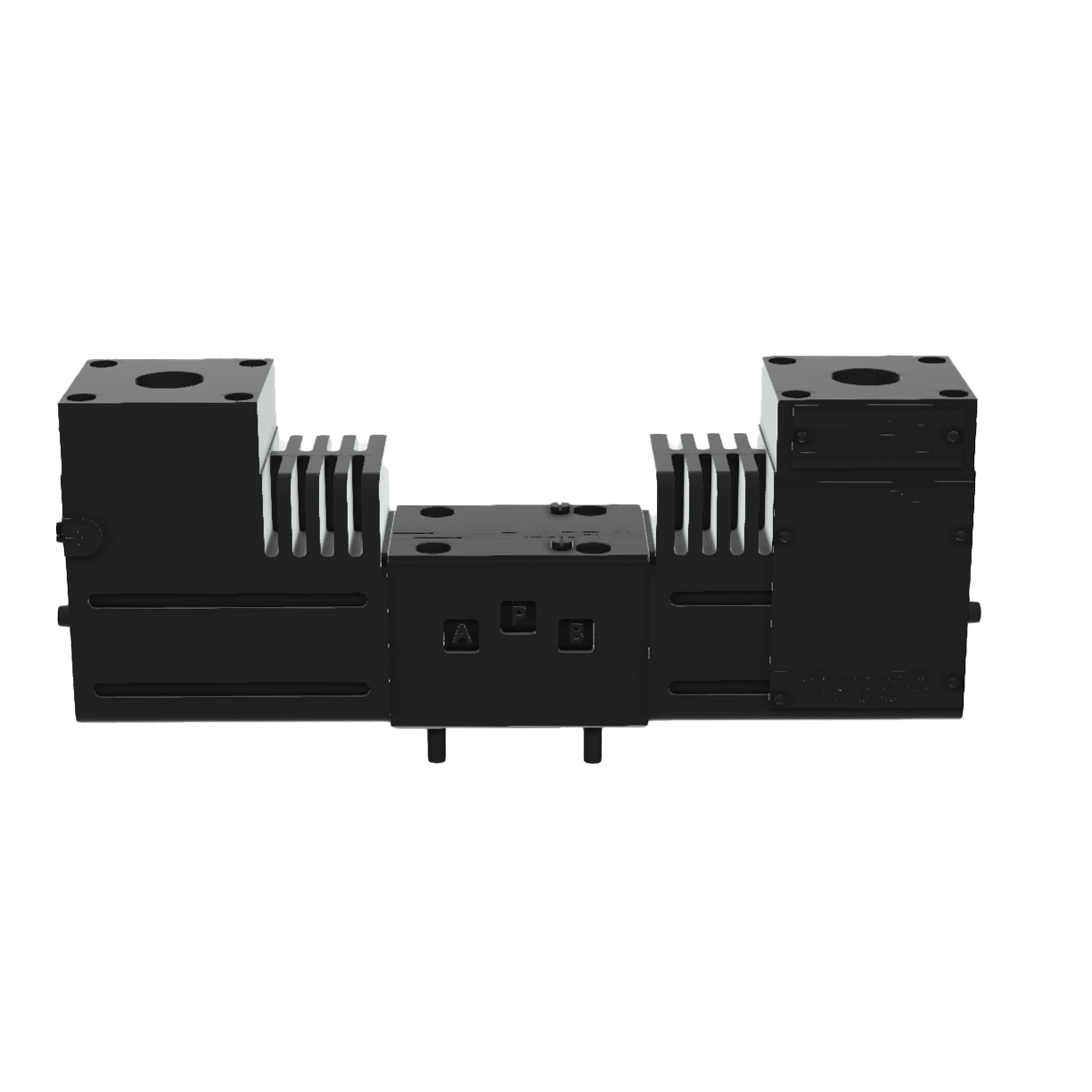

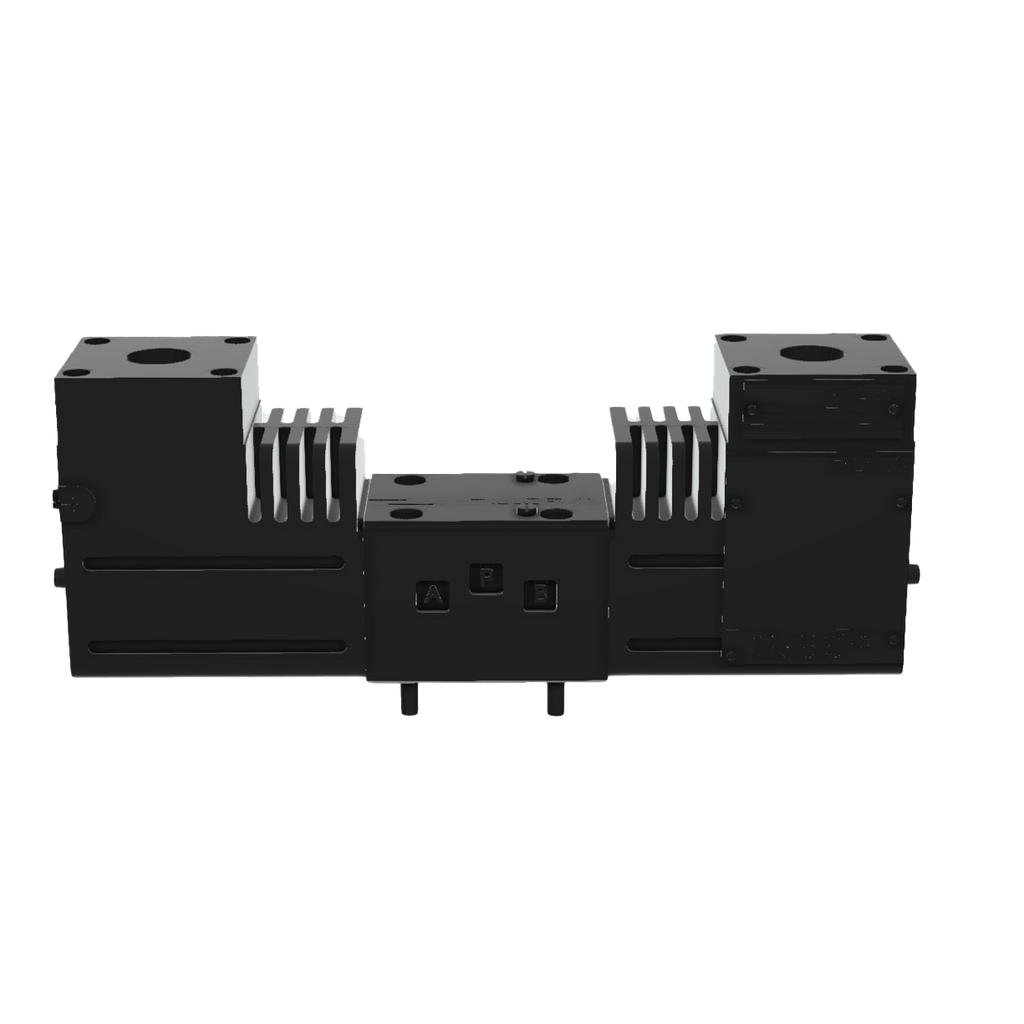

DHA/UL-0714/NPT 24DC 30 : Atos Explosion Proof DCV, D03, 18.5GPM, 5075psi, 3P4W, 24 VDC, 1/2" NPT Solenoid, Tandem Spool, Certified cULus Class I, Div I
Roll over image to zoom in Click on image to zoom
DHA/UL-0714/NPT 24DC 30 : Atos Explosion Proof DCV, D03, 18.5GPM, 5075psi, 3P4W, 24 VDC, 1/2" NPT Solenoid, Tandem Spool, Certified cULus Class I, Div I

DHA/UL-0714/NPT 24DC 30 : Atos Explosion Proof DCV, D03, 18.5GPM, 5075psi, 3P4W, 24 VDC, 1/2" NPT Solenoid, Tandem Spool, Certified cULus Class I, Div I

Save $777.69
AtosSKU: DHA/UL-0714/NPT 24DC 30
0
4
Price:
$2,595.99 $3,373.68

Product Details

Usually Ships Within 0
Factory Stock 4
Factory Location York, Pennsylvania
Solid Model

Click here to download

Valve Type Subplate/Manifold Mounted Valve
Valve Interface D03 (NG6)
Flow Rating 18.5
Pressure Rating 5075
Valve Series DHA
Voltage 24 VDC
Actuation Type Solenoid Operated
Solenoid Electrical Connection 1/2" NPT ANSI/ASME B1.20.1
Spool Configuration Tandem Spool, P to T with A & B Blocked in Neutral
Approvals cULus Class I Div I
Positions 3-Position
Way 4-Way
Country of Manufacture Italy
Height 6.5
Length 12
Width 2
Weight 10

Description

The Atos DHA Valve is an On-Off, spool type directional valve equipped with explosion proof solenoids certified for safe operation in hazardous environments with potentially explosive atmosphere. All certifications met are listed below. DHA valves are SIL compliant with IEC 61508 (TUV certified). The flameproof enclosure of the solenoid prevents the propagation of accidental internal sparks or fire to the external environment.
The solenoid is also designed to limit the surface temperature within the classified limits.
