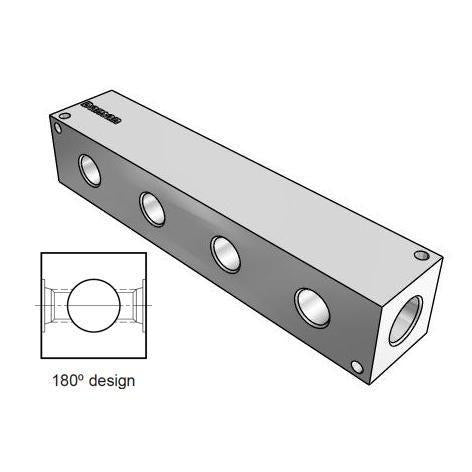

DH1800416S : Daman Header Manifold, Ductile Iron, 5000psi, 180 Degree, Four Station, #16 SAE (1) Ports

DamanSKU: DH1800416S
1-3 Days

Sale price$535.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-3 Days
Factory Stock 3.0
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Ductile Iron
Port Size #16 SAE (1")
Pressure Rating 5000
Port Configuration 180 Degree
Number Of Stations Four Station
Height 3 inches
Length 15.25 inches
Width 3 inches
Weight 0


Daman Header Blocks, also known as distribution manifolds, do not have valve or pattern machined features, only ports. The purpose is to connect several oil lines with one supply (pressure) or return (tank) port. A Zero Degree Header Manifold has the outlet port on one side only. A 90 Degree Header Manifold has the outlet ports on two adjacent sides. A 180 Degree Header Manifold has the outlet ports on two opposite sides. These are available with up to 10 stations, with SAE or NPT port threads.
