Deltrol Fluid ProductsSKU: 10179-08
1-3 Days
Price:
$64.99

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Flow Regulator
Adjustment Type Hidden Adjustment
Style Spool
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DFRA
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

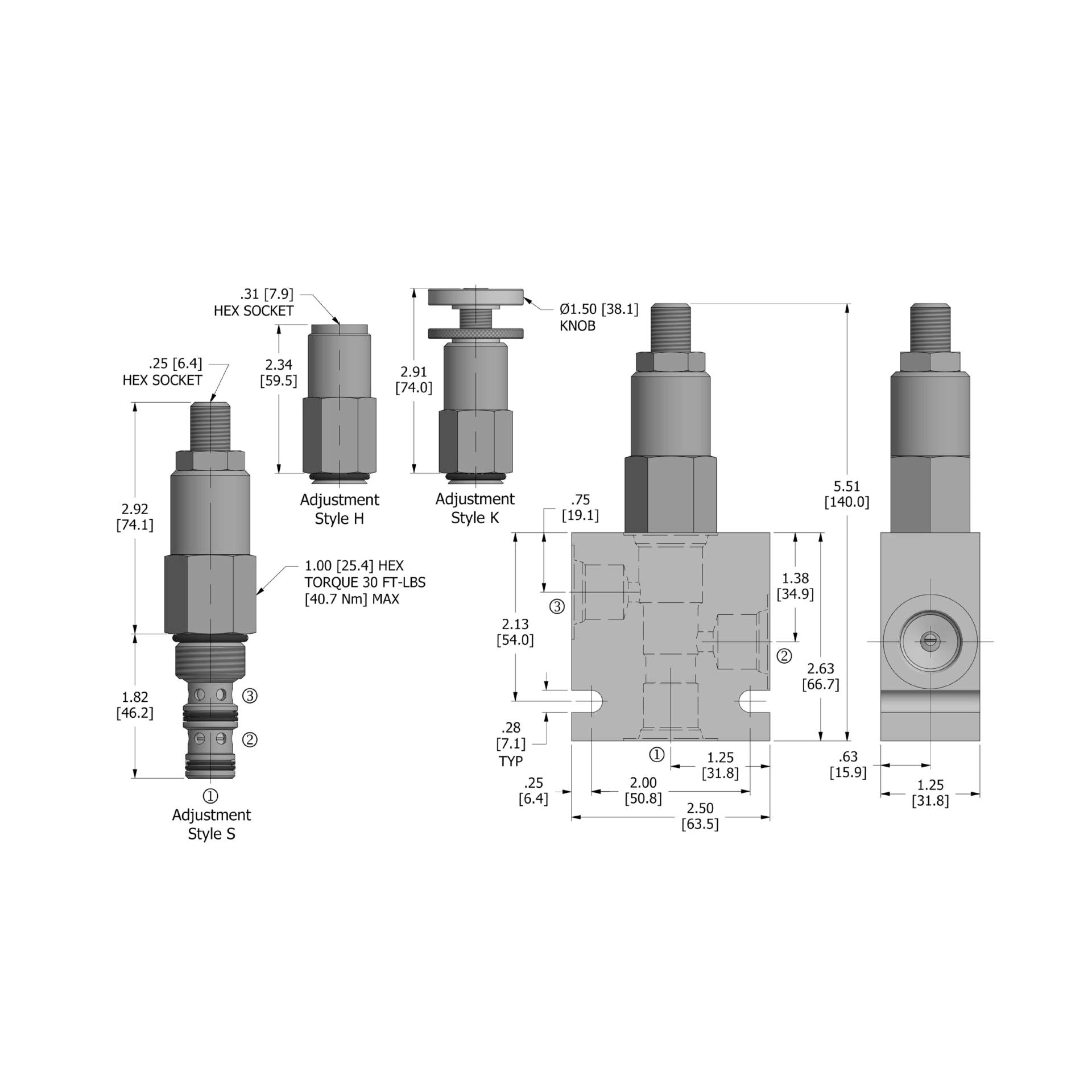

Height 1
Length 2.34
Width 1
Weight 2

Description

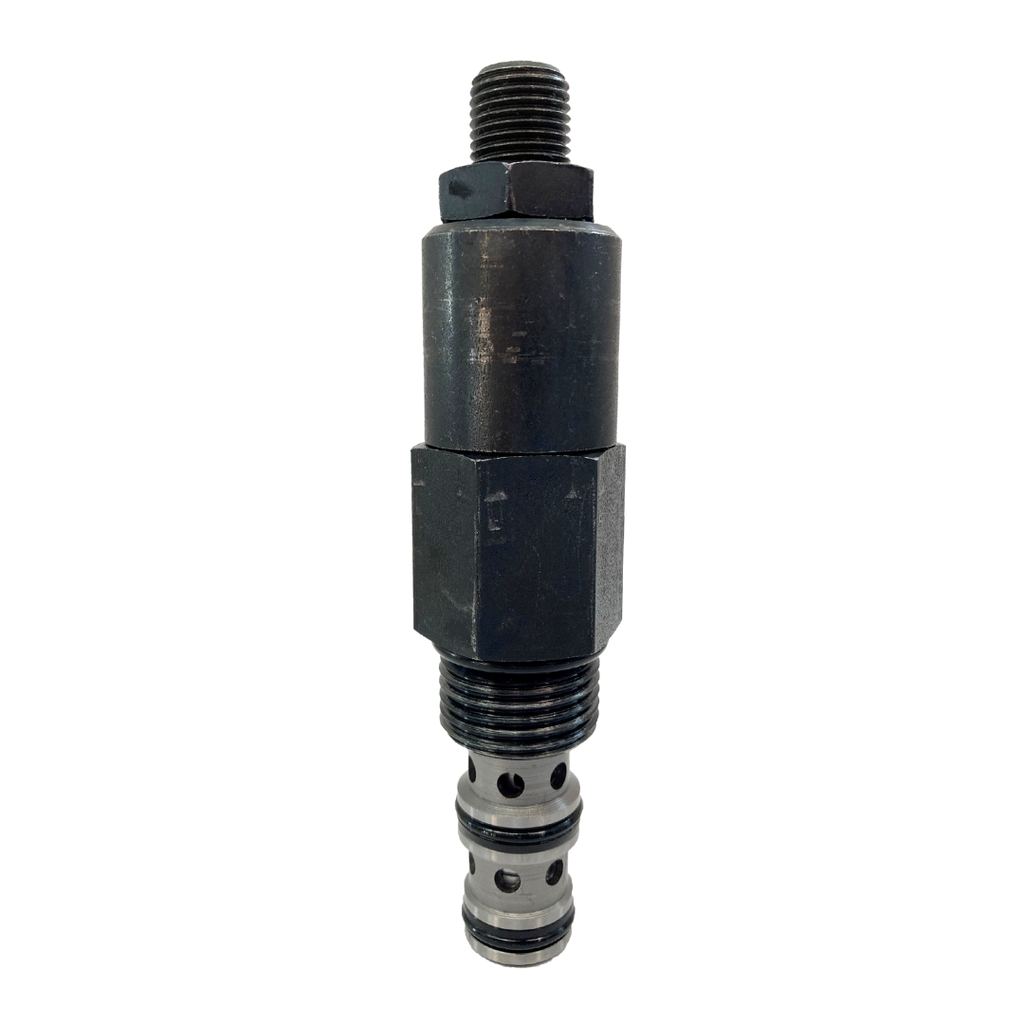

The Deltrol Fluid Products DFRA-100-3 Flow Regulator is an adjustable bypass-type cartridge valve that regulates priority flow while bypassing excess flow, regardless of downstream pressure. It maintains a constant flow rate from 1 to 10 gpm (with a maximum input of 10 gpm) and allows for adjustments of up to 40% of the maximum setting. The valve operates at pressures up to 3000 psi and is designed for reliable performance in temperatures ranging from -30°F to +250°F. It features pressure compensation for accurate flow control, with options for tamper-resistant adjustments and secure locking. Constructed from anodized aluminum, it is ideal for various industrial applications requiring precise flow regulation.
