Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Flow Regulator |
| Style | Spool |
| Flow Rating | 2.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DFRA |
| Cartridge Cavity | C-8-2 |
| Country of Manufacture | United States/Vietnam |
| Height | 1 |
| Length | 2.23 |
| Width | 1 |
| Weight | 2 |
Description

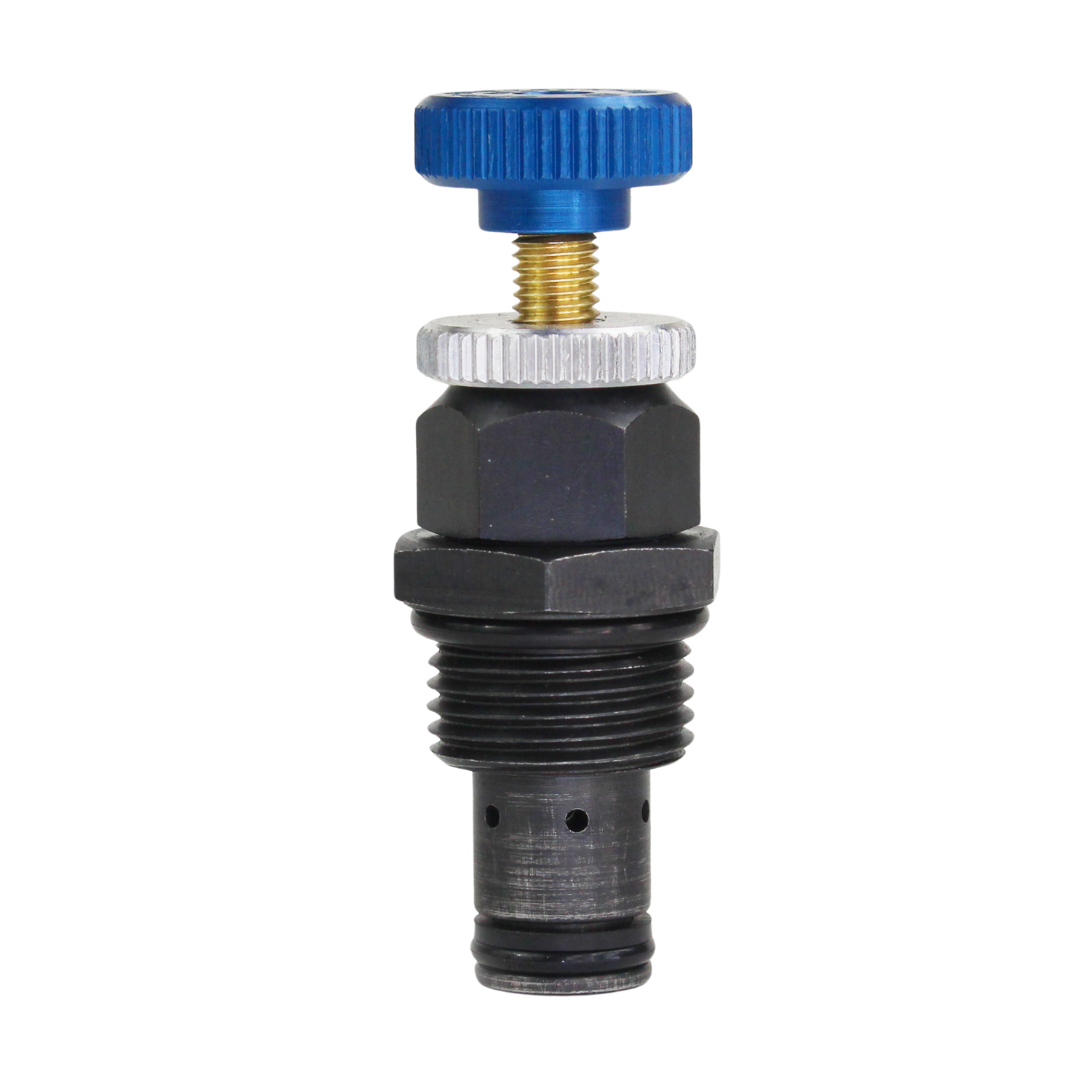

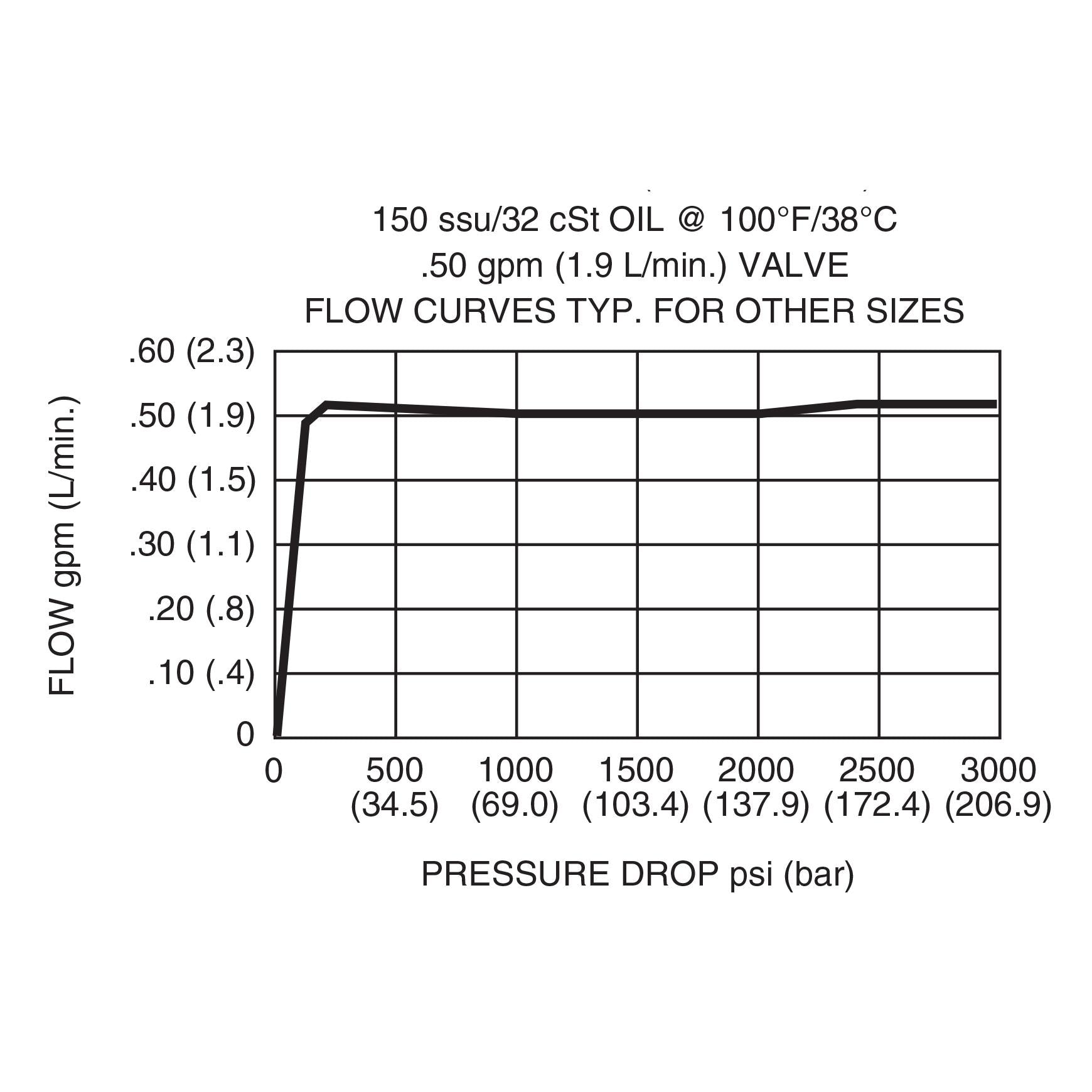

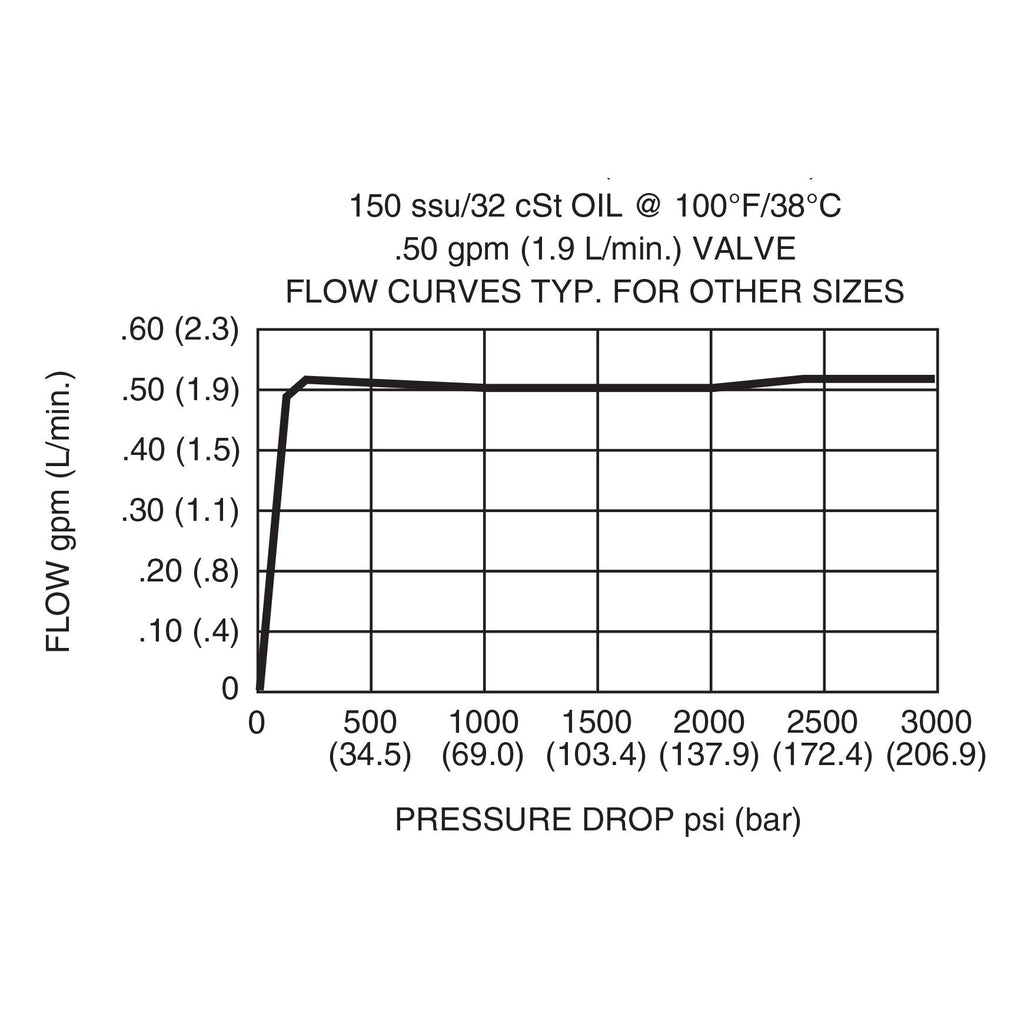

The Deltrol Fluid Products DFRA-080-2 Flow Regulator is an adjustable cartridge valve designed to maintain consistent flow rates in low-flow applications, regardless of downstream pressure. It allows for precise flow control, with the ability to adjust flow rates from 0.15 to 2 gpm, and can be fine-tuned up to 50% below the maximum setting. The valve features a pressure-compensated design that maintains accuracy despite pressure changes, operates with a minimum pressure differential of 75 psi, and includes a quiet response. With an aluminum knob for easy adjustments, it is ideal for applications requiring reliable flow regulation in the industry-standard cavity. It operates at up to 3000 psi and is suitable for temperatures ranging from -30°F to +250°F.
