Deltrol Fluid ProductsSKU: 10185-65
1-3 Days
Price:
$46.99

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 1-3 Days
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Type Flow Regulator
Adjustment Type Fixed, No Adjustment
Style Spool
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Series DFR
Cartridge Cavity C-10-3
Country of Manufacture United States/Vietnam

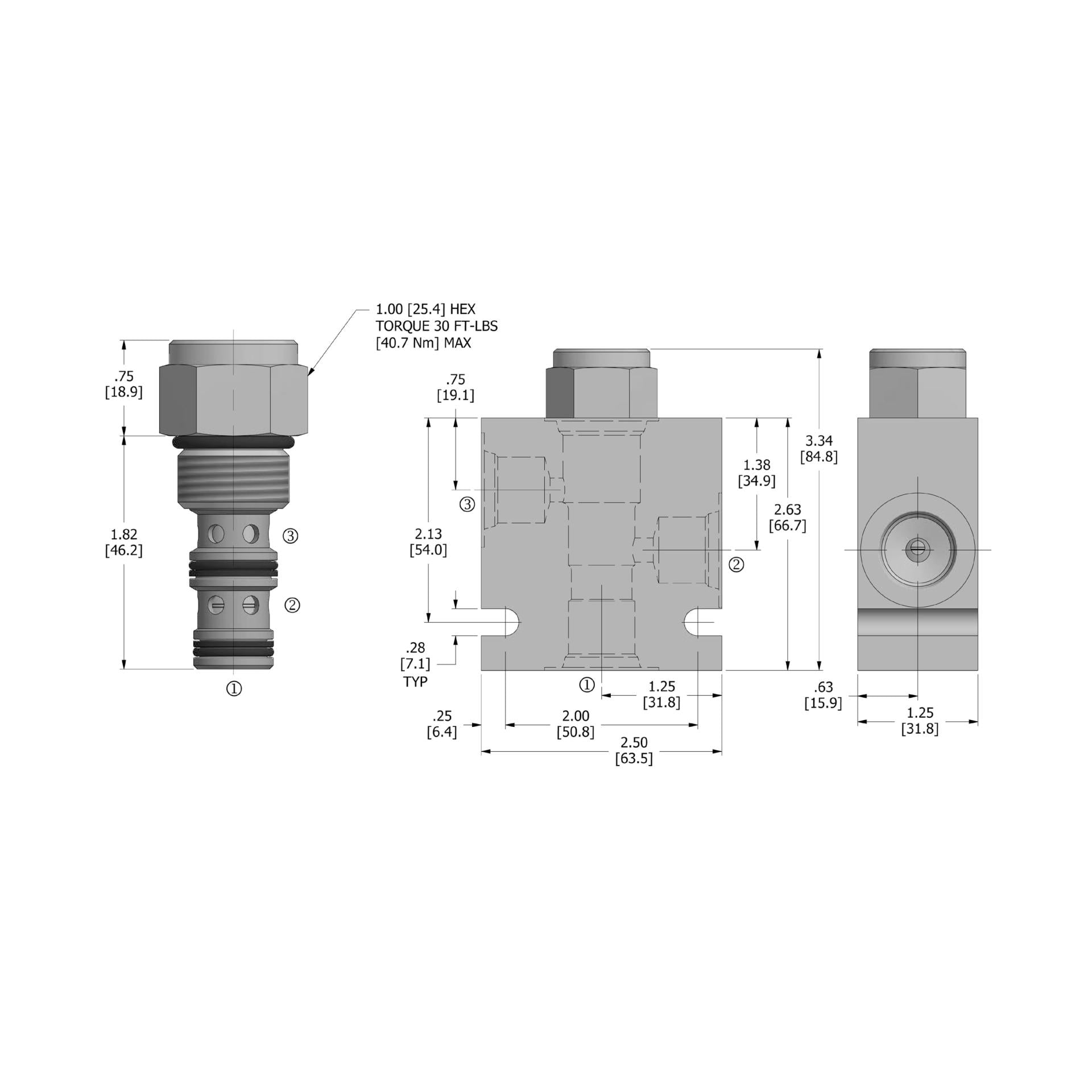

Height 1
Length 2.57
Width 1
Weight 2

Description

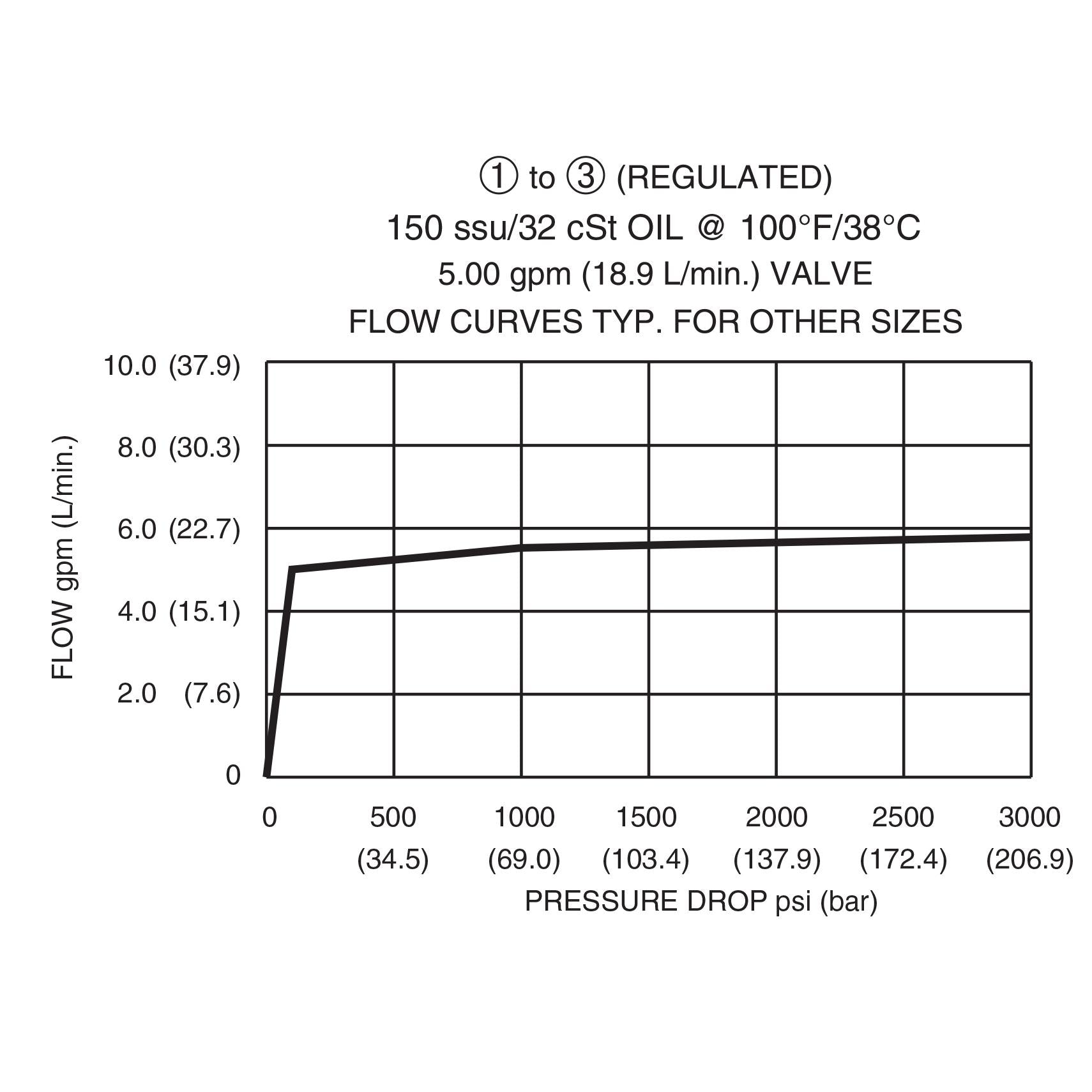

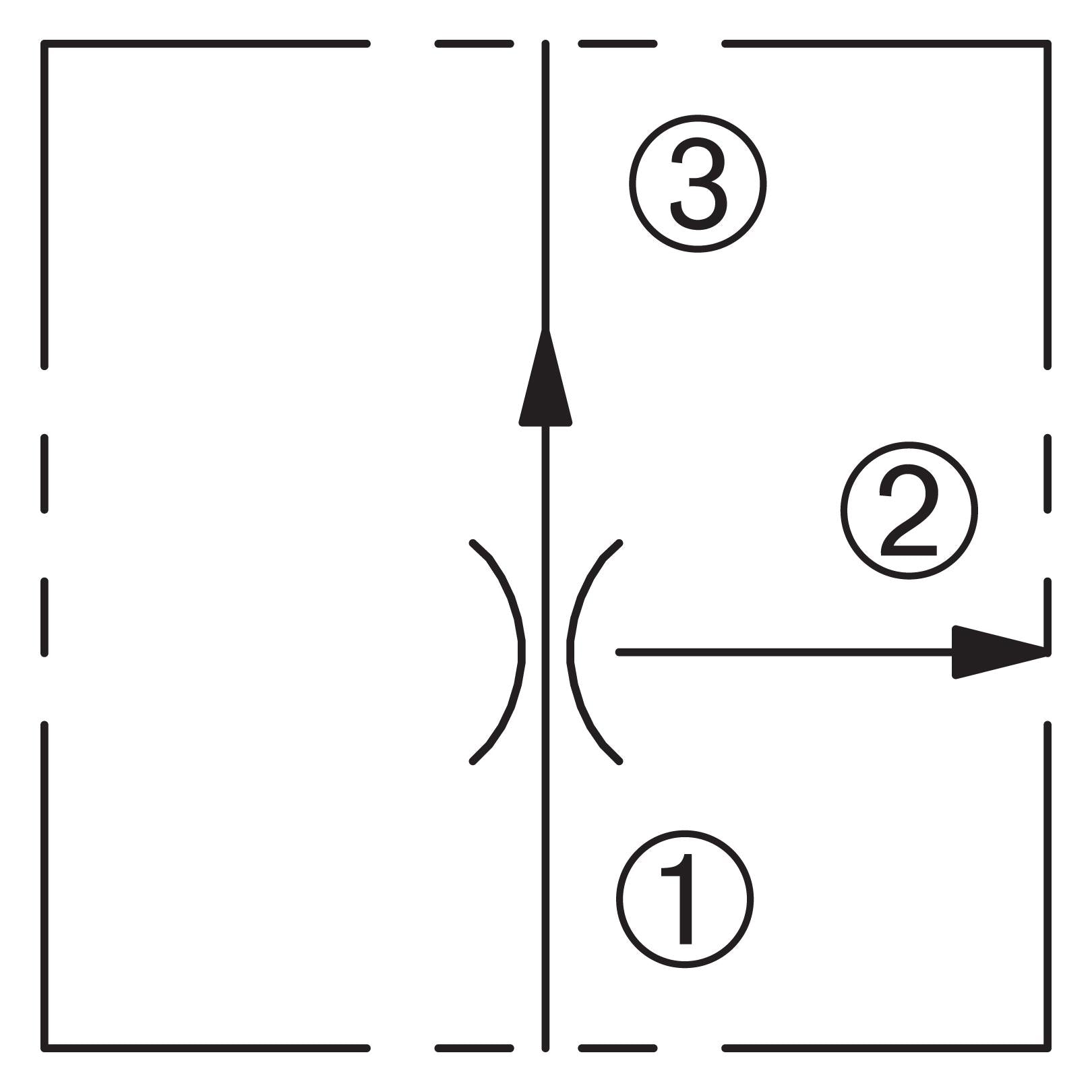

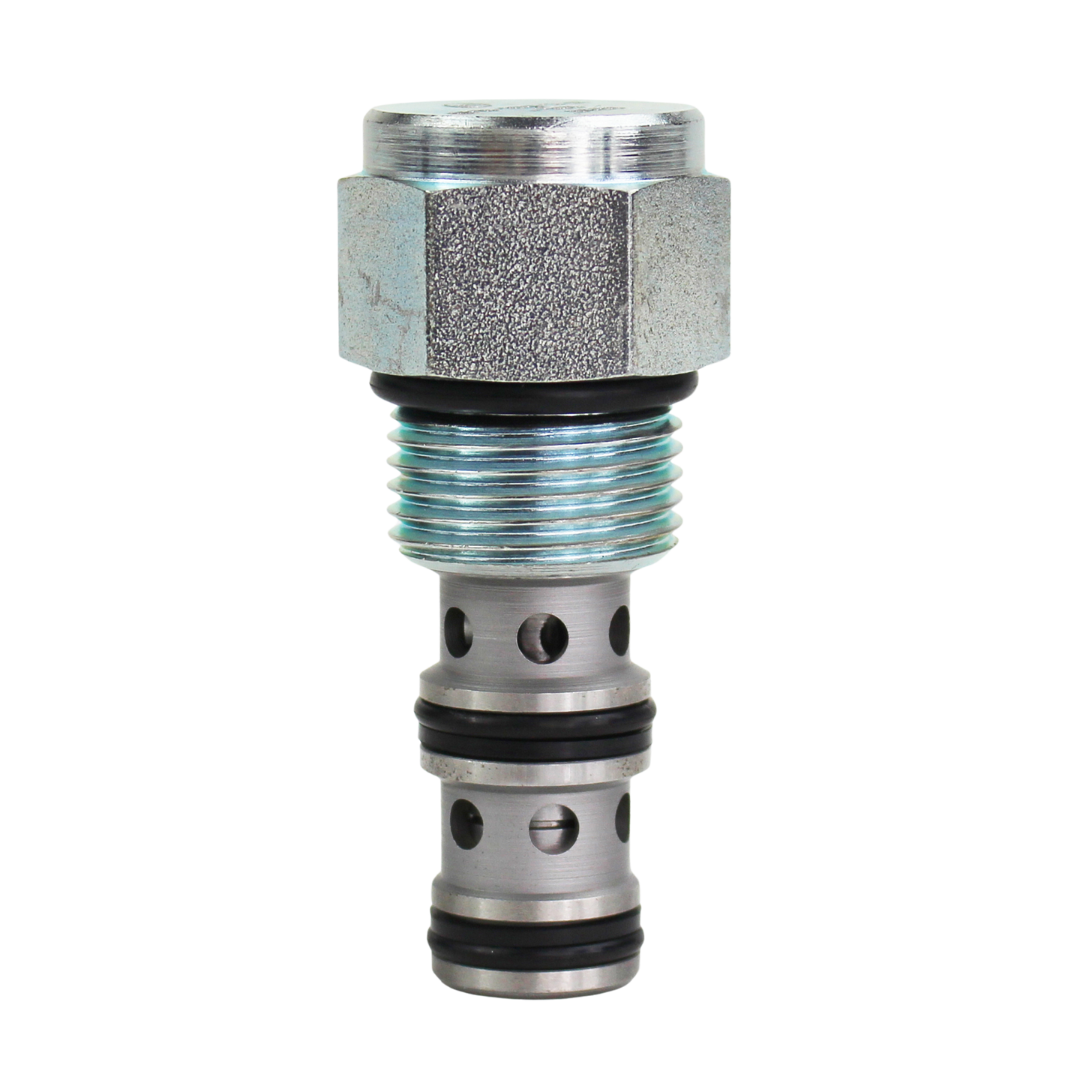

The Deltrol Fluid Products DFR-100-3 Flow Regulator is a fixed bypass-type cartridge valve designed to ensure a constant flow of priority fluid while bypassing any excess flow, regardless of downstream pressure. It maintains a steady flow rate from 1 to 6 gpm (up to 10 gpm maximum input), with excess flow directed through a bypass port. The valve is pressure-compensated, which means it adjusts to maintain accurate flow settings even with varying pressures. Operating at up to 3000 psi and suitable for temperatures from -30°F to +250°F, the DFR-100-3 is built from durable anodized aluminum and is ideal for applications requiring reliable and precise flow control.
