Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 1-3 Days |
| Factory Location | Bellwood, Illinois |
| Solid Model | |
| Valve Type | Needle |
| Adjustment Type | Knob Adjustment |
| Flow Rating | 20.0 |
| Pressure Rating | 3000 |
| Operating Temp Range | -30 to +250F |
| Seal Material | NBR |
| Series | DFC |
| Cartridge Cavity | C-10-2 |
| Country of Manufacture | United States/Vietnam |

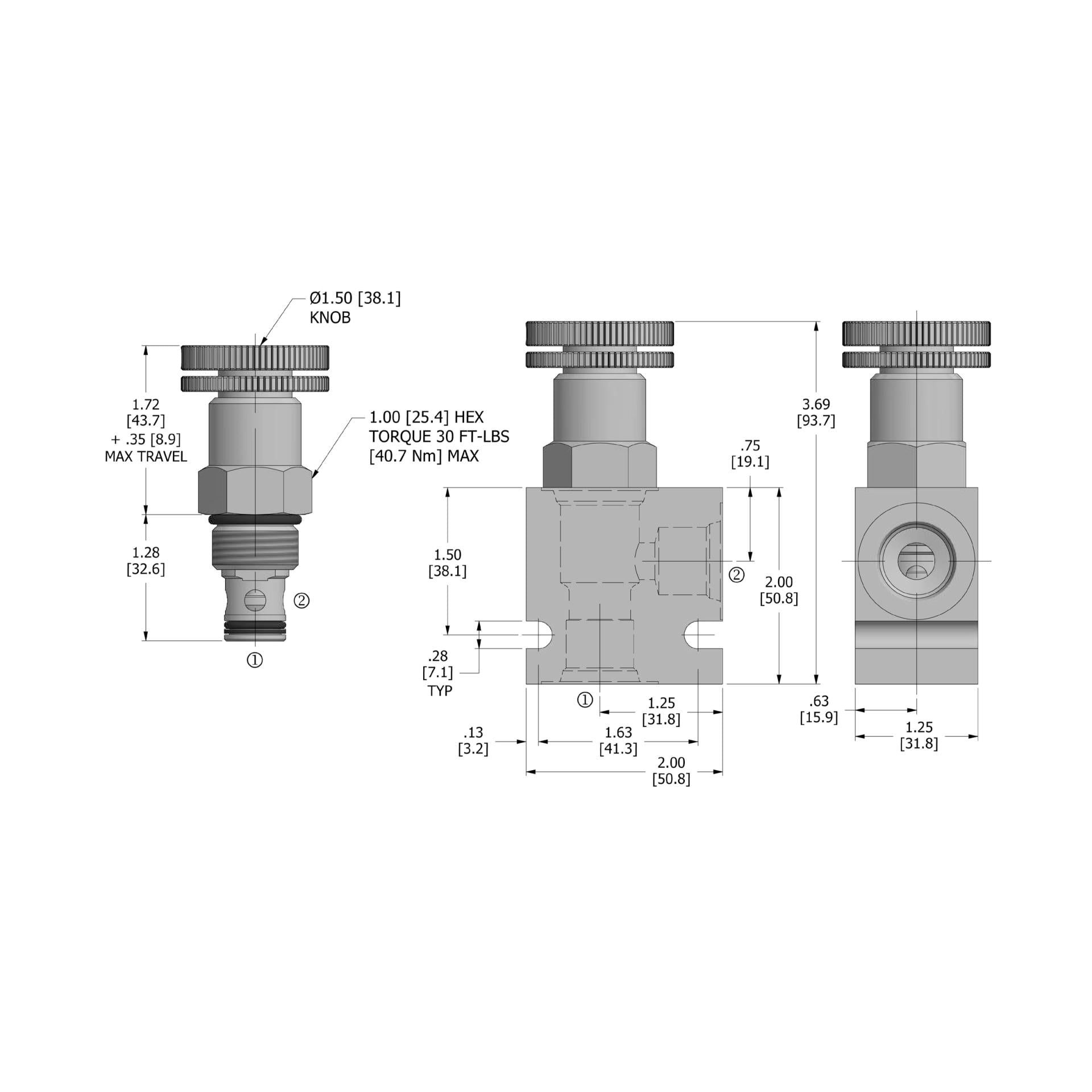

| Height | 2 |
| Length | 4.39 |
| Width | 2 |
| Weight | 2 |
Description

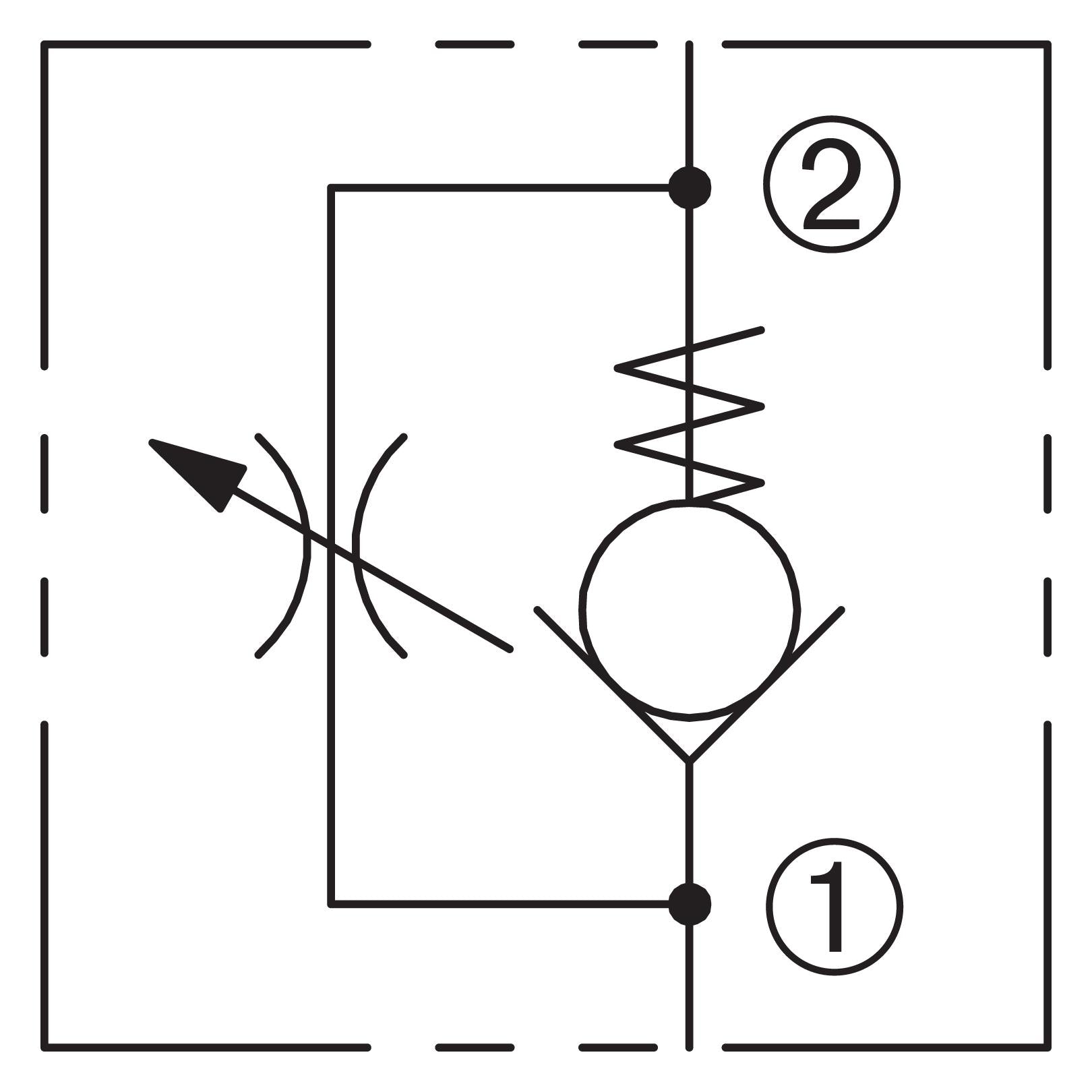

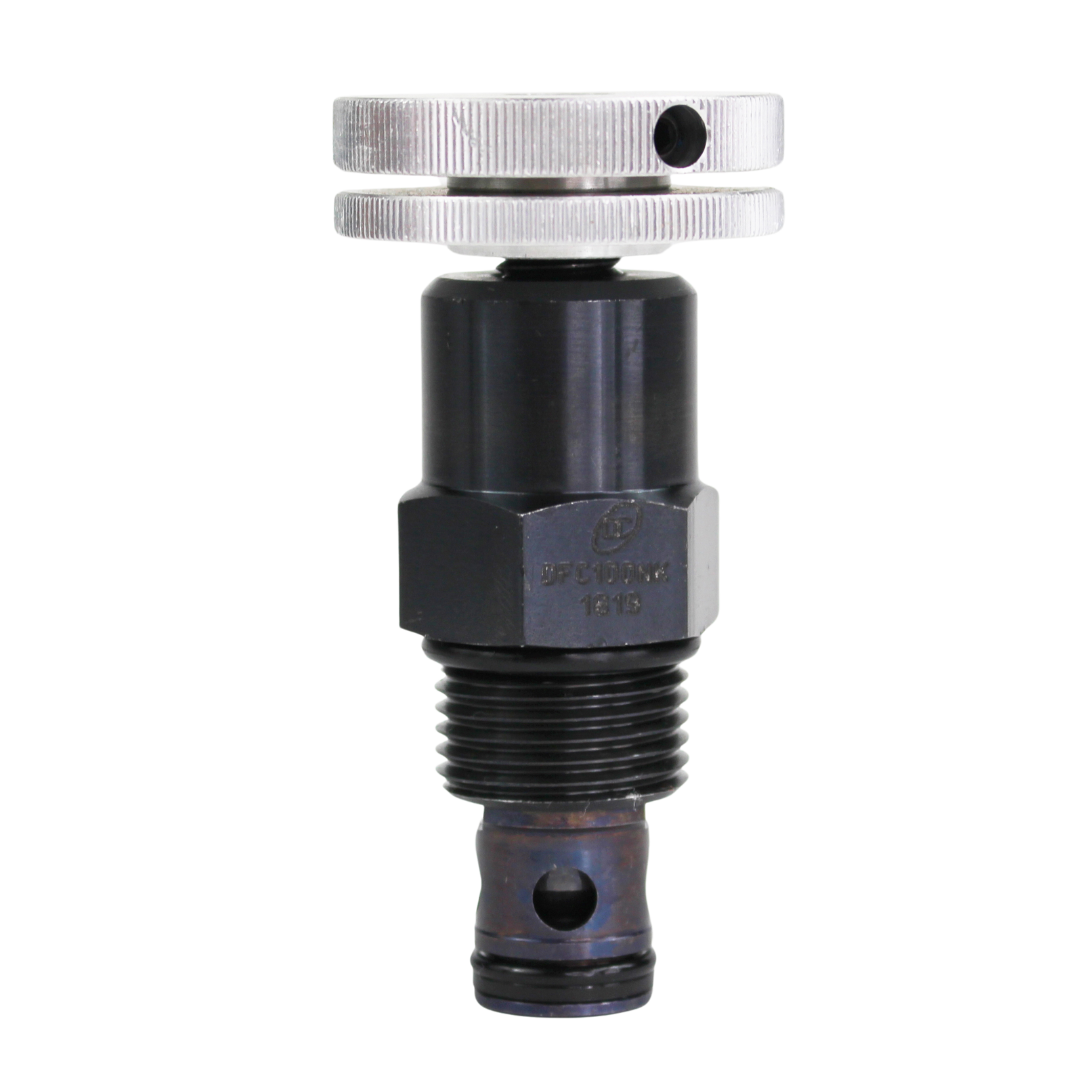

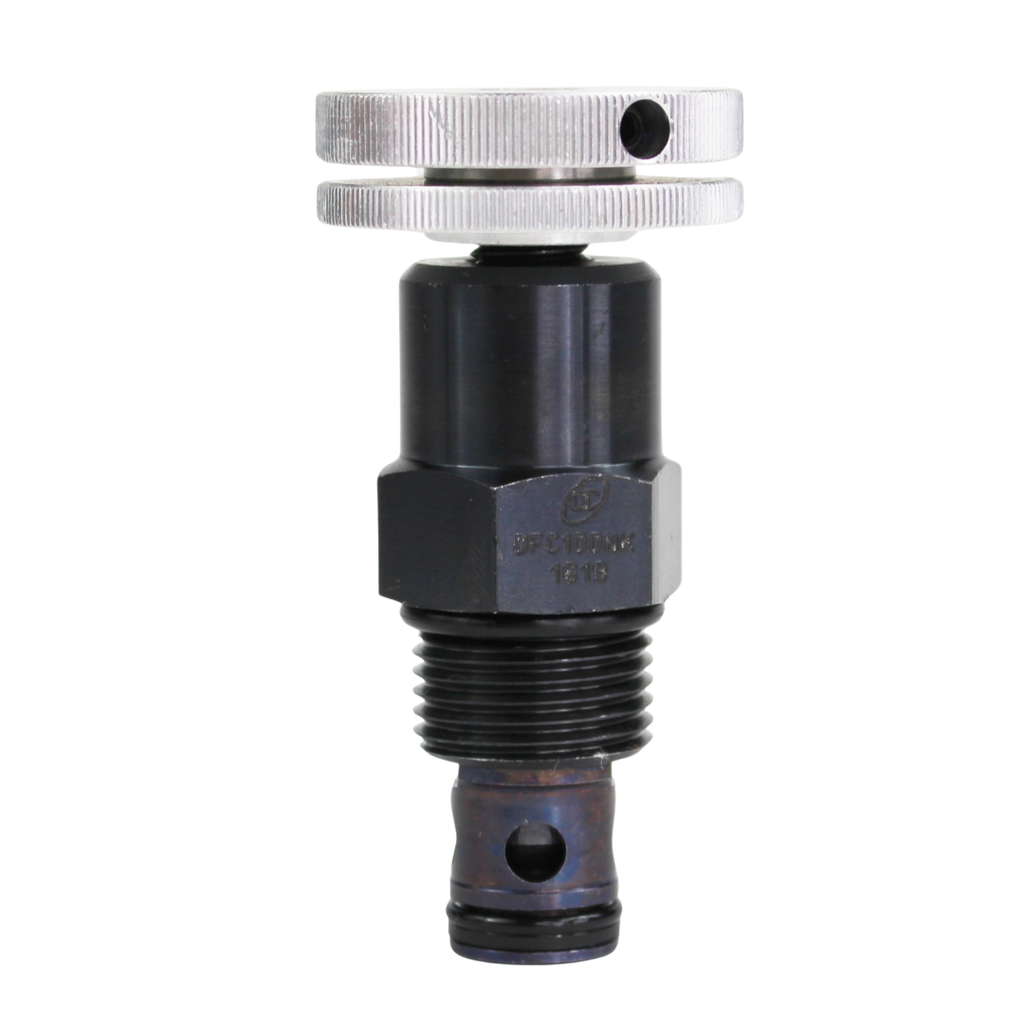

The Deltrol Fluid Products DFC-100 Adjustable Flow Control with Free Reverse Flow Valve is a high-performance cartridge valve that offers precise flow regulation in one direction while allowing unrestricted flow in the opposite direction. This valve adjusts flow restriction from port 2 to port 1 using a needle, while flow from port 1 to port 2 remains free. It supports up to 3000 psi and handles flow rates up to 20 gpm, making it suitable for high-flow applications. Featuring a hardened poppet and seat for durability, an aluminum knob for easy adjustments, and a common cavity design, this valve ensures reliable performance and longevity. It operates within a temperature range of -30°F to +250°F and is ideal for mineral-based fluids.
