Deltrol Fluid ProductsSKU: 10139-61
4-6 Weeks
Price:
$58.99

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Bellwood, Illinois
Solid Model

Click here to download

Valve Operation Relieving
Valve Type Relief
Adjustment Type Screw Adjustment
Style Poppet
Flow Rating 10.0
Pressure Rating 3000
Operating Temp Range -30 to +250F
Seal Material NBR
Outlet Pressure Range 100-3000
Pressure Range 100-3000
Series DDRV
Cartridge Cavity C-8-2
Country of Manufacture United States/Vietnam

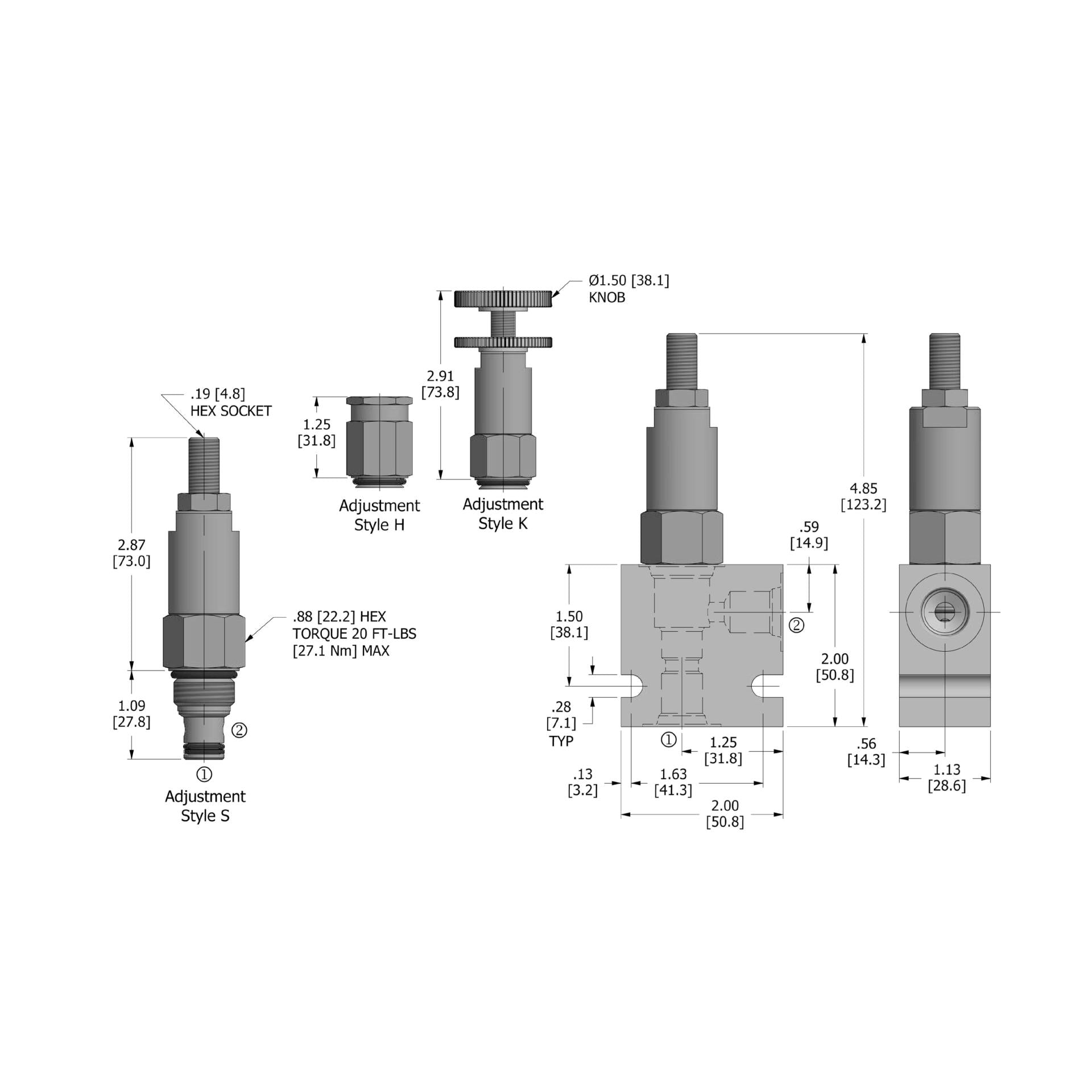

Height 1.5
Length 3.96
Width 1.5
Weight 2

Description

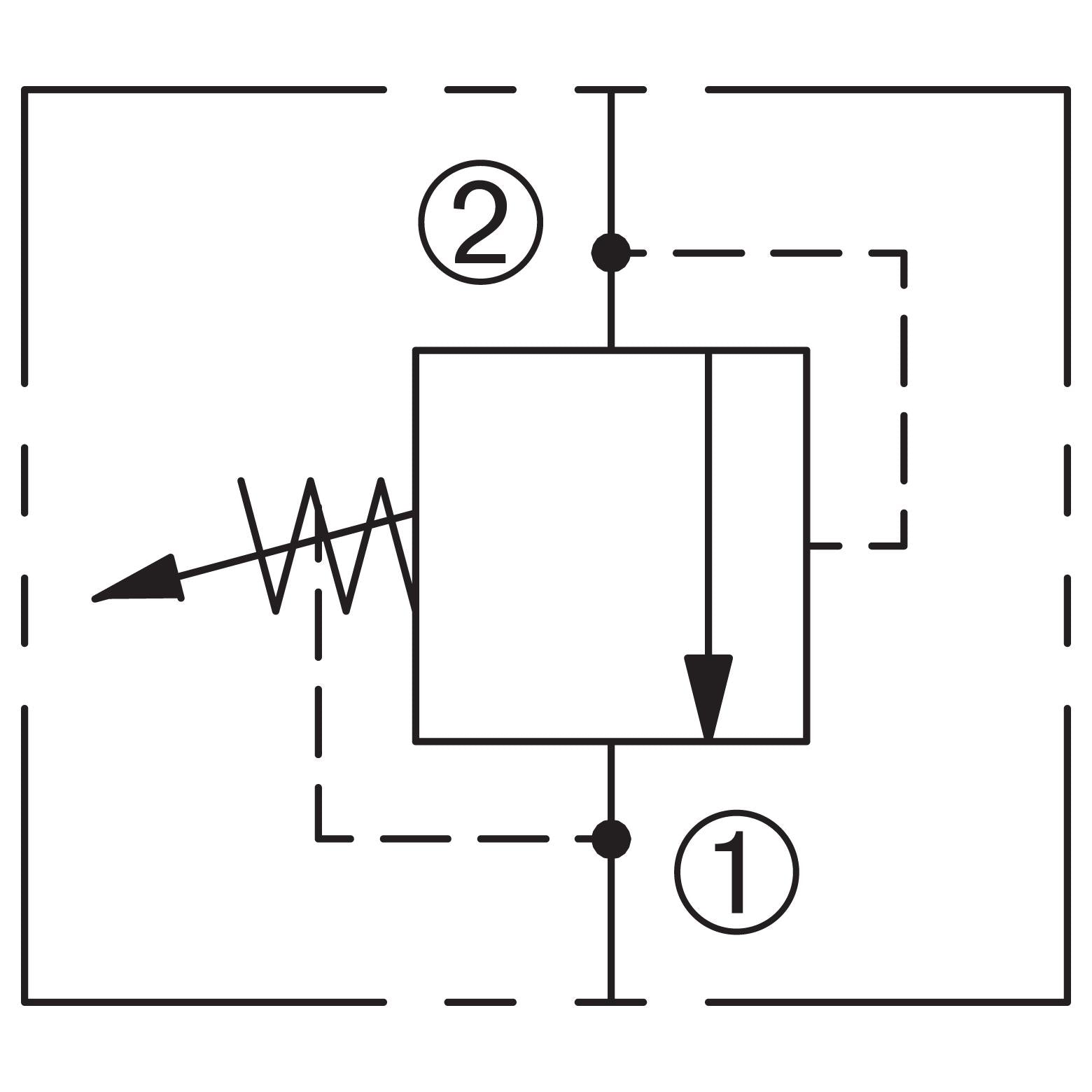

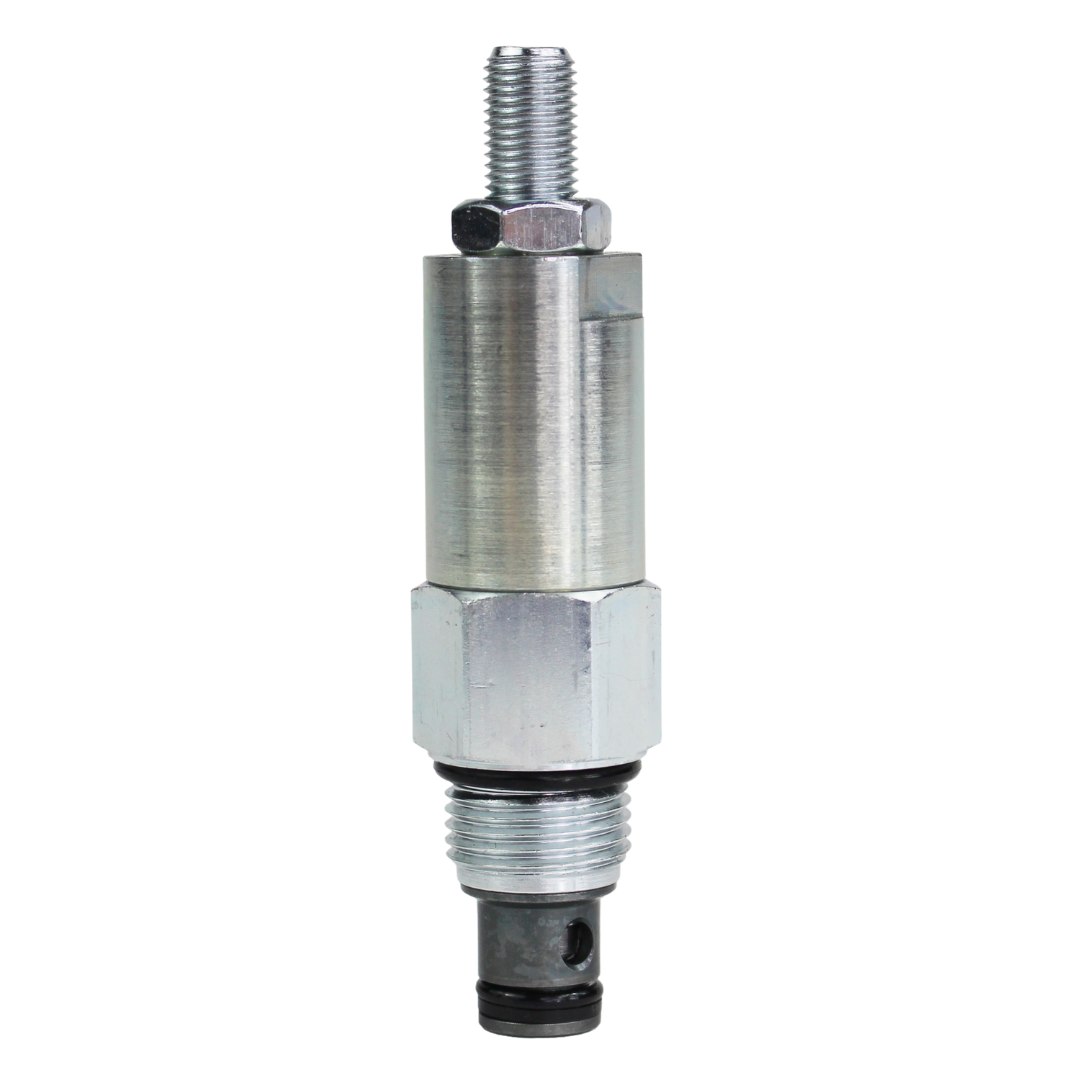

The Deltrol Fluid Products DDRV-080 Direct-Acting, Differential Area, Adjustable, Poppet Relief Valve is a high-efficiency valve designed to regulate pressure in hydraulic systems. It blocks flow from port 2 to port 1 until a preset pressure is reached, then opens to allow flow and prevent overpressurization. This valve offers rapid response to pressure changes, low pressure rise, and a hardened poppet for durability. It features adjustable settings with options for tamper resistance, and operates within a range of 50 to 3000 PSI with a flow capacity up to 10 GPM. Built from anodized aluminum, it ensures reliable performance across temperatures from -30°F to +250°F.
