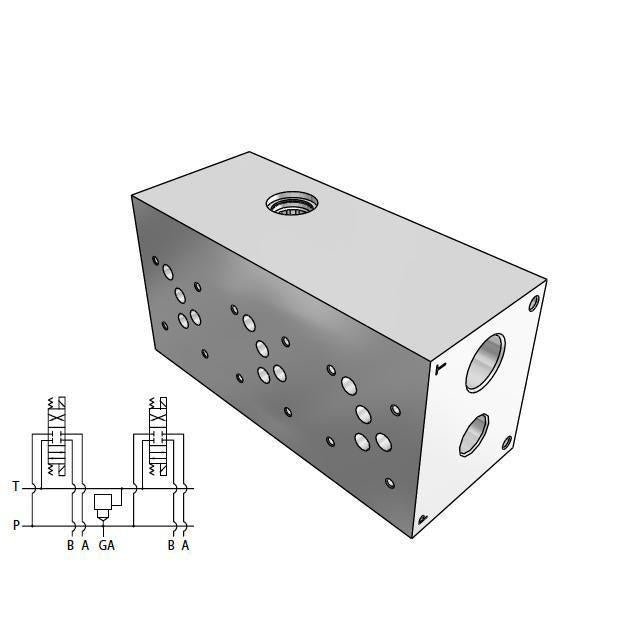

DD05HP033S/S : Daman CETOP Manifold, D05 (NG10), Parallel High Flow, Ductile Iron, 5000psi, 3-Station, #12 SAE (3/4") P Port, With T-3A Sun Cavity

DamanSKU: DD05HP033S/S
4-5 Weeks

Sale price$823.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-5 Weeks
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Ductile Iron
Pressure Rating 5000
Number Of Stations Three Station
Valve Pattern D05 (NG10)
Circuit Type Parallel Circuit High Flow
Valve Spacing 3.25 inches
Pressure Port Size #12 SAE (3/4")
Tank Port Size #16 SAE (1")
Relief Option With T-3A Sun Cavity
Height 4
Length 9.75
Width 5
Weight 26


Daman CETOP Manifolds are used for mounting directional control valves. Manifolds reduce plumber, the number of leak points, and improve the appearance and maintenance of the hydraulic system by centralizing the location of the valves. Directional control valves change the direction of fluid flow. These patterns usually have four oil passages with options for X and Y ports. Threaded or flanged ports provide the user connections with manifolds.
