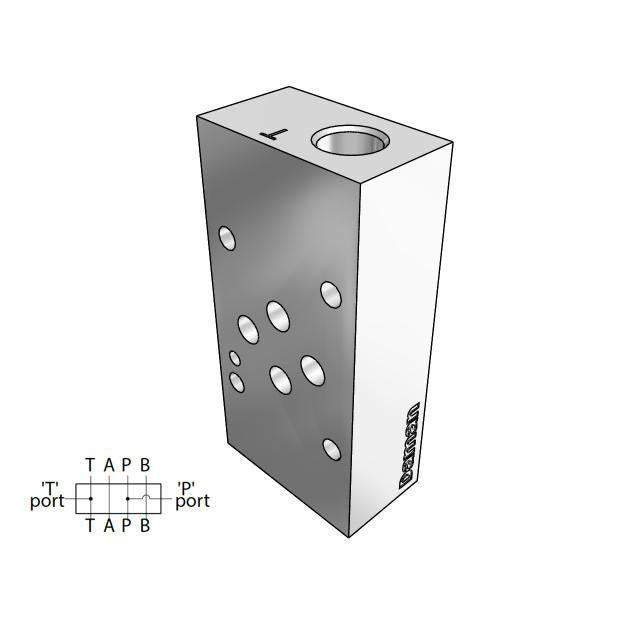

DD03TPPT4S : Daman Subplate, D03 (NG6), P and T Ports Tapped, #4 SAE (1/4)

DamanSKU: DD03TPPT4S
4-5 Weeks

Price:
Sale price$90.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 4-5 Weeks
Factory Location Mishawaka, Indiana
Solid Model Click here to download
Material Ductile Iron
Port Size #4 SAE (1/4")
Pressure Rating 5000
Valve Pattern D03 (NG6)
Tapping Plate Type P and T Ports Tapped
Height 3.56
Length 1.75
Width 1

Description

Daman Subplates are also known as mounting pads, sub bases, and base plates. Subplates give valves a mounting pad and allow for many different port styles and locations to meet the design requirements of the system. Daman uses the term 'subplates' to refer to mounting only one valve in a low profile (height) configuration. Manifolds are used to refer to applications where more than one valve will be mounted and is generally taller (height).
