|Usually Ships Within||1-3 Days|
|Factory Location||Mishawaka, Indiana|
|Data Sheet||Click here to download|
|Solid Model||Click here to download|
|Port Size||#4 SAE (1/4")|
|Valve Pattern||D03 (NG6)|
|Tapping Plate Type||A and B Ports Tapped|

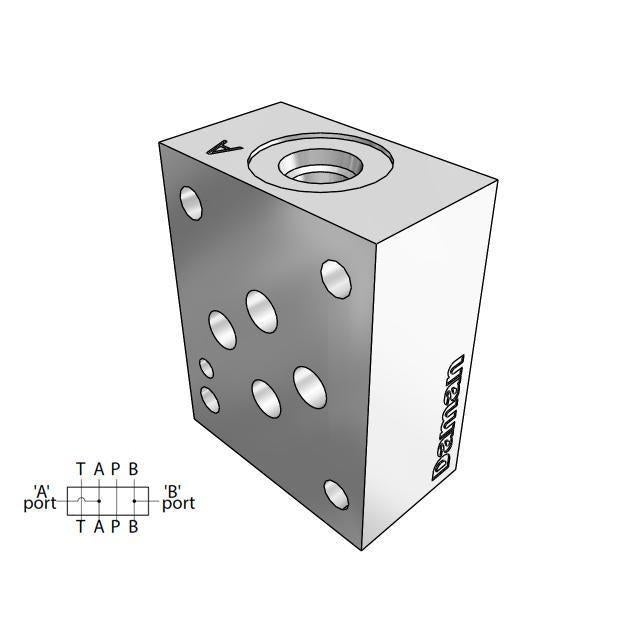

Daman Subplates are also known as mounting pads, sub bases, and base plates. Subplates give valves a mounting pad and allow for many different port styles and locations to meet the design requirements of the system. Daman uses the term 'subplates' to refer to mounting only one valve in a low profile (height) configuration. Manifolds are used to refer to applications where more than one valve will be mounted and is generally taller (height).
