|Usually Ships Within||1-3 Days|
|OneHydraulics Houston Stock||0|
|Factory Location||Mishawaka, Indiana|
|Data Sheet||Click here to download|
|Number Of Stations||Two Station|
|Valve Pattern||D03 (NG6)|
|Circuit Type||Parallel Circuit Standard Flow|
|Valve Spacing||2.13 inches|
|Pressure Port Size||#10 SAE (5/8")|
|Tank Port Size||#10 SAE (5/8")|
|Relief Option||With T-10A Sun Cavity|

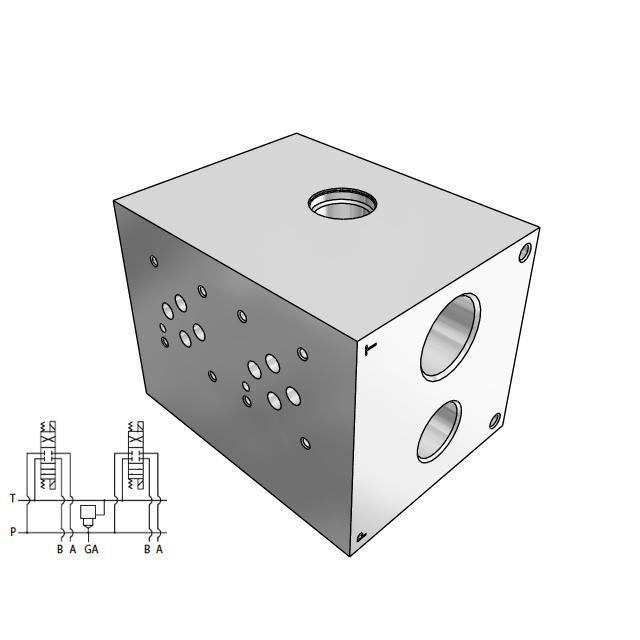

Daman CETOP Manifolds are used for mounting directional control valves. Manifolds reduce plumber, the number of leak points, and improve the appearance and maintenance of the hydraulic system by centralizing the location of the valves. Directional control valves change the direction of fluid flow. These patterns usually have four oil passages with options for X and Y ports. Threaded or flanged ports provide the user connections with manifolds.
