Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MBPT |
| Country of Manufacture | Italy |
| Height | 2.4 |
| Length | 5.34 |
| Width | 2.4 |
| Weight | 2.78 |
| Side 1 Size | 2 (-32) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 2-11 (-32) |
| Side 2 Type | BSP/JIS |
Description

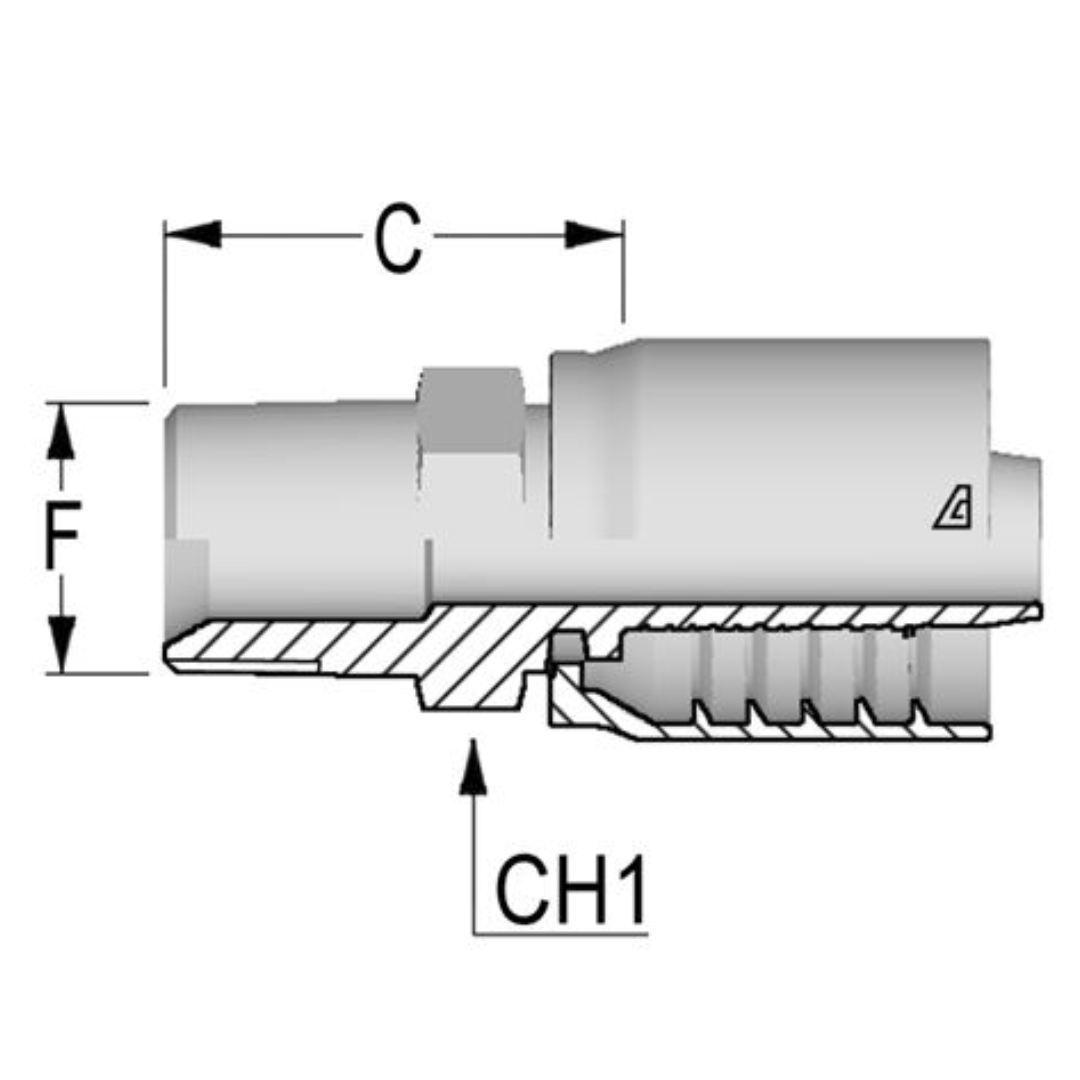

The Alfagomma One-Piece AlfaCrimp D-MBPT Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a BSP (British Standard Pipe) or JIS (Japanese Industrial Standard) male tapered connection. This fitting uses a non-skive crimp design, which means there’s no need to remove or prepare any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing enhanced strength and resistance to pressure. The male tapered BSP/JIS connection ensures a reliable, durable seal, making this fitting ideal for high-pressure fluid power systems and industrial applications that require long-lasting, secure connections.
