Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Swivel |
| Series | D-FJ45 |
| Country of Manufacture | Italy |
| Height | 2.4 |
| Length | 15.74 |
| Width | 2.4 |
| Weight | 3.48 |
| Side 1 Size | 2 (-32) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 21/2-12 (-32) |
| Side 2 Type | JIC |
Description

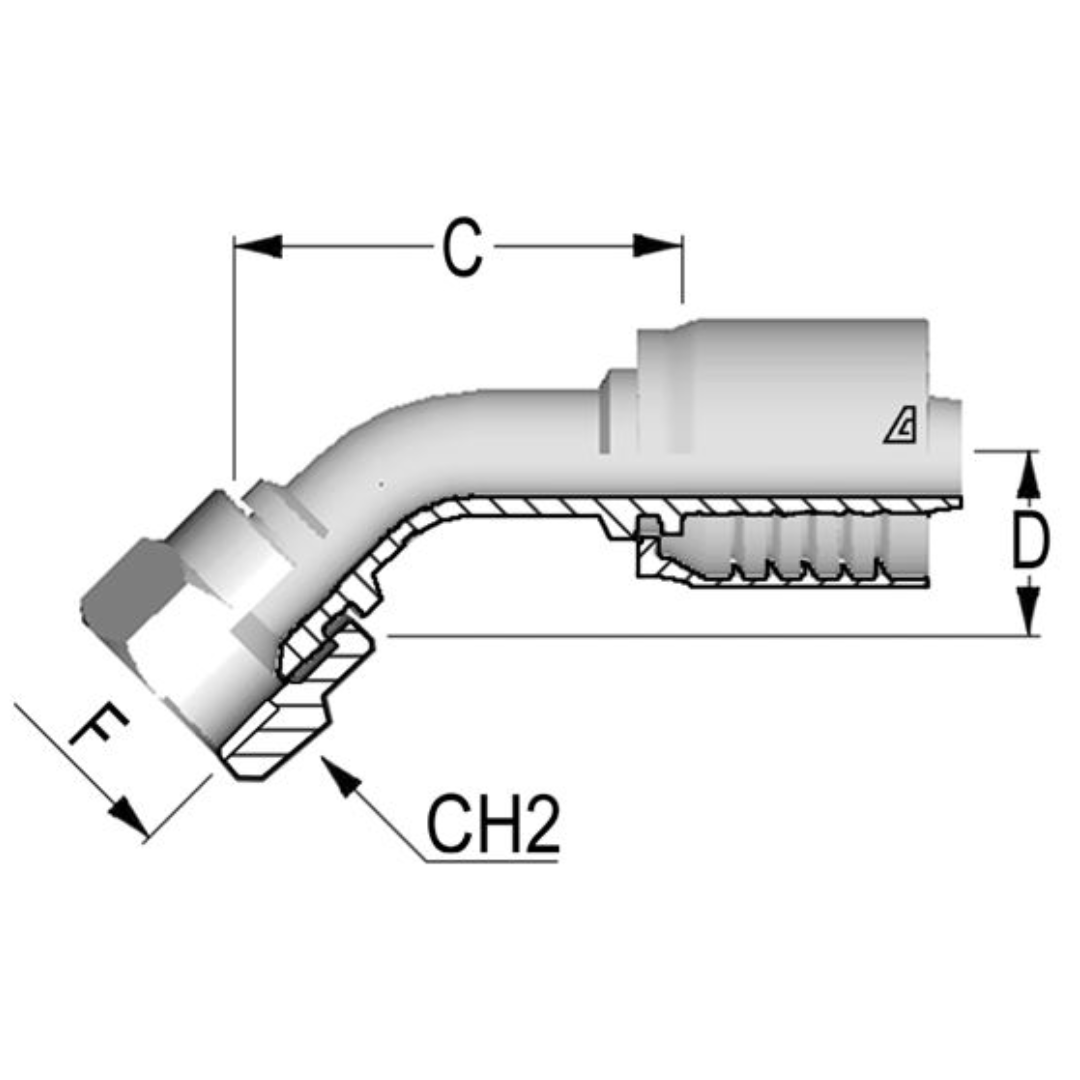

The Alfagomma One-Piece AlfaCrimp D-FJ45 Fitting is a 45-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 45° JIC (Joint Industrial Council) female swivel connection with a 37° seat. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which makes the process quicker and easier. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing high strength and resistance to pressure. The 45° JIC female swivel connection ensures a durable, reliable seal, making this fitting ideal for high-pressure fluid power systems and industrial applications where secure, long-lasting connections are needed.
