Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | '6000 |
| Fitting Style | Rigid |
| Series | D-C62S |
| Country of Manufacture | Italy |
| Height | 1.7 |
| Length | 6.99 |
| Width | 1.7 |
| Weight | 3.35 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 2" (-32) |
| Side 2 Type | Code 62 |
Description

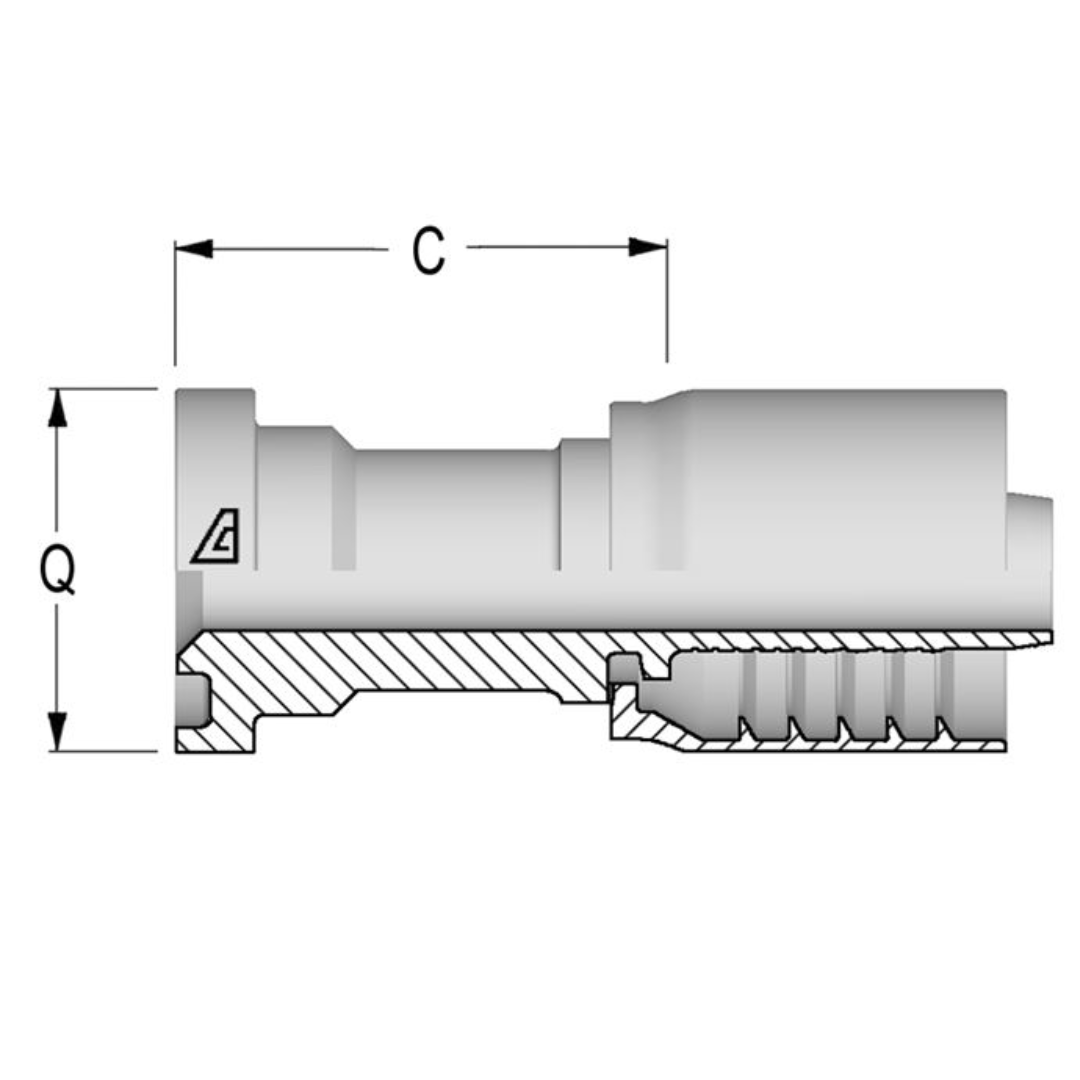

The Alfagomma One-Piece AlfaCrimp D-C62S Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 6000 PSI SAE J518 Code 62 flange. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which saves time and improves efficiency. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering increased strength and resistance to high pressures. The 6000 PSI SAE J518 Code 62 flange ensures a durable and reliable connection, making this fitting ideal for high-pressure fluid power systems and industrial applications that require secure, long-lasting seals.
