Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | D-FBPO |
| Country of Manufacture | Italy |
| Height | 1.7 |
| Length | 3.3299999999999996 |
| Width | 1.7 |
| Weight | 3.05 |
| Side 1 Size | 1 1/2 (-24) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/2-11 (-24) |
| Side 2 Type | BSP |
Description

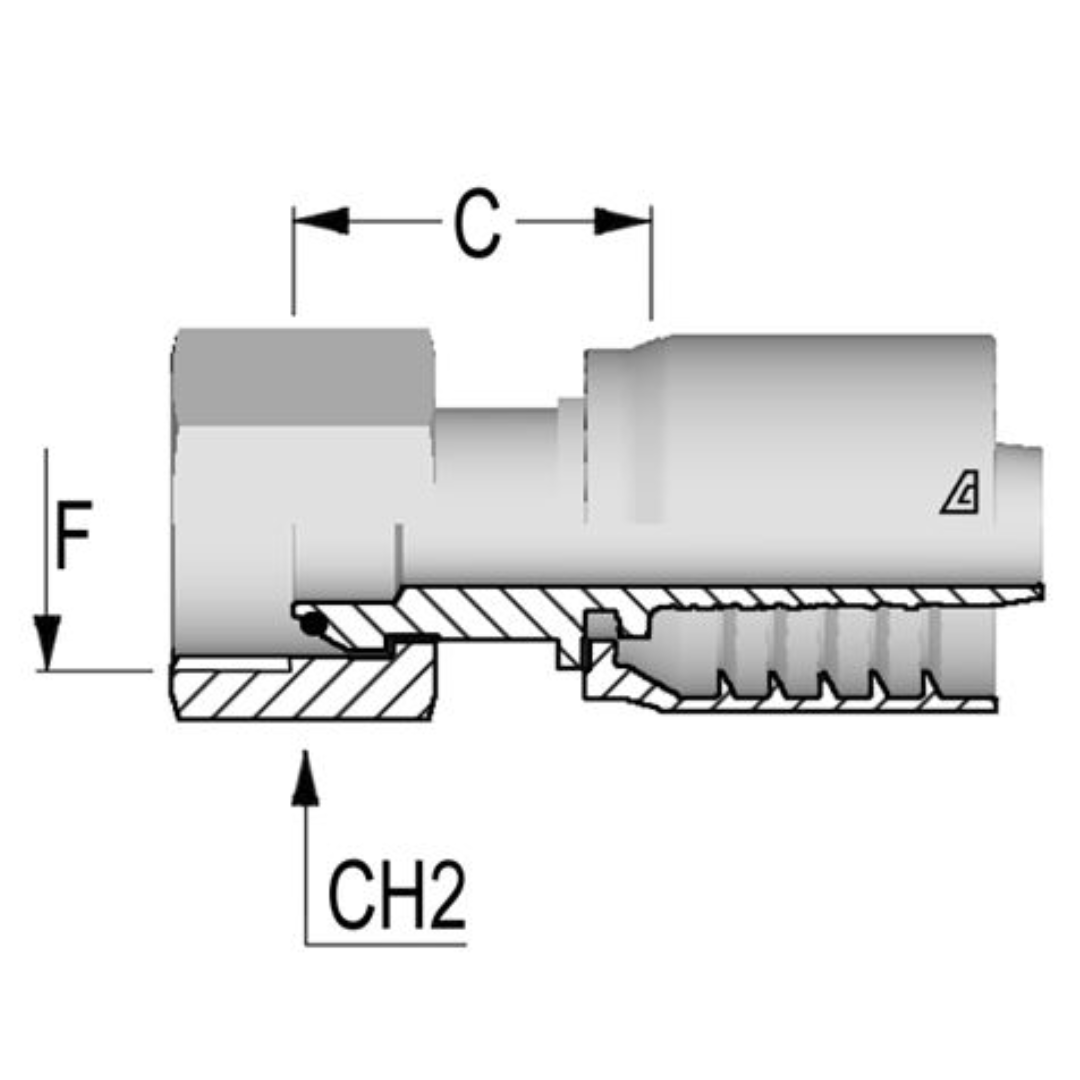

The Alfagomma One-Piece AlfaCrimp D-FBPO Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a BSP (British Standard Pipe) O-ring female swivel connection with a 60° cone. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The BSP O-ring female swivel 60° cone ensures a durable and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
